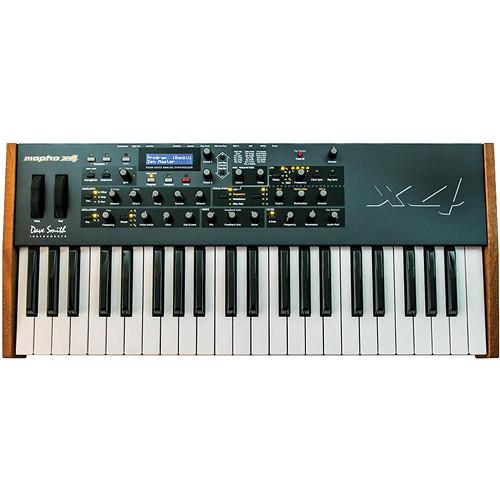

User Manual for Sequential Mopho x4 44-Key Polyphonic Analog Synthesizer Click to enlarge the picture
Contents of the user manual for the Sequential Mopho x4 44-Key Polyphonic Analog
- Product category: Synthesizer Keyboards Sequential
- Brand: Sequential
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sequential Synthesizer Keyboards
 |
User manual for the Sequential Mopho x4 44-Key Polyphonic Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sequential product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sequential user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sequential product will considerably shorten its lifespan!
|

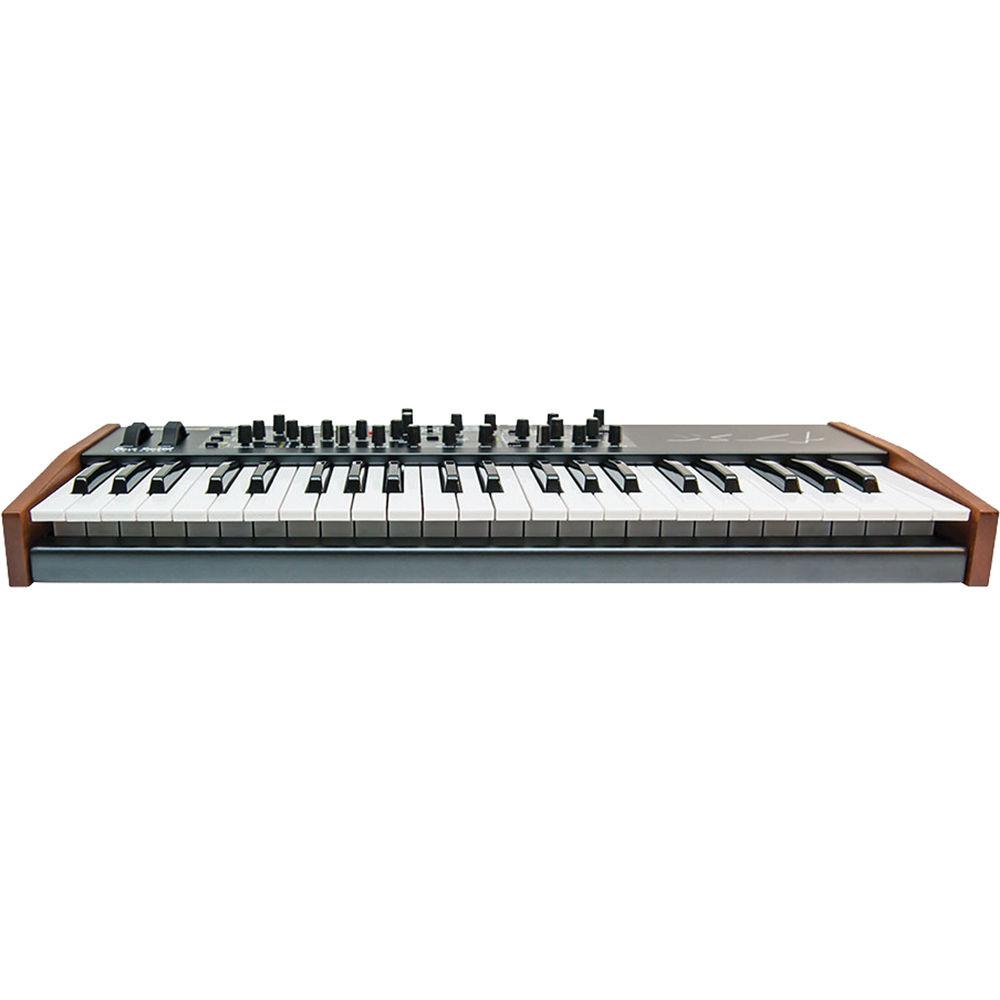

Product description The Mopho x4 44-Key Polyphonic Analog Synthesizer from Dave Smith Instruments is a 4-voice polyphonic analog synthesizer with 44 semi-weighted, velocity sensitive keys with aftertouch. Each voice is powered by 2 oscillators that offer a selection between sawtooth, triangle, saw/triangle, and variable pulse width square wave waveforms. In additional to dual oscillators, each voice also has two sub-octave generators designed for creating sub-bass tones. You can alter and shape the voices through their Curtis low-pass filter, 4 LFOs, and 3 envelope generators.
Further sonic sculpting can be done through the voice-independent 16x4 gated step sequencer and arpeggiator. The Mopho x4 offers a variety of connectivity, including a 5-pin DIN MIDI input, output/thru, and poly chain connection that allows you to connect the Mopho x4 to a Mopho, Tetra, or Prophet '08 synth for an increased voice count. While it features a variety of knobs for hands-on control, the free downloadable software editor for Mac and PC allows you to use your computer to edit sounds on the Mopho x4 via its USB port. - Polyphonic Mopho
- Building upon the same voice architecture of the Mopho and Mopho Keyboard, the Mopho x4 boasts 4-voice polyphony in a portable package. Use it to create unison basses, leads, sequences, and ethereal pads
- 4 Times the Voice
- Each of Mopho x4's four voices is composed of two analog oscillators, two sub octave generators, a selectable 2- or 4-pole Curtis low-pass filter, three 5-stage envelope generators, four LFOs, a re-latchable arpeggiator, and a 16 x 4 step sequencer. Its voice also comes packed with 20 modulation sources and almost 50 destinations.
- Work Less, Play More
- Every parameter is fully programmable and editable from the front panel. The controls are designed for quick access so you can tweak knobs without missing a beat
The x4's full-sized, 44-note semi-weighted keyboard has aftertouch and velocity sensitivity. The full-sized pitch and mod wheels are freely assignable In the Box Sequential Mopho x4 44-Key Polyphonic Analog Synthesizer 100 to 240V Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sequential Mopho x4 44-Key Polyphonic Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

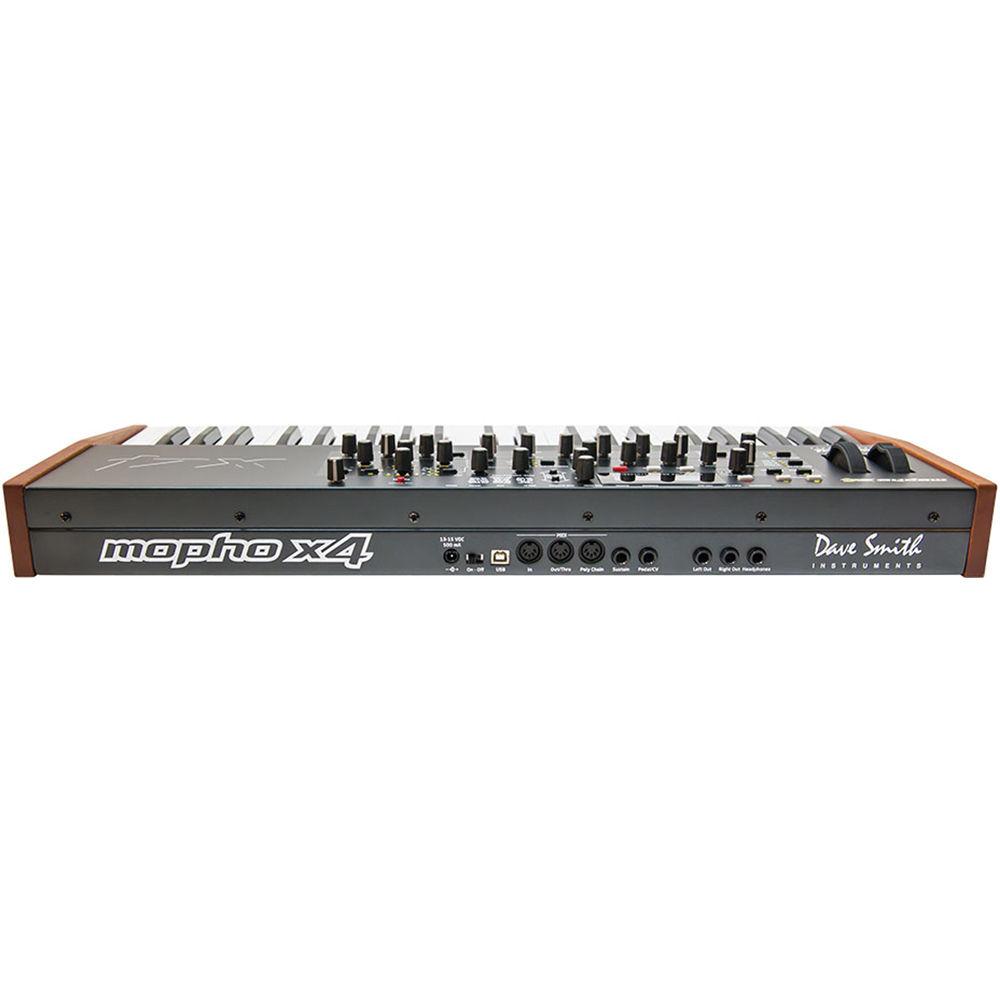

Technical parametersSequential Mopho x4 Specs | Keyboard | 44 semi-weighted keys (F to C) with velocity and aftertouch | | Wheels | 1x spring-loaded pitch wheel
1x modulation wheel | | MIDI | 1x 5-pin DIN MIDI input
1x 5-pin DIN MIDI output/thru
1x 5-pin DIN MIDI poly chain
1x USB type B | | Audio Outputs | 2x 1/4" (6.3 mm) unbalanced outputs
1x 1/4" (6.3 mm) stereo headphone output | | Input | 1x 1/4" (6.3 mm) sustain pedal input (accepts normally on or off momentary footswitch with 1/4" phone plug)
1x 1/4" (6.3 mm) TRS expression pedal/control voltage input (3.3 V DC maximum) | | Voices | 4 | | Oscillators | 2 per voice, with hard sync | | Waveform Type | Sawtooth, triangle, saw/triangle, variable pulse width square waves | | Generators | 1x 1 octave down sub-octave generator
1x 2 octave down sub-octave generator
1x White noise generator
1x Feedback loop per voice with programmable level and gain | | Low-Pass Filter | 1x Curtis low-pass switchable 2- or 4-pole filter with audio rate modulation per voice (self oscillating in 4-pole mode) | | Envelope Generators | 3x ADSR plus delay per voice | | VCA | Analog | | LFO | 4 per voice | | Sequencer | 16 x 4 step sequencer per voice | | Glides | Separate rates per oscillator | | Programs | 4 banks of 128 read-only factory programs
4 banks of 128 user programs
1,024 total | | Dimensions (L x W x H) | 25.2 x 11.1 x 3.6" (64.0 x 28.2 x 9.1 cm) | | Weight | 9.4 lb (4.35 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
