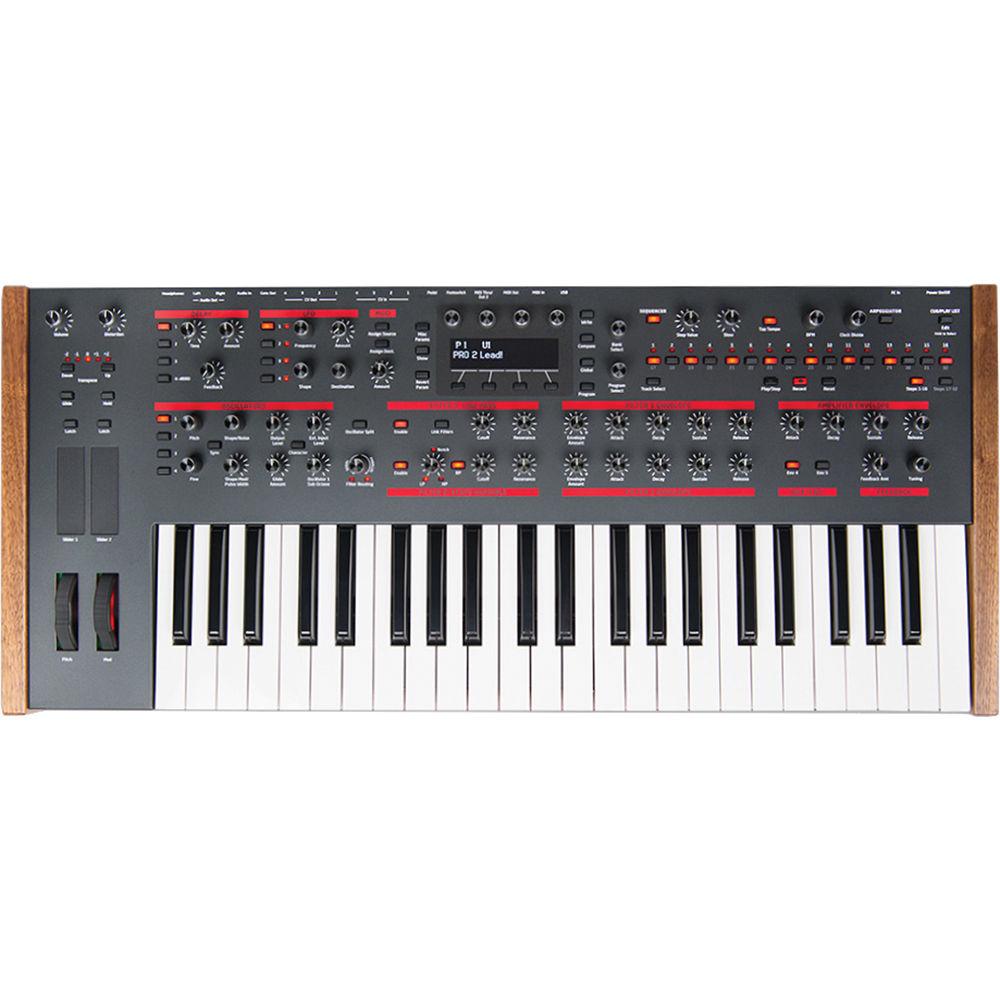

Product description The Dave Smith Instruments Pro 2 Synthesizer - Hybrid Digital Oscillator and Analog Filter Monophonic and Paraphonic Synthesizer is designed for studio recording and live performance applications. The three-and-a-half octave synthesizer with velocity and after touch semi-weighted keyboard is referred to as a hybrid because it combines four digital oscillators and a sub-oscillator with super saw waves and classic inspired dual analog filters.
The first of the two analog filters is a 4-pole low pass design inspired by the filter found on the original Prophet-5 synthesizer. The second filter is a state variable design inspired by the Oberheim SEM synthesizer created by Tom Oberheim which allows the filter to be continuously varied between notch, low-pass, and high-pass with an optional band-pass mode. These two filters can be connected in series, parallel, or a combination in between.
Two of the oscillators can be routed through filter 1 and the other two can be routed through filter 2. The oscillators can produce a wide range of wave shapes and can modulate each other by amplitude and frequency in any modulator or operator configuration for a diverse choice of harmonically enriched AM and FM sounds. To further enhance the character of the sound, the synthesizer also includes controls for high and low frequency boosting, bit depth and sample rate reduction, and a tape saturation emulation.
The device also includes a step sequencer with up to 32 steps, 16 tracks, real-time input rests, and variable-length sequences. The sequencer can be synced to a MIDI clock, an external audio input, or a control voltage, and the sequencer tracks can control any parameter in the synthesizer's modulation matrix.

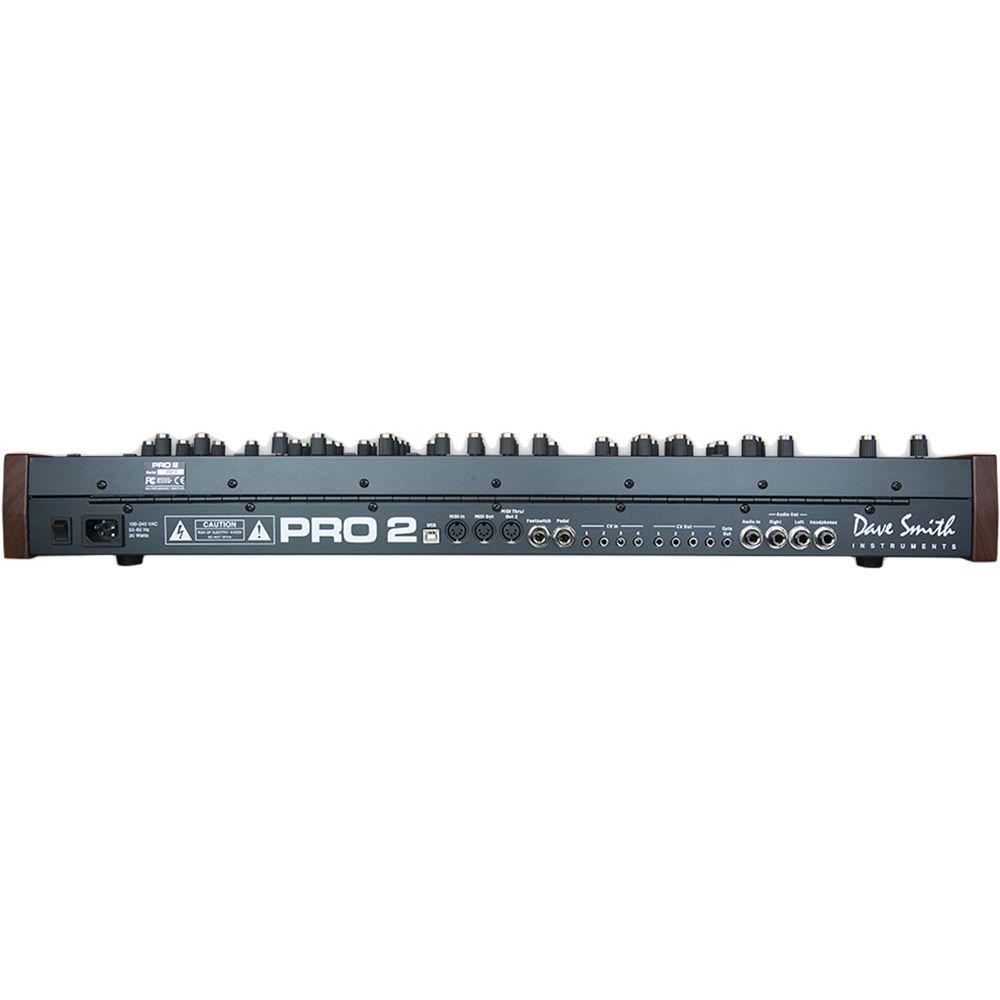

The back-panel of the instrument features four control voltage inputs and outputs as well as a dedicated gate output. This allows you to interface the device with modular synthesizers. The control voltages can be assigned and routed with the modulation matrix and operate at audio rates for modulation effects. Parameters that may be sent to the control voltage outputs include LFOs, envelopes, oscillators, and sequencer tracks.
The instrument features three digital delays with pan as well as high-pass and low-pass filtering controls. A fourth delay uses a digital bucket-brigade design to create analog-style effects. Additional modulators include four loopable five-stage envelope generators, an arpeggiator, four syncable LFOs with slew and phase offset control, and a sixteen-slot modulation matrix.
The synthesizer is both a monophonic synthesizer as well as a four-voice paraphonic synthesizer with the ability to control each oscillator individually with a separate envelope. This enables playing four-note chords.

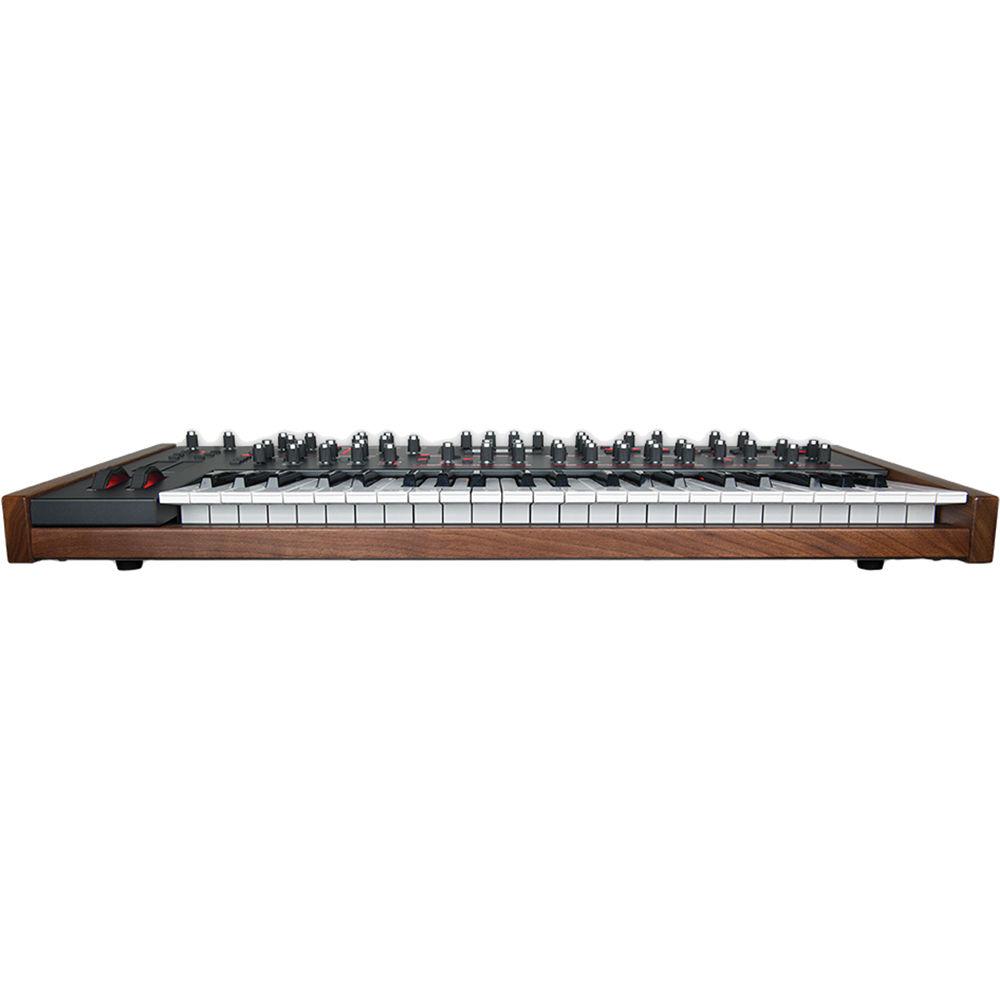

The semi-weighted full-sized keyboard features velocity and channel aftertouch to enable expressive playing of the synthesizer's unique circuit design. Additional expression controls include two location and pressure sensitive touch sliders and two backlit pitch and modulation wheels. A foot switch (sold separately) can be connected to the rear panel's 1/4" foot switch input for effects such as sustain. - Hybrid Digital Analog Design
- Combines four digital oscillators with two analog filters
- Digital Bucket Brigade Delay
- Uses a digital clock to drive voltage across a network of capacitors to create the sound of an analog delay with the precision of digital timing
- Analog Filter 1
- Provides 4-pole low pass filtering based on the filter found in Prophet-5 synthesizer
- Analog Filter 2
- Provides variable filtering between notch, low-pass, high pass, and band pass modes based on Oberheim SEM synthesizer
- Character Controls
- Features controls for high and low frequency boosting controls, bit depth sample reduction, and saturation using tape saturation emulation
- Digital Modulation Matrix
- Enables extensive routing of control inputs and sound modulation parameters
- CV I/O
- Enables connection to modular synthesizers using control voltage signals
- Expression Controls
- Features semi-weighted full size keyboards with velocity and channel after touch, two location and pressure sensitive touch sliders, and two backlit pitch and modulation wheels for expressive performance
In the Box Sequential Pro 2 Synthesizer - Hybrid Digital Oscillator and Analog Filter Monophonic and Paraphonic Synthesizer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sequential Pro 2 Synthesizer - Hybrid Digital Oscillator and Analog Filter Monophonic and Paraphonic Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSequential DSI-2400 Specs | Type | Monophonic and 4-voice paraphonic with individually-gated envelopes per osc | | Oscillators | Four DSP-based oscillators plus one sine wave sub oscillator
Saw, square, triangle, sine per oscillator
12x Complex shapes per oscillator
13x Superwaves
White, pink, violet noise per oscillator
Shape, pulse width, superwave detune modulation
Amplitude and frequency modulation across oscillators
Hard sync, individual glide, oscillator Slop | | Filters | Dual analog in serial or parallel modes
Filter 1: 4-pole resonant analog low pass based on Prophet-5 filter
FIlter 2: 2-pole resonant analog state-variable based on Oberheim SEM filter
Can spolit oscillators 1 and 2 to filter 1 and oscillators 3 and 4 to filter 2 | | Envelopes | 5x Loopable delay and ADSR (filter 1, filter 2, VCA, and two aux envelopes) | | Effects | High shelf EQ, low shelf EQ, Hack, sample rate reduction, bit rate reduction, harmonic saturation | | Feedback and Delay | Tuned feedback
Three-tap syncable delay and digital bucket-brigade delay | | LFO | 4x Syncable with phase offset and slew per LFO | | Modulation | 16x2 Matrix with over 50 mod sources and over 140 destinations
CV Send: LFOs, envelopes, sequencer tracks at up to audio rates
Gate out for external CV devices | | Sequencer | Up to 32 steps per sequence and 16 tracks
Real-time input rests and variable length sequences
Sync to MIDI clock, external audio, CV input
Control oscillator pitch and modulation matrix | | Arpeggiator | Up, down, up+down, random, assign
Real time inputs, rests, and variable sequences
Re-latching | | Distortion | Programmable stereo analog | | I/O | 1x MIDI in
1x MIDI out
1x MIDI thru/out 2 port
1x USB port for bidirectional MIDI
4x CV inputs via 1/8" jacks
4x CV outputs via 1/8" jack
1x Gate Out via 1/8" jack
1x Sustain/footswitch input
1x Expression pedal input
1x External audio input via 1/4" phone jack
2x Stereo output (L and R pair) via 1/4" phone jack
1x Headphone out (stereo) via 1/4" jack | | Control Voltage | 4x 1-Volt-per-octave control inputs
4x 1-Volt-per-octave control outputs | | Controls | 65+ Buttons
50+ Knobs
1x Backlit pitch wheel
1x Backlit mod wheel
2x Assignable position and pressure-sensitive latchable touch sliders | | Keyboard | Full-sized, three-and-a-half octave, semi-weighted keyboard with velocity and aftertouch | | Memory | 396 User presets
396 Factory presets
Playlist mode for generating set lists | | Power | 1x universal IEC AC power inlet for internal power supply | | Power Requirements | 100 to 240 VAC 50-60 HZ | | Power Consumption | 30 W max | | Dimensions | 29.20 x 12.80 x 4.15" (74.2 x 32.5 x 10.5 cm) | | Weight | 18.7 lb (8.50 kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 35.0 x 19.0 x 8.5" |
