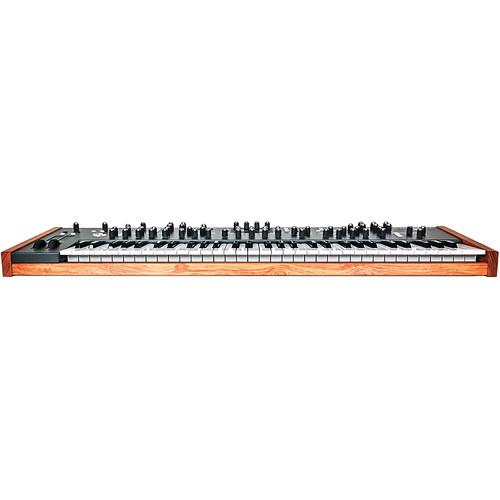

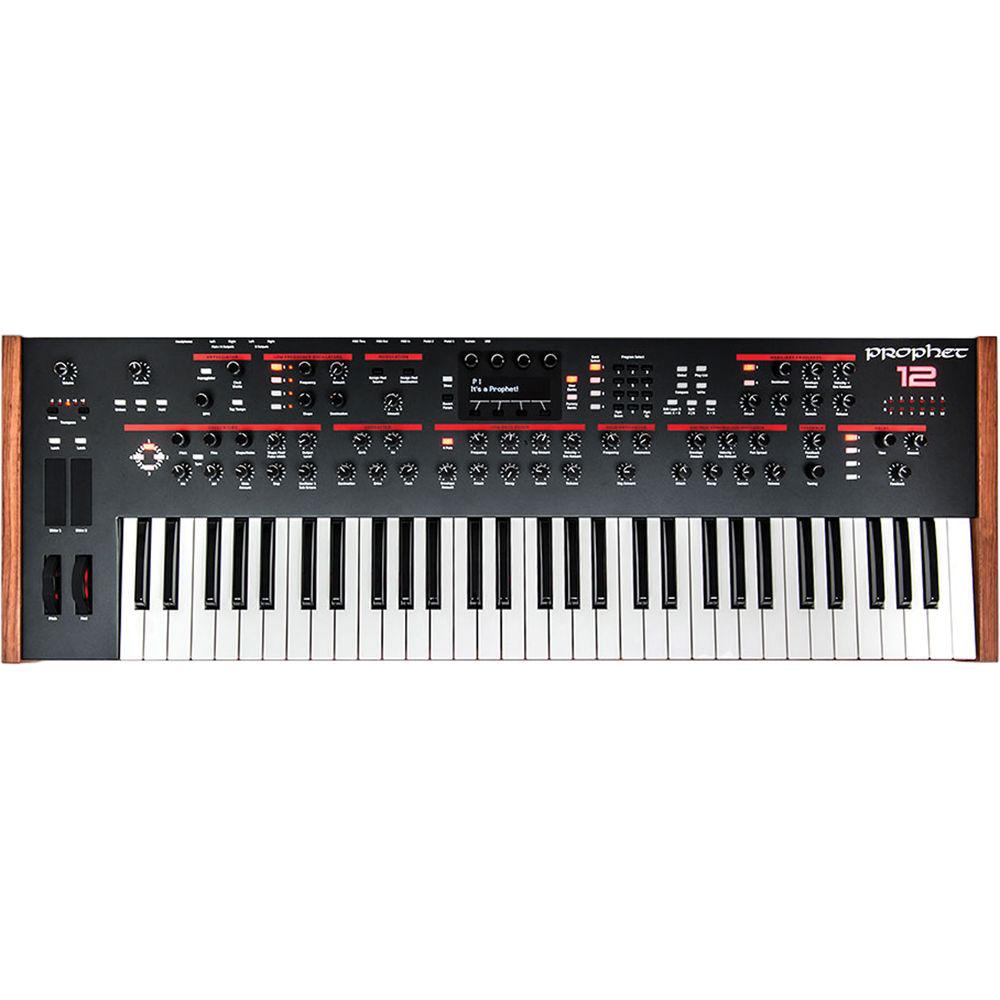

User Manual for Sequential Prophet 12 61-Key Polyphonic Analog Synthesizer Click to enlarge the picture
Contents of the user manual for the Sequential Prophet 12 61-Key Polyphonic Analog
- Product category: Synthesizer Keyboards Sequential
- Brand: Sequential
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sequential Synthesizer Keyboards
 |
User manual for the Sequential Prophet 12 61-Key Polyphonic Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sequential product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sequential user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sequential product will considerably shorten its lifespan!
|
Product description The Prophet 12 61-Key Polyphonic Analog Synthesizer from Dave Smith Instruments is a 12-voice polyphonic synthesizer with 61 semi-weighted velocity sensitive keys with aftertouch. Each of its 12 voices is powered by 5 oscillators that provide saw, square, triangle, and sine waveforms along with 12 selectable shapes as well as 3 types of noise. The oscillators are further shapeable via their AM and FM modulation and analog VCAs.
Beyond its oscillators, the Prophet 12 provides numerous options for sound creation. It includes 5 digital effects as well as analog high-pass and low-pass filters. The synth has no shortage of modulation capabilities, with a 16 x 2 modulation matrix with 26 sources and 97 destinations. The Prophet 12 has over 50 knobs and over 50 buttons that provide full access to all its parameters and effects, giving you hands-on control. The Prophet 12 has 5-pin DIN MIDI input, output, and thru and also accepts MIDI data via its USB port. - The Prophet's Performance
- The Prophet 12's hybrid voice has a digital front end followed by an all analog signal path output. Each voice has five high-resolution digital oscillators, a digital character effects section, a resonant Curtis low-pass filter, a high-pass filter, a tune-able feedback circuit, a four-tap delay line with feedback per line, four loopable five-stage envelope generators, four syncable LFOs with slew and phase offset, a sophisticated arpeggiator, and a sixteen slot modulation matrix with 26 mod sources and 97 modulation destinations.
The digital oscillators can be frequency and amplitude modulated by each other with accuracy. They can be freely assigned in whatever operator and modulator configurations you would choose. You can even assign each of the oscillators to modulate LFOs, envelopes, and filters - The Prophet's Control
- The Prophet's interface invites full control of the synth. Every parameter is fully programmable and editable from the front panel. The controls are laid out in a fashion that allows quick and precise access in the studio and on stage.
The Prophet's full-sized, five-octave, semi-weighted keyboard with velocity and channel aftertouch is designed for playability. Two backlit pitch and mod wheels are accompanied by two location and pressure sensitive touch sliders - Effects
-
- Girth and Air are high and low shelf equalizers with harmonic excitement. Useful for thickening and/or adding air to the signal
- Hack and Decimate are sample and bit rate reduction algorithms which can add subtle grit or completely destroy the signal. It's harsh yet musical
- Drive is a soft saturator for adding soft distortion and harmonic content to the signal
In the Box Sequential Prophet 12 61-Key Polyphonic Analog Synthesizer IEC AC Power Inlet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sequential Prophet 12 61-Key Polyphonic Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSequential Prophet 12 Specs | Keyboard | 61 semi-weighted keys with velocity and aftertouch | | Voices | 12 | | Oscillators | 5x DSP-based oscillators with per voice; 4 with hard sync | | Waveform Type | Sawtooth, square, triangle, sine (per oscillator)
12x selectable complex shapes (per oscillator) | | Generators | 3x Noise generators; white, pink, violet | | VCA | Analog | | Modulation | Shape
Cross Modulation: FM and AM | | Effects | 5x digital effects; girth, air, hack, decimate, and drive | | Filters | 1x Curtis 2- or 4-pole resonant analog low-pass filter per voice (self oscillating in 4-pole mode)
1x 2-pole resonant analog high-pass filter per voice | | Feedback and Delay | Tuned feedback
4x tap-syncable multi delay with feedback and amount per delay per voice | | Envelope | 4x delay + ADSR envelopes (LPF, VCA, 2 auxiliary envelopes) | | LFO | 4x syncable LFOs with phase offset & slew per LFO | | Modulation | 16 x 2 modulation matrix with 26 modulation sources and 97 modulation destinations | | Arpeggiator | Programmable arpeggiator with up, down, up+down, random, assign modes with re-latching | | Distortion | Independent programmable stereo analog distortion per layer | | Controls | 50+ knobs
50+ buttons
1x backlit pitch wheel
1x backlit mod wheel
2x assignable position and pressure-sensitive latchable sliders | | Memory | 396x user programs

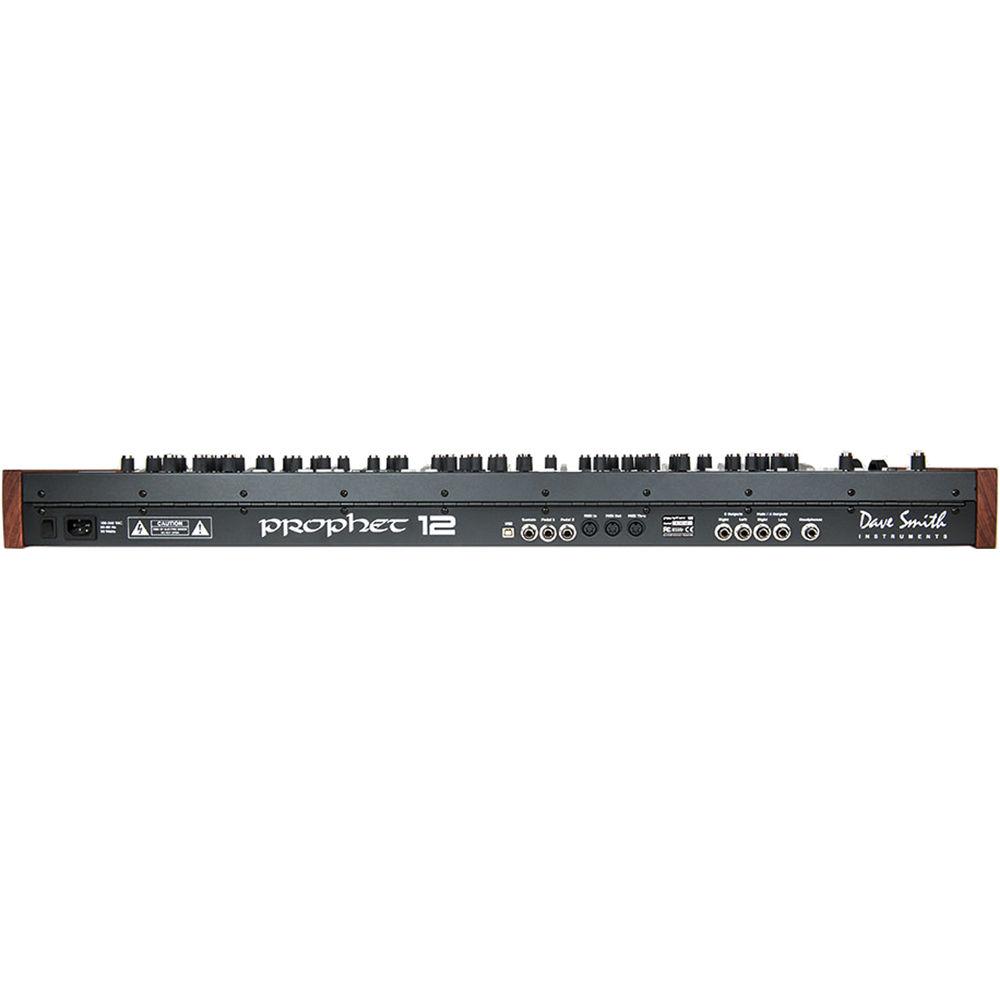

396x factory programs | | I/O | 1x 5-pin DIN MIDI input
1x 5-pin DIN MIDI output
1x 5-pin DIN MIDI thru
1x USB MIDI port
1x 1/4" (6.3 mm) sustain footswitch input
2x 1/4" (6.3 mm) expression pedal input
2x 1/4" (6.3 mm) main outputs
2x 1/4" (6.3 mm) layer B outputs
1x 1/4" (6.3 mm) stereo headphone output | | Power Supply | 100-240 V, 50-60 Hz; 30 W maximum power consumption | | Dimensions (LxWxH) | 38.4 x 12.8 x 4.2" (97.5 x 32.5 x 10.5 cm) | | Weight | 26.0 lb (11.8 kg) | | | | Package Weight | 31.45 lb | | Box Dimensions (LxWxH) | 44.0 x 18.5 x 8.4" |
