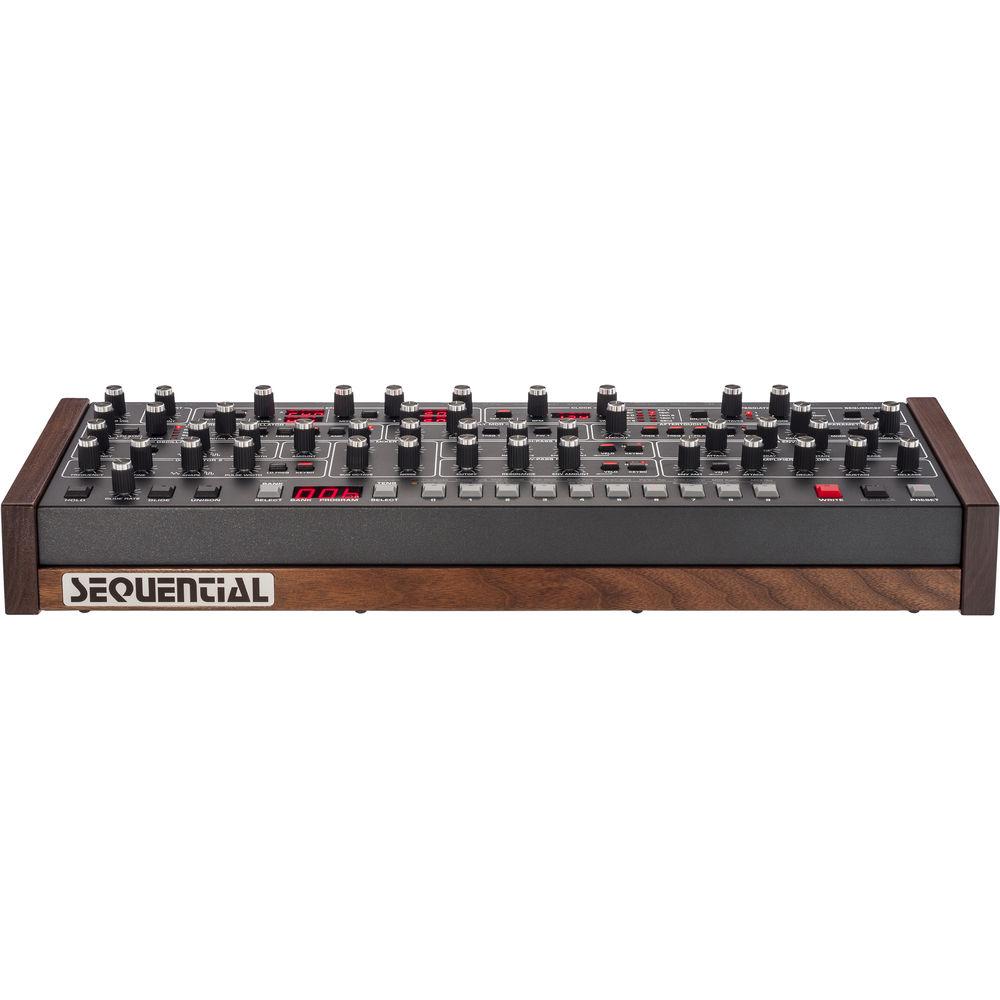

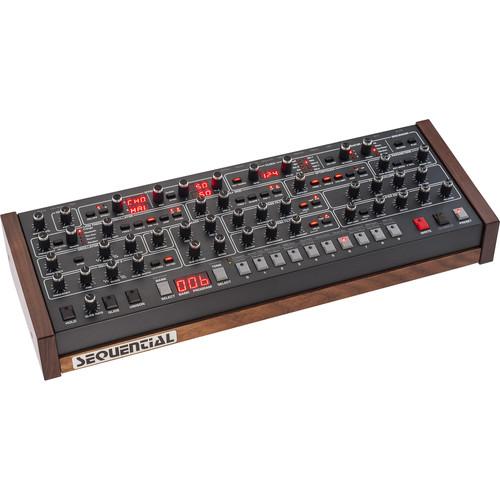

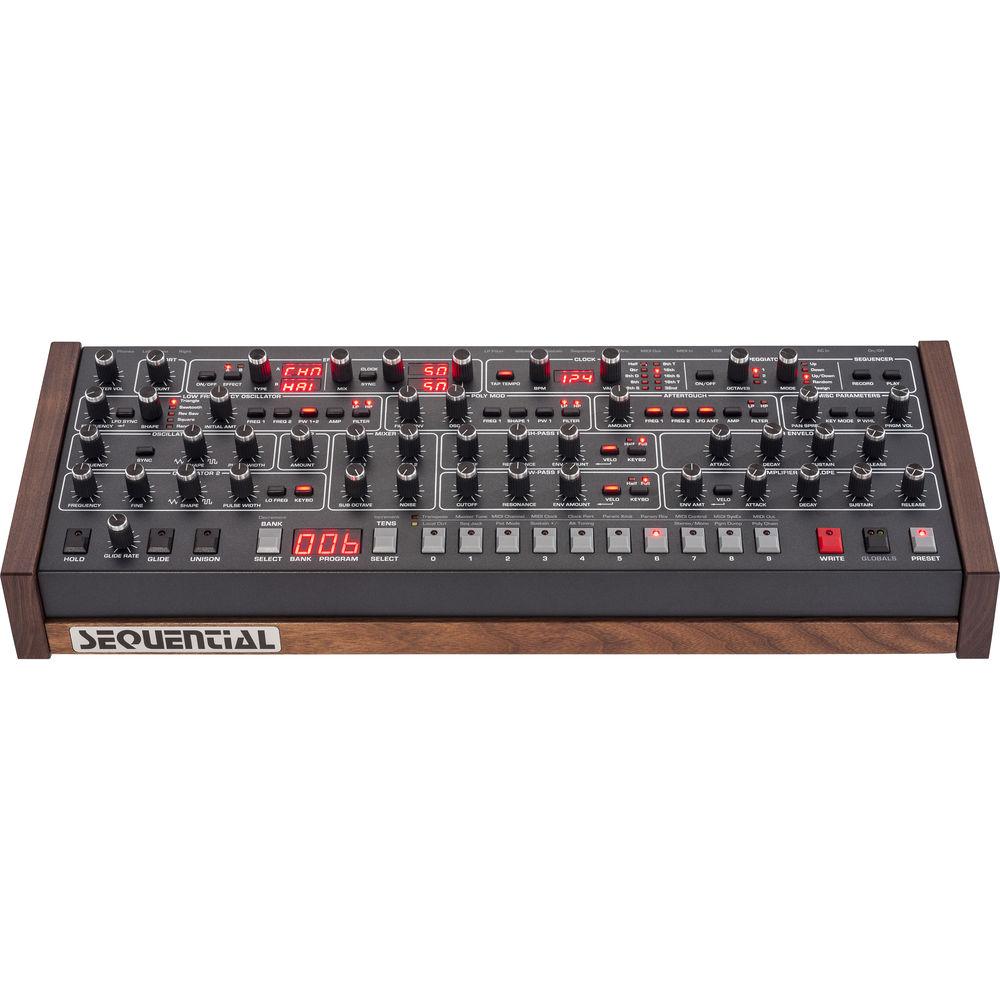

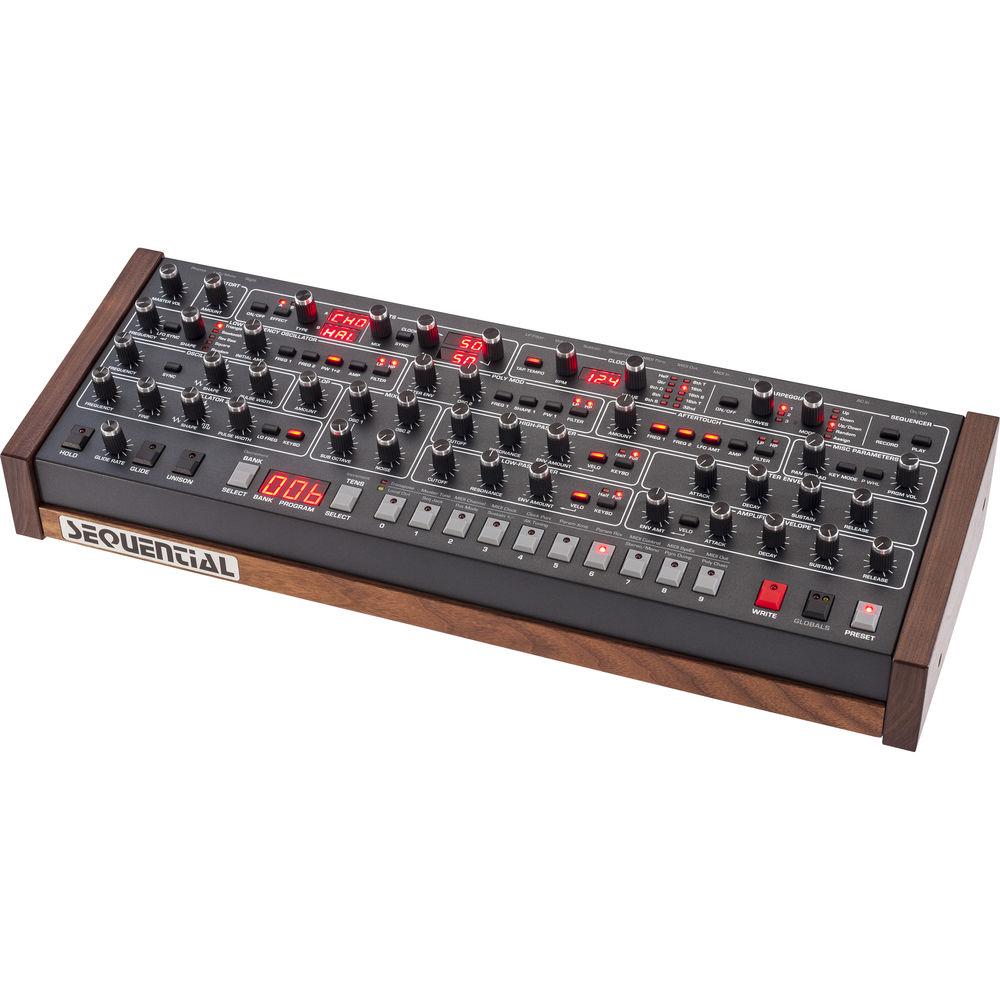

User Manual for Sequential Prophet-6 Desktop Module Click to enlarge the picture
Contents of the user manual for the Sequential Prophet-6 Desktop Module
- Product category: Synthesizer Modules Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Synthesizer Modules
 |
User manual for the Sequential Prophet-6 Desktop Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Sequential Prophet-6 from Dave Smith Instruments is a modern, all-analog 6-voice polyphonic desktop synthesizer module that pays tribute to the original vintage Prophet 5, but with several enhancements. The synth features true voltage-controlled oscillators, filters, amplifiers, envelopes, and an LFO. Additional enhancements include studio-quality effects, a polyphonic step-sequencer, and an arpeggiator; all of which can be synchronized internally or via external MIDI clock.
The control panel offers knob-per-function control with no menu diving. There are 500 permanent factory programs and 500 user programs, which are organized into 10 banks of 100 presets. Able to fit in a backpack, the Prophet-6 desktop offers an ideal combination of portability and power for the project studio or the gigging musician. - Classic Tone, Classic Vibe
-
- Two discrete voltage-controlled oscillators (plus sub-oscillator) per voice
- Continuously Variable Waveshapes: Triangle, sawtooth, and variable-width pulse waves
- One 4-pole, resonant, low-pass inspired by the original Prophet-5 filter
- One 2-pole, resonant, high-pass filter
- VCA: Voltage-controlled amplifiers
- Dual Effects
-
- Dual Effect Engine: 24-bit/ 48 kHz resolution
- Studio-quality reverbs, delays (standard and BBD), chorus, and phase shifter
- True bypass maintains a full analog signal path
- Independent stereo 100% analog distortion effect
- Poly Mod and Poly Step Sequencing
-
- Modulation Sources: Filter envelope and oscillator 2 (both with bi-polar control)
- Destinations: Oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, and high-pass filter cutoff
- Unison Mode: Configurable voice count (1-6 voices) and key modes
- Polyphonic Step Sequencer: 64 steps with up to 6 notes per step with rests. Syncs to an external MIDI clock
- Arpeggiator: Syncs to external MIDI clock
- Easy to Program
-

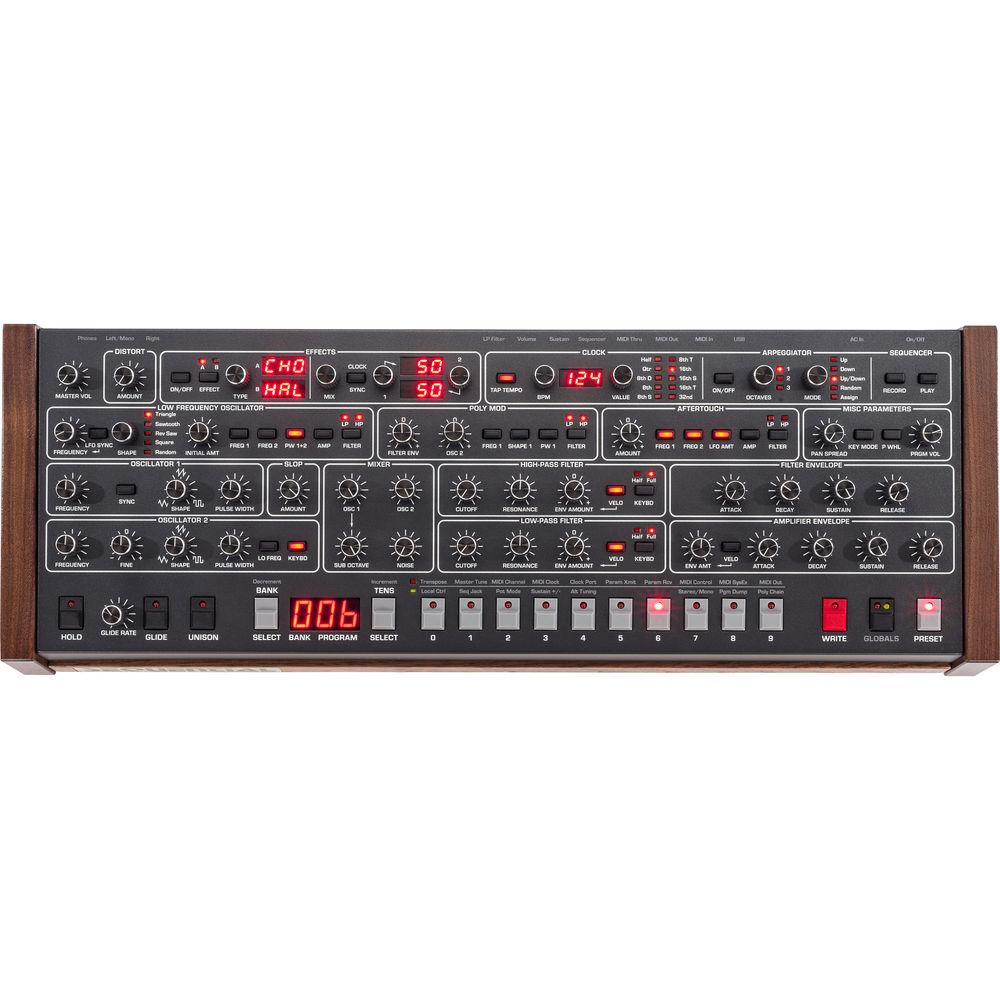

- Knob-per-function front panel offers instant access to virtually all Prophet-6 functions
- 1000 Presets: 500 permanent factory programs and 500 user programs organized into 10 banks of 100 programs
- Live Panel Mode: Switches from a preset to current knob and switch settings
- Easy to Play
-
- All of this awe-inspiring sound is packed into a desktop module that’s small enough to fit in a backpack. It’s an ideal combination of portability and power for the project studio or the gigging musician
UPC: 855346000760 In the Box Sequential Prophet-6 Desktop Module IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sequential Prophet-6 Desktop Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSequential DSI-1600 Specs | Oscillators | 2x discrete VCOs per voice
Wave Shape per Oscillator (Continuously Variable): Triangle, sawtooth, pulse, and square
Pulse width per oscillator
Hard Sync: Oscillator 1 syncs to oscillator 2
Triangle Sub-Octave Generator: Oscillator 1 per voice
Low-Frequency Mode: Oscillator 2
Keyboard Tracking: On/off (oscillator 2)
Oscillator Slop: For increased tuning instability, from subtle to extreme | | Mixer | Oscillator 1 amount
Oscillator 1 sub-octave amount
Oscillator 2 amount
White noise amount | | High Pass Filter | 2-pole, resonant, high-pass filter per voice
Bi-polar filter envelope amount
Velocity modulation of envelope amount
Keyboard Tracking: Off, half, full | | Low Pass Filter | 4-pole, resonant, low-pass filter per voice
Filter can be driven into self-oscillation with the Resonance control
Bi-polar filter envelope amount
Velocity modulation of envelope amount
Keyboard tracking: Off, half, full | | Envelope Generators | Filter Envelope: Four-stage (ADSR) envelope generator
Amplifier Envelope: Four-stage (ADSR) envelope generator with velocity modulation of envelope amount | | LFO | 5x Wave Shapes: Triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
Clock sync (internal or external MIDI clock)
Initial amount
Mod Destinations: Oscillator 1 frequency, oscillator 2 frequency, oscillator 1 and 2 pulse width, low-pass filter cutoff, high-pass filter cutoff | | Poly Mod | Sources: Filter envelope (bi-polar) and oscillator 2 (bi-polar)
Destinations: Oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, high-pass filter cutoff | | Aftertouch | Source: Channel (mono) aftertouch with bi-polar amount
Destinations: Oscillator 1 frequency, oscillator 2 frequency, LFO amount, amplifier envelope amount, low-pass filter envelope amount, high-pass filter envelope amount | | Clock | Master clock with tap tempo
BPM control and display
MIDI clock sync | | Arpeggiator | Selectable Note Value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
1, 2, or 3 octave range
Up, down, up/down, random, and assign modes | | Sequencer | Polyphonic Step Sequencer: 64 steps and rests | | Effects | Stereo analog distortion
Dual, 24-bit, 48 kHz Digital Effects: Reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade and tape delays), chorus, and phase shifter
Delay sync
True Bypass: Maintains fully analog signal path when digital effects are off | | Controls | Polyphonic Glide: Portamento
Hold Switch: Latches held notes on Unison (Monophonic) Mode: Configurable voice count, from one to all six voices, and key modes
Preset Switch: When off, the front panel is live; what you see is what you hear | | Patch Memory | 1000 Programs: 500 user / 500 factory programs in 10 banks of 100 programs each

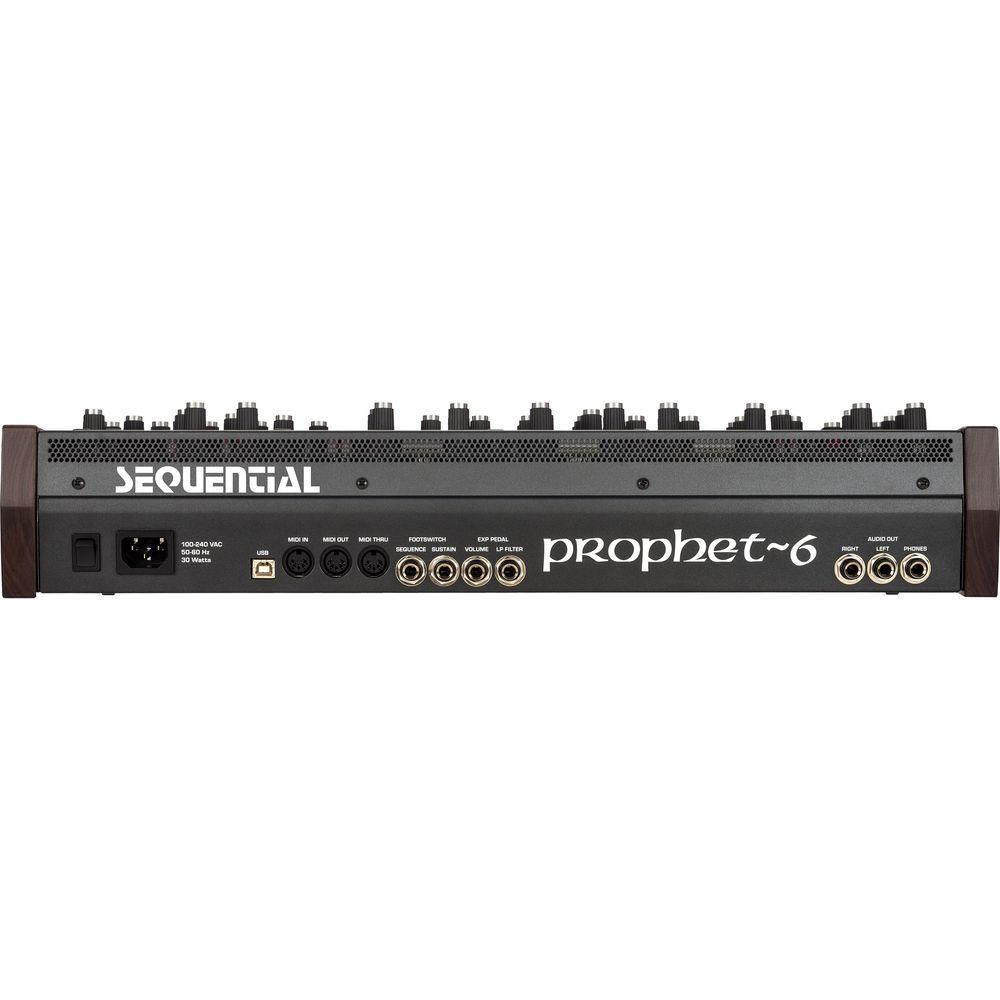

Direct Program Access: Prophet 5-style single-button access to the current set of 10 programs | | Input & Output | Left/Mono & Right Audio Outputs: 2 x 1/4" / 6.35 mm phone jack
Headphone Output: Stereo, 1/4" / 6.35 mm phone jack
MIDI: In, out, and thru ports
USB: Bi-directional MIDI communication
Low-pass filter cutoff expression pedal input
Volume expression pedal input
Sustain footswitch input
Sequencer start/stop footswitch input | | Power | 100/240 volts at 50/60 Hz
Power Consumption: 30 W maximum
IEC AC power inlet for internal power supply | | Dimensions (L x W x H) | 21.3 x 7.4 x 4.4" / 54.0 x 18.9 x 11.2 cm | | Weight | 13.0 lb / 5.9 kg | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 25.95 x 12.3 x 9.8" |
