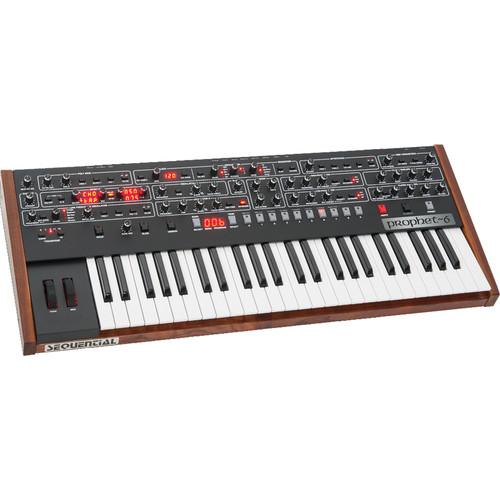

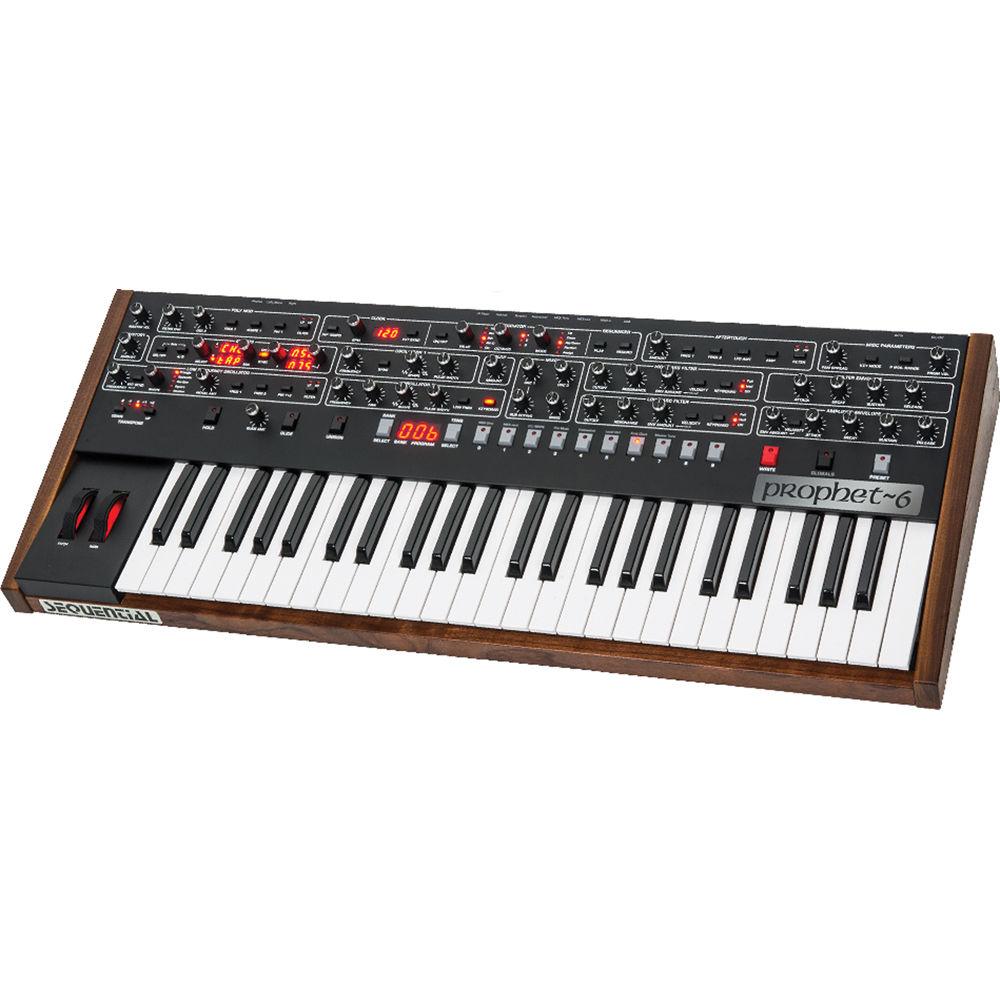

Product description The Sequential Prophet-6 from Dave Smith Instruments is a modern, all-analog 6-voice polyphonic synthesizer that pays tribute to the original vintage Prophet 5, but with several enhancements. The synth features true voltage-controlled oscillators, filters, amplifiers, envelopes, and an LFO. Additional enhancements include studio-quality effects, a polyphonic step-sequencer, and an arpeggiator; all of which can be synchronized internally or via external MIDI clock.
The four octave, semi-weighted keyboard offers velocity sensitivity and channel aftertouch, while the control panel offers knob-per-function control with no menu diving. There are 500 permanent factory programs and 500 user programs, which are organized into 10 banks of 100 presets. The Prophet-6 offers an ideal combination of portability and power for the project studio or the gigging musician. - Classic Tone, Classic Vibe
-
- Two discrete voltage-controlled oscillators (plus sub-oscillator) per voice
- Continuously Variable Waveshapes: Triangle, sawtooth, and variable-width pulse waves
- One 4-pole, resonant, low-pass inspired by the original Prophet-5 filter
- One 2-pole, resonant, high-pass filter
- VCA: Voltage-controlled amplifiers
- Dual Effects
-
- Dual Effect Engine: 24-bit/ 48 kHz resolution
- Studio-quality reverbs, delays (standard and BBD), chorus, and phase shifter
- True bypass maintains a full analog signal path
- Independent stereo 100% analog distortion effect
- Poly Mod and Poly Step Sequencing
-
- Modulation Sources: Filter envelope and oscillator 2 (both with bi-polar control)
- Destinations: Oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, and high-pass filter cutoff
- Unison Mode: Configurable voice count (1-6 voices) and key modes
- Polyphonic Step Sequencer: 64 steps with up to 6 notes per step with rests. Syncs to an external MIDI clock
- Arpeggiator: Syncs to external MIDI clock
- Easy to Program
-
- Knob-per-function front panel offers instant access to virtually all Prophet-6 functions
- 1000 Presets: 500 permanent factory programs and 500 user programs organized into 10 banks of 100 programs
- Live Panel Mode: Switches from a preset to current knob and switch settings
- Easy to Play
-
- Four octave, semi-weighted keyboard with velocity and channel aftertouch
- Programmable Backlit Pitch Wheel: 1 to 12 semi-tones
- Backlit modulation wheel
UPC: 855346000777 In the Box Sequential Prophet-6 Synthesizer IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sequential Prophet-6 Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSequential DSI-2600 Specs | Oscillators | 2x discrete VCOs per voice
Wave Shape per Oscillator (Continuously Variable): Triangle, sawtooth, pulse, and square
Pulse width per oscillator
Hard Sync: Oscillator 1 syncs to oscillator 2
Triangle Sub-Octave Generator: Oscillator 1 per voice
Low Frequency Mode: Oscillator 2
Keyboard Tracking: On/off (oscillator 2)
Oscillator Slop: For increased tuning instability, from subtle to extreme | | Mixer | Oscillator 1 amount
Oscillator 1 sub-octave amount
Oscillator 2 amount
White noise amount | | High Pass Filter | 2-pole, resonant, high-pass filter per voice
Bi-polar filter envelope amount
Velocity modulation of envelope amount
Keyboard Tracking: Off, half, full | | Low Pass Filter | 4-pole, resonant, low-pass filter per voice
Filter can be driven into self-oscillation with the Resonance control
Bi-polar filter envelope amount
Velocity modulation of envelope amount
Keyboard tracking: Off, half, full | | Envelope Generators | Filter Envelope: Four-stage (ADSR) envelope generator
Amplifier Envelope: Four-stage (ADSR) envelope generator with velocity modulation of envelope amount | | LFO | 5x Wave Shapes: Triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
Clock sync (internal or external MIDI clock)
Initial amount
Mod Destinations: Oscillator 1 frequency, oscillator 2 frequency, oscillator 1 and 2 pulse width, low-pass filter cutoff, high-pass filter cutoff | | Poly Mod | Sources: Filter envelope (bi-polar) and oscillator 2 (bi-polar)
Destinations: Oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, high-pass filter cutoff | | Aftertouch | Source: Channel (mono) aftertouch with bi-polar amount
Destinations: Oscillator 1 frequency, oscillator 2 frequency, LFO amount, amplifier envelope amount, low-pass filter envelope amount, high-pass filter envelope amount | | Clock | Master clock with tap tempo
BPM control and display
MIDI clock sync | | Arpeggiator | Selectable Note Value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
1, 2, or 3 octave range
Up, down, up/down, random, and assign modes | | Sequencer | Polyphonic Step Sequencer: 64 steps and rests | | Effects | Stereo analog distortion
Dual, 24-bit, 48 kHz Digital Effects: Reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade and tape delays), chorus, and phase shifter
Delay sync
True Bypass: Maintains fully analog signal path when digital effects are off | | Controls | Keyboard: Full-sized, semi-weighted, 4-octave with velocity and aftertouch
Pich Wheel: Backlit, spring-loaded with selectable range per program (1 to 12 semitones up and down)
Mod Wheel: Backlit
Transpose: 8 octave range
Hold Switch: latches held notes on
Polyphonic Glide: Portamento
Unison (Monophonic) Mode: Configurable voice count, from one to all six voices, and key modes
Preset Switch: When off, the front panel is live; what you see is what you hear | | Patch Memory | 1000 Programs: 500 user / 500 factory programs in 10 banks of 100 programs each

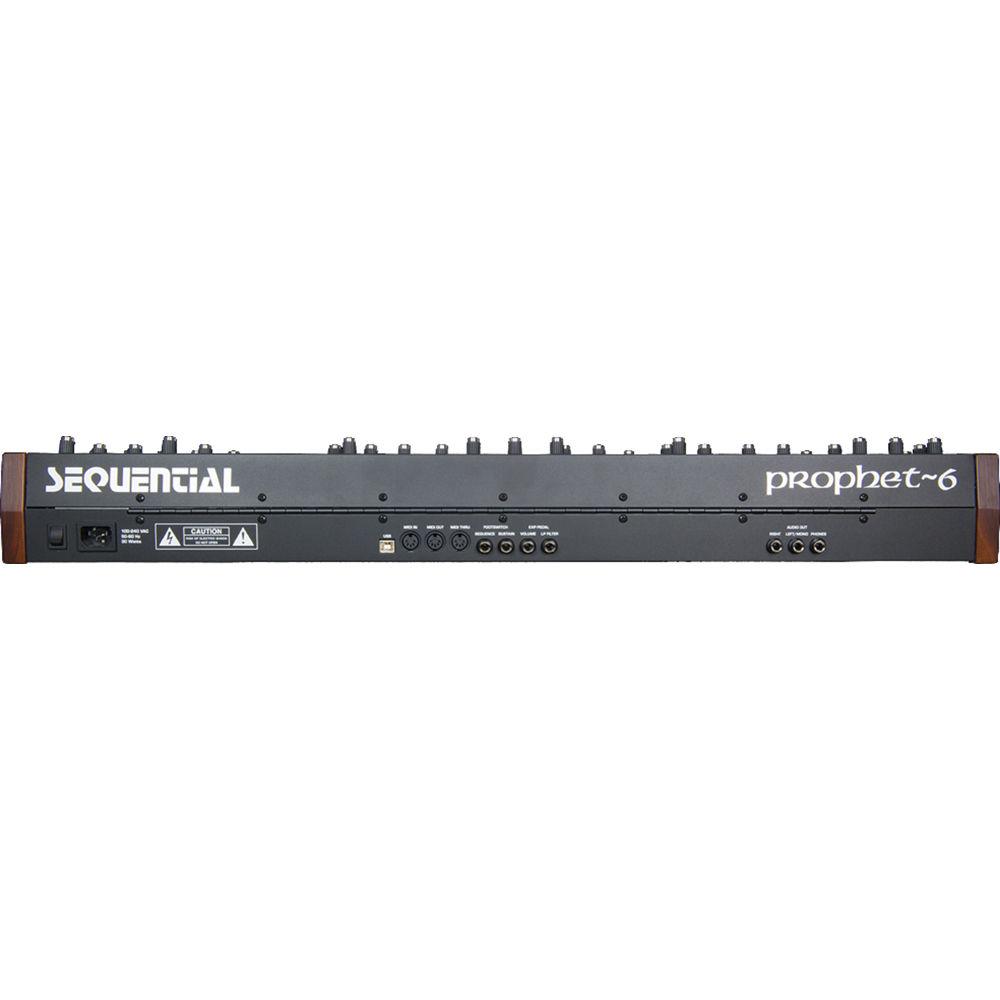

Direct Program Access: Prophet 5-style single-button access to the current set of 10 programs | | Input & Output | Left/Mono & Right Audio Outputs: 2 x 1/4" / 6.35 mm phone jack
Headphone Output: Stereo, 1/4" / 6.35 mm phone jack
MIDI: In, out, and thru ports
USB: Bi-directional MIDI communication
Low-pass filter cutoff expression pedal input
Volume expression pedal input
Sustain footswitch input
Sequencer start/stop footswitch input | | Power | 100/240 volts at 50/60 Hz
Power Consumption: 30 W maximum
IEC AC power inlet for internal power supply | | Dimensions (L x W x H) | 32.0 x 12.7 x 4.6" / 81.3 x 32.3 x 11.7 cm | | Weight | 20.0 lb / 9.1 kg | | | | Package Weight | 28.65 lb | | Box Dimensions (LxWxH) | 38.0 x 18.5 x 8.5" |
