Product description

  • Quick Listen: Dave Smith Instruments Prophet Rev2 16-Voice Synth

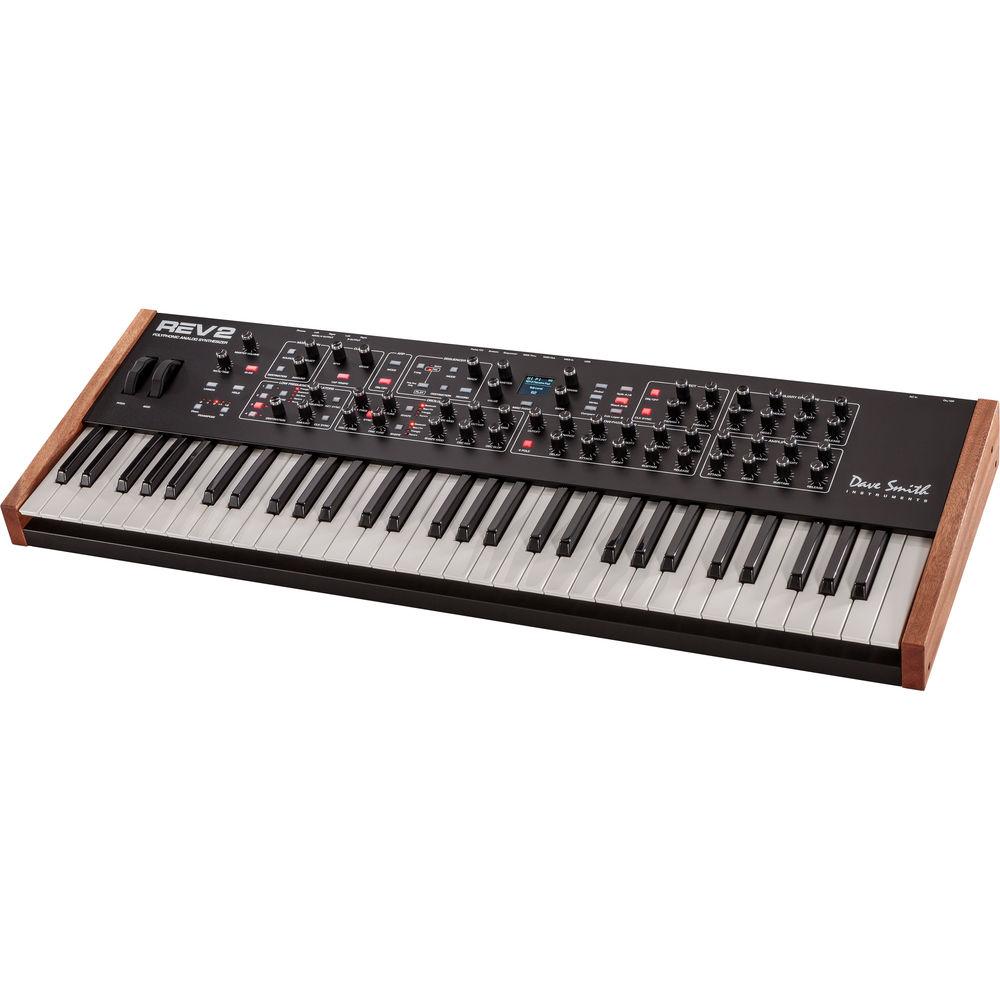

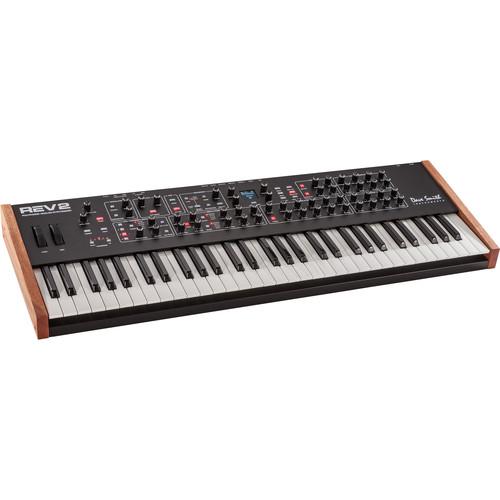

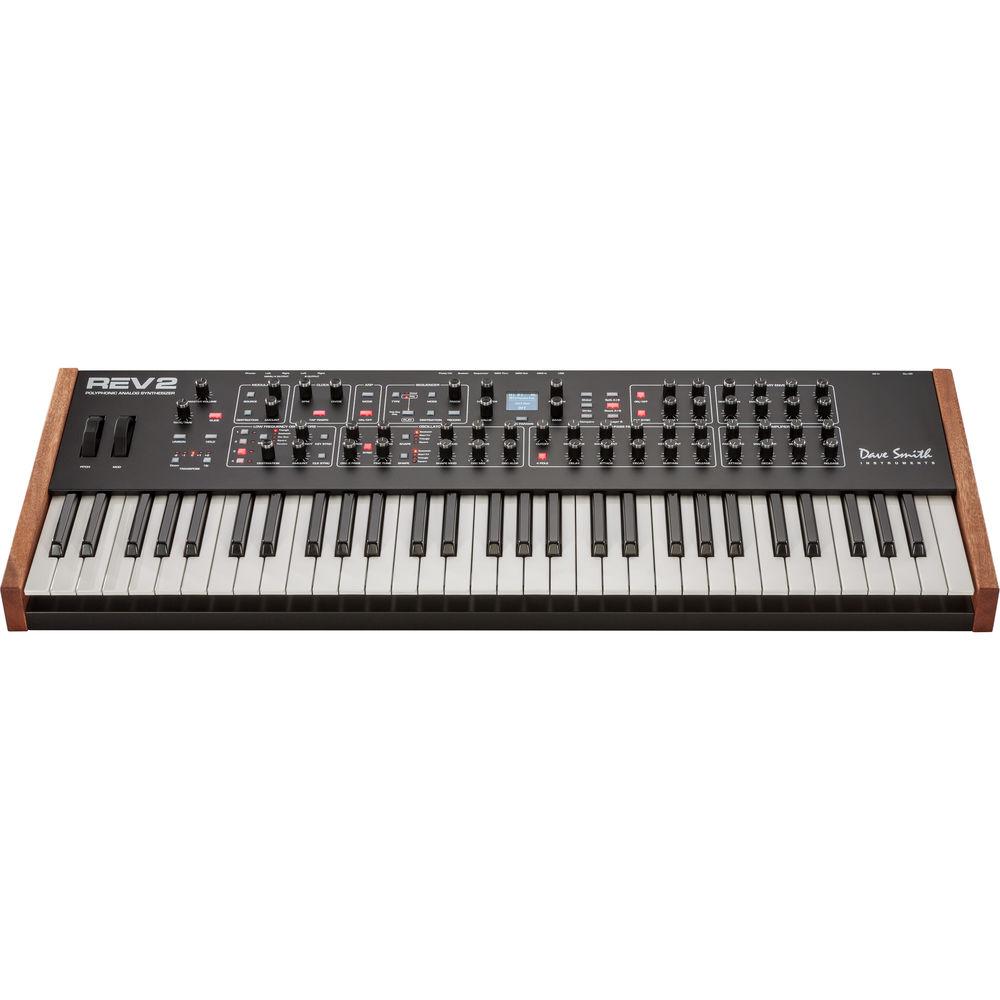

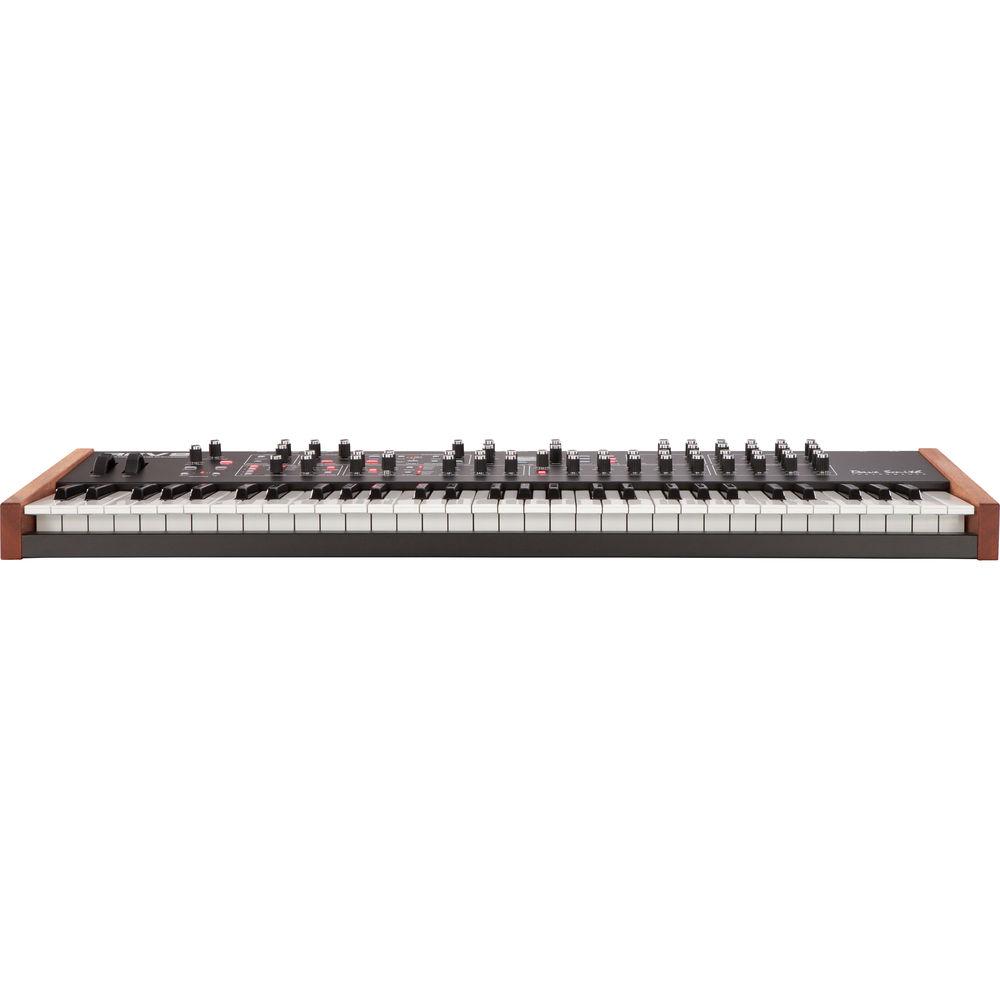

The Prophet Rev2 from Dave Smith Instruments is a 16-voice polyphonic synthesizer that builds upon the success of the original Prophet '08 synthesizer, but with an improved design and enhanced features. The Prophet Rev2 retains all the sound capabilities including two digitally controlled analog oscillators (DCO) per voice (plus octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse-wave and pulse-width modulation, as well as the signature analog Curtis low-pass filter with 2- or 4-pole selections (resonating in 4-pole mode). Additionally, the synthesizer offers three envelope generators to control the filter and VCA, with the 3rd being assignable and offering ADSR + delay and loop capabilities.

Other notable features include the doubling of the modulation matrix, waveshape modulation on all waveforms, digital effects per layer in stacked or split voice mode, a polyphonic step sequencer per layer and more. The Prophet Rev2 is compatible with any existing libraries or patches from the Prophet '08. The instrument has inputs for a sustain pedal and expression pedal, which doubles as an input for control voltage for further sonic manipulation. Four 1/4" unbalanced TS outputs provide audio output, while a stereo 1/4" headphone connection allows for playing in quiet environments.
    16-Voice Polyphony
    • With 16 voices available, you have the freedom to allocate them as you wish. Play two-fisted chords, stack two 8-voice sounds for massive, complex textures, or split the keyboard into two separate 8-voice instruments
    Bold Sound
    • The Prophet Rev2 gets its bold, punchy sound from its 2-/4-pole, low-pass, resonant Curtis filters per voice. These are the same filters used not only in the Prophet '08, but in many classic instruments of the '70s and '80s. A separate Audio Mod control adds additional harmonic complexity and movement
    Waveshape Modulation
    • Waveshape Modulation: Vary the "pulse width" of any of the four waveforms (sawtooth, saw+tri, triangle, square)
    • Shape Mod Control: Manually dial in a desired waveshape width or use an LFO or other mod source for continuously shifting timbre
    • Vast Tonal Possibilities: Single-oscillator sounds take on new depth and dimension
    Effects per Layer
    • Effect Section: Reverb, delays (standard and BBD), chorus, phase shifter, ring modulation, and distortion
    • Stacked or Split Voice Mode: Apply a different effect to each layer. Effects parameters can be modulated through the Mod Matrix
    Extended Modulation Matrix
    • Mod Matrix: Doubled in sized, with 8 individual slots and many more sources/destinations
    Poly Step Sequencing
    • Polyphonic Step Sequencer: Allows up to 64 steps and up to 6 notes per step. Create a different sequence for each layer when you are working in stacked or split voice mode, making it a powerful tool for composition or performance
    • Gate Mode: Modulation sequencer that allows you to create up to 4 different 16-step sequences for complex modulation
    • Sequences Allow Ties and Rests: Syncs to an external MIDI clock
    • Arpeggiator: Features note repeats, re-latching, and can be synced to external MIDI clock
    Per-Knob Programmability

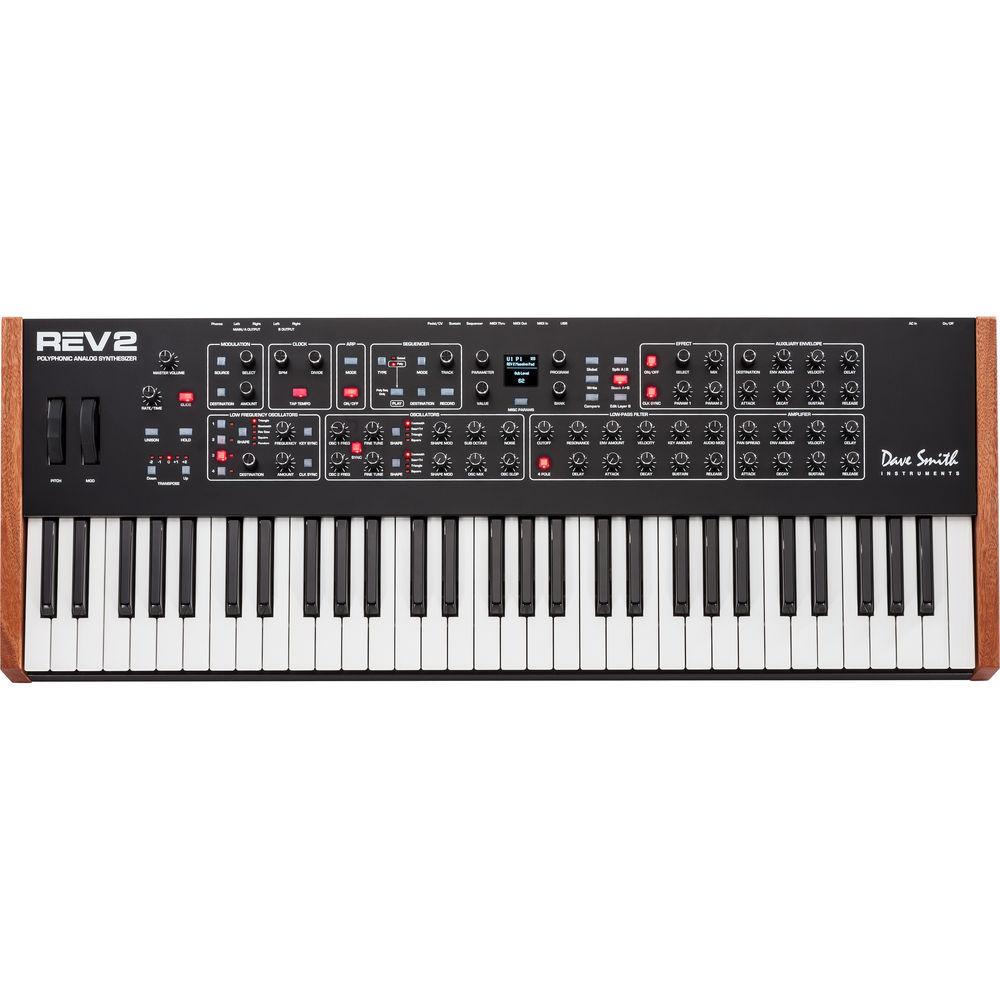

    • The knob-per-function front panel offers instant access to Prophet Rev2 functions
    • Programs: 512 permanent factory programs and 512 rewritable user programs
    Versatile Playability
    • Keyboard: Five-octave, high-quality, semi-weighted keyboard with velocity and channel aftertouch.
    • Roadworthy
    • Integrated power supply
    • USB support
    • Crisp OLED display
UPC: 855346000715 In the Box Sequential Prophet Rev2 16-Voice Polyphonic Analog Synthesizer
  • Power Cord
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sequential Prophet Rev2 16-Voice Polyphonic Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sequential DSI-2816 Specs

    Keyboard 5-octave (61-key) keyboard with semi-weighted action, velocity, and aftertouch
    Controls Controls: Enable deep and comprehensive editing with little to no menu diving
    52 x knobs
    20 x buttons
    1 x spring-loaded pitch wheel and
    1 x assignable mod wheel

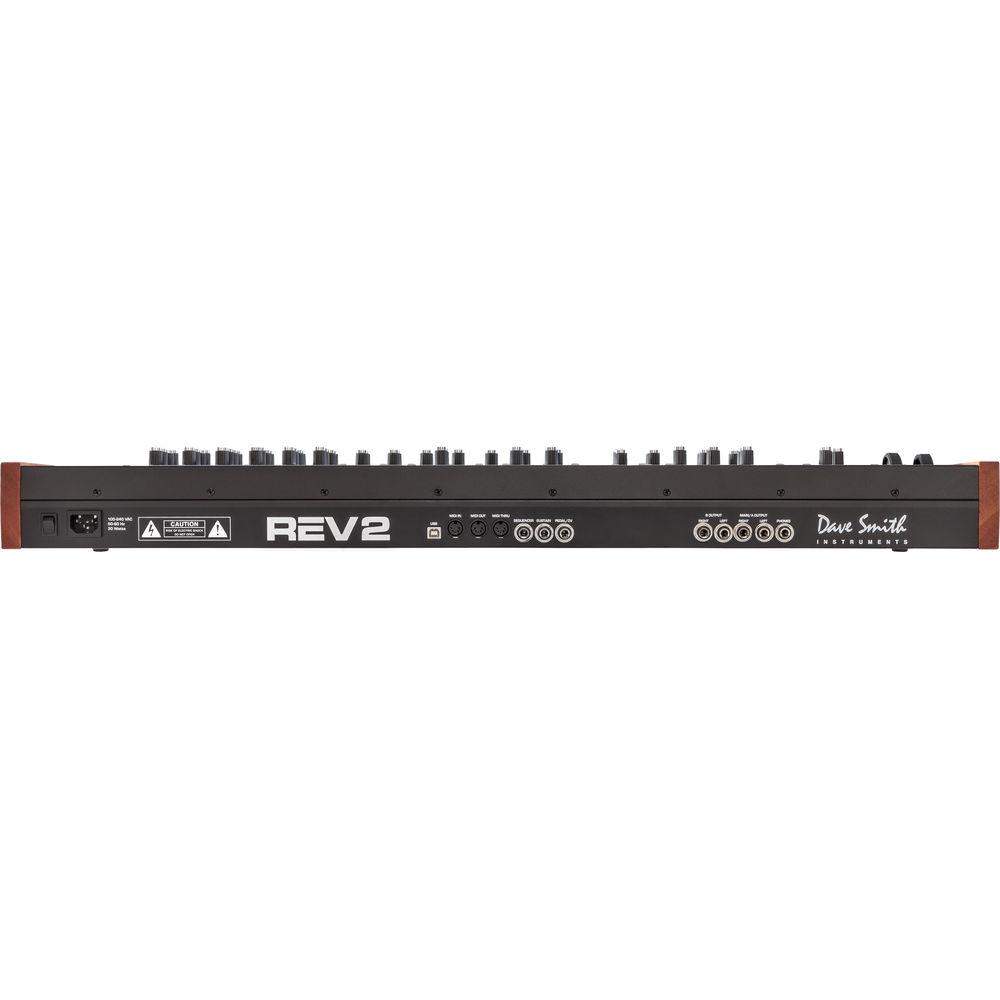

    MIDI MIDI Connectors: In, Out, Thru (5-pin DIN)
    Input Pedal/CV Input: 1/4" / 6.35 mm (responds to expression pedals or control voltages ranging from 0 to 5 VDC, protected against higher or negative voltages)
    Sustain Pedal Input: 1 x 1/4" / 6.35 mm (accepts normally on or normally off momentary footswitch)
    Output Main Stereo Output: 2 x 1/4" / 6.35 mm TS unbalanced
    Output B Stereo: 2 x 1/4" / 6.35 mm TS unbalanced
    Headphone: 1 x 1/4" / 6.35 mm TRS balanced
    Voices 16
    Sequencer Gated Step Sequencer: 16 x 4 (each layer can have a separate sequence)
    Polyphonic Step Sequencer: 64 steps (6 notes per step), and ties and rests
    Arpeggiator Programmable arpeggiator with up, down, up+down, random, assign modes
    Selectable Note Value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
    One-, two-, or three-octave range
    Re-latching arpeggiation
    Note repeat
    Oscillators 2 x digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1)
    Glide (Portamento): Separate rates per oscillator
    White-noise generator
    Analog VCAs
    Hard sync
    Waveform Type Selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)
    Low-Pass Filter 1 x analog Curtis with selectable 2-/4-pole operation (self-resonating in 4-pole mode), per voice
    Envelope Generators 3 x Envelope Generators: Filter, VCA, and assignable (four-stage ADSR + delay); envelope 3 can loop
    LFO 4 x LFO with key sync per LFO
    Modulation 8-slot modulation matrix
    Memory Factory Programs: 512 (4 banks of 128)
    Fully Editable User Programs: 512 with 2 layers (2 separate sounds) in each program
    End Pieces Oiled African mahogany wood end panels
    Power Internal Power Supply: IEC AC power inlet
    Worldwide Voltage: 100 and 240 V at 50/60 Hz
    Power Consumption: 30 W maximum
    Dimensions (W x L x H) 12.7 x 35.1 x 3.8" / 32.3 x 89.2 x 9.7 cm
    Weight 20.5 lb / 9.3 kg
    Package Weight 26.5 lb
    Box Dimensions (LxWxH) 42.0 x 19.0 x 10.0"
