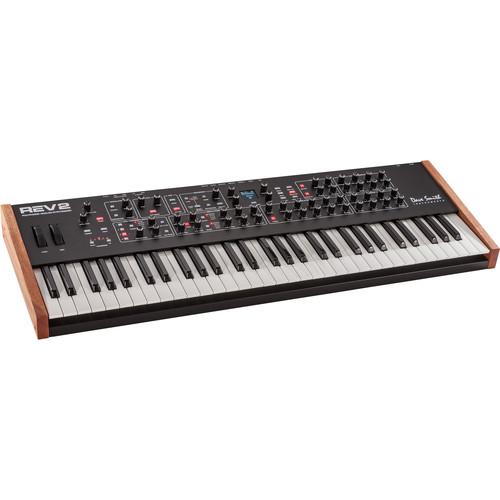

User Manual for Sequential Prophet Rev2 8-Voice Polyphonic Analog Synthesizer Click to enlarge the picture
Contents of the user manual for the Sequential Prophet Rev2 8-Voice Polyphonic Analog
- Product category: Synthesizer Keyboards Sequential
- Brand: Sequential
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sequential Synthesizer Keyboards
 |
User manual for the Sequential Prophet Rev2 8-Voice Polyphonic Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sequential product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sequential user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sequential product will considerably shorten its lifespan!
|
Product description The Prophet Rev2 from Dave Smith Instruments is an 8-voice polyphonic synthesizer that builds upon the success of the original Prophet '08 synthesizer, but with an improved design and enhanced features. The Prophet Rev2 retains all the sound capabilities including two digitally controlled analog oscillators (DCO) per voice (plus octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse-wave and pulse-width modulation, as well as the signature analog Curtis low-pass filter with 2- or 4-pole selections (resonating in 4-pole mode). Additionally, the synthesizer offers three envelope generators to control the filter and VCA, with the 3rd being assignable and offering ADSR + delay and loop capabilities.
Other notable features include the doubling of the modulation matrix, waveshape modulation on all waveforms, digital effects per layer in stacked or split voice mode, a polyphonic step sequencer per layer and more. The Prophet Rev2 is compatible with any existing libraries or patches from the Prophet '08. The instrument has inputs for a sustain pedal and expression pedal, which doubles as an input for control voltage for further sonic manipulation. Four 1/4" unbalanced TS outputs provide audio output, while a stereo 1/4" headphone connection allows for playing in quiet environments. - 8-Voice Polyphony
-
- With 8 voices available, you have the freedom to allocate them as you wish. Play two-fisted chords, stack two 4-voice sounds for massive, complex textures, or split the keyboard into two separate 4-voice instruments
- Bold Sound
-
- The Prophet Rev2 gets its bold, punchy sound from its 2-/4-pole, low-pass, resonant Curtis filters per voice. These are the same filters used not only in the Prophet '08, but in many classic instruments of the '70s and '80s. A separate Audio Mod control adds additional harmonic complexity and movement
- Waveshape Modulation
-
- Waveshape Modulation: Vary the "pulse width" of any of the four waveforms (sawtooth, saw+tri, triangle, square)
- Shape Mod Control: Manually dial in a desired waveshape width or use an LFO or other mod source for continuously shifting timbre
- Vast Tonal Possibilities: Single-oscillator sounds take on new depth and dimension
- Effects per Layer
-
- Effect Section: Reverb, delays (standard and BBD), chorus, phase shifter, ring modulation, and distortion
- Stacked or Split Voice Mode: Apply a different effect to each layer. Effects parameters can be modulated through the Mod Matrix
- Extended Modulation Matrix
-
- Mod Matrix: Doubled in sized, with 8 individual slots and many more sources/destinations
- Poly Step Sequencing
-
- Polyphonic Step Sequencer: Allows up to 64 steps and up to 6 notes per step. Create a different sequence for each layer when you are working in stacked or split voice mode, making it a powerful tool for composition or performance
- Gate Mode: Modulation sequencer that allows you to create up to 4 different 16-step sequences for complex modulation
- Sequences Allow Ties and Rests: Syncs to an external MIDI clock
- Arpeggiator: Features note repeats, re-latching, and can be synced to external MIDI clock
- Per-Knob Programmability
-
- The knob-per-function front panel offers instant access to Prophet Rev2 functions
- Programs: 512 permanent factory programs and 512 rewritable user programs
- Versatile Playability
-
- Keyboard: Five-octave, high-quality, semi-weighted keyboard with velocity and channel aftertouch.
- Roadworthy
- Integrated power supply
- USB support
- Crisp OLED display
UPC: 855346000722 In the Box Sequential Prophet Rev2 8-Voice Polyphonic Analog Synthesizer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sequential Prophet Rev2 8-Voice Polyphonic Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSequential DSI-2808 Specs | Keyboard | 5-octave (61-key) keyboard with semi-weighted action, velocity, and aftertouch | | Controls | Controls: Enable deep and comprehensive editing with little to no menu diving
52 x knobs
20 x buttons
1 x spring-loaded pitch wheel and
1 x assignable mod wheel | | MIDI | MIDI Connectors: In, Out, Thru (5-pin DIN) | | Input | Pedal/CV Input: 1/4" / 6.35 mm (responds to expression pedals or control voltages ranging from 0 to 5 VDC, protected against higher or negative voltages)
Sustain Pedal Input: 1 x 1/4" / 6.35 mm (accepts normally on or normally off momentary footswitch) | | Output | Main Stereo Output: 2 x 1/4" / 6.35 mm TS unbalanced
Output B Stereo: 2 x 1/4" / 6.35 mm TS unbalanced
Headphone: 1 x 1/4" / 6.35 mm TRS balanced | | Voices | 8 | | Sequencer | Gated Step Sequencer: 16 x 4 (each layer can have a separate sequence)
Polyphonic Step Sequencer: 64 steps (6 notes per step), and ties and rests | | Arpeggiator | Programmable arpeggiator with up, down, up+down, random, assign modes
Selectable Note Value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One-, two-, or three-octave range
Re-latching arpeggiation
Note repeat | | Oscillators | 2 x digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1)
Glide (Portamento): Separate rates per oscillator
White-noise generator
Analog VCAs
Hard sync
| | Waveform Type | Selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation) | | Low-Pass Filter | 1 x analog Curtis with selectable 2-/4-pole operation (self-resonating in 4-pole mode), per voice | | Envelope Generators | 3 x Envelope Generators: Filter, VCA, and assignable (four-stage ADSR + delay); envelope 3 can loop | | LFO | 4 x LFO with key sync per LFO | | Modulation | 8-slot modulation matrix | | Memory | Factory Programs: 512 (4 banks of 128)
Fully Editable User Programs: 512 with 2 layers (2 separate sounds) in each program | | End Pieces | Oiled African mahogany wood end panels | | Power | Internal Power Supply: IEC AC power inlet
Worldwide Voltage: 100 and 240 V at 50/60 Hz
Power Consumption: 30 W maximum
| | Dimensions (W x L x H) | 12.7 x 35.1 x 3.8" / 32.3 x 89.2 x 9.7 cm | | Weight | 20.5 lb / 9.3 kg | | | | Package Weight | 30.5 lb | | Box Dimensions (LxWxH) | 42.0 x 19.66 x 19.0" |
