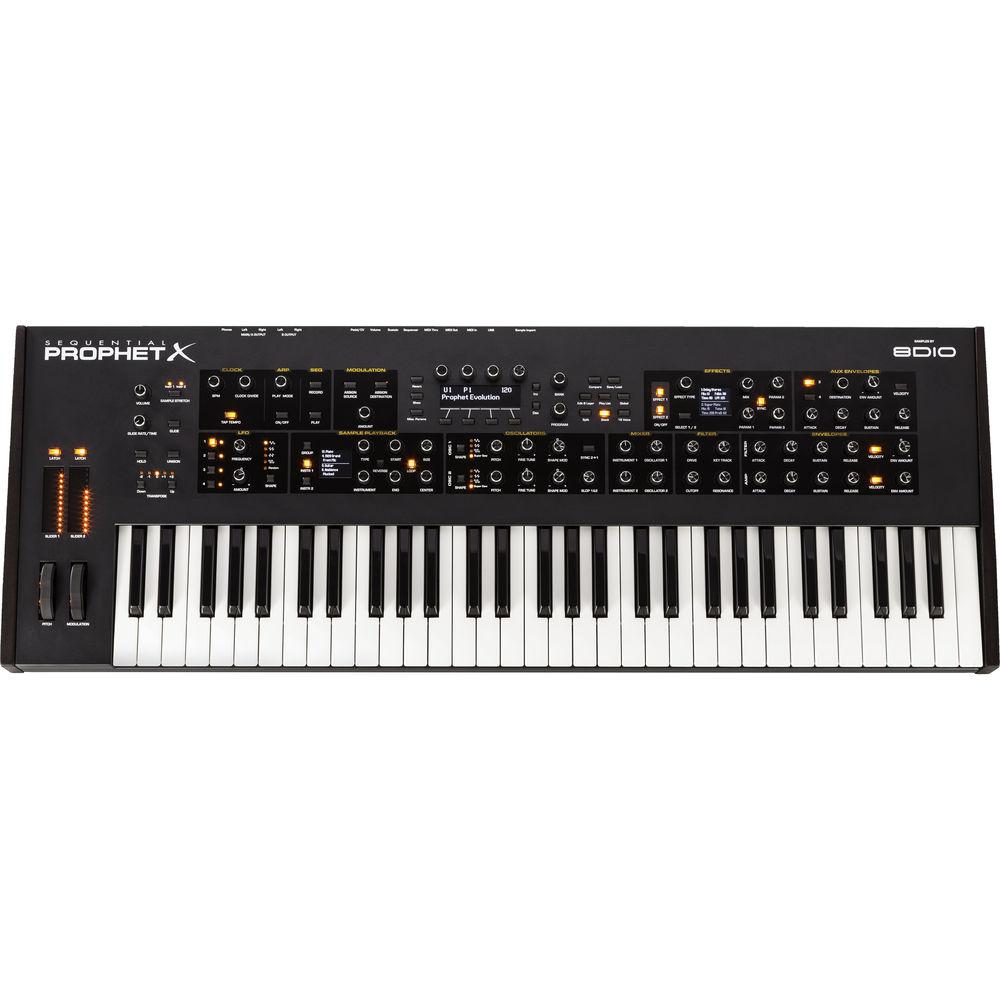

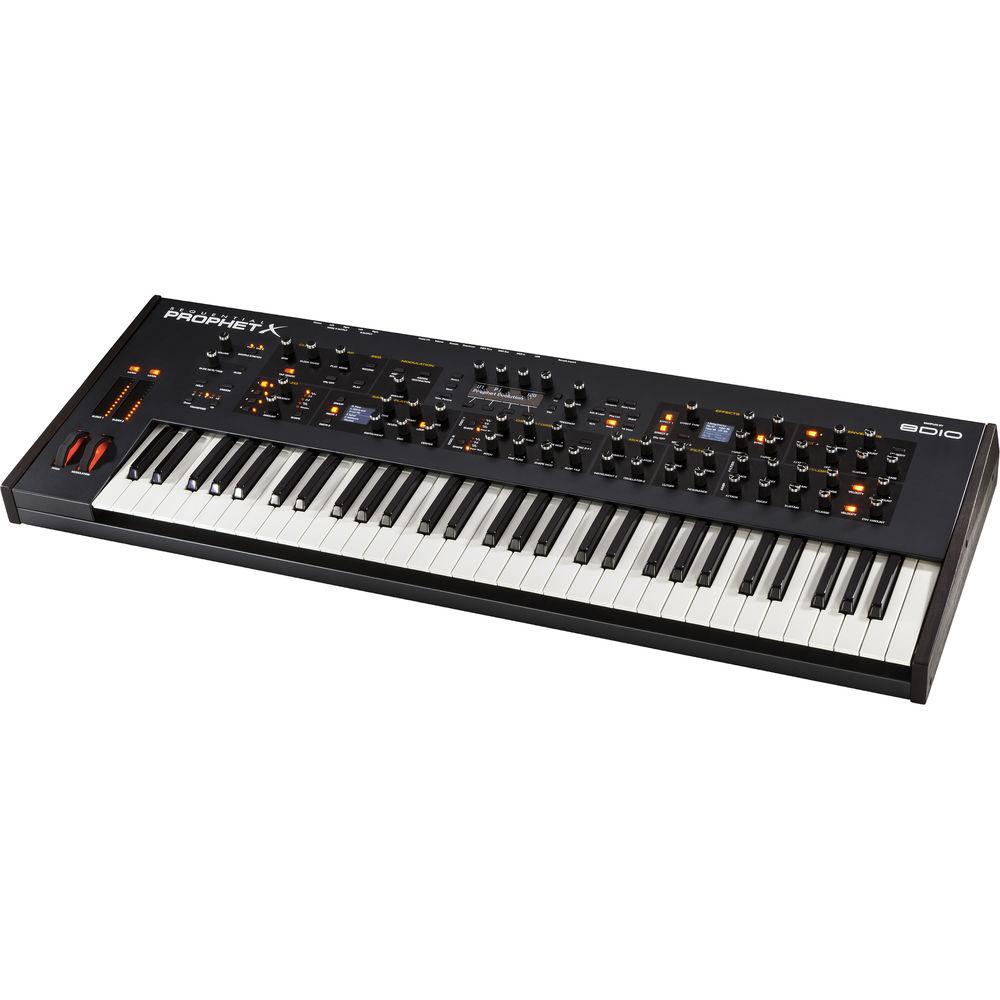

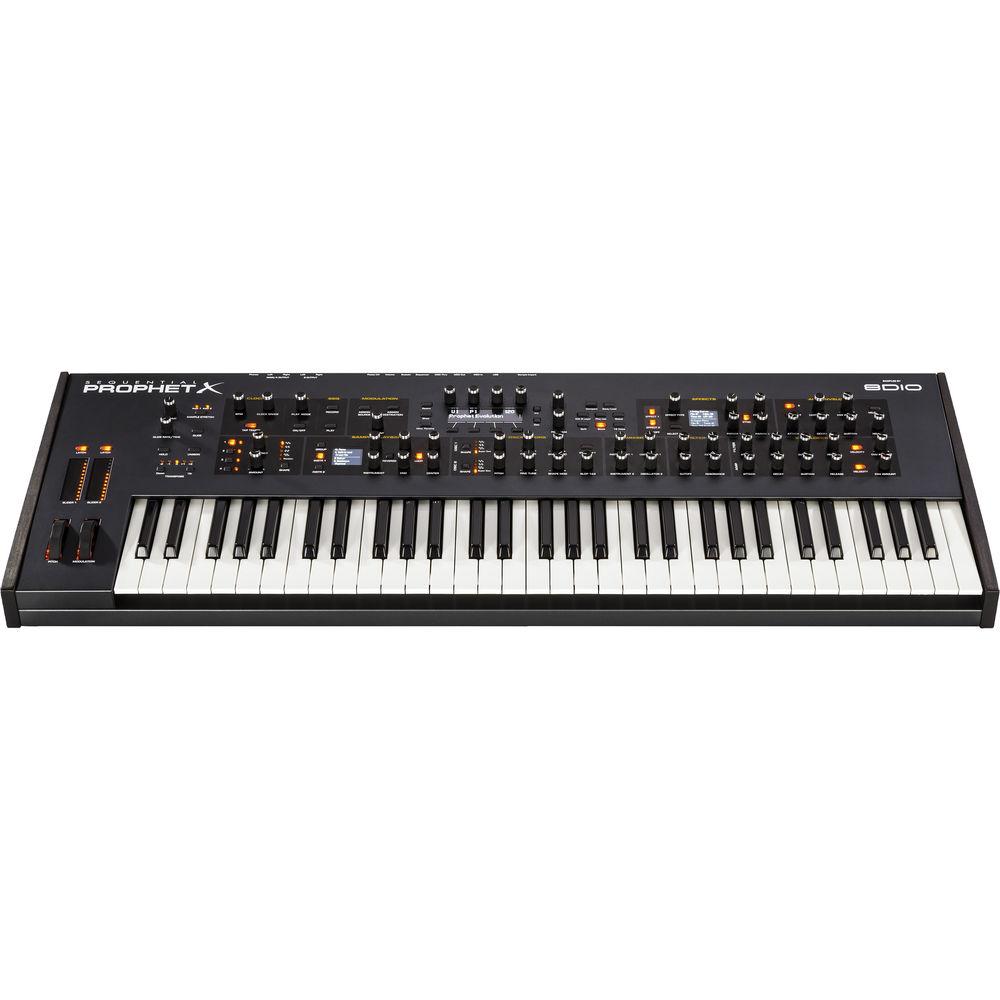

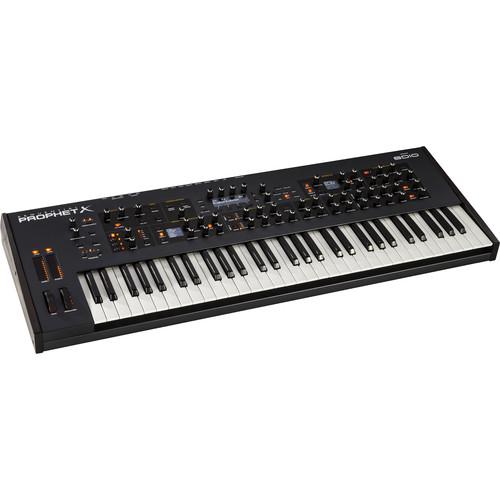

User Manual for Sequential Prophet X Samples Synthesis Hybrid Synth Click to enlarge the picture
Contents of the user manual for the Sequential Prophet X Samples Synthesis Hybrid
- Product category: Synthesizer Keyboards Sequential
- Brand: Sequential
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sequential Synthesizer Keyboards
 |
User manual for the Sequential Prophet X Samples Synthesis Hybrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sequential product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sequential user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sequential product will considerably shorten its lifespan!
|
Product description - Quick Listen: Sequential Prophet X/XL Samples + Synthesis Hybrid Synth
Designed for the studio or live performance, the Sequential Prophet X is a bi-timbral, 8-voice-stereo (16-voice mono) synth with an innovative sound engine that powers two simultaneous 16-bit, 48 kHz sample-based instruments plus two high-resolution digital oscillators, which are all processed through analog filters. This versatile instrument combines samples + synthesis into a potent fusion well suited for traditional instruments such as piano, electric piano, organ, drums, strings, and guitar, as well as complex pads, effects, and evolving textures.
The Prophet X utilizes 150 GB of internal samples from highly-respected sound developers 8Dio, who pioneered the deep-sampling technique to create remarkably realistic sounds. An additional 50 GB of internal storage is dedicated to importing external sample libraries, while support for user-created samples is slated for the end of 2018.
At the heart of the Prophet X’s powerful sound are its newly developed 24 dB per octave resonant low-pass filters, which are based on a vintage design. The separate left and right filters are designed for a true stereo signal path and designed to add depth and impact to both the samples and the digital oscillators. Additional features include four syncable LFOs with slew and phase offset, four loopable five-stage envelope generators, and a 16-slot mod matrix with 28 sources and 88 destinations. The onboard polyphonic step sequencer provides 64-steps with up to 6-notes per step. It is possible to create a different sequence for each layer when working in stacked or split voice mode. Both the sequencer and arpeggiator feature external MIDI clock synchronization.
Dual effects engines provide multiple reverbs, two delays (standard and BBD), chorus, phase shifter, flanger, vintage speaker rotator, high-pass filter, and distortion. In stacked or split mode, you can apply two different effects to each layer and effects parameters can be modulated via the mod matrix. The Sequential Prophet X includes a standard IEC power cord. - Sample Engine
-
- Provides two independent, stereo, digitally sampled instruments per voice (4 in stack or split mode)
- 150 GB of internal sample content created by 8Dio (known for pioneering deep sampling)
- Diverse collection of acoustic and electronic instruments
- Plenty of edgy ambient and cinematic effects
- Shape the samples through loop manipulation, sample stretching, and the Prophet X’s sound-sculpting modulation functions
- Each sample instrument has its own tone control for high-pass or low-pass filtering
- Fifty gigabytes of additional internal storage are dedicated to importing external sample libraries
- Support for user-created samples is planned for late 2018
- Add-on sample packs are available from 8Dio
- Synth Engine
-
- Classic Prophet Power: Two high-resolution digital oscillators that feature both classic waveshapes and a supersaw for more timbral possibilities
- Shape Mod Control: Manually dial in a desired waveshape width for any of the classic sine, sawtooth, or pulse waves
- Use an LFO or other mod source for continuously shifting timbre
- Shape the raw sounds with all the classic synthesis functions including 4 syncable LFOs with slew and phase offset, 4 loopable five-stage envelope generators, and a 16-slot mod matrix with dozens of modulation sources and destinations
- Stereo Filters
-
- Two 24 dB per octave resonant low-pass filters, which are based on a vintage design
- Separate filters in the left and right channels for a true stereo signal path
- Adds exceptional presence and fullness to both the samples and oscillators.
- Additional Polyphony: Switch the Prophet X from 8-voice stereo mode to 16-voice mono mode (useful for stacks and splits)
- Poly Step Sequencer
-
- Provides up to 64-steps and up to 6 notes per step
- Create a different sequence for each layer if working in stacked or split voice mode (great for composition or performance)
- Sequences include ties, rests, and can sync to an external MIDI clock
- Arpeggiator: Features note repeats, re-latching, and can be synced to external MIDI clock
- Two Effects per Layer
-
- Dual Effects Engine: Provides multiple reverbs, 2 delays (standard and BBD), chorus, phase shifter, flanger, vintage rotating speaker, high-pass filter, and distortion
- Stacked or Split Voice Mode: Apply two different effects to each layer
- Effects parameters can be modulated through the mod matrix
- Semi-Weighted Keyboard
-
- Five-octave, semi-weighted keyboard with velocity and channel aftertouch
- Integrated power supply,
- MIDI USB support
- Three crisp OLED displays
UPC: 855346000685 In the Box Sequential Prophet X Samples + Synthesis Hybrid Synth - Power Cord
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sequential Prophet X Samples Synthesis Hybrid Synth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSequential Prophet X Specs | Sample Playback | 2 x multi-sampled stereo instruments per voice with editable sample start, sample end, loop size, and loop center, loop on/off, sample reverse, sample stretch, bit-rate reduction, and sample rate reduction
150 GB of factory-installed
16-bit, 48 kHz sampled instruments created by 8Dio
Additional 50 GB of samples can be added by purchasing additional sound libraries
User-sample import is planned for late 2018 | | Oscillators | 2 x digital oscillators per voice with selectable sine, sawtooth, pulse, and supersaw waves (variable waveshapes)
Glide (Portamento): Separate rates per oscillator; (samples can glide in sample stretch mode)
Hard sync
| | Filters | 2 x analog 4-pole resonant low-pass filter per voice
Digital high-pass filter in effects section | | Envelopes | 4 x loopable, five-stage (ADSR plus delay) envelope generators
Filter, VCA, and two assignable
Amplifier Envelope:
Four-stage (ADSR) envelope generator
Velocity modulation of envelope amount | | Sequencer | Polyphonic step sequencer
Up to 64 steps (6 notes per step)
Ties and rests | | LFO | Low Frequency Oscillators: 4 x LFO's with key sync, phase offset, and slewing per LFO Five Wave Shapes: Triangle, sawtooth, reverse sawtooth, square, and random (sample and hold) | | Modulation | 16-slot modulation matrix
28 x sources
88 x destinations
11 x additional dedicated sources (mod wheel, pressure, velocity, breath controller, footswitch, LFO 1, LFO 2, LFO 3, LFO 4, Env 3, Env 4) | | Arpeggiator | Fully-featured arpeggiator with up, down, up+down, random, assign modes
Selectable Note Value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One, two, or three octave range
Re-latching arpeggiation
Note repeat | | Digital Effects | 2 x digital effects on each layer
Stereo delay, BBD delay, chorus, flanger, phaser, vintage rotating speaker, distortion, high-pass filter, spring reverb, plate reverb | | Clock | Master clock with tap tempo
BPM control and display
MIDI clock sync | | Performance Control | Full-sized, semi-weighted, 5-octave keyboard with velocity and channel (mono) aftertouch
Backlit pitch and mod wheels
Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
Transpose controls for an 8-octave range
Hold switch latches held notes on
Polyphonic glide (portamento)
Unison (monophonic) mode with configurable voice count
| | Patch Memory | 512 factory programs (4 banks of 128)
512 fully editable user programs
2 layers (2 separate sounds) in each Program | | In/Out | MIDI: In, out, thru
USB MIDI
Sample import jack for USB stick
Main Stereo Audio Output: 2 x 1/4″ / 6.3 mm phone (TS, unbalanced)
Output B Stereo Audio Output: 2 x 1/4″ / 6.3 mm phone (TS, unbalanced)
Pedal/CV: Responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages)
Volume: Responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages)
Sustain Pedal Input: accepts normally on or normally off momentary footswitch
Sequencer: Accepts normally on or normally off momentary footswitch to trigger sequencer playback
Headphone Output: 1/4″ / 6.3 mm stereo phone jack | | Power | IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 VAC at 50/60 Hz
Power Consumption: 25 W maximum
| | Dimensions (L x W x H) | 38.4 x 13.5 x 4.1" / 97.6 x 34.4 x 10.5 cm | | Weight | 24.0 lb / 10.9 kg | | | | Package Weight | 31.3 lb | | Box Dimensions (LxWxH) | 44.0 x 18.0 x 8.0" |
