User Manual for Sequential Tempest Drum Machine Click to enlarge the picture
Contents of the user manual for the Sequential Tempest Drum Machine
- Product category: Drum Machines Sequential
- Brand: Sequential
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sequential Drum Machines
 |
User manual for the Sequential Tempest Drum Machine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sequential product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sequential user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sequential product will considerably shorten its lifespan!
|

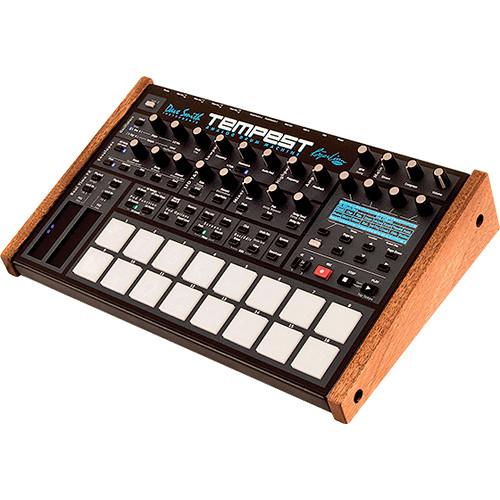

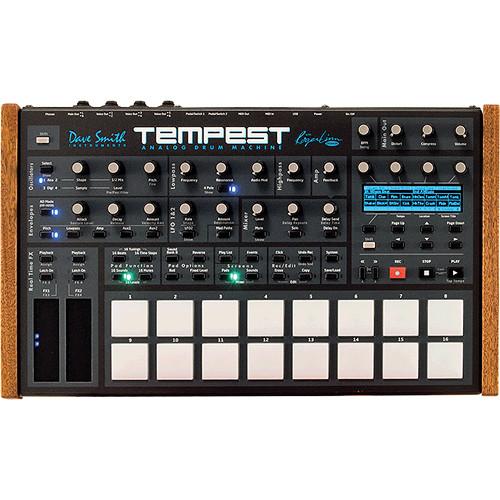

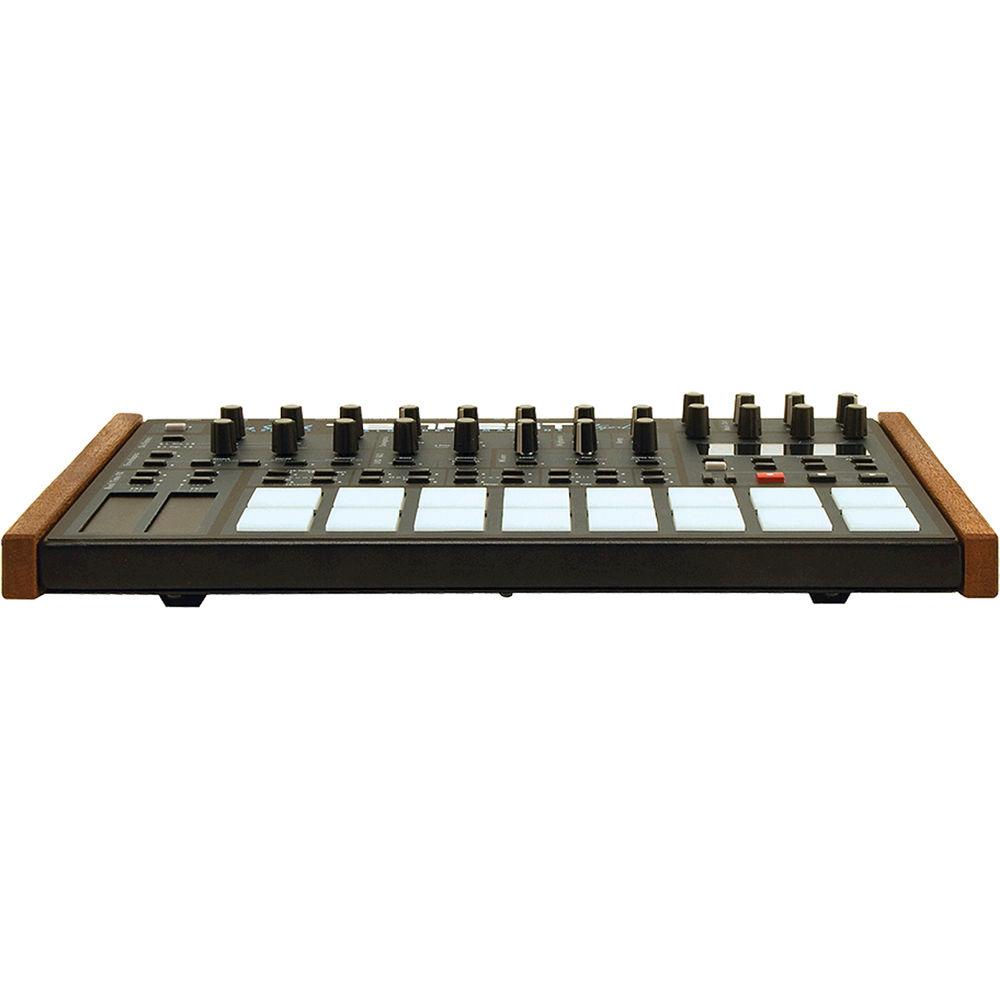

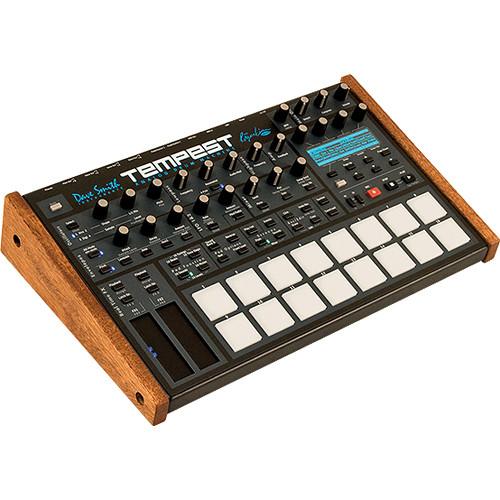

Product description The Tempest Drum Machine from Dave Smith Instruments is a 6-voice, hybrid analog/digital drum machine. It has 16 lit touch and pressure sensitive pads arranged in a 8x2 formation, as well as 2 pressure and position sensitive touch sliders. Each of its 6 voices has 2 analog and 2 digital oscillators. The digital oscillators provide access to over 450 samples and waveforms, while the analog oscillators can produce sawtooth, triangle, saw/triangle, and variable pulse square waves. To further sculpt your drum sounds, each voice also has a sub-octave generator, 5 envelope generators, 2 LFOs, and high and low-pass filters.
You can also apply a range of effects to your sounds via the onboard stereo analog compressor and distortion. Additionally, the Tempest has a beat-synced delay and stutter effect. Each of its 6 voices can be routed out to its own 1/4" output in addition to the master stereo 1/4" outs. The Tempest has 5-pin DIN MIDI input and output as well as USB MIDI control. -
- Two analog oscillators per voice capable of producing sawtooth, triangle, saw/triangle, and variable pulse width square waves, with hard sync
- Two digital oscillators per voice loaded with over 450 drum samples and waveforms
- One sub-octave generator per voice (one octave below oscillator 1)
- One Curtis low-pass filter per voice (switchable 2- or 4-pole) with audio rate modulation, self-oscillating in 4-pole mode
- One high-pass filter per voice
- Analog VCAs with programmable feedback level
- Five envelope generators per voice (ADSR plus hold)
- 2 LFOs per voice
- 8 x 8 modulation matrix
- Hardware MIDI delay per voice
- Glide (portamento): separate rates per oscillator
- 16 pressure and velocity sensitive lit pads
- Two pressure and position sensitive touch sliders
- 650 sound program locations
- Analog compressor and distortion (available on main audio outputs)
- Real time sequencer
- Roger Linn designed swing modes
- OLED 256 x 64 display
UPC: 855346000852 In the Box Sequential Tempest Drum Machine 100-240V AC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sequential Tempest Drum Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSequential Tempest Specs | Pads | 16 pressure and velocity sensitive lit pads | | Voices | 6 | | Oscillators | 2x analog oscillators with hard sync per voice
2x digital oscillators with over 450 drum samples and waveforms per voice | | Waveform Type | Sawtooth, triangle, saw/triangle, and variable-pulse-width square | | Generators | 1x sub-octave generator per voice (one octave below oscillator 1) | | Low-Pass Filter | 1x analog Curtis low-pass filter per voice (switchable 2 or 4-pole) with audio rate modulation; self-oscillating in 4-pole mode | | High-Pass Filter | 1 per voice | | LFO | 2 per voice | | Modulation | 8 x 8 modulation matrix | | VCA | Analog | | Envelope Generators | 5 per voice (ADSR plus hold) | | Controls | 2x pressure and position sensitive touch sliders | | Glides | Portamento, separate rates per oscillator | | Programs | 650 sound program locations | | Effects | Analog compressor (on main audio outputs)
Analog distortion (on main audio outputs) | | Display | 256 x 64 OLED | | MIDI | 1x 5-pin DIN MIDI input
1x 5-pin DIN MIDI output

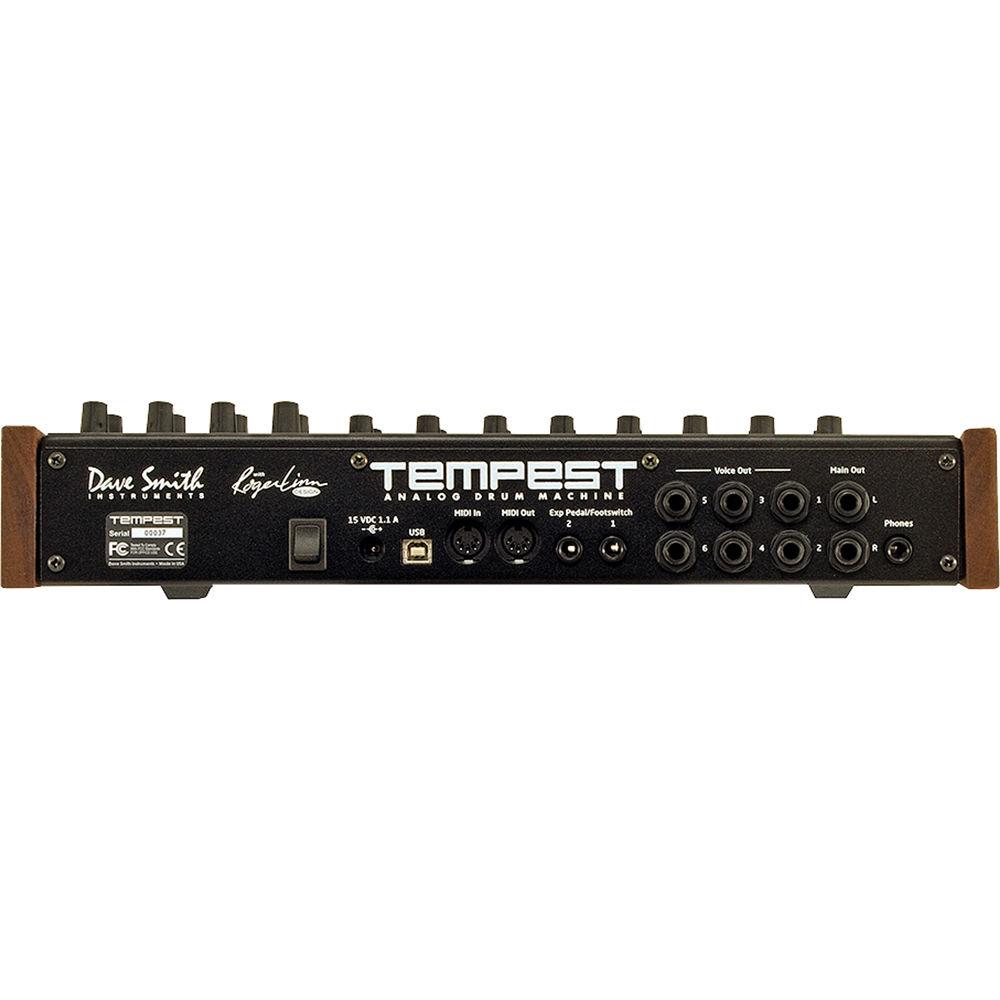

1x USB type B | | Audio Output | 2x 1/4" (6.3 mm) unbalanced main outputs
6x 1/4" (6.3 mm) unbalanced voice outputs
1x 1/4" (6.3 mm) stereo TRS headphone output | | Connections | 2x 1/4" (6.3 mm) TRS pedal/control voltage inputs (3.3 V DC maximum) | | Dimensions (L x W x H) | 15.4 x 9.0 x 2.5" (39.1 x 28.8 x 6.4 cm) | | Weight | 6.50 lb (2.95 kg) | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 20.5 x 13.5 x 7.2" |
