Product description

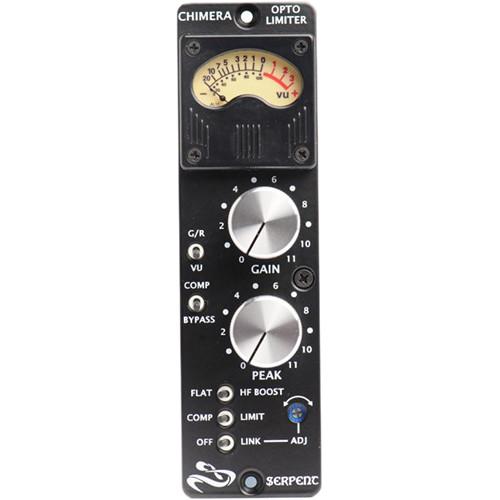

500 Series: Guide to Effects Read More The 500 Series CHIMERA Opto Compressor from Serpent Audio features a discrete circuit design, Orange Drop and Elna capacitors, full steel enclosure and cover, class AB transistor output, true T4B optical cell, and transformer balanced input and output.
  • Discrete transistor design
  • Transformer balanced input and output
  • User replaceable/upgradable true T4B optical cell
  • Cinemag input transformer
  • Full steel enclosure and cover
  • Custom wound interstage and output transformers
  • Infamous "Mod" incorporated for increasing signal to noise ratio
  • Hard bypass (relay controlled)
  • Stereo linkable
  • HF Sidechain boost (for De-Essing)
  • Compress/Limit Mode: Sealed Pots
  • Sifam VU meter
  • VPR compliant (100mA total power consumption)
  • Made in the USA
In the Box Serpent Audio 500 Series CHIMERA Opto Compressor
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Serpent Audio 500 Series CHIMERA Opto Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Serpent Audio CHIMERA Specs

    Number of Channels 1 (mono) (stereo linkable)
    Inputs 1 x transformer balanced input
    Outputs 1 x transformer balanced output
    Maximum Input Level +16 dBu
    Compression Ratio Varies
    Attack Time 1.5 ms or less (program dependent)
    Release Time Program dependent
    Maximum Output Level +19 dBu
    Output Load 600 Ohms minimal
    Gain Reduction True T4B optical cell
    Make-up Gain 50 dB (±1 dBu)
    Frequency Response 20 Hz to 20 kHz
    Noise >80 dBu
    Dimensions (LxWxH) 5.25 x 1.5 x 6.8" / 13.3 x 3.81 x 17.3 cm
    Weight 2.2 lb / 0.9 kg
