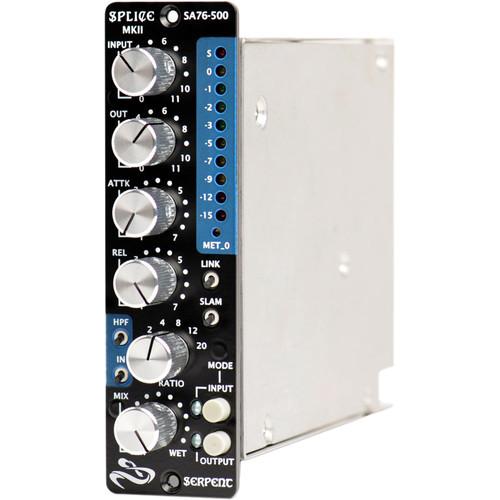

User Manual for Serpent Audio 500 Series Module Splice MKII Fet Compressor Click to enlarge the picture
Contents of the user manual for the Serpent Audio 500 Series Module Splice
- Product category: 500 Series Serpent Audio
- Brand: Serpent Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Serpent Audio 500 Series
|
User manual for the Serpent Audio 500 Series Module Splice contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Serpent Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Serpent Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Serpent Audio product will considerably shorten its lifespan!
|
Product description 500 Series: Guide to Effects Read More The 500 Series Module Splice MKII Fet Compressor from Serpent Audio recreates the circuitry and sound of not one, but two classic FET compressors. The Splice-500 mode switching allows you to switch between the classic Blackface and vintage Bluestripe circuits at the push of a button. In addition, the Splice-500 can also mix and match the two for entirely new sounds that can only be found with the Splice i.e. Blue Input Circuitry + Black Output Circuitry for Blueface mode or Black Input Circuitry + Blue Output Circuitry for Blackstripe mode. - Four Compressor circuits in one box:
Input Circuit Black + Output Circuit Black = Classic Blackface Mode
Input Blue + Output Blue = Classic Bluestripe Mode
Input Blue + Output Black = Blueface Mode (Unique to the Splice)
Input Black + Output Blue = Blackstripe Mode (Unique to the Splice) - Stereo Linkable with front panel switch
- All Buttons In / Slam Mode front panel switch
- Integrated Mix/Blend Control with switchable bypassing for in-the-box parallel processing
- Integrated sidechain high pass filter
- Selectable 600R output loading allows the user to easily optimize the Splice for use with both vintage and modern equipment
In the Box Serpent Audio 500 Series Module Splice MKII Fet Compressor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Serpent Audio 500 Series Module Splice MKII Fet Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSerpent Audio Splice MKII Specs | Input | Constant 600-Ohm input attenuator
Floating transformer balanced | | Output | With Mix Enabled:
100 Ohms
Transformer-like floating output
Electronic balanced (accepts balanced or unbalanced signals) | | External | Send: < 100 Ohms
Transformer-like floating output
Electronic balanced (accepts balanced or unbalanced signals)
Return: 22 kHz
Transformer-like floating output
Electronic balanced (accepts balanced or unbalanced signals) | | Maximum Input Level | +30 dBu with compression engaged and input level set to max (fully clockwise) | | Maximum Output Level | +24 dBu | | Output Load | 150 Ohms (minimum) | | Gain | 45 dB (±1 dBu) with compression disabled
Ratio set to "BP" | | Gain Reduction | Element: FET | | THD + N | Typically 0.5% (20 Hz to 20 kHz) | | Signal to Noise Ratio | > 80 dBu | | Attack Time | 20 to 800 microseconds | | Release Time | 50 milliseconds to 1.1 seconds | | Compression Ratio | 2:1, 4:1, 8:1, 12:1, 20:1 & Soft Bypass (BP) | | LED | Gain reduction meter |
