User Manual for Serpent Audio SB4001 500 Series Stereo Bus Compressor

Click to enlarge the picture
Serpent Audio SB4001 500 Series Stereo Bus Compressor Contents of the user manual for the Serpent Audio SB4001 500 Series Stereo
  • Product category: 500 Series Serpent Audio
  • Brand: Serpent Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Serpent Audio 500 Series

Serpent Audio SB4001 500 Series Stereo Bus Compressor Serpent Audio SB4001 500 Series Stereo Bus Compressor
User manual for the Serpent Audio SB4001 500 Series Stereo contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Serpent Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Serpent Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Serpent Audio product will considerably shorten its lifespan!



Product description

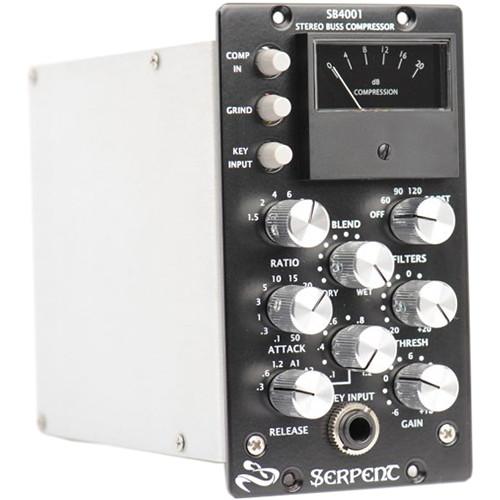

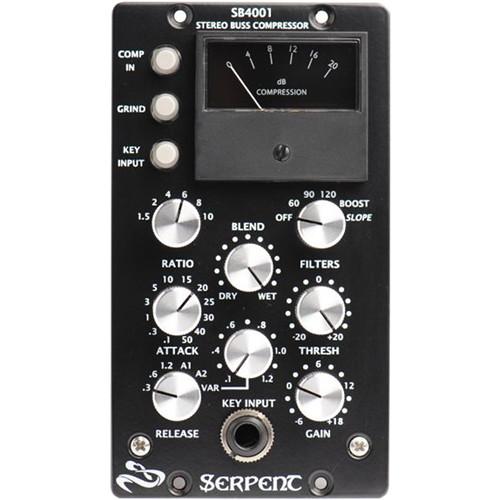

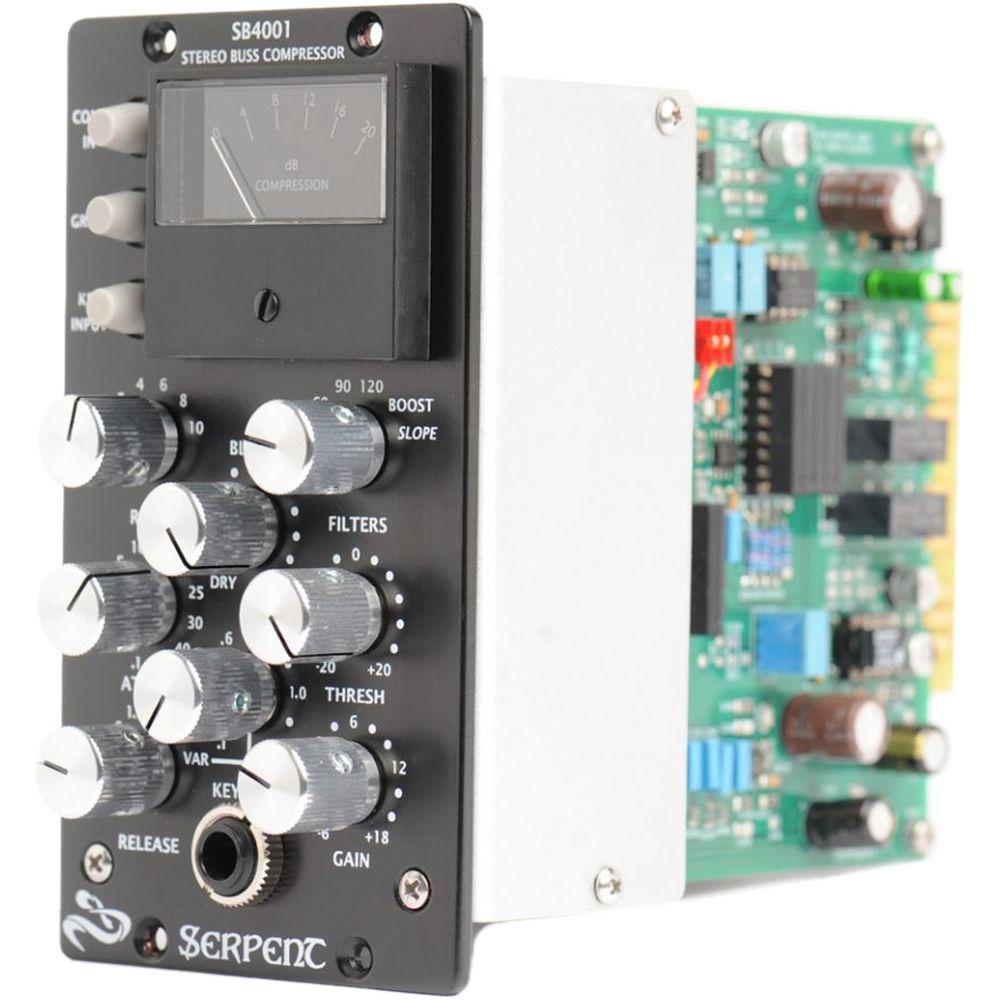

500 Series: Guide to Effects Read More The SB4001 500 Series Stereo Bus Compressor from Serpent Audio is a quad VCA based compressor, and can be used for either stereo or mono applications. It can be used for gain reduction and is suitable for a number of signal types and musical applications. This stereo compressor has six Ratios, ten Attack Times, High Pass/Boost/Slope Sidechain Filters, Wet/Dry Blend Control, External (Key) Input, Classic Stepped Release Settings, Classic and Alternate Auto Release, Variable Release Control, and "Grind" Mode (a valve style harmonic drive adding vintage color).
  • Electronically balanced
  • True bypass (relay controlled)
  • Protection from 48V phantom power
  • Powder-coated front panel for extra durability
  • All handmade through-hole main audio path
  • Wet/Dry blend (for parallel processing)
  • External/Key input accepts balanced or unbalanced inputs
  • Premium Grayhill rotary switches
  • Sealed pots
  • All machined aluminum knobs
UPC: 100156790012 In the Box Serpent Audio SB4001 500 Series Stereo Bus Compressor
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Serpent Audio SB4001 500 Series Stereo Bus Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Serpent Audio SB4001 Specs

    Function Compressor
    Number of Channels 1
    Input 22 kHz input impedance
    Electronically balanced (accepts balanced or unbalanced signals)
    Output < 100 Ohms output impedance
    Transformer-like floating output
    Electronically balanced (accepts balanced or unbalanced signals)
    External Input 22 kHz input impedance
    electronically balanced (TRS) (accepts balanced or unbalanced signals)
    Sidechain Filter 60 Hz, 90 Hz, 120 Hz, Boost Mode, Slope Mode
    Maximum Input Level +21 dBu
    Compression Threshold +8 dBu
    Compression Ratio 1.5:1, 2:1, 4:1, 6:1, 8:1, 10:1
    Attack Time 0.1 ms, 0.3 ms, 1 ms, 3 ms, 5 ms, 10 ms, 15 ms, 20 ms, 25 ms, 30 ms, 40 ms, 50 ms
    Release Time Stepped: 0.3 sec, 0.6 sec, 1.2 sec
    Classic Auto Release (A1)
    Classic Auto Release (A2)
    Variable Release Time (Engaged by Last Position on Stepped Switch): 0.1 to 1.2 sec (±10%)
    Maximum Output Level +21 dBu
    Output Load 600 Ohms
    Gain Gain Reduction Element: Quad VCA
    THD+N (20 Hz to 20 kHz), typically 0.008%
    Make-up Gain 24 dB (±1 dBu) [-6 to +18]
    Frequency Response (20 Hz to 20 kHz) ±0.11 dB
    Dynamic Range >119 dB
    Noise -100 dBu
    Dimensions (LxWxH) Not specified by the manufacturer
    Package Weight 1.7 lb
    Box Dimensions (LxWxH) 8.6 x 5.9 x 4.1"
