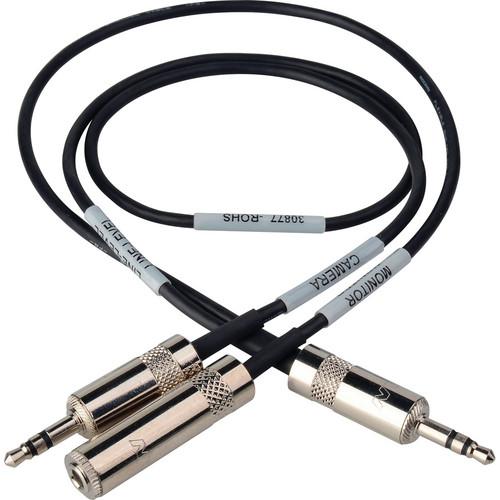

User Manual for Sescom LN2MIC-TAS-MON Tascam DR-100 35d 3.5mm Line to Microphone Cable with Monitoring Tap Click to enlarge the picture
Contents of the user manual for the Sescom LN2MIC-TAS-MON Tascam DR-100 35d 3.5mm
- Product category: Portable Recorder Accessories Sescom
- Brand: Sescom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sescom Portable Recorder Accessories
|
User manual for the Sescom LN2MIC-TAS-MON Tascam DR-100 35d 3.5mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sescom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sescom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sescom product will considerably shorten its lifespan!
|
Product description The Sescom LN2MIC-TAS-MON Tascam DR-100 35d 3.5mm Line to Mic Cable with Monitoring Tap is designed for portable digital audio recorders and microphone preamps with a single output jack. The jack is typically used for headphone monitoring or connecting to a DSLR audio input for recording. The LN2MIC-TAS-MON Y-Splitter Cable allows you to do both monitoring and recording from a single output jack.
It also features a -35 dB L Pad attenuator on both audio channels to reduce the Prosumer Line Level output (-10 dBV) to your camera's mic input sweet spot level. It's compatible with the Tascam DR100 recorders when connecting to Canon 5D Mark II digital cameras but also works well with other similar microphone preamps and DSLR cameras that require 35 dB of attenuation.
The cable is designed with proper impedances to assure maximum voltage transfer and low noise operation. The cable shield is isolated on the camera end to prevent shield noise from directly coupling into the camera connector ground. The cable allows users to go directly from the audio recorder into the camera and also monitor with headphones, creating a compact interface solution. All resistor values are 1% metal film to assure similar voltage attenuation between the stereo inputs. Cable ends are labeled for proper connection. In the Box Sescom LN2MIC-TAS-MON Tascam DR-100 35d 3.5mm Line to Microphone Cable with Monitoring Tap Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sescom LN2MIC-TAS-MON Tascam DR-100 35d 3.5mm Line to Microphone Cable with Monitoring Tap in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSescom LN2MIC-TAS-MON Specs | Audio Input Level | -10 dBV (0.25 to 0.47 pp) Prosumer Line level | | Input Impedance | 1.5 kΩ | | Audio Output Level | Approximately 14 mV | | Connectors | Connector 1: 3.5 mm TRS Male
Connector 2: 3.5 mm TRS Male
Connector 3: 3.5 mm TRS Female | | Compatibility | Canon: EOS 5D Mark II, EOS 7D, EOS 550D Rebel T2i, EOS 60D, and EOS 600D Rebel T3i DSLR Cameras
Nikon: D7000 and D300S DSLR Cameras | | Overall Length | 18.0" (457.2 mm) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 7.0 x 4.1 x 1.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
