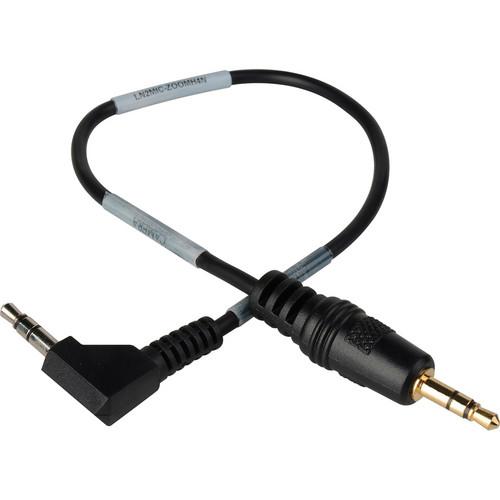

User Manual for Sescom LN2MIC-ZOOMH4N - Line to Microphone Attenuation Cable for HDSLR Cameras Click to enlarge the picture
Contents of the user manual for the Sescom LN2MIC-ZOOMH4N - Line to Microphone
- Product category: Portable Recorder Accessories Sescom
- Brand: Sescom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sescom Portable Recorder Accessories
|
User manual for the Sescom LN2MIC-ZOOMH4N - Line to Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sescom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sescom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sescom product will considerably shorten its lifespan!
|
Product description The LN2MIC-ZOOMH4N from Sescom is a problem solving cable for users of HDSLRs who are using a Zoom H4N or Zoom H1 as a secondary audio recording source. Many professional DSLR cameras have unbalanced stereo microphone level audio inputs on a mini TRS 3.5mm jack. The Samson Zoom H4N or H1 output line level audio signals. This cable provides the proper microphone levels and preserves the delicate connector contacts inside the camera, allowing users to go directly from the audio recorder into the camera.
The cable features a -25dB L Pad attenuator on both audio channels to reduce the prosumer line level output (-10dBV) to the cameras microphone input level. The cable is designed with the proper impedances to assure maximum voltage transfer and low noise operation. The cable shield is isolated on the camera end to prevent shield noise from directly coupling into the camera connector ground. All resistors values are 1% metal film to assure similar voltage attenuation between the stereo inputs and cable ends are labeled for proper connection. - Compatible with the following DSLR cameras:
Canon: - EOS 1D Mark IV
- EOS 5D Mark II
- EOS 7D
- EOS 550D Rebel T2i
- EOS 60D
Nikon:
Pentax: Table of Contents
|
Upload User Manual
Have you got an user manual for the Sescom LN2MIC-ZOOMH4N - Line to Microphone Attenuation Cable for HDSLR Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSescom LN2MIC-ZOOMH4N Specs | Connectors | 2 x 3.5mm TRS | | Audio Input Level | -10dBV (0.25pp to 0.47pp) prosumer line level | | Input Impedance | 1.5kΩ | | Audio Output Level | Approximately 14mV | | Output Impedance | 92Ω | | Length | 9" (229mm) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.9 x 3.8 x 1.3" |
