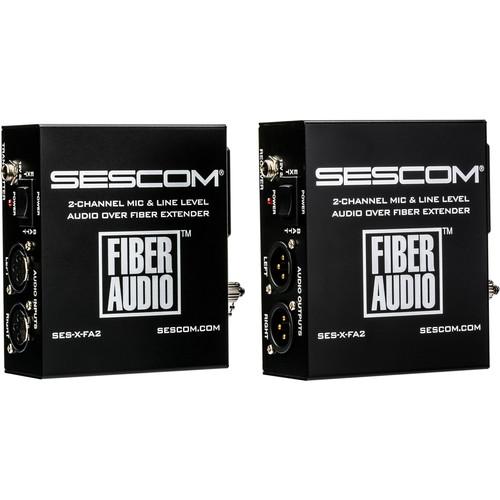

User Manual for Sescom Portable 2-Channel Audio-over-Fiber Extender Kit Click to enlarge the picture
Contents of the user manual for the Sescom Portable 2-Channel Audio-over-Fiber Extender Kit
- Product category: Video Extenders & Repeaters Sescom
- Brand: Sescom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sescom Video Extenders & Repeaters
|
User manual for the Sescom Portable 2-Channel Audio-over-Fiber Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sescom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sescom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sescom product will considerably shorten its lifespan!
|
Product description Extend your high-quality audio-over-fiber transmissions for miles with the Portable 2-Channel Audio-over-Fiber Extender Kit from Sescom. Whether you are in a broadcast studio, stadium, theater, or in the field, the SES-X-FA2 two-unit system can transmit audio up to 12.4 miles over single-mode fiber or up to 984' over multi-mode fiber.
The transmitter unit features two balanced XLR inputs, and the receiver unit two XLR outputs, and each channel on the transmitter can be switched from line to mic level as required. Providing 24-bit, 48 kHz audio quality and a signal-to-noise ratio greater than 85 dB, the units transmit clean, high-quality, crosstalk-free audio. The units are portable and can each run on a single 9V battery, or they can each be powered by an included AC adapter. Note: Note: These units are not for use with IFB systems where audio is modulated with voltage, they are not for intercom use, and they cannot be used with phantom-powered devices. - Two units work together to transmit and receive 24-bit, 48 kHz, digitally encoded, 2-channel analog audio over single- or multi-mode fiber
- Each unit provides a Simplex ST fiber connector; the Tx unit provides two balanced XLR inputs, and the Rx unit provides two XLR outputs. The Tx unit has a line/mic switch to control each XLR input
- Signal range is 12.4 miles over single-mode fiber and 984 feet over multi-mode fiber
- The units are portable and each run on one 9V battery with a runtime of approximately four hours. An AC power adapter is also included for each unit
In the Box Sescom Portable 2-Channel Audio-over-Fiber Extender Kit 2 x 9V Batteries 2 x Power Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sescom Portable 2-Channel Audio-over-Fiber Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSescom SES-X-FA2 Specs | Input / Output Connectors | Transmitter: 2 x Balanced XLR (with line/mic switch)
Receiver: 2 x Balanced XLR (line level only)
Optic Fiber: Simplex ST connector;
50/125 u multi-mode, 62.5/125 u multi-mode, 9/125 u single-mode
AC Power (Each Unit): 2.1 mm DC plug | | Signal Range | Single-Mode Fiber: 12.4 miles / 20 km
Multi-Mode Fiber: 984' / 300 m | | Frequency Response | 20 Hz - 20 kHz | | Input Impedance | 10-20 kOhms | | Power | Battery: 12 VDC, 1.5 A
AC Adapter: 100-240 VAC, 50/60 Hz
Operation: 5-14.4 VDC
Consumption: < 5 W
Max. Line Input Voltage: 6.9 V p-p | | Battery Type | Each Unit: 1 x 9 V
Runtime: 4 hours (approximate) | | Audio Bit Rate | 24-bit | | Audio Sampling Rate | 48 kHz | | Signal to Noise Ratio | > 85 dB | | Line/Mic Level | Mic Level: -30 dB
Line Level: 0 dB in/out | | Operating Temperature | 32 to 140°F / 0 to 60°C
20 to 90% humidity (with no condensation) | | Certification | FCC, CE, RoHS | | Dimensions | Each Unit: 4.33 x 3.62 x 1.65" / 11 x 9.2 x 4.2 cm | | Weight | Each Unit: 7.9 oz / 224 g | | | | Package Weight | 2.685 lb | | Box Dimensions (LxWxH) | 12.7 x 8.1 x 3.8" |
