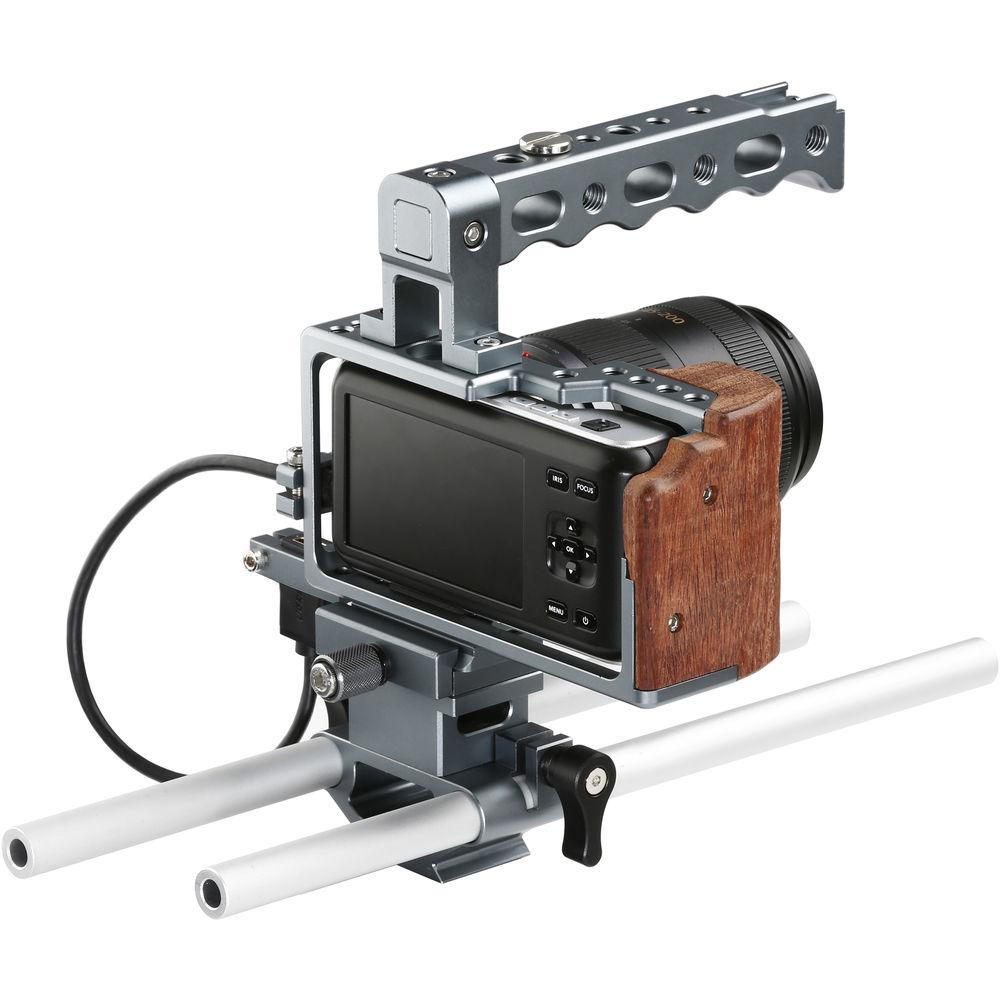

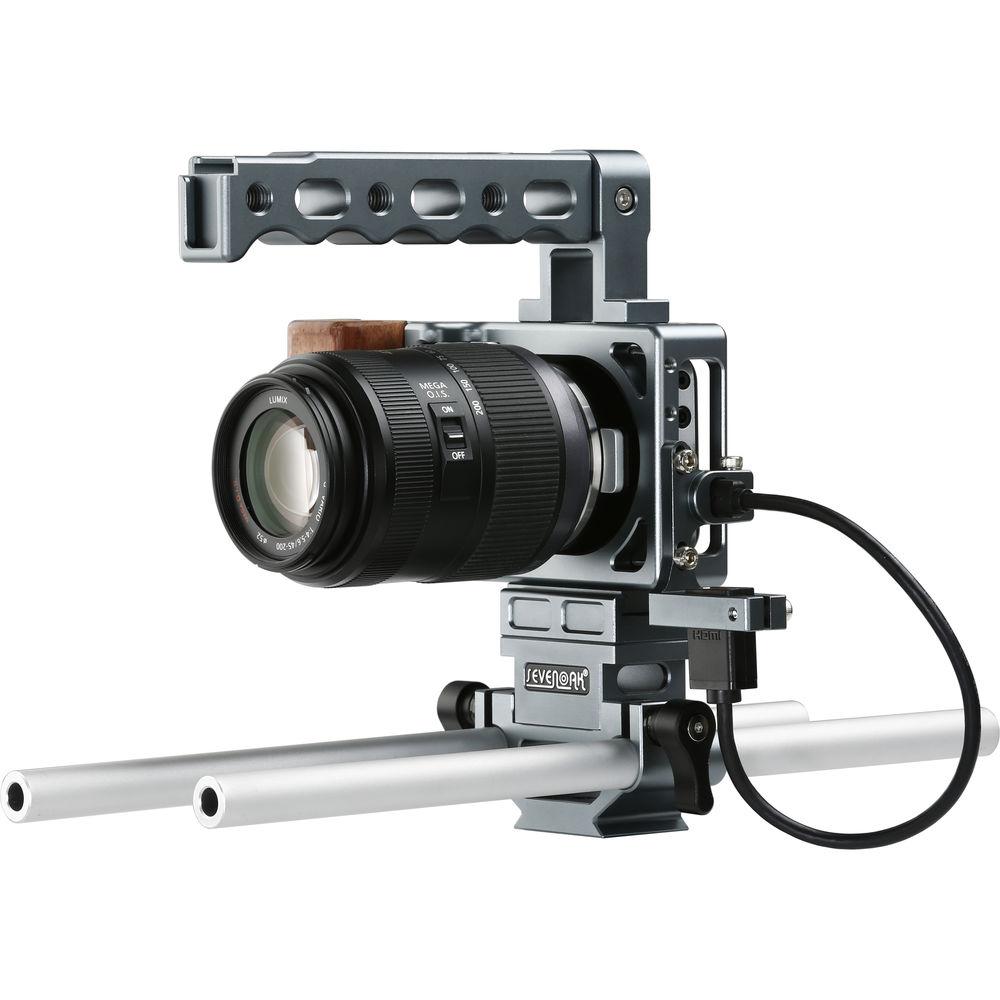

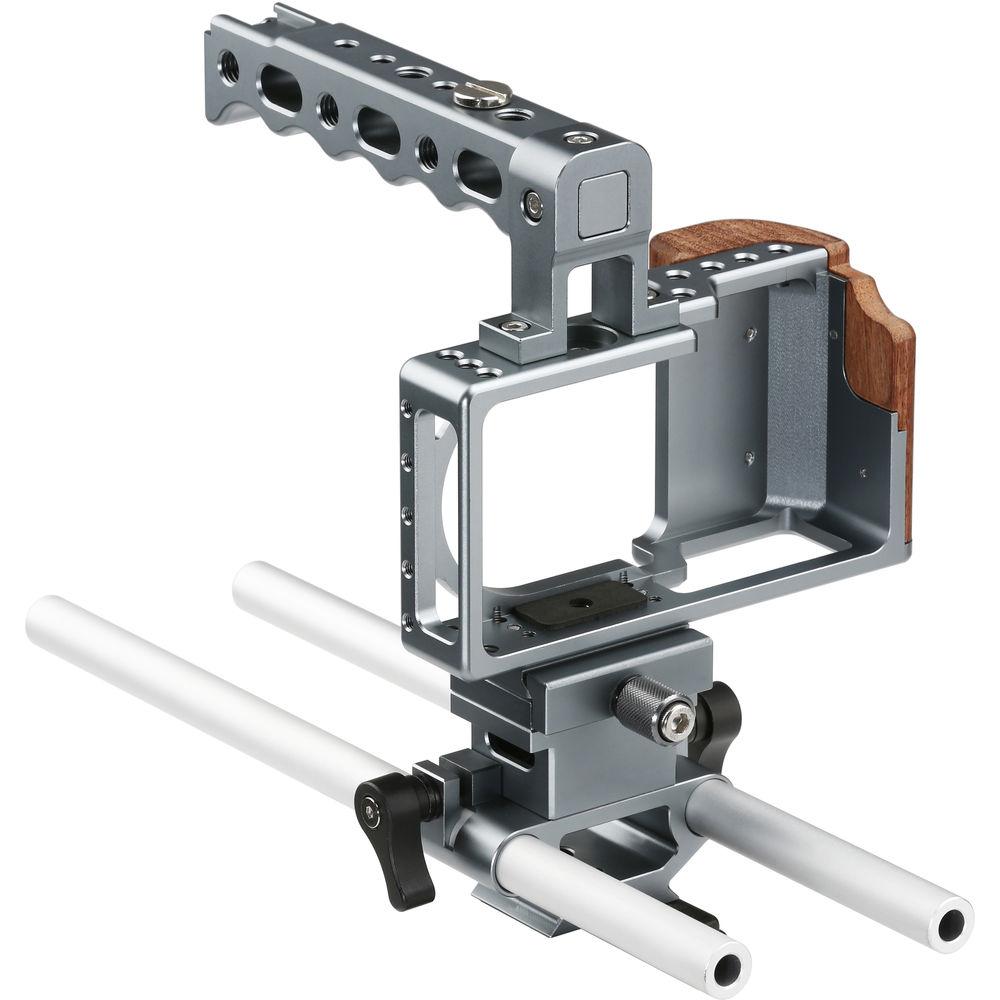

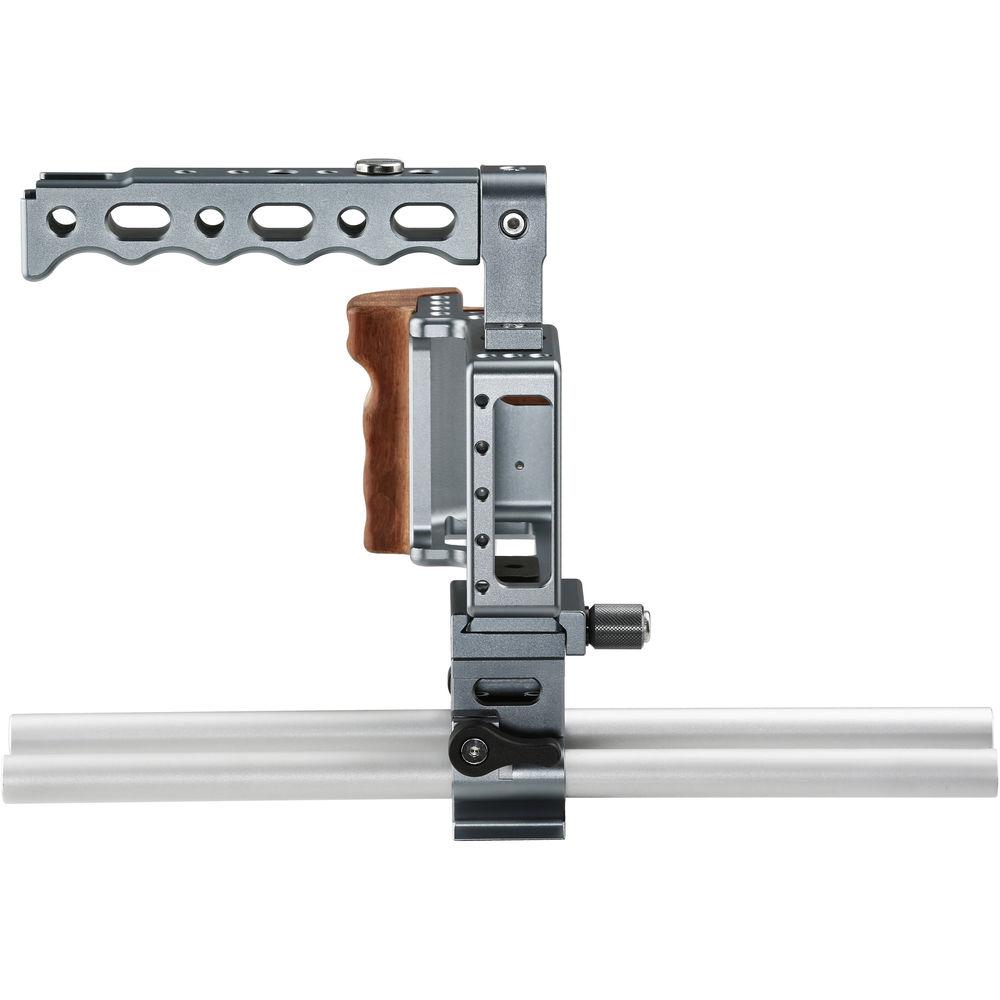

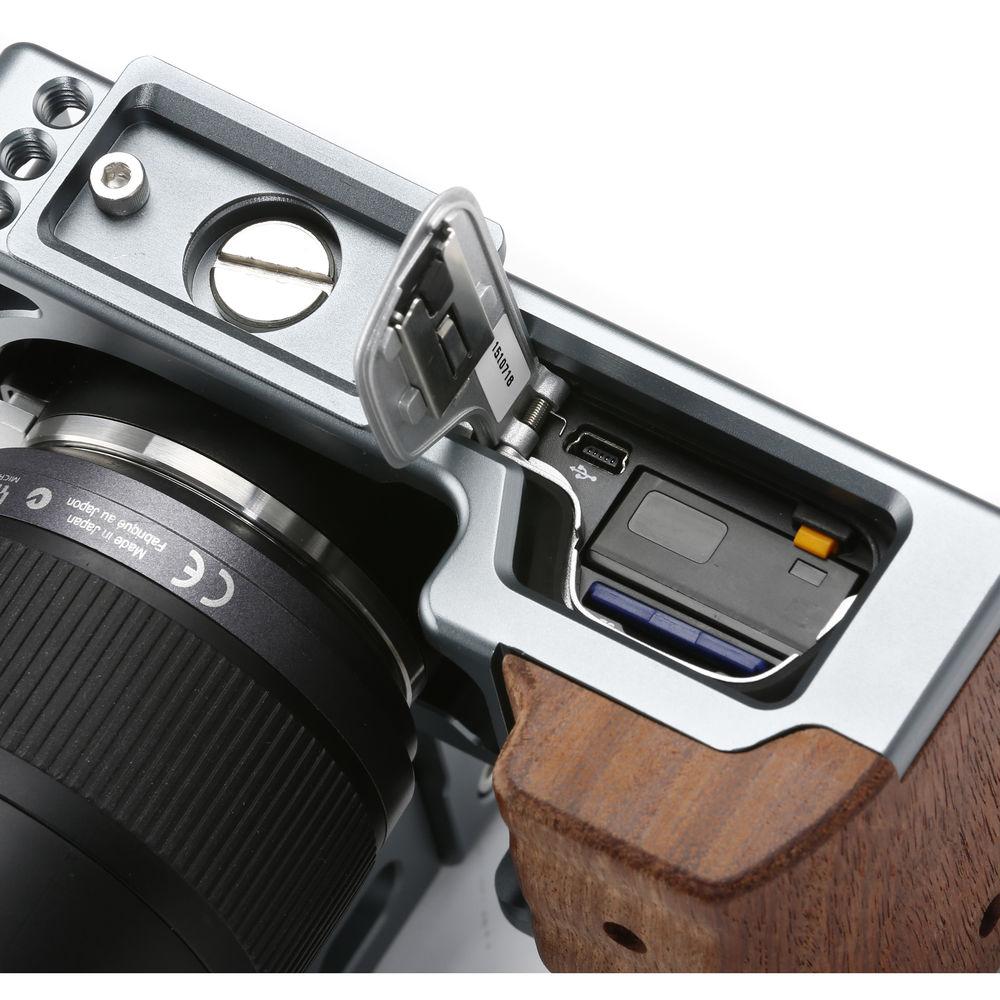

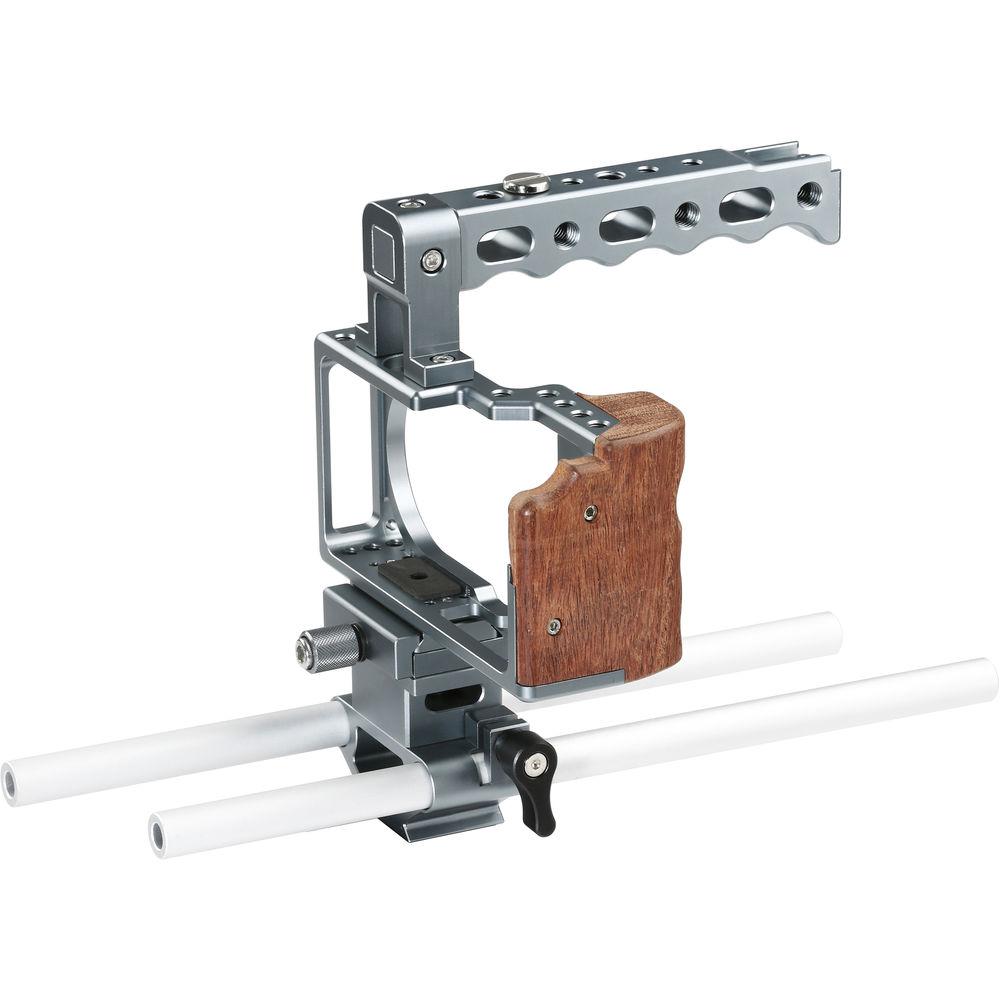

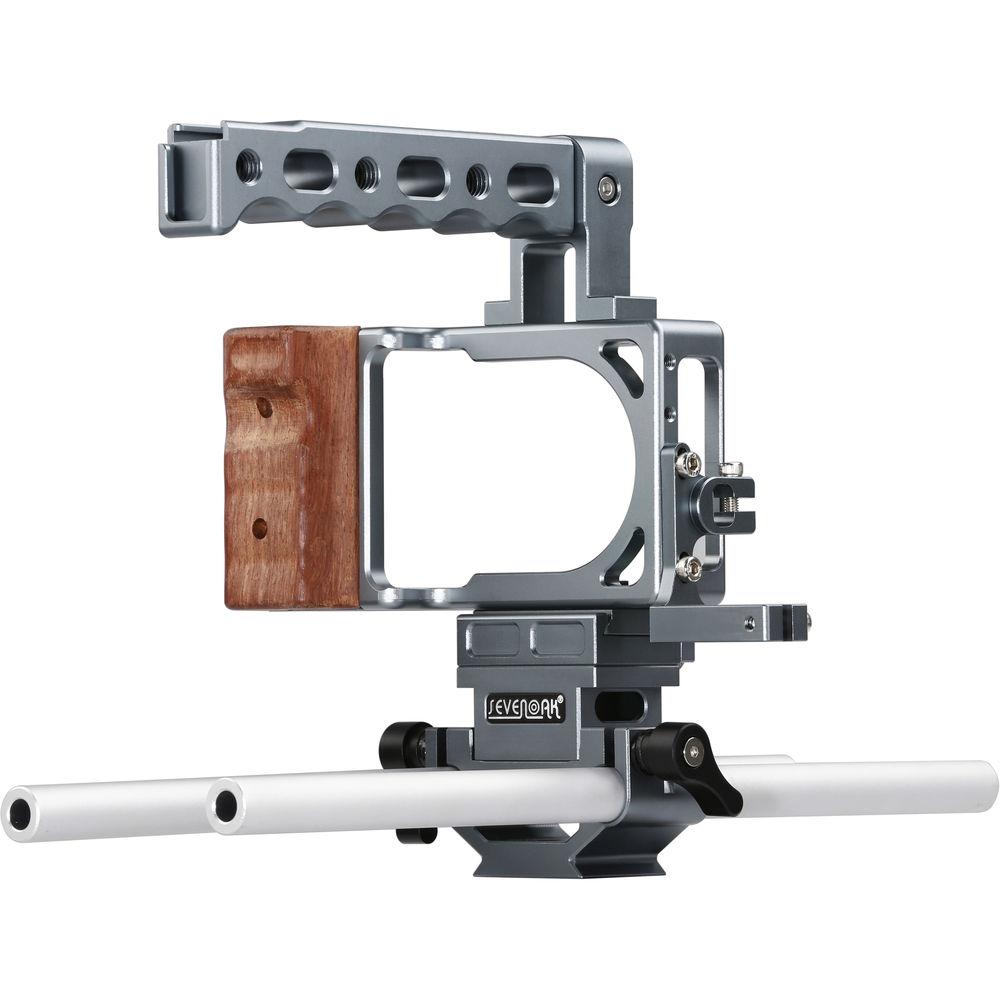

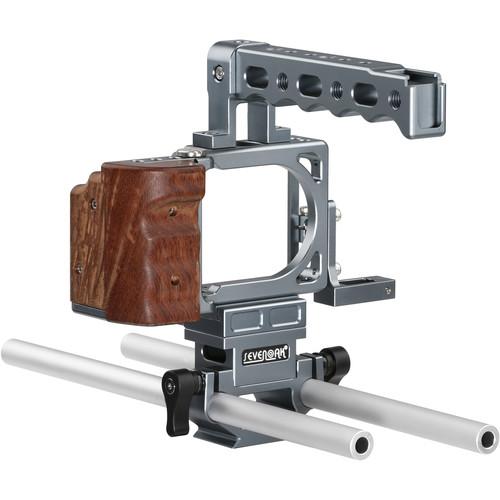

Product description The Sevenoak Cage Kit for Blackmagic Pocket Cinema Camera is an aluminum cage and rod system built specifically for the Blackmagic Pocket Camera (camera not included). It consists of the cage, which is formfitting and allows unobstructed access to the camera's features, connectors, battery, and SD card slot. The cage provides 1/4"-20 and 3/8"-16 accessory mounting points that enable you to mount available accessories without stressing the camera body.
Once the camera is mounted on the cage, the included HDMI plug protector connects the included micro-HDMI to HDMI cable to the camera's micro-HDMI port and is clamped in place, providing a full-sized HDMI connector. This makes it easier to connect HDMI cables, and you don't have to worry about wearing out or damaging the micro-HDMI port by repeatedly plugging and replugging a micro-HDMI cable into your camera body. The HDMI plug protector clamps the micro-HDMI adapter cable in place and attaches to the cage itself, acting as a strain relief and providing a platform for the full-sized HDMI connector to attach, so it doesn't just dangle freely.

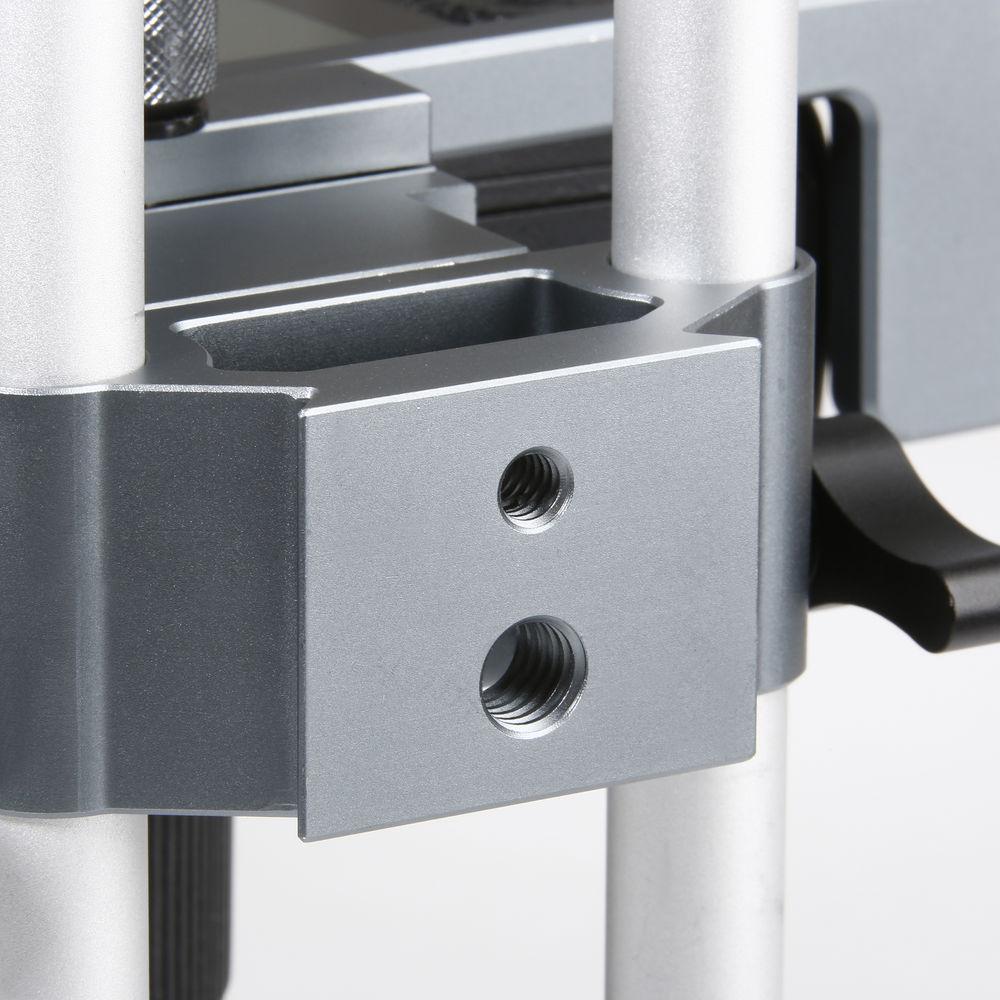

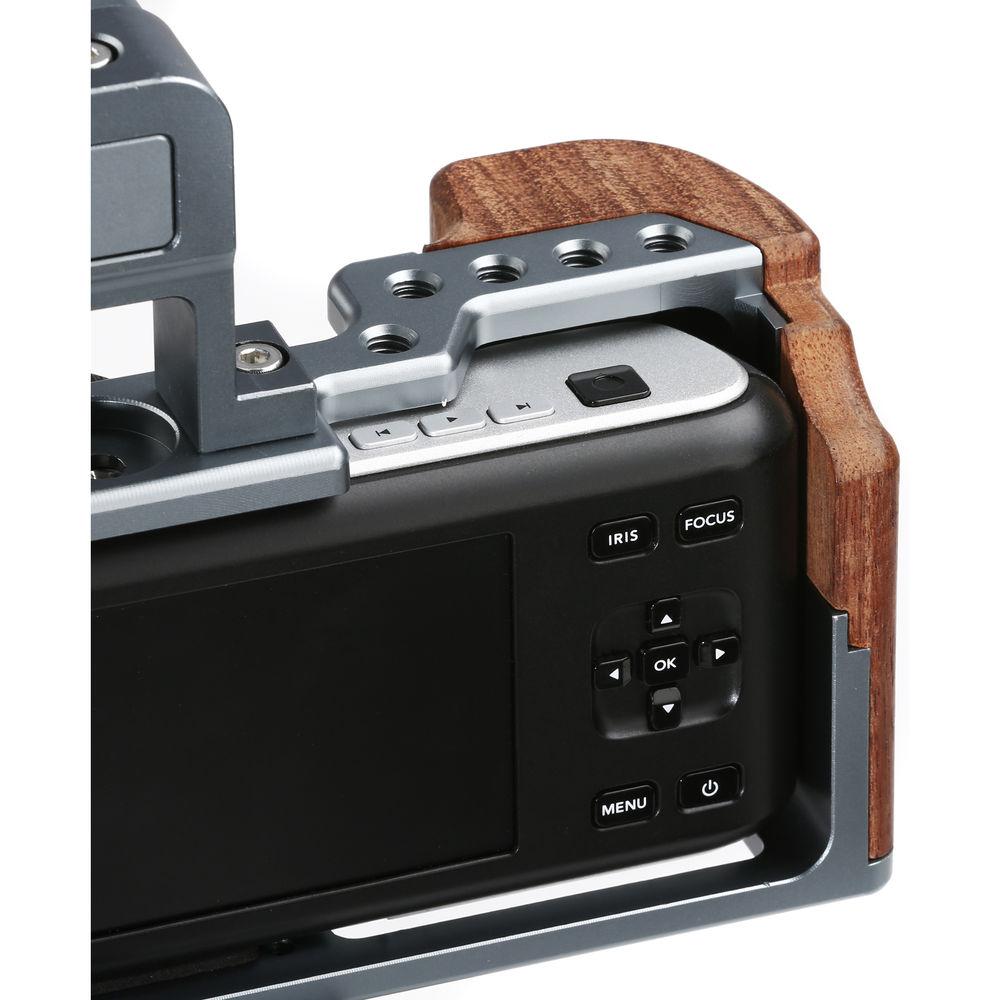

The cage features an integrated wood grip for user comfort, as well as a removable top handle that features accessory mounting points and two cold shoes. The cage also includes a 15mm LWS support rod system featuring rod clamps, a pair of 11.8" threaded rods, and three 1/4"-20 threaded helical coil inserts for attaching the rod support system to an available QR/sliding baseplate, tripod, or other 1/4"-20 mounting equipment.
The cage attaches to the included 15mm LWS support rods via a quick release system that allows you to easily remove the camera from the rods for a minimum-sized shooting package, or quickly remount the camera to the rods when working with rod-mounted accessories. The design of the system ensures that the lens' center height to the rods conforms to industry standards for using rod-mounted accessories. - Functions and features of the camera remain available for use.
- Top handle features two unpowered accessory shoe mounts, one forward-facing and one top-mounted.
- Numerous 1/4"-20 and 3/8"-16 threaded accessory mounting points.
- 15mm LWS support rod system.
In the Box Sevenoak Cage Kit for Blackmagic Pocket Cinema Camera Top Handgrip Top Handgrip Connector HDMI Plug Protector Micro-HDMI to HDMI Cable Quick Release Dovetail Plate Baseplate 2 x 15mm Rod (11.8") 1/4"-20 Camera Mounting Screw 7 x M4*8 2 x M4*10 2 x M4*16 Screw Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sevenoak Cage Kit for Blackmagic Pocket Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSevenoak SK-BPC10 Specs | Material of Construction | Anodized aluminum
Wood | | Dimensions | NSBM | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 2.605 lb | | Box Dimensions (LxWxH) | 13.5 x 6.8 x 4.35" |
