User Manual for Sevenoak DSLR Shoulder Rig with Motorized Follow Focus and Focus Memory Function Click to enlarge the picture
Contents of the user manual for the Sevenoak DSLR Shoulder Rig with Motorized
- Product category: Zoom & Focus Controls Sevenoak
- Brand: Sevenoak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sevenoak Zoom & Focus Controls
 |
User manual for the Sevenoak DSLR Shoulder Rig with Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sevenoak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sevenoak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sevenoak product will considerably shorten its lifespan!
|

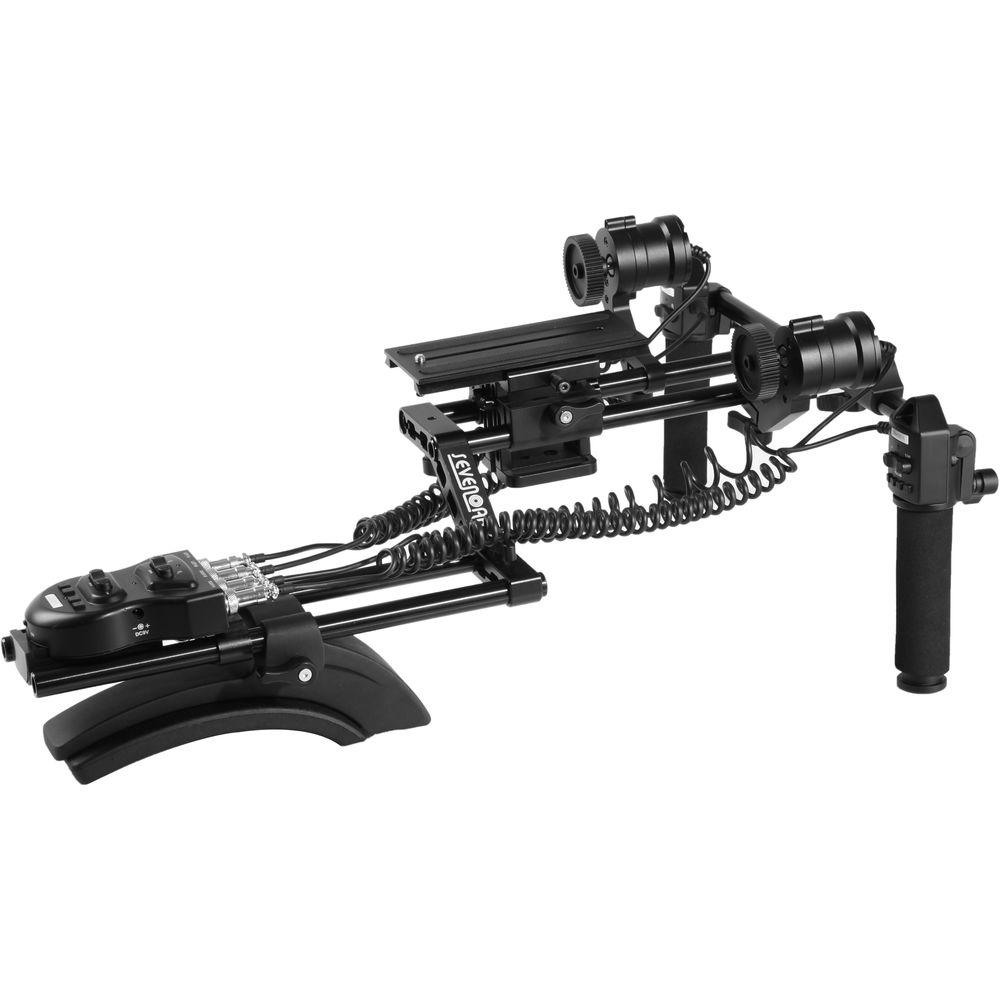

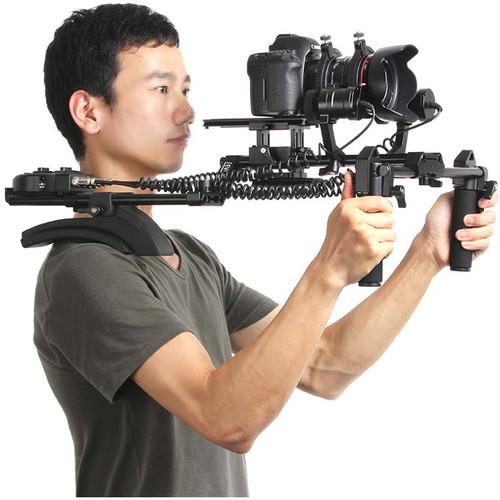

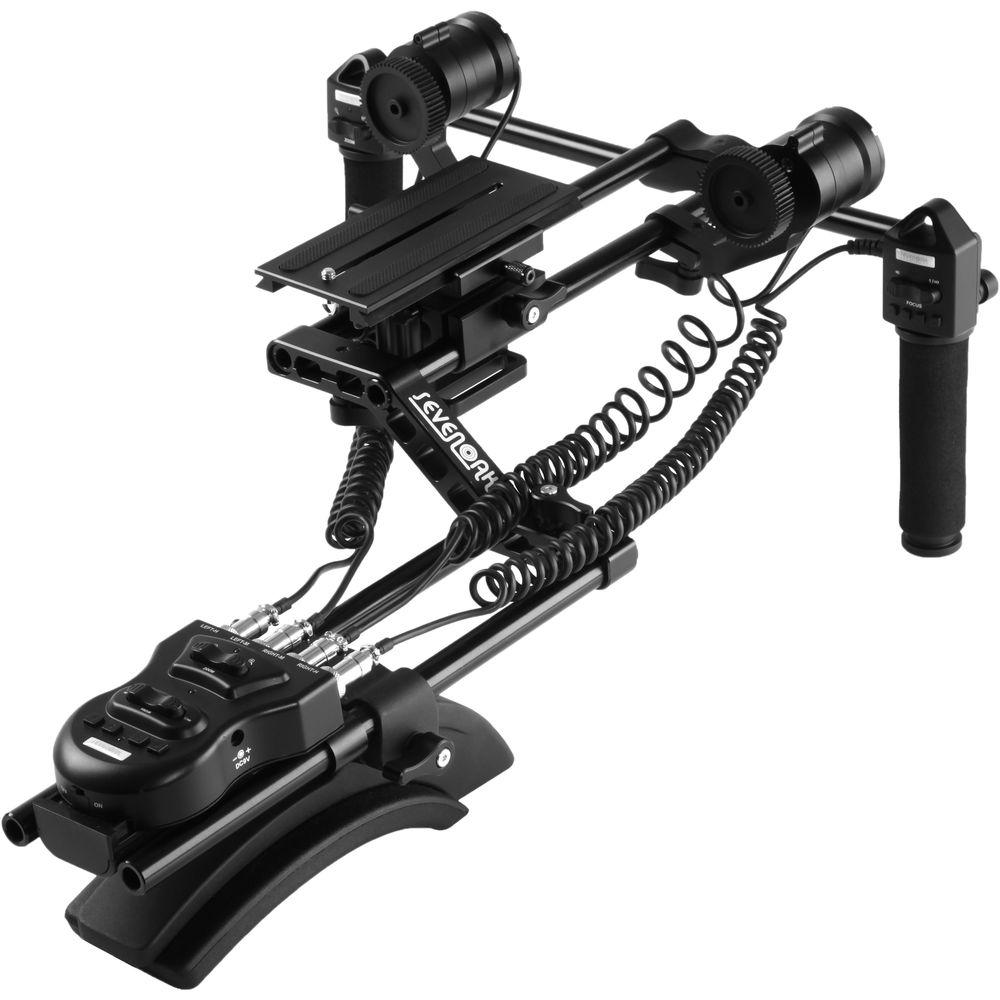

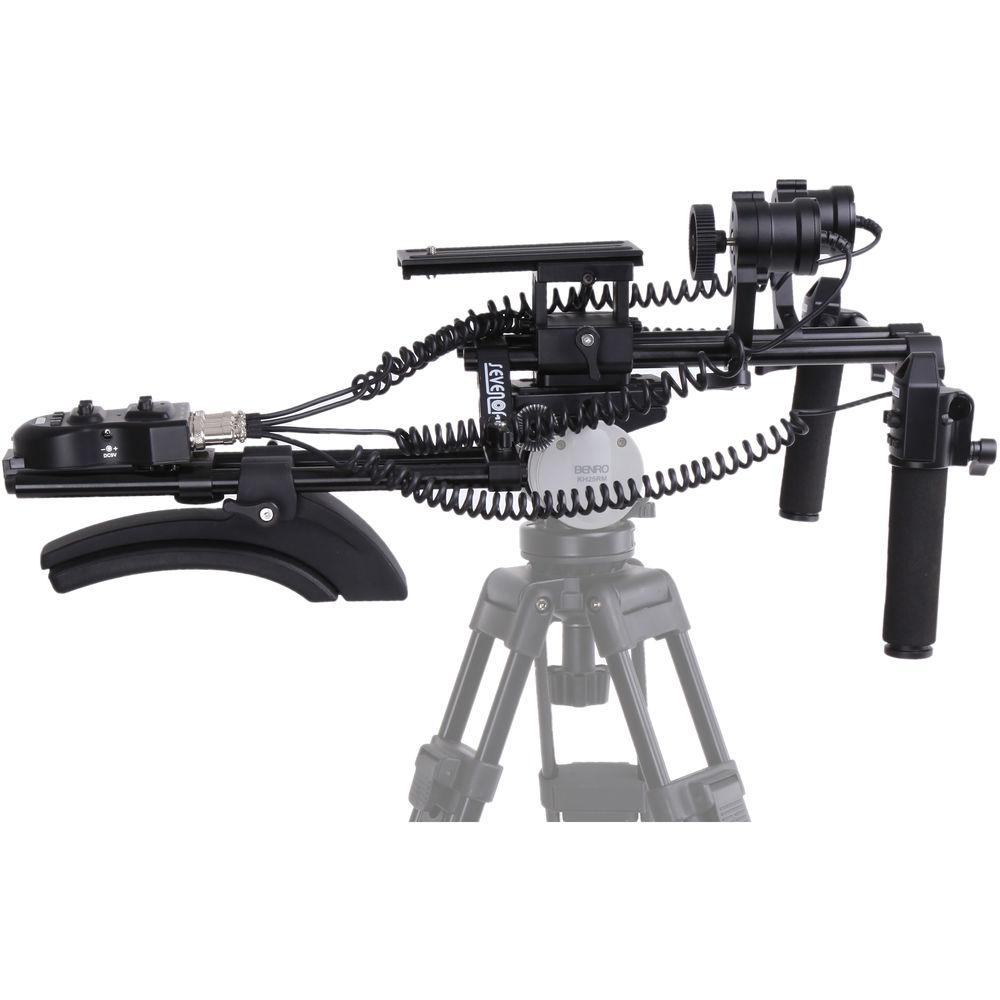

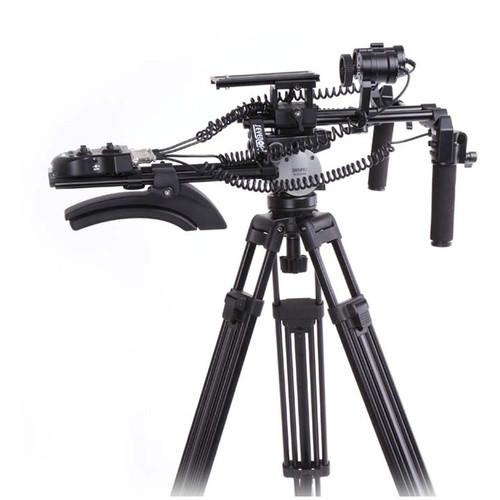

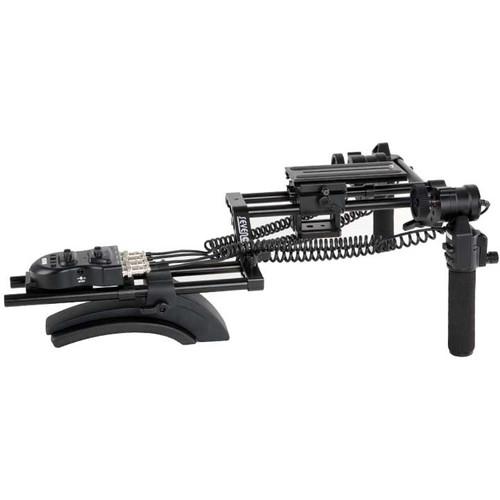

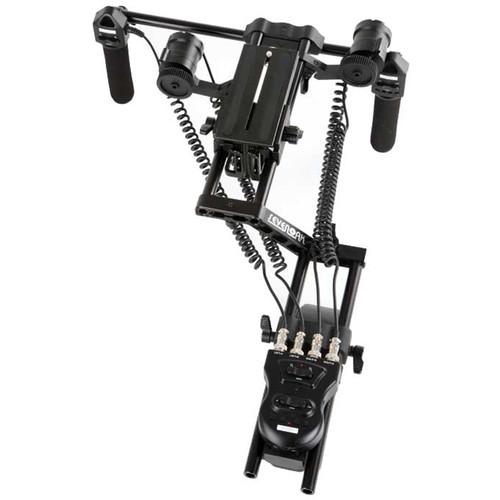

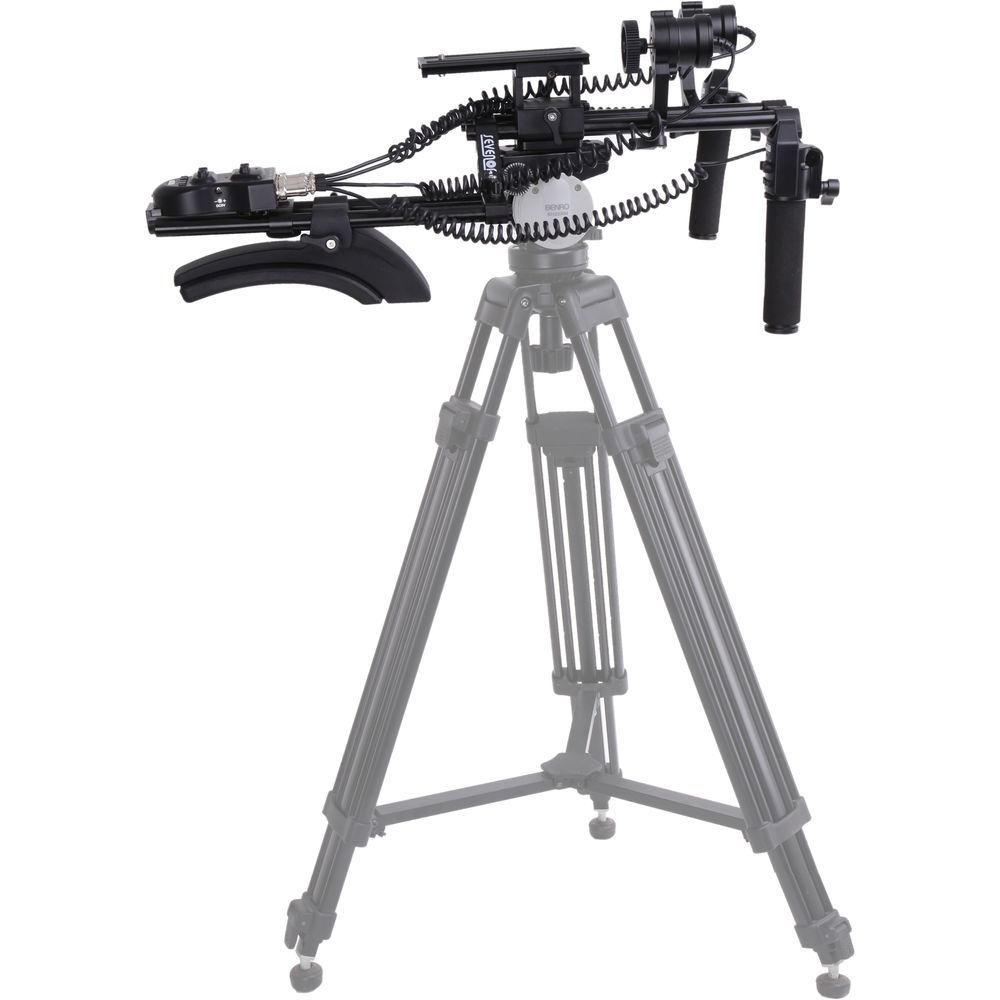

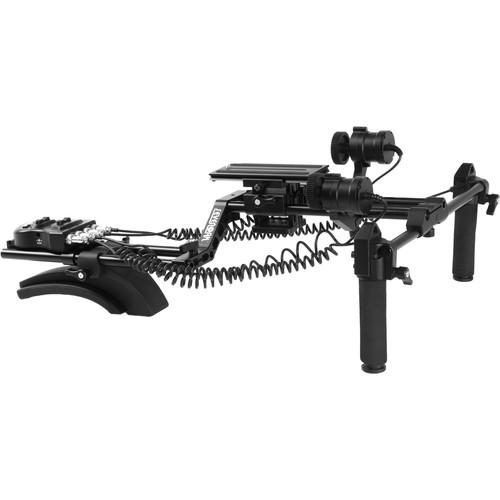

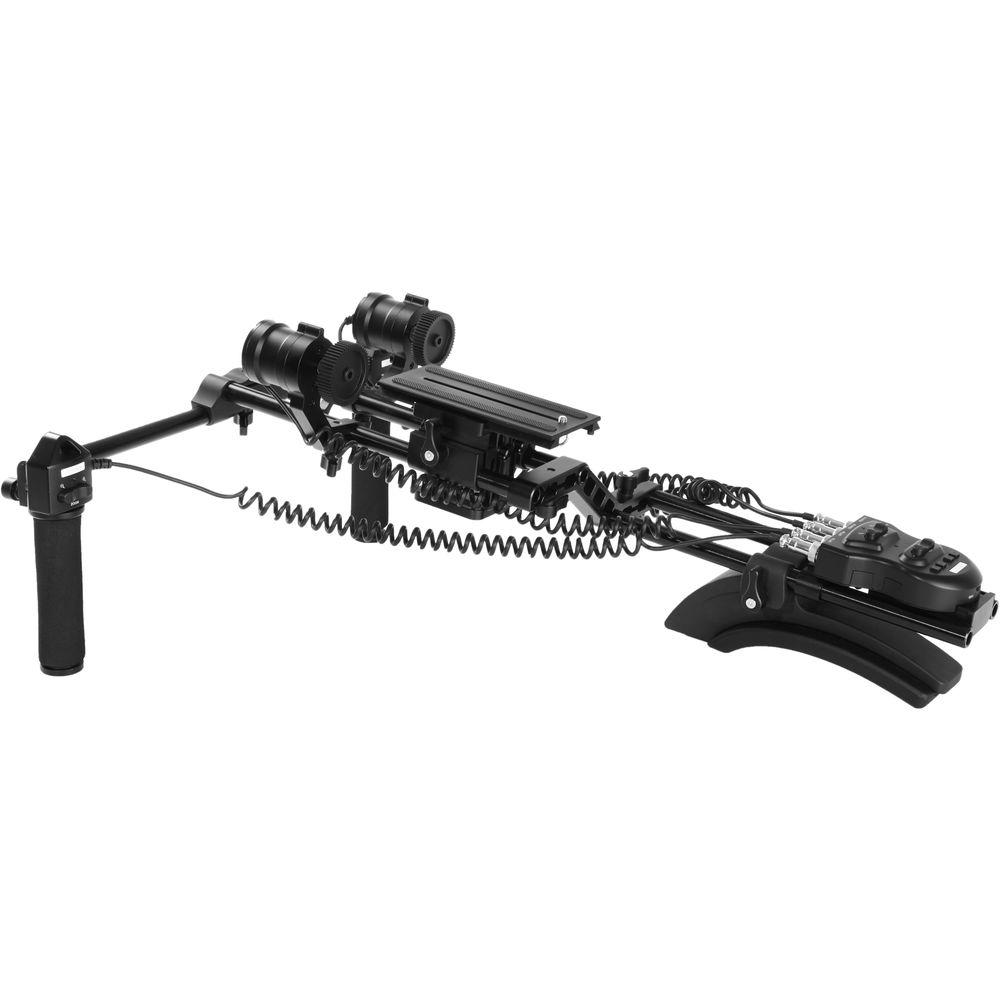

Product description The Sevenoak DSLR Shoulder Rig with Motorized Follow Focus and Focus Memory Function features battery-powered lens drive motors and handles with integrated thumb-controlled switches to enable full lens control without having to remove your hands from the grips. The shoulder-mounted rig is built around two pairs of 11.8" 15mm rods linked by a riser bracket that offsets your camera from your shoulder to sit in front of your eyes so you can see its LCD screen. Additional rig components include cushioned handgrips, a shoulder pad, and a camera platform with removable camera plate. Two rod-mounted lens drives are included, one for focus and one for zoom, as well as two sets of lens gear rings suitable for DSLR-type lenses with outer diameters from 66 to 99mm and without built-in gears.
To drive and control the lens motors, the shoulder rig features an electric control module that mounts on the rig's 15mm rods and is powered using two 18650 batteries (not included). The module offers variable-speed operation, four follow-focus memory presets, and configuration lens rotation start/stop limits for setting virtual hard stops for lenses that continuously rotate. With switches located on the handles, you can seamlessly follow focus or zoom while maintaining a firm grip on both handles for stable and comfortable, shoulder-mounted shooting. - Key Features
-
- 15mm rod shoulder rig for DSLR and mirrorless cameras
- Lens motor drive system for smooth focus and zoom control
- Handgrips with integrated thumb switches provide full lens control while maintaining a firm hold
- Lens control module requires two 18650 batteries (not included)
- Variable-speed operation for precise adjustment during video recording
- Four follow focus memory presets and configurable lens rotation (start/stop) range limits
- Includes two sets of three lens gear rings to accommodate lenses with 76 to 99mm outer diameter
- Offset riser bracket for easier viewing of rear LCD screen on DSLR and mirrorless cameras
- Shoulder pad
- Removable camera plate with 1/4"-20 screw
- Anodized CNC aluminum construction for a durable yet lightweight design
In the Box Sevenoak DSLR Shoulder Rig with Motorized Follow Focus and Focus Memory Function Shoulder Pad with Two 15mm Rods 2 x 15mm Rod (11.8") 2 x Lens Motor Assembly Main Controller unit 2 x Handgrip Baseplate Rod Clamp with Baseplate Mount Front Connecting Piece "Z" Shape Offset 2 x Battery Holder for Two 18650 Batteries (Batteries Not Included) 1/4"-20 Camera Tie-Down 2 x Set of Gear Rings Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sevenoak DSLR Shoulder Rig with Motorized Follow Focus and Focus Memory Function in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSevenoak SK-MHF04 Specs | Gear Standard | MOD: 0.8
Pitch: 32 | | 15mm Rod Length | 11.81" / 30.0 cm | | Mounting Thread | 1/4"-20 screw for camera | | Weight | 10.4 lb / 4.7 kg | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 26.0 x 10.9 x 5.6" |
