User Manual for Sevenoak Electronic Pan and Tilt Head Pro Click to enlarge the picture
Contents of the user manual for the Sevenoak Electronic Pan and Tilt Head
- Product category: Motorized Pan/Tilt Heads Sevenoak
- Brand: Sevenoak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sevenoak Motorized Pan/Tilt Heads
 |
User manual for the Sevenoak Electronic Pan and Tilt Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sevenoak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sevenoak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sevenoak product will considerably shorten its lifespan!
|

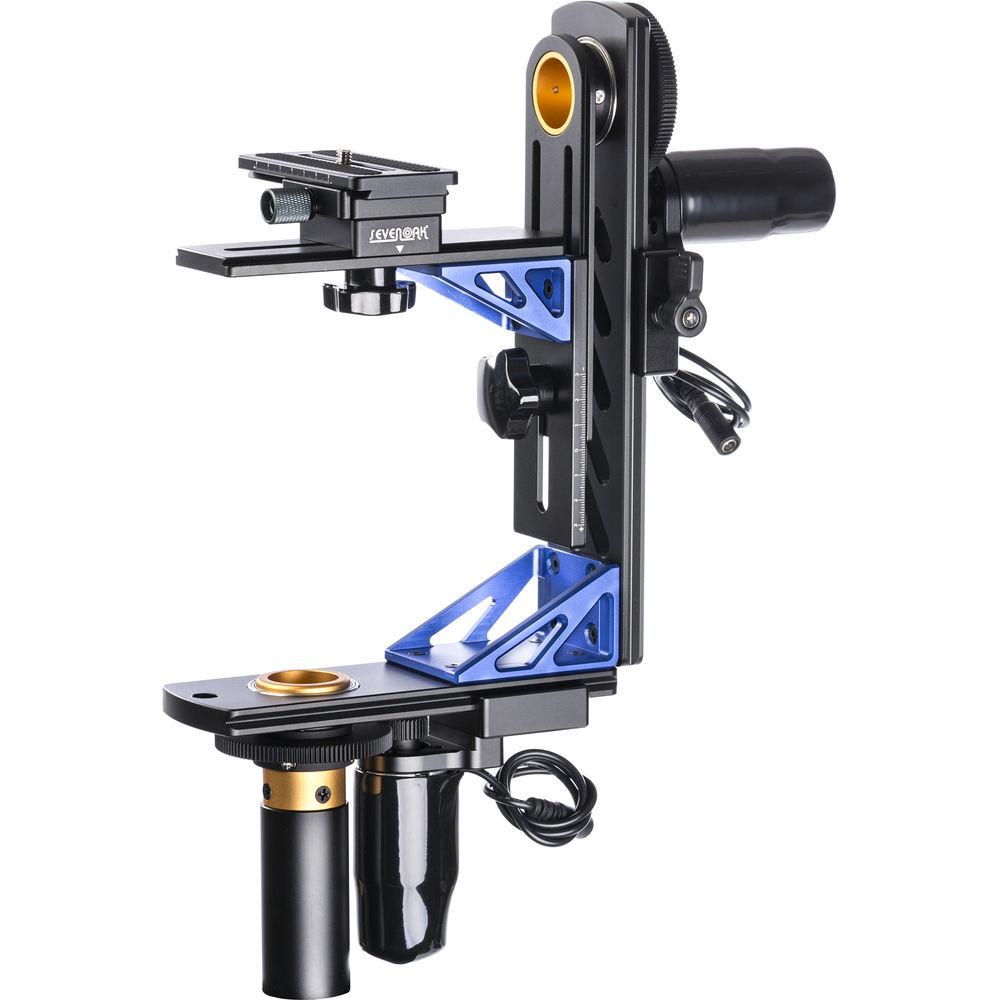

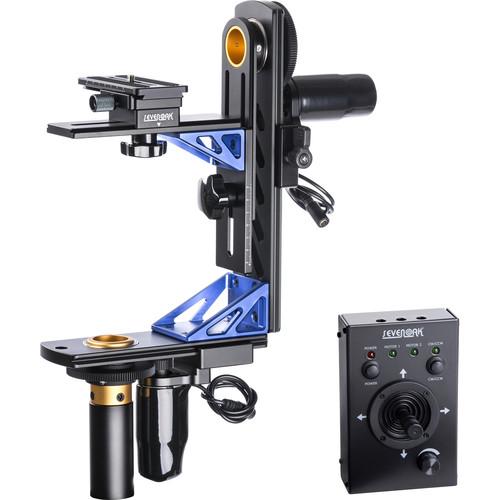

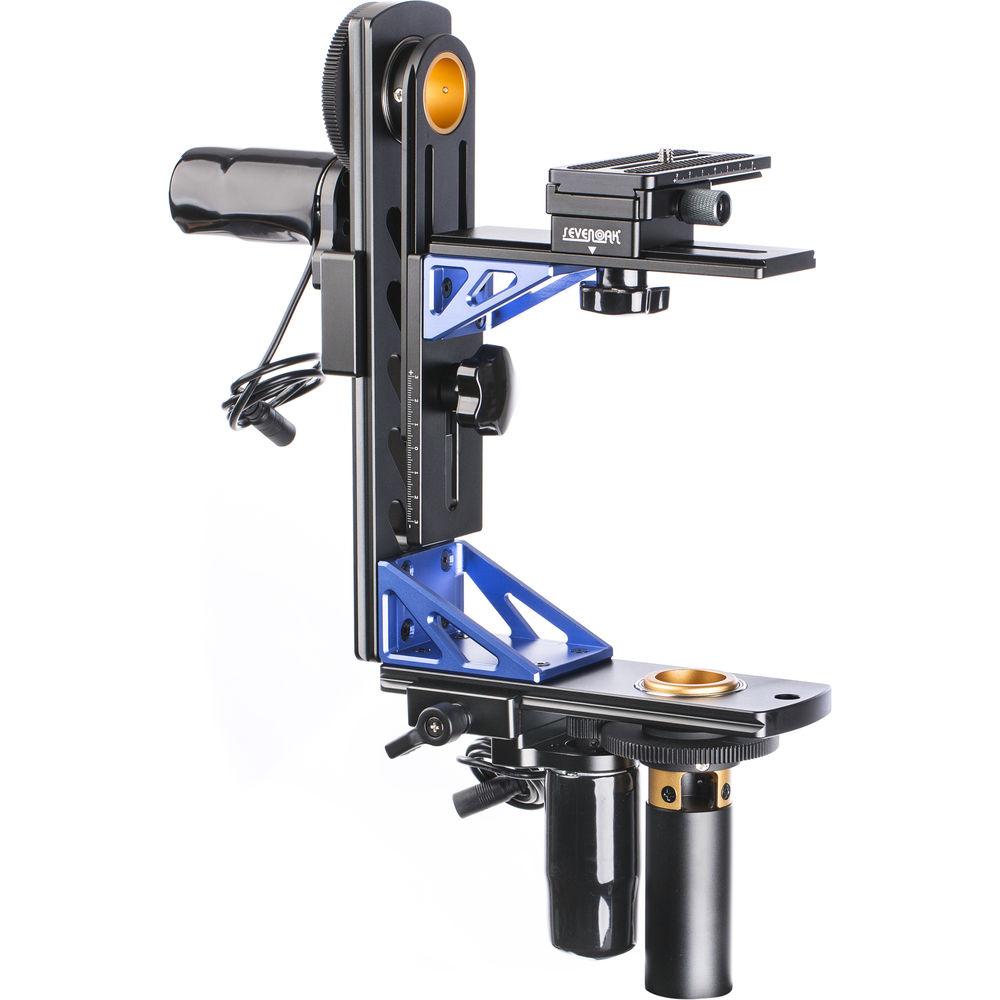

Product description The Sevenoak Electronic Pan and Tilt Head Pro is a remotely operated head that offers continuous 360° rotation on both the horizontal and vertical axes. It offers wired joystick remote control from up to 20 ft away. The head supports 22 pounds of camera payload and features vertical and side-to-side adjustment for balancing your camera on the head. The unit comes with a wall-mounted AC adapter that provides 12 VDC and supports up to a 2A draw, which means you could use a professional battery (not included) to power the head.

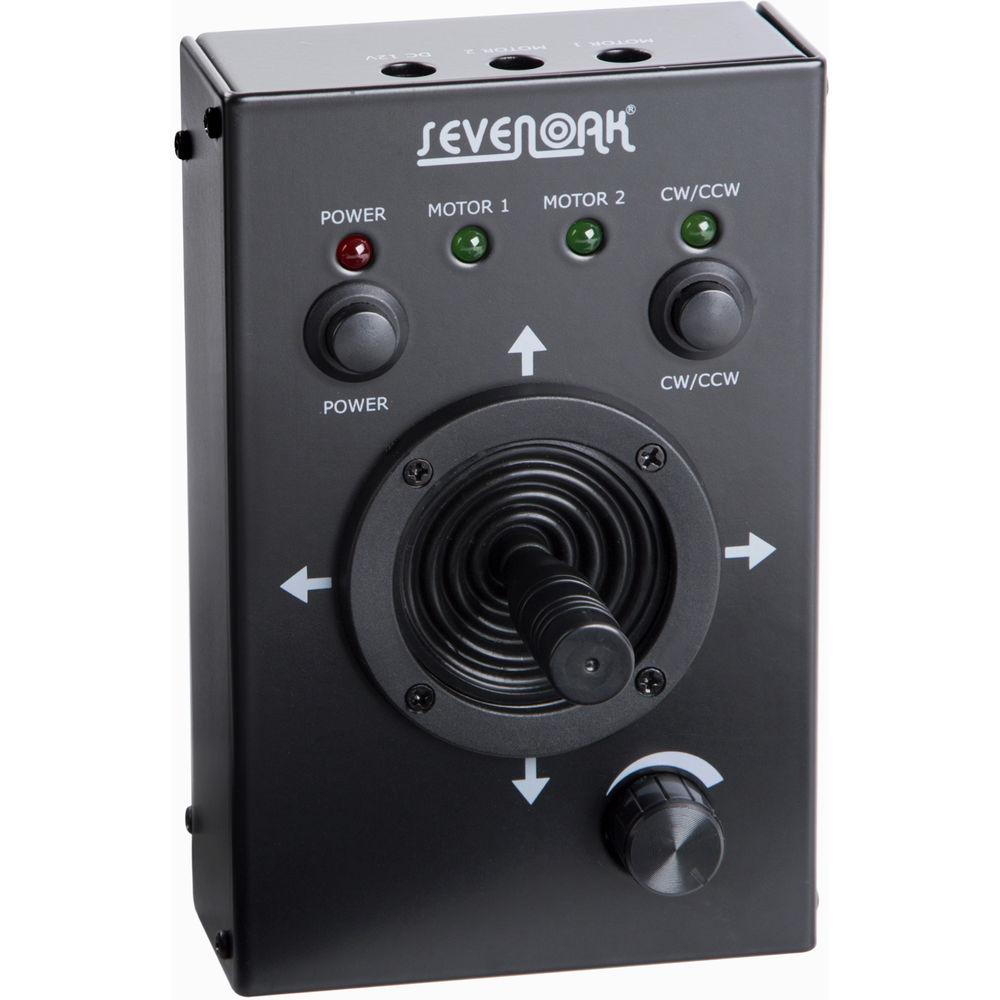

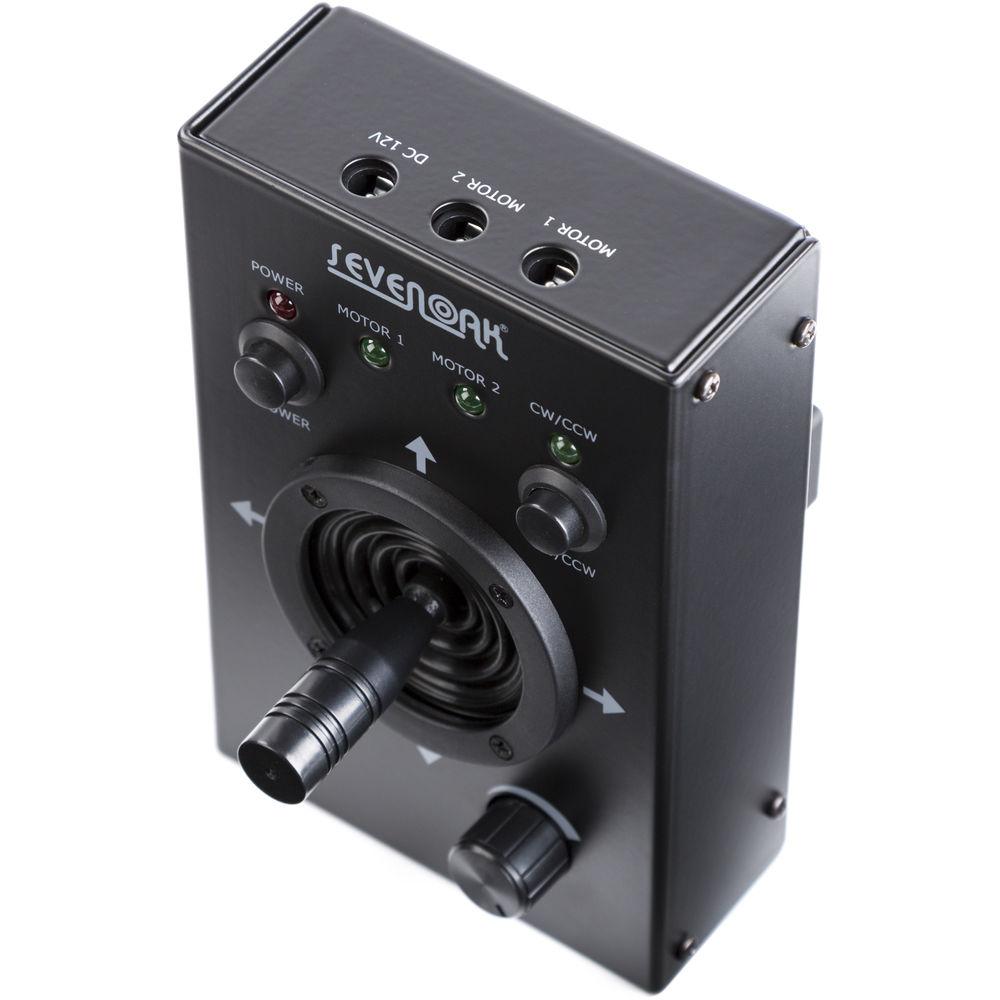

The head has a sliding camera plate that enables front-to-back balance adjustment and makes mounting and unmounting your camera easy. The bottom of the head offers 3/8"-16 and 1/4"-20 mounting threads for attaching to tripods, jibs, and other equipment. The remote-control box features a joystick and direction switches, as well as LED indicator lights. You can control the speed of the head from 0.5 to 3.3 rpm. An included bracket enables mounting the control box to jibs and cranes. - Key Features
-

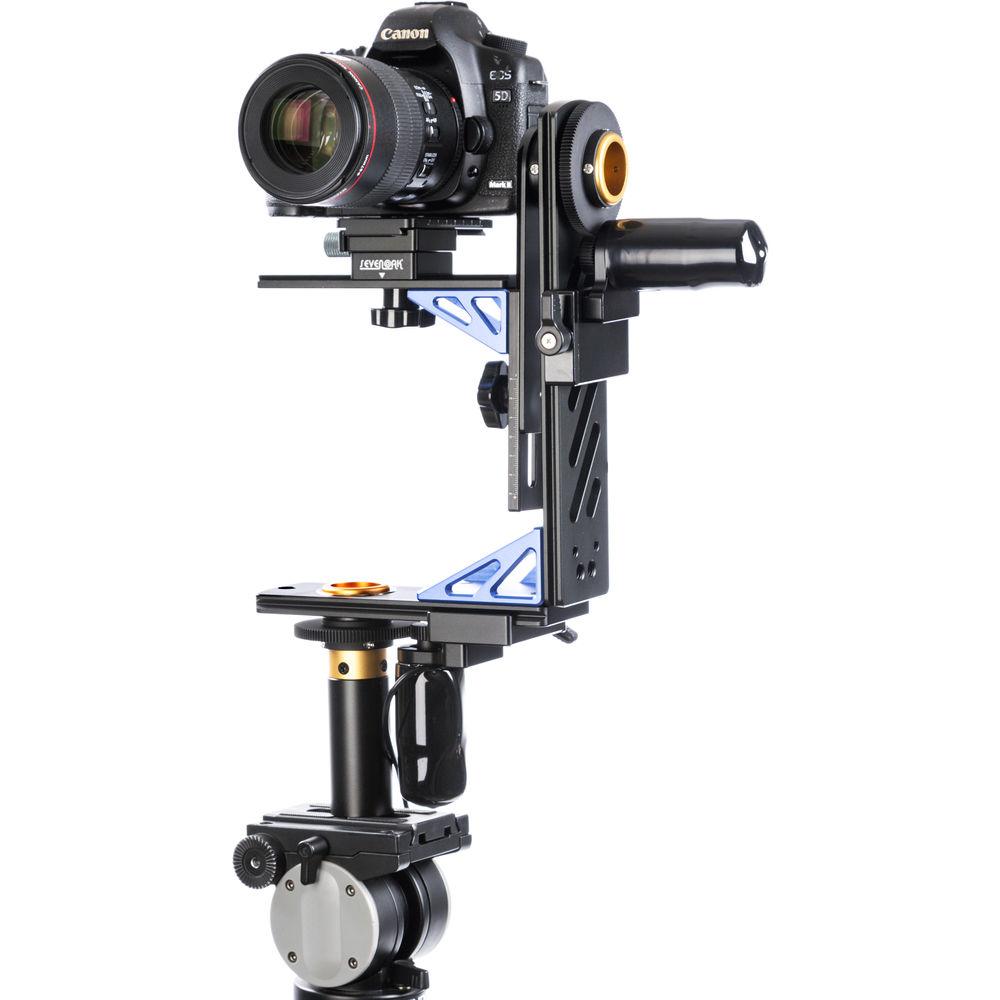

- Pan and tilt your camera from up to 20 ft away
- 360° continuous pan rotation
- 360° continuous tilt rotation
- Smooth and quiet high-torque DC motors
- Wired joystick remote control with adjustable speeds
- 22 lb payload
- Sliding camera plate
- 3/8"-16 and 1/4"-20 mounting threads on the bottom

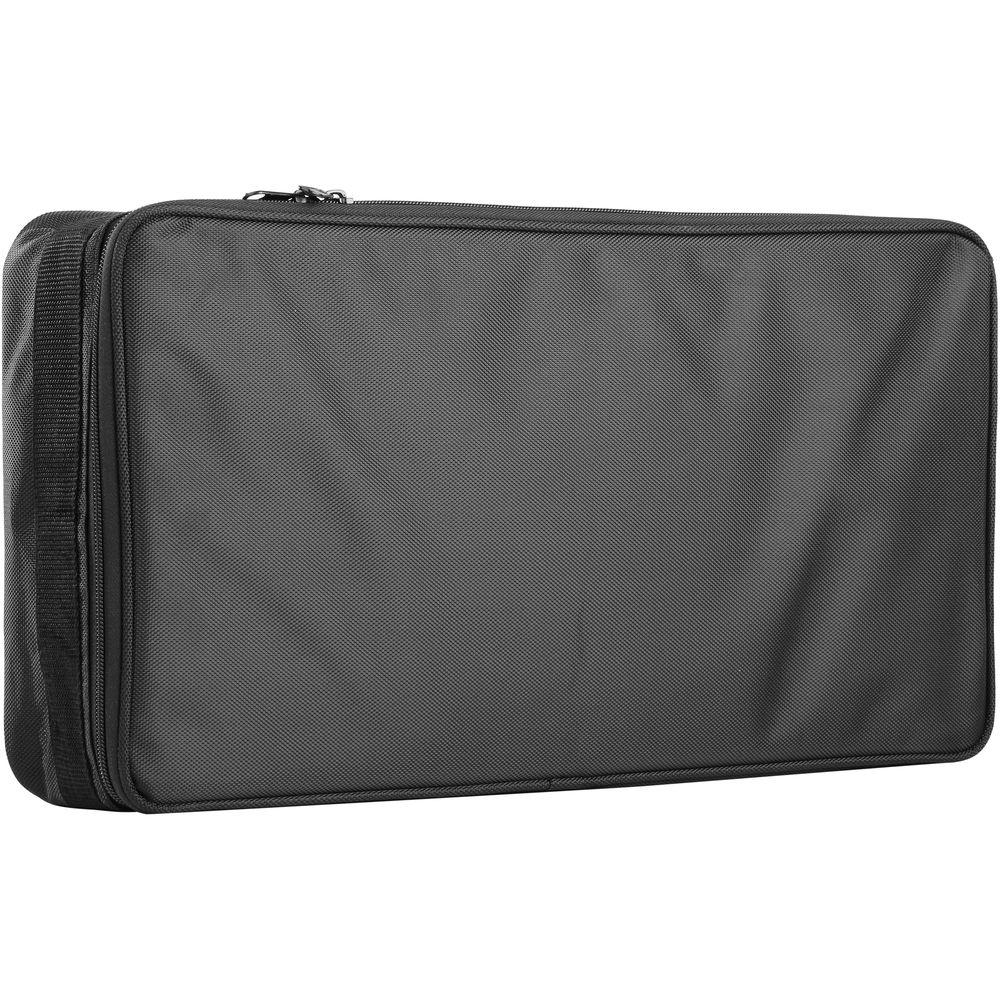

- Carry case included

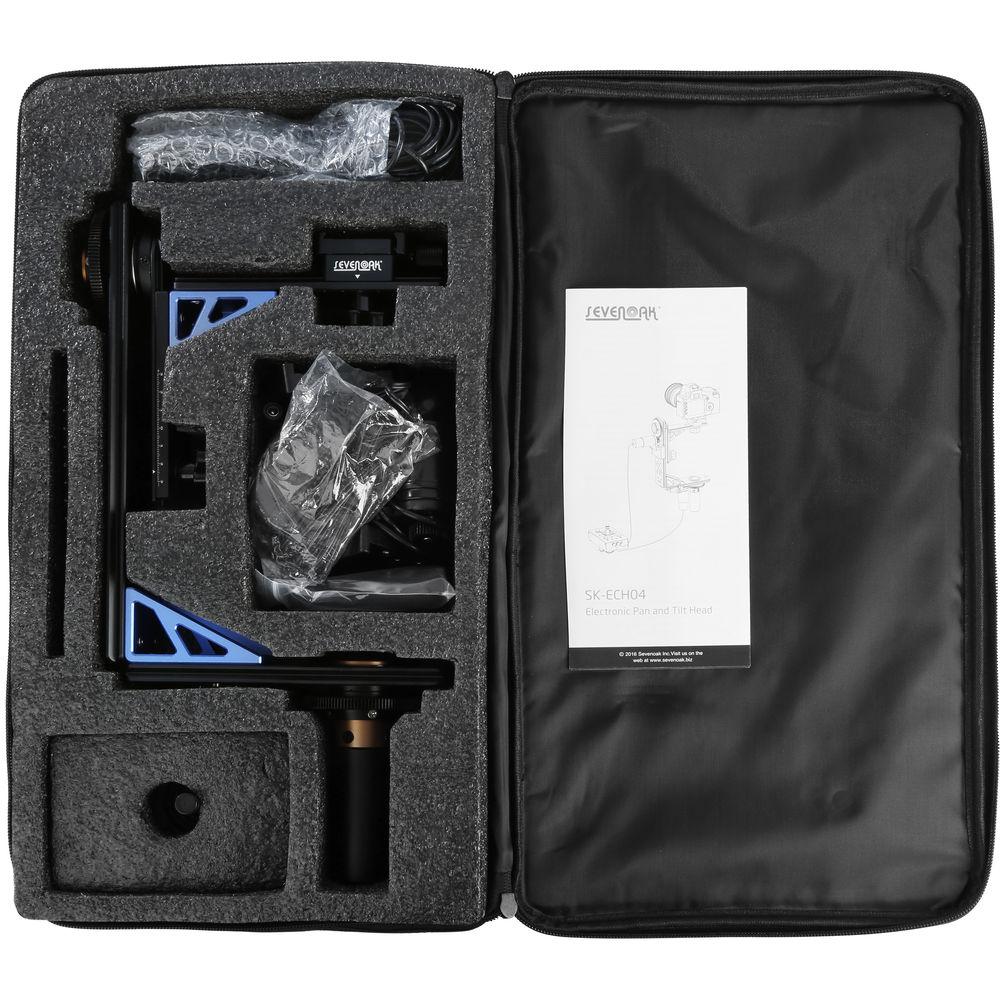

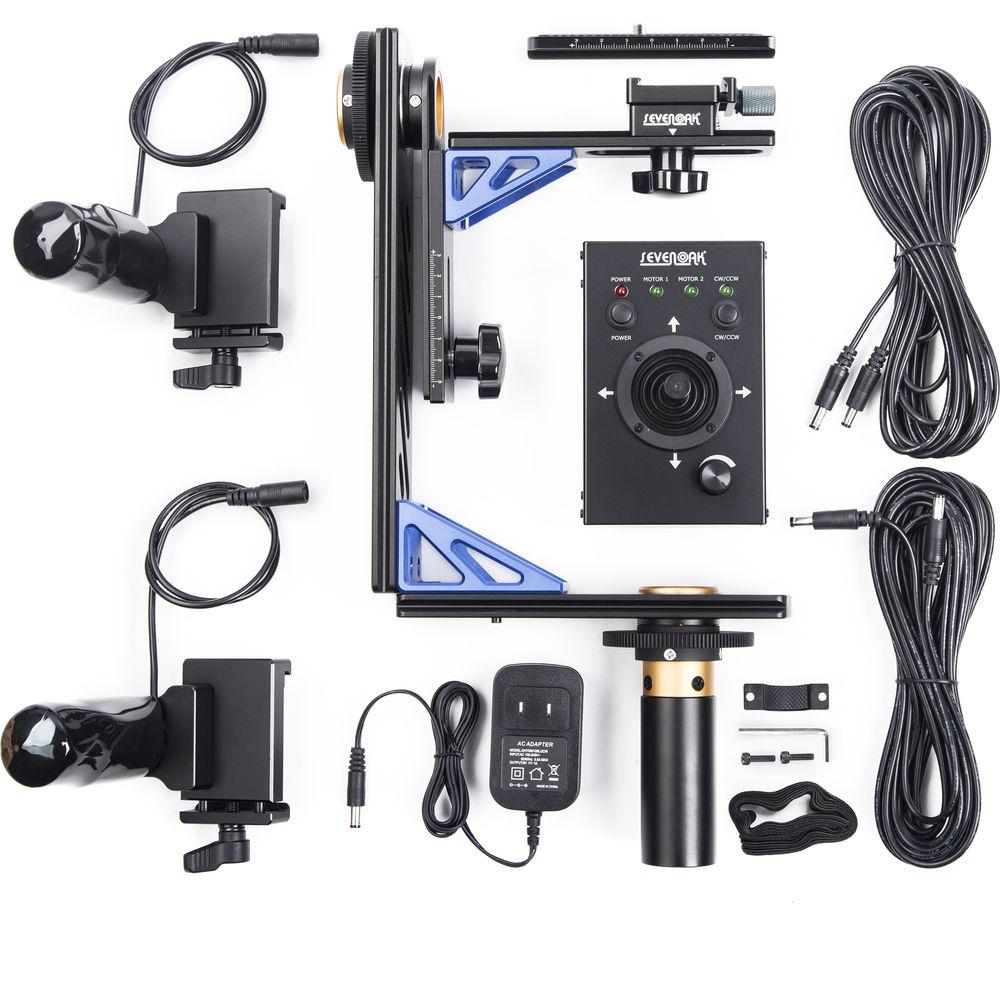

In the Box Sevenoak Electronic Pan and Tilt Head Pro Joystick Remote Control Sliding Baseplate 2 x DC Cable (20') AC Adapter Touch Fastener Cable Ties Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sevenoak Electronic Pan and Tilt Head Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSevenoak SK-ECH04 Specs | Load Capacity | 22 lb / 10 kg | | Pan Range | 360° continuous | | Tilt Range | 360° continuous | | Rotational Speed | 0.5 to 3.3 rpm | | Adjustment | Height: 1.77" / 4.5 cm | | Mount Types | Quick release plate with 1/4"-20 mounting screw
One 3/8"-16 and two 1/4"-20 threaded holes on the bottom | | Power | 12 VDC, 2 A | | AC Adapter | 110 - 240 V input, 12 VDC output | | Dimensions | 11.5 x 19.17 x 3.94" / 29.2 x 48.7 x 10 cm | | Weight | 6.17 lb / 2.8 kg | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 18.8 x 10.7 x 4.9" |
