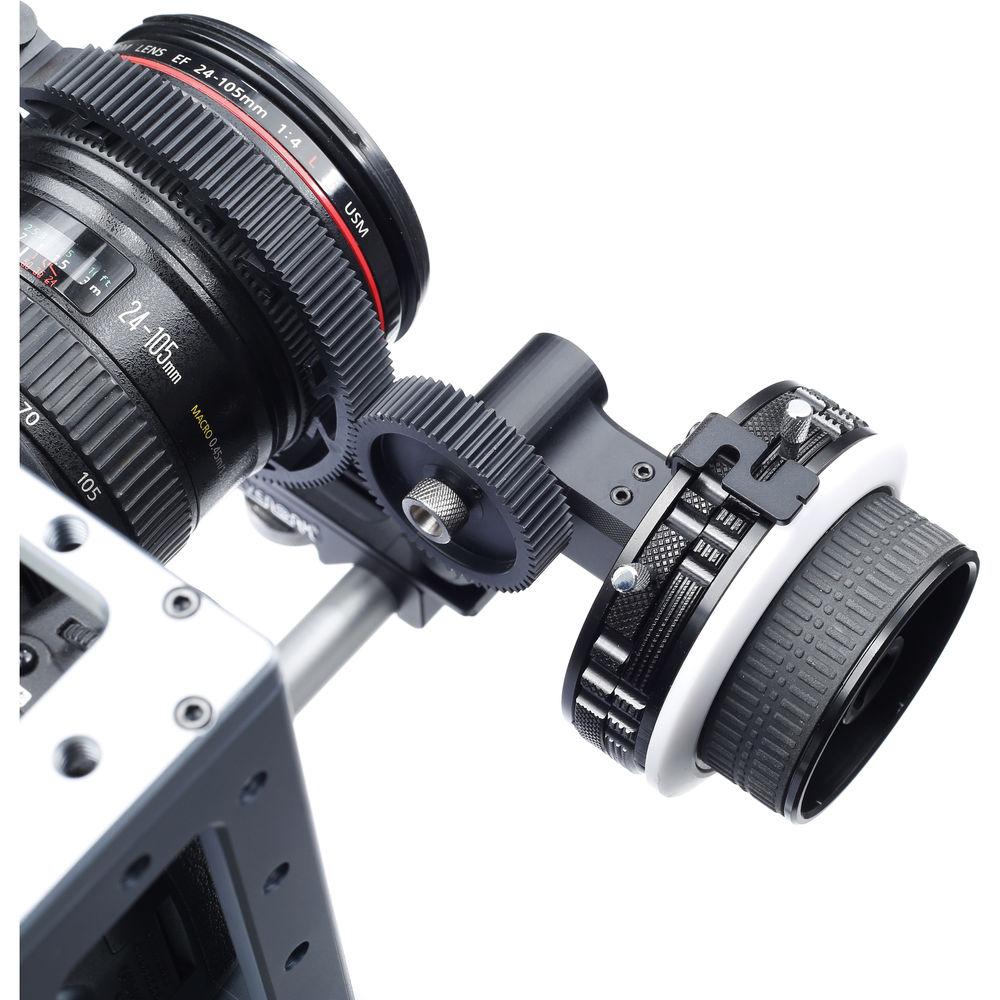

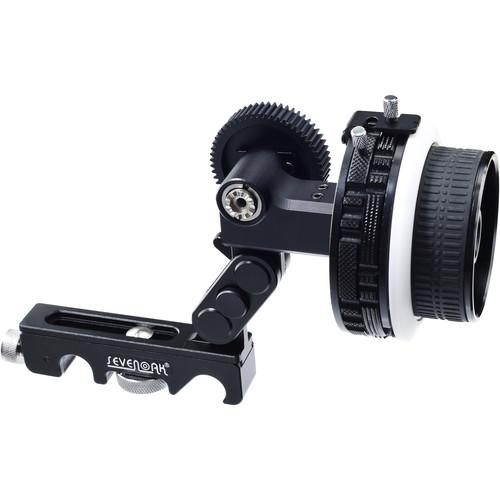

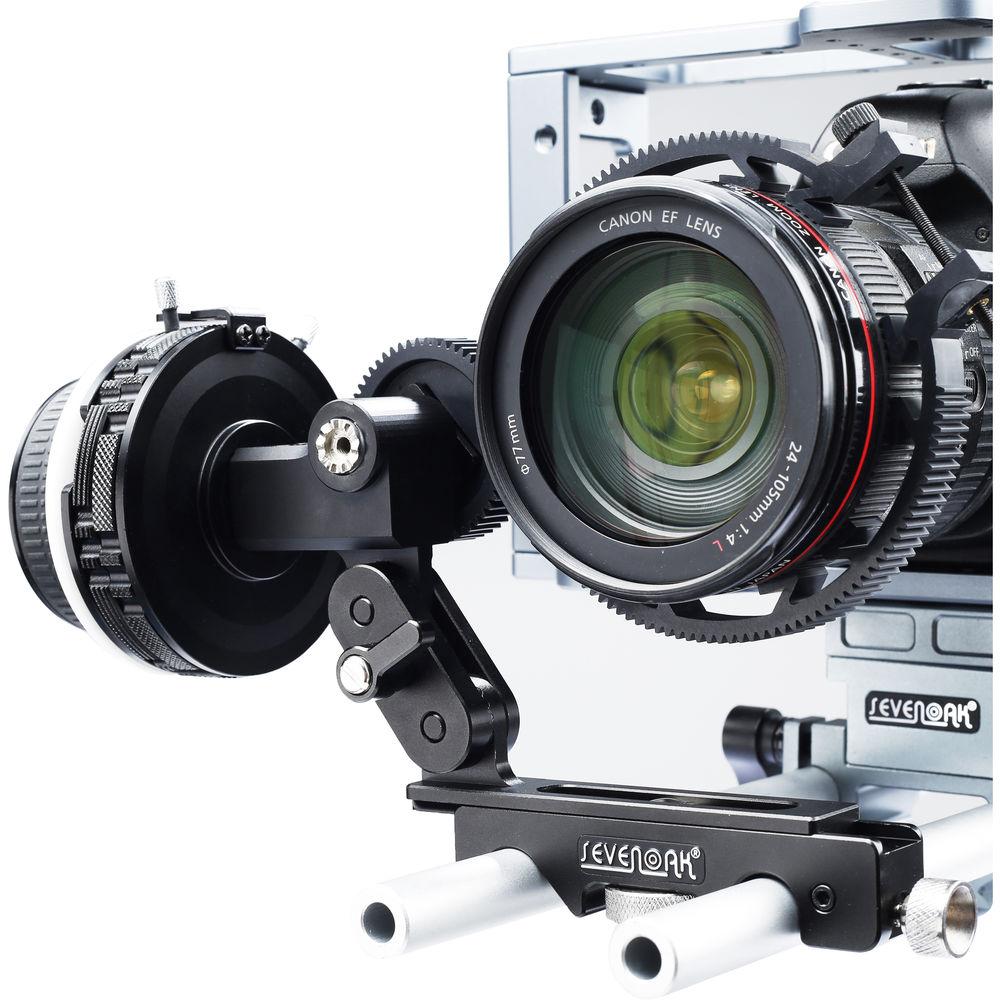

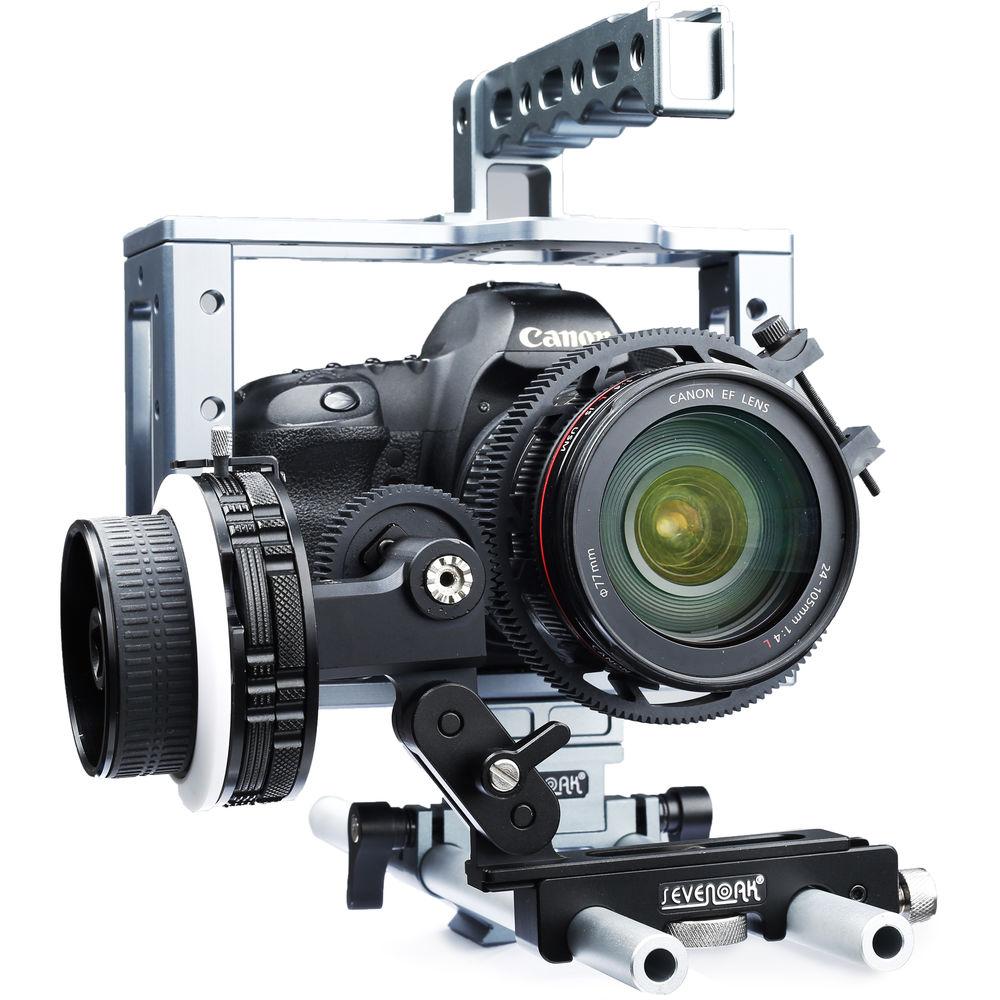

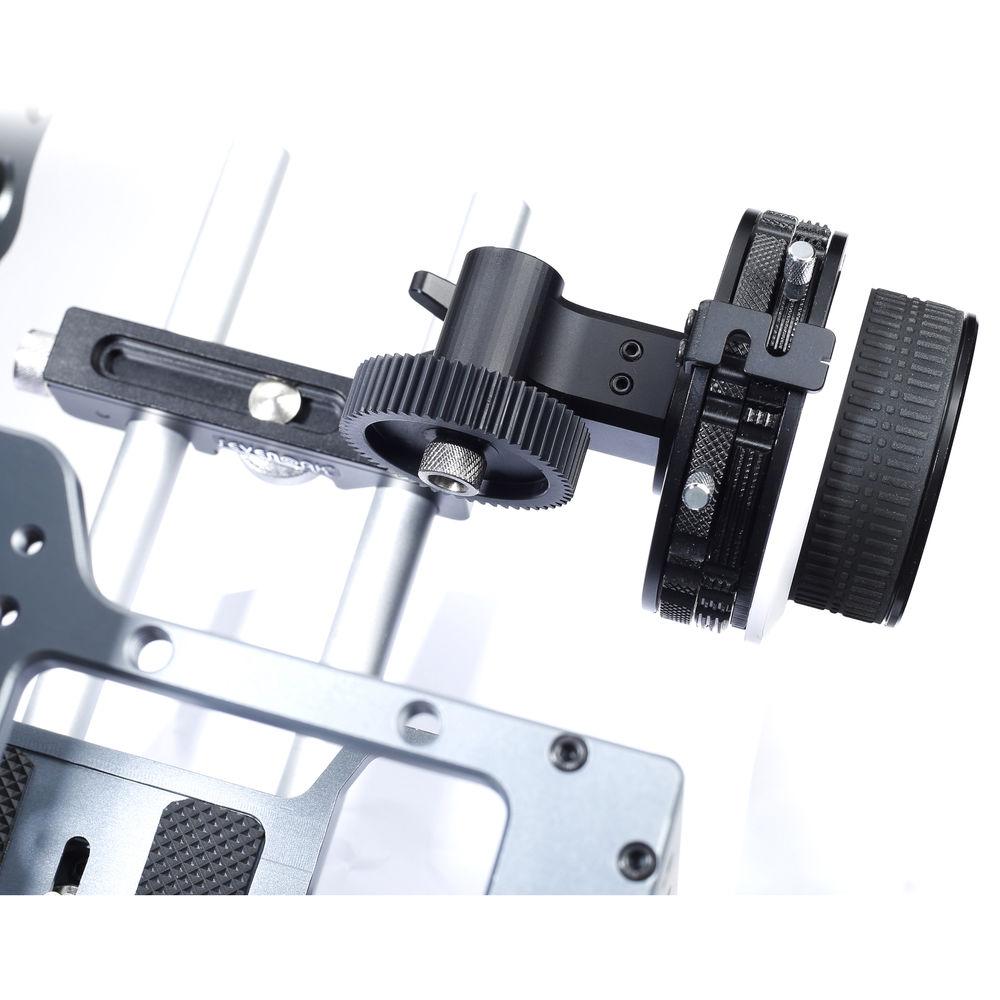

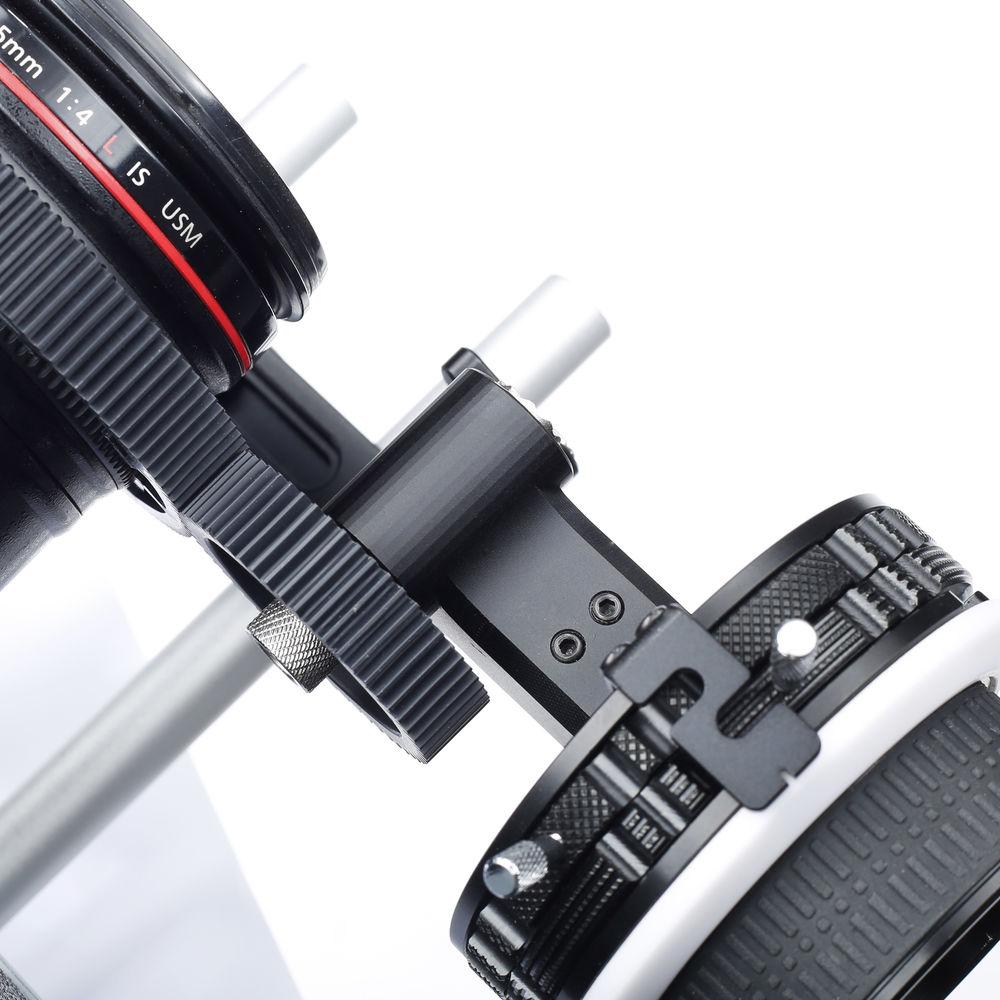

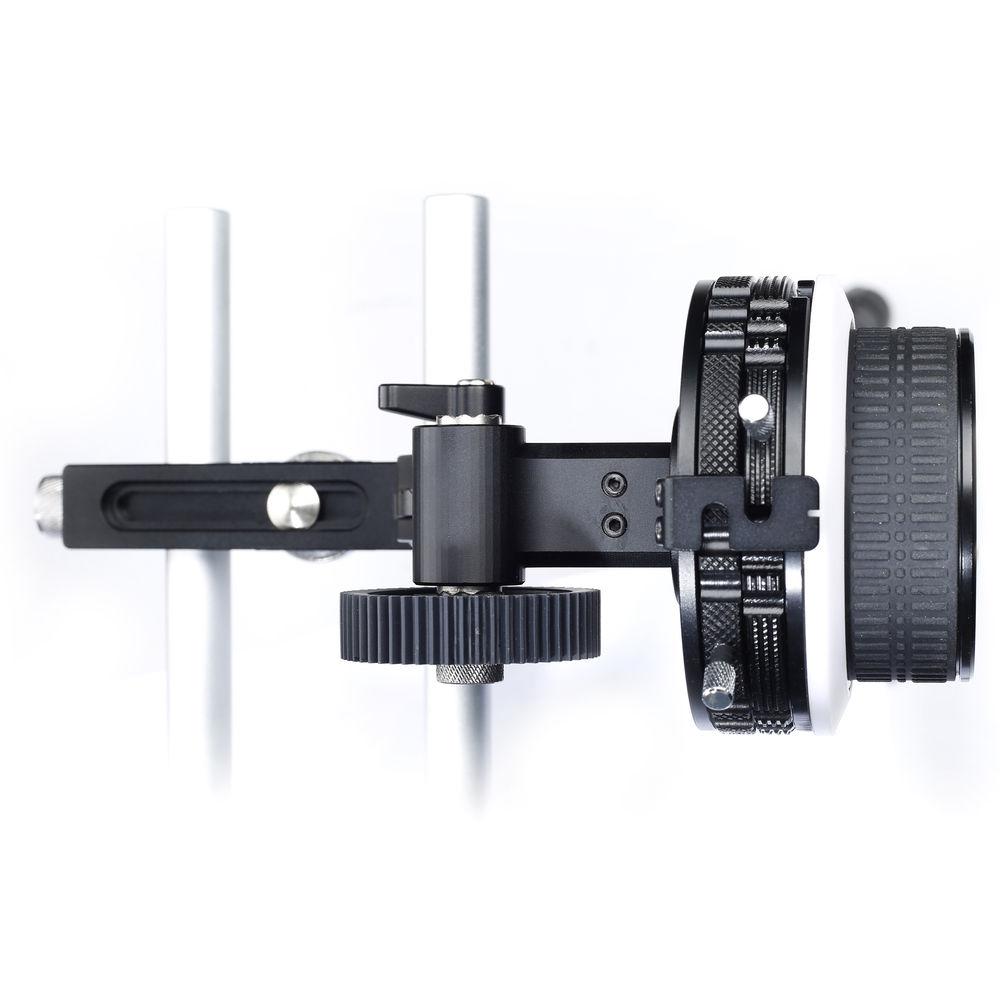

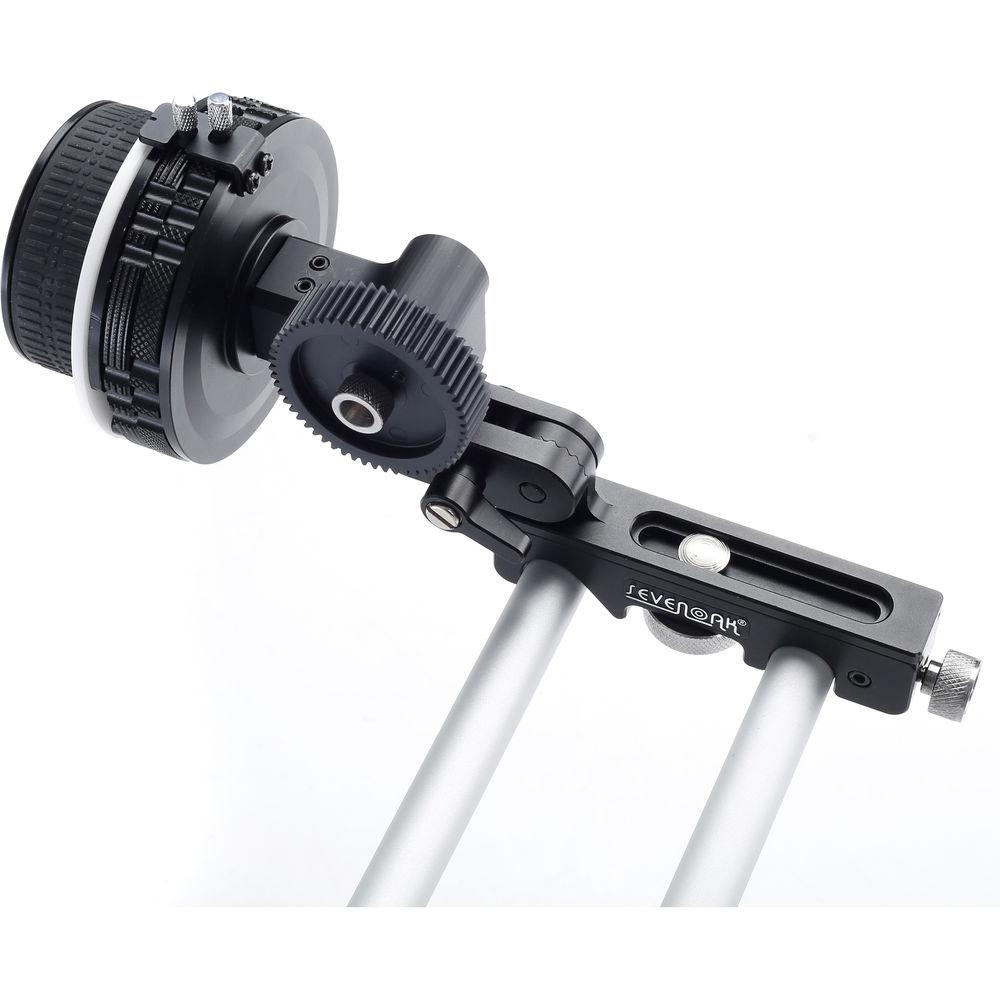

Product description The Sevenoak Follow Focus Pro snaps onto LWS 15mm rods and features two adjustable hard stops. The follow focus has both vertical and horizontal adjustments that enable the follow focus to work with virtually any geared lens. The 0.8 MOD drive gear on the follow focus can be swapped to either side of the drive arm, allowing you to accommodate lenses with different focus gear positions and mount the follow focus unit on either side of the lens.
Built from aluminum, the follow focus is both lightweight and durable. It features a white marking ring, and the handwheel features an industry-standard accessory socket for available focus cranks and whips. Included with the follow focus are three removable cine-style lens gears that allow you to add gears to lenses that do not have gears. - The unit snaps onto 15mm LWS rods, which allows you to mount or remove the follow focus from the rods without having to remove other accessories such as a matte box
- You can slide the follow focus into and away from your lens, allowing you to compensate for lenses with different diameters
- The drive arm features two articulating points locked with a single lever, allowing you to adjust how the drive gear interfaces with the lens gear
- Two adjustable hard stops allow you to set precise focus stops and can be useful to define your lenses focus range when working with endlessly spinning lenses
- The drive and lens gears follow the industry standard for cine lenses, allowing you to use this follow focus with standard cine-style lenses
- The handwheel features a rubber grip and a center socket that accepts industry-standard follow focus accessories such as a speed crank or focus whip
In the Box Sevenoak Follow Focus Pro 66 to 77mm Removable Lens Gear 77 to 88mm Removable Lens Gear 88 to 99mm Removable Lens Gear Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sevenoak Follow Focus Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSevenoak SK-F2X Specs | Included Drive Gear | 0.8 MOD | | Rod Compatibility | 15 mm LWS (Snap-On) | | Number of Sides | Single-Sided | | Built-In Hardstops | 2, Fixed | | Witness/Index Mark | Yes | | Marking Disk | Yes | | Switchable Handwheel Speed | No | | Handwheel Accessory Port | Industry Standard | | Dimensions | 10.04 x 3.19 x 3.19" / 25.5 x 8.1 x 8.1 cm | | Weight | 1.9 lb / 0.9 kg | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 6.1 x 6.1 x 5.0" |
