User Manual for Sevenoak Mini Handheld Carbon Fiber Stabilizer Click to enlarge the picture
Contents of the user manual for the Sevenoak Mini Handheld Carbon Fiber Stabilizer
- Product category: Stabilizer Systems Sevenoak
- Brand: Sevenoak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sevenoak Stabilizer Systems
 |
User manual for the Sevenoak Mini Handheld Carbon Fiber Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sevenoak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sevenoak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sevenoak product will considerably shorten its lifespan!
|

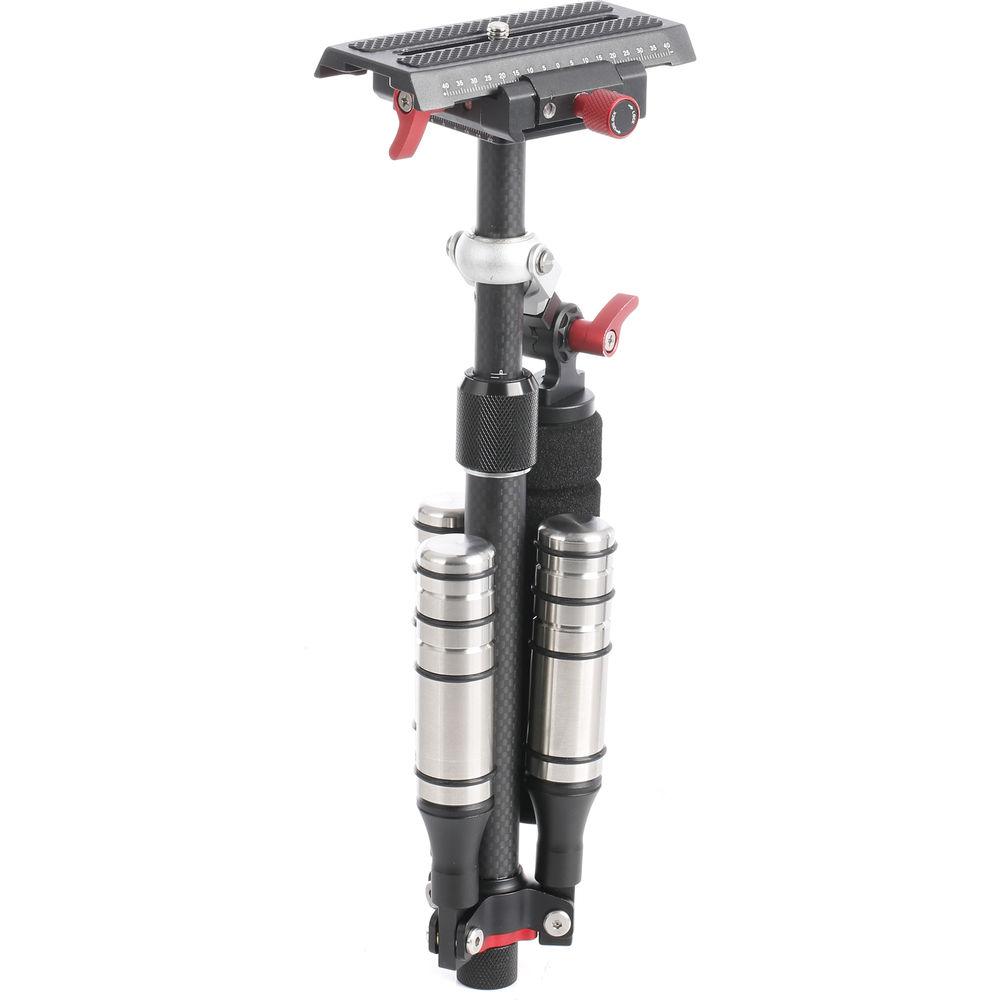

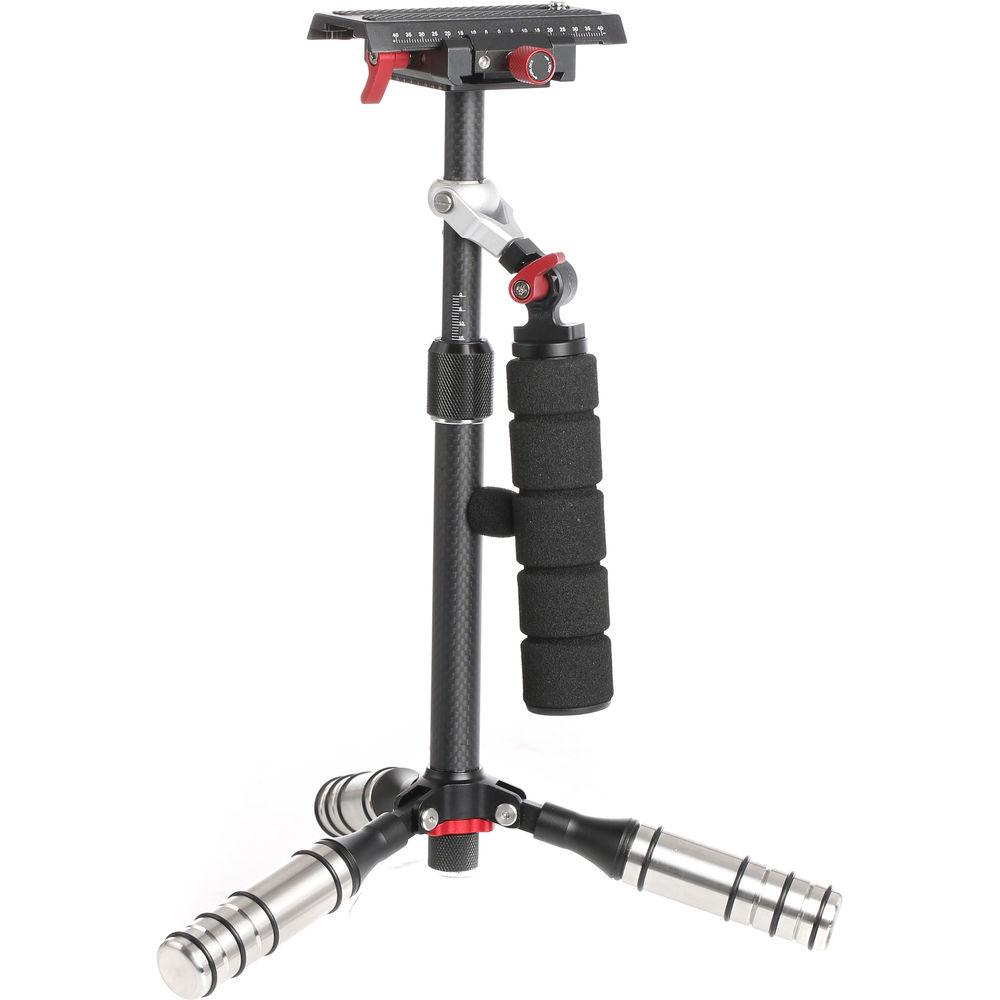

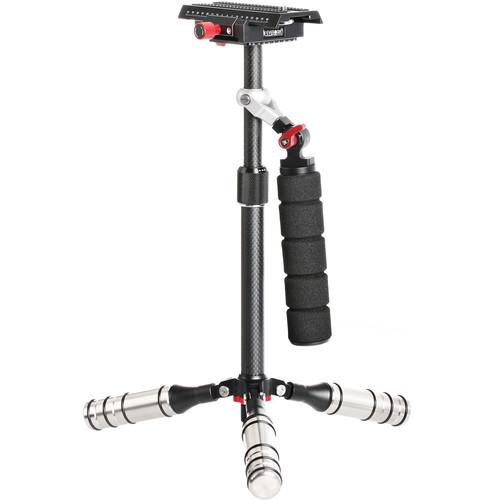

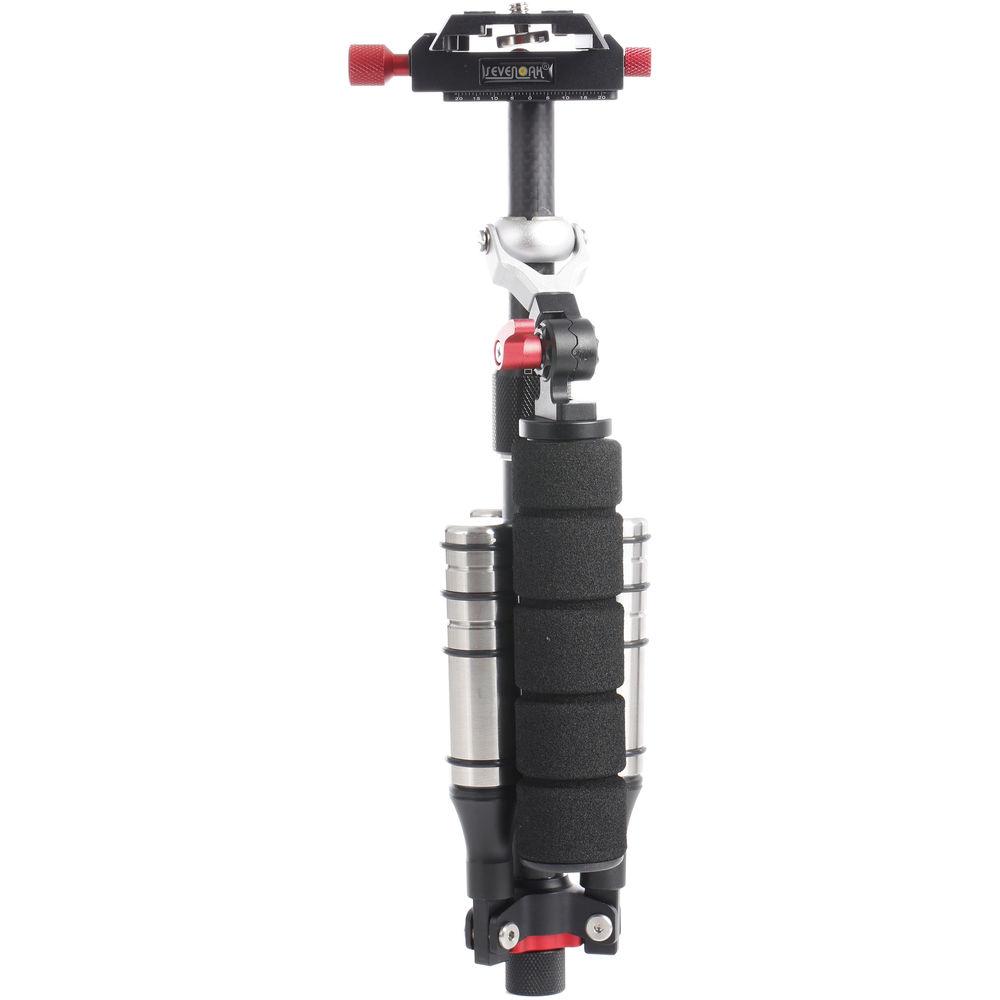

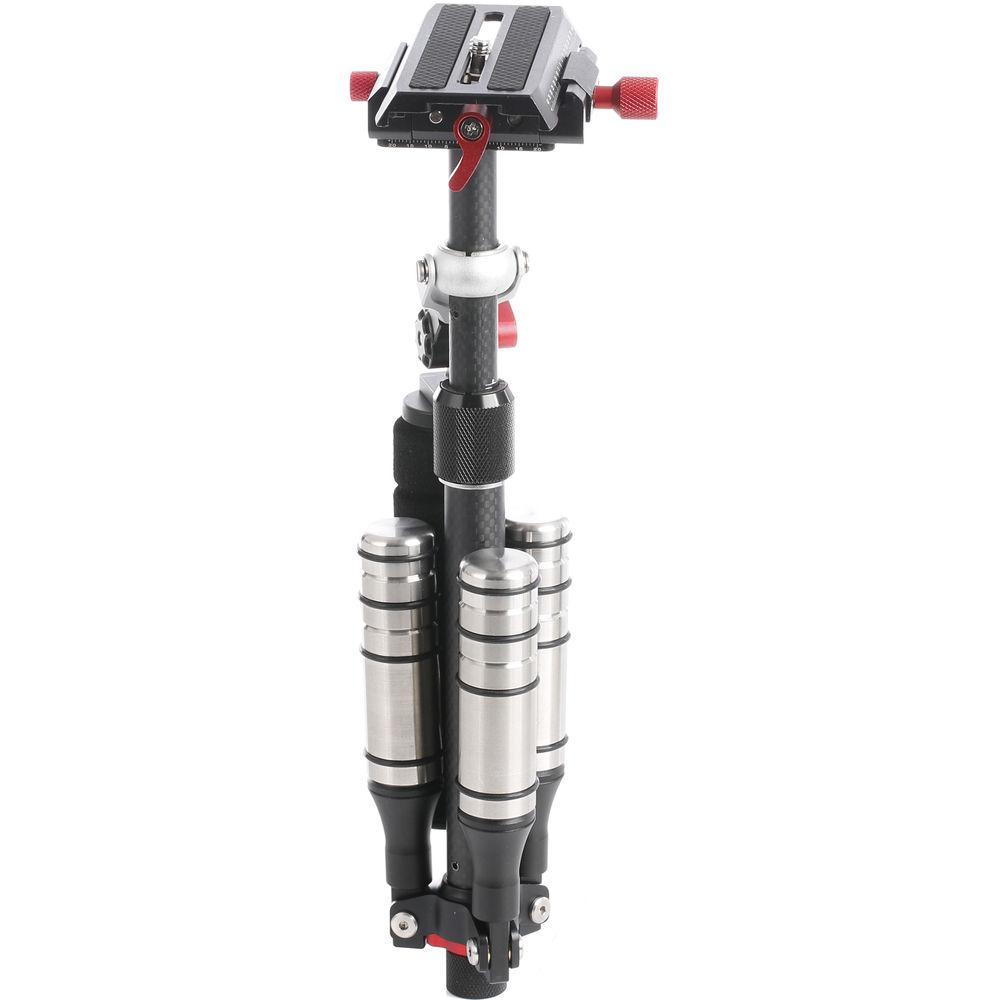

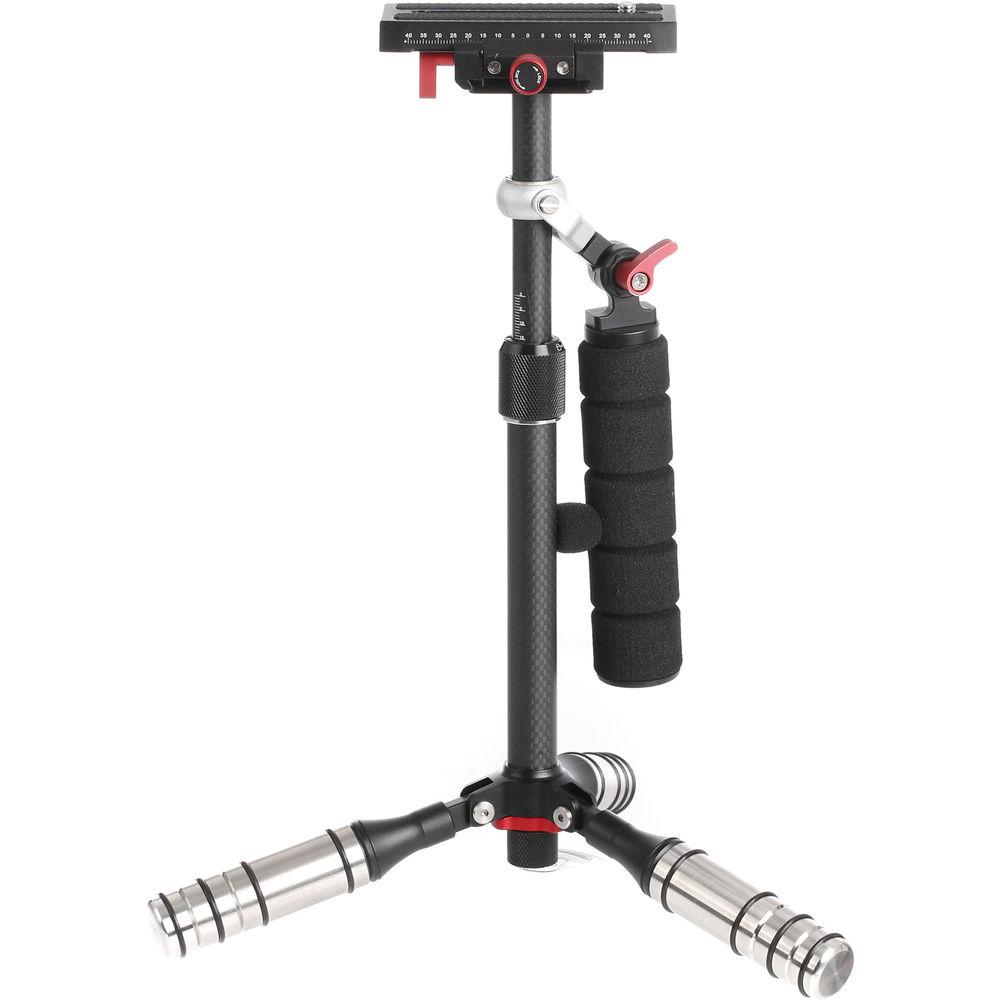

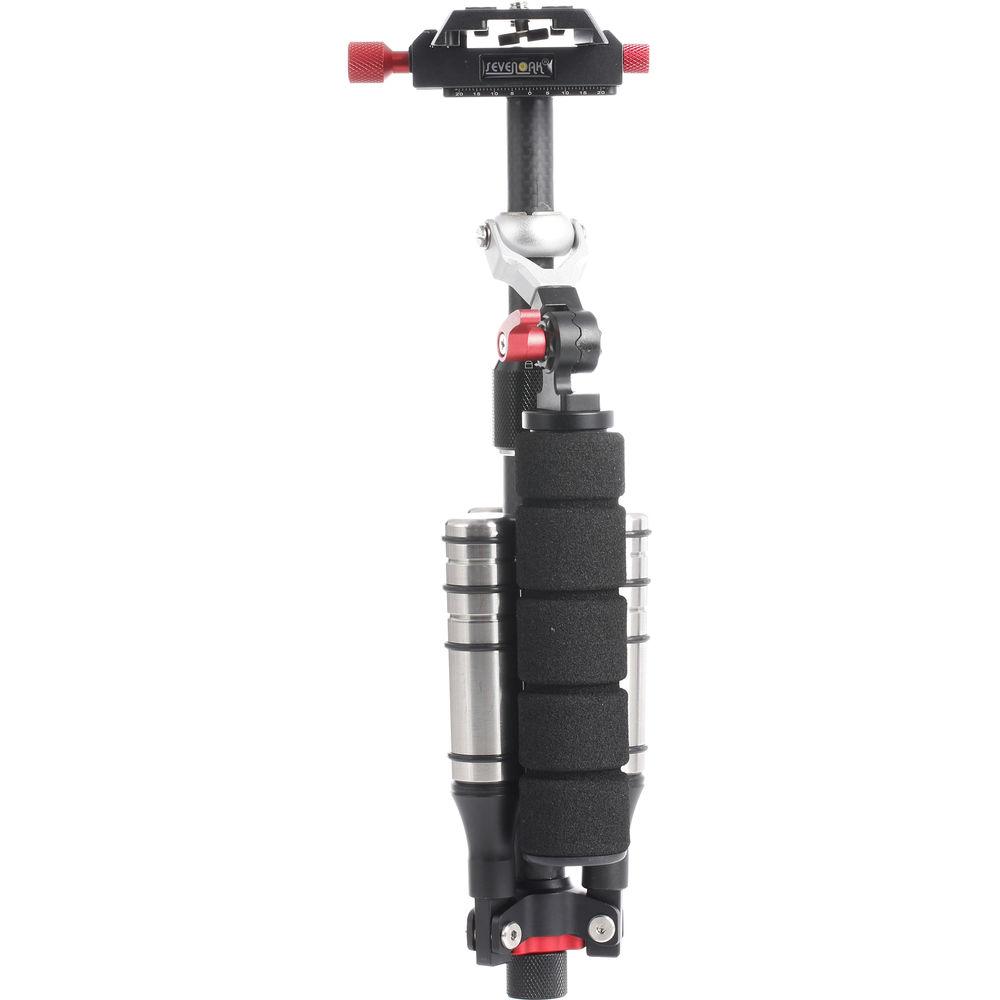

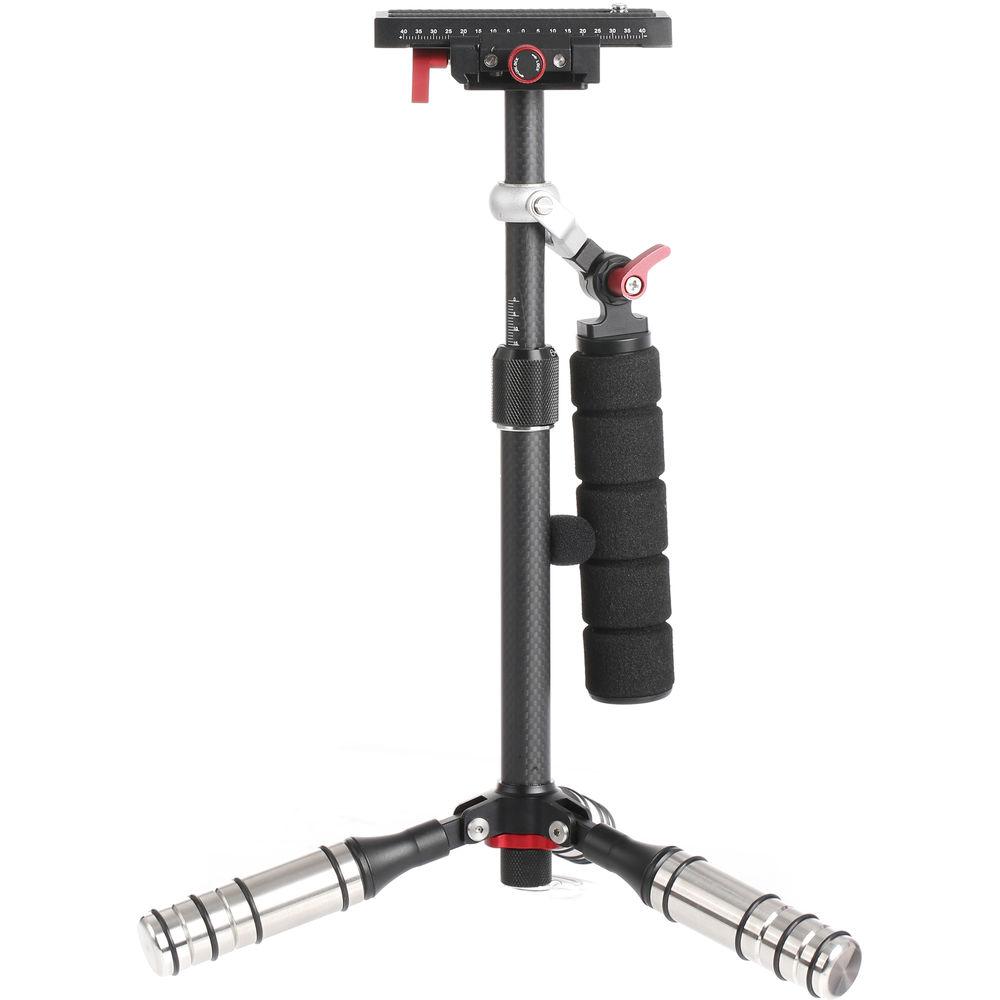

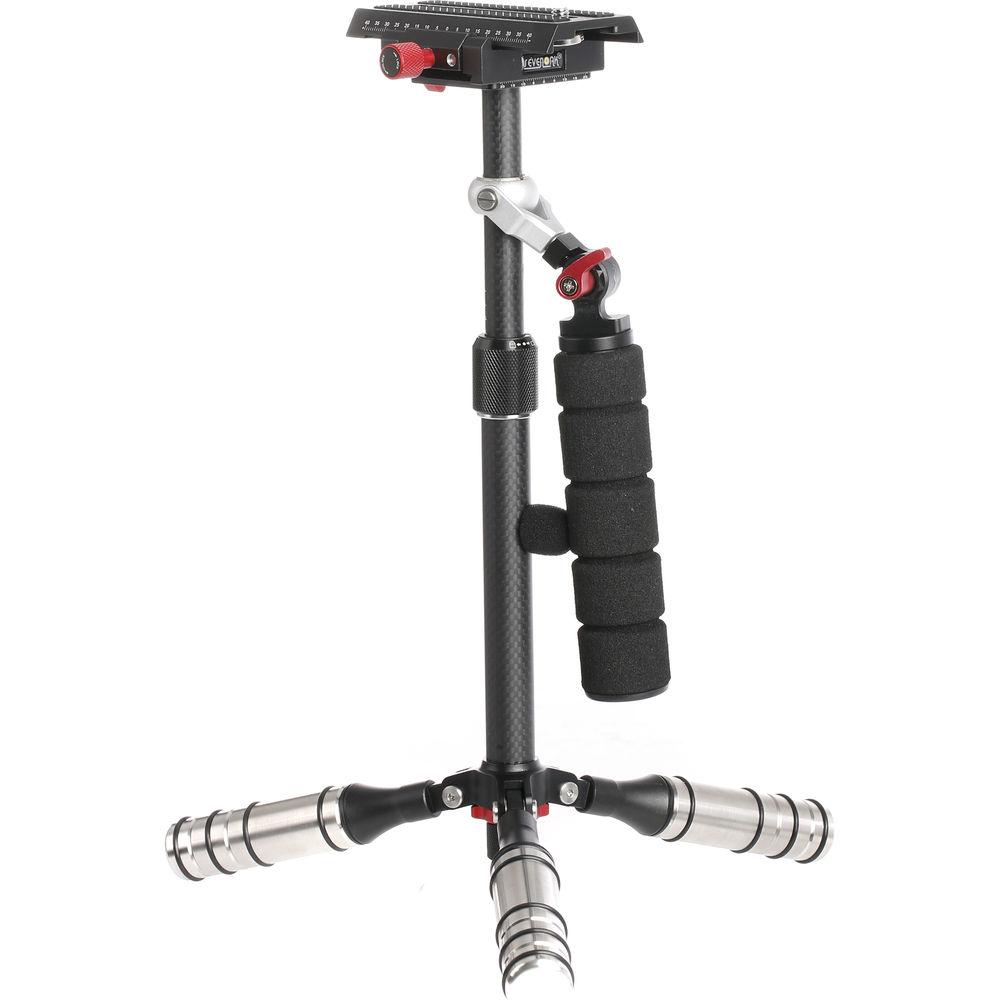

Product description The Sevenoak Mini Handheld Carbon Fiber Stabilizer is a carbon fiber mini stabilizer for loads up to 5.5 lb. It works by mechanical balancing and does not use batteries. Measuring just over 11.5" in height, it provides a portable solution for capturing stable moving shots. The stabilizer works by balancing your camera in relation to the removable sets of counterweights. Each set of counterweights is adjustable in steps between 1.3 to 8.2 ounces. The counterweights attach in a 3-leg arrangement, allowing the stabilizer to stand on its own on a flat surface when balanced.

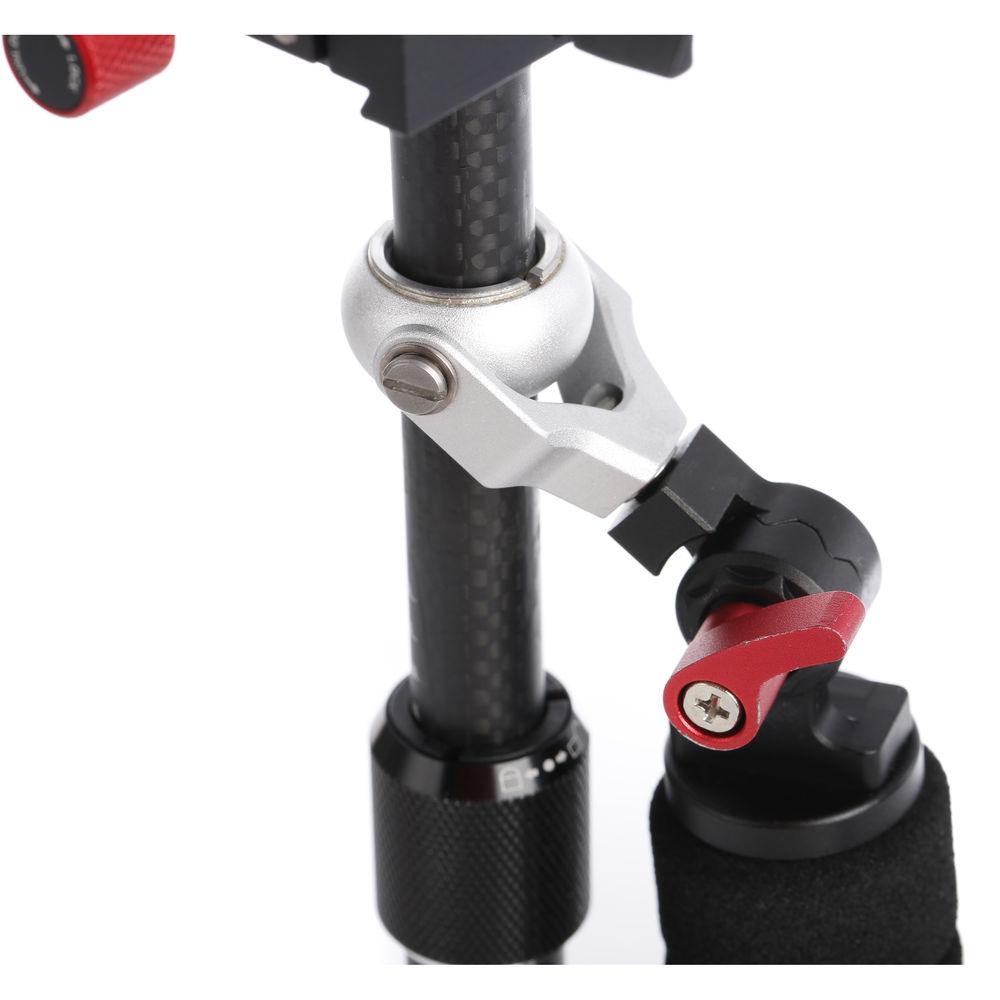

The camera platform accepts an included sliding baseplate that allows for balance adjustment in one axis. The platform itself allows you to adjust the camera's position perpendicular to the sliding baseplate for balance in a second axis. The length of the pole can be adjusted by approximately four inches, enabling you to adjust the distance between your camera and the counterweights for balance in a third axis. A, attached soft handgrip enables you to handle and control the stabilizer while shooting. - Key Features
-
- Carbon fiber 3-axis mini stabilizer
- Supports loads up to 5.5 pounds
- Collapsed size of 11.5"
- Three sets of counterweights
- 3-leg structure allows for use as a tripod
- Soft handle
- Universal camera plate included
In the Box Sevenoak Mini Handheld Carbon Fiber Stabilizer Camera Plate 1/4"-20 Tie-Down Screw 3 x 1.3 oz Counterweight 3 x 1.8 oz Counterweight 3 x 5.1 oz Counterweight Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sevenoak Mini Handheld Carbon Fiber Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSevenoak SK-SW PRO 1 Specs | Material of Construction | Carbon fiber and stainless steel | | Load Capacity | 5.5 lb / 2.5 kg | | Counterweights | Large: 3 x 5.1 oz / 144 g
Medium: 3 x 1.8 oz / 51 g
small: 3 x 1.3 oz / 37 g | | Dimensions | Max: 3.94 x 3.15 x 16.14" / 10 x 8 x 41 cm
Min: 3.94 x 3.15 x 11.42" / 10 x 8 x 29 cm | | Weight | Without Counterweights: 0.99 lb / 0.45 kg
With Counterweights: 2.54 lb / 1.15 kg | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 12.0 x 5.0 x 4.0" |
