User Manual for Sevenoak Time-Lapse Slider Click to enlarge the picture
Contents of the user manual for the Sevenoak Time-Lapse Slider
- Product category: Camera Sliders Sevenoak
- Brand: Sevenoak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sevenoak Camera Sliders
 |
User manual for the Sevenoak Time-Lapse Slider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sevenoak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sevenoak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sevenoak product will considerably shorten its lifespan!
|

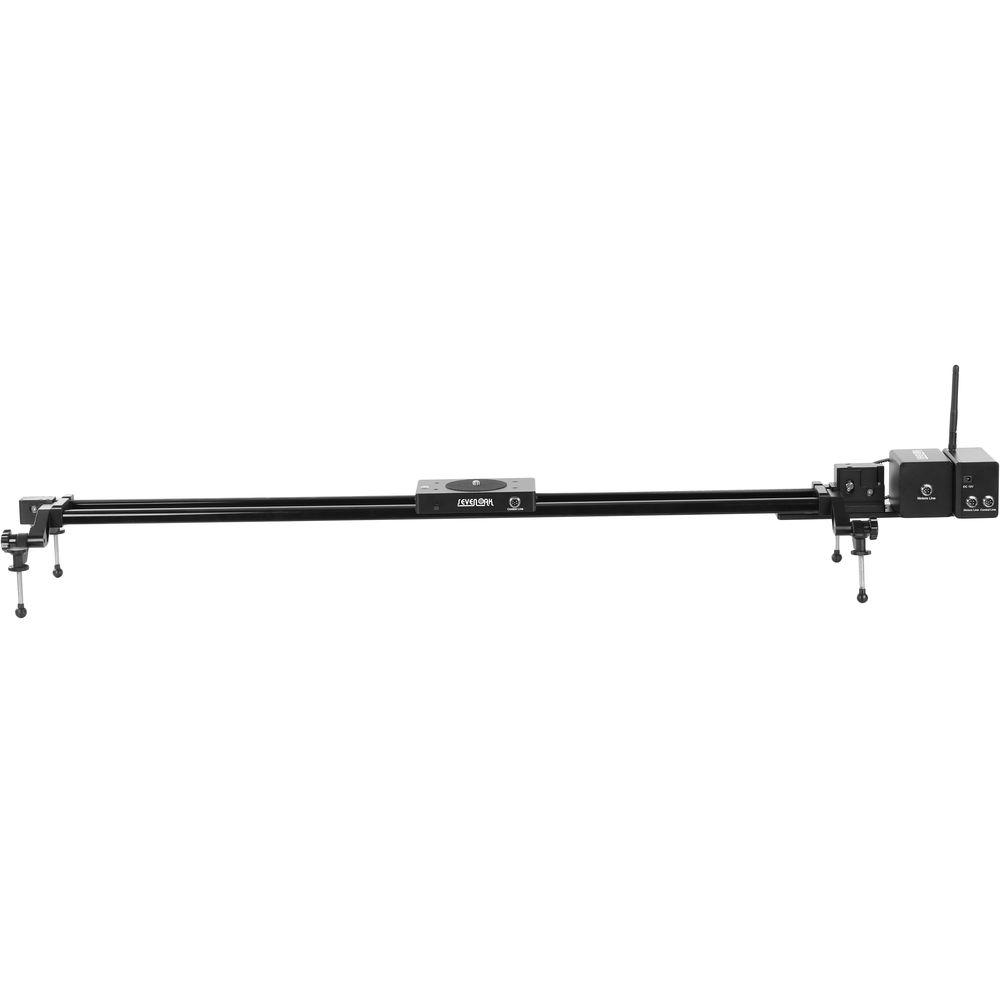

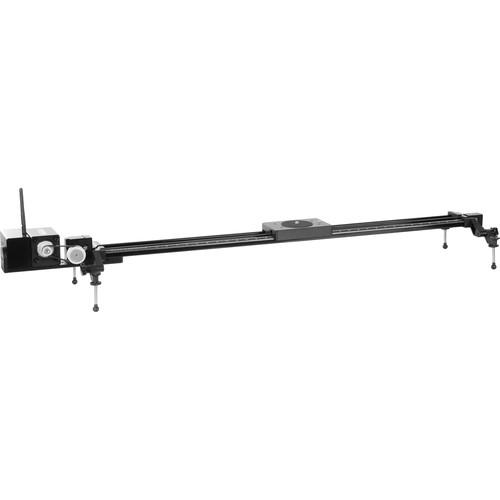

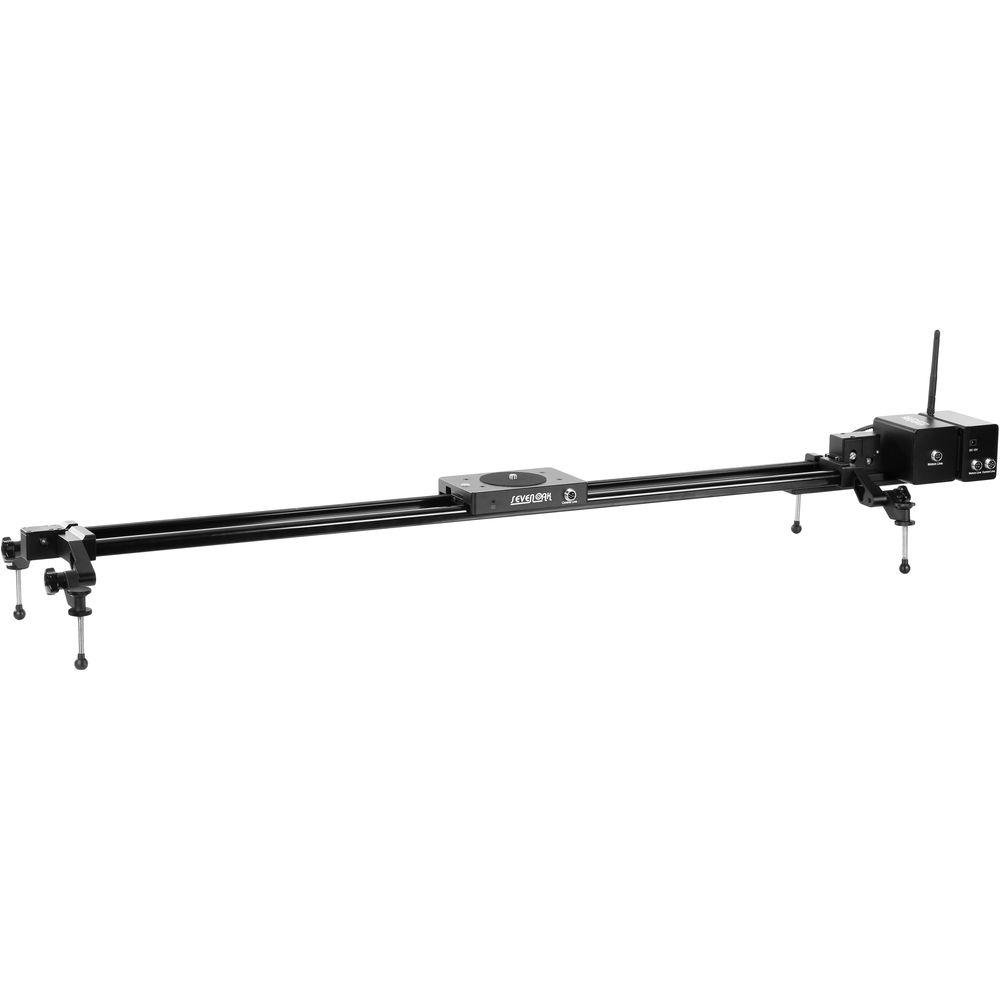

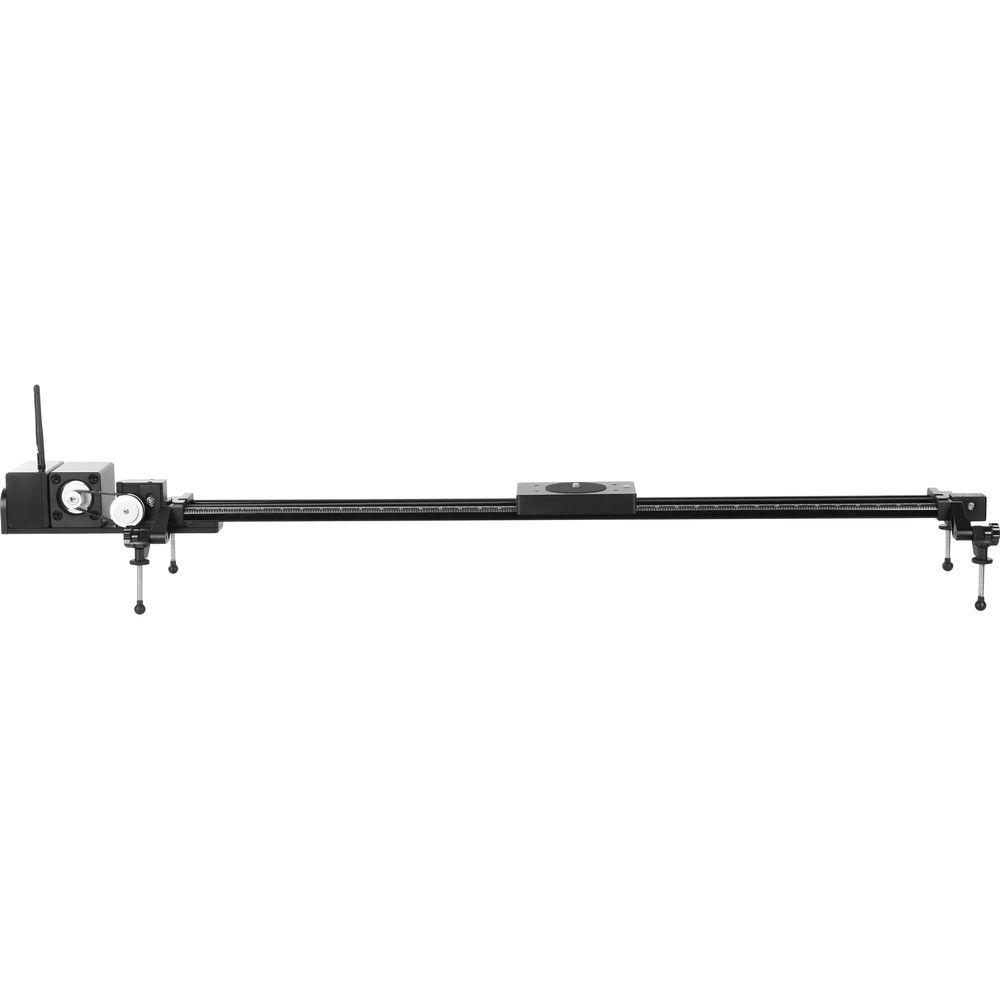

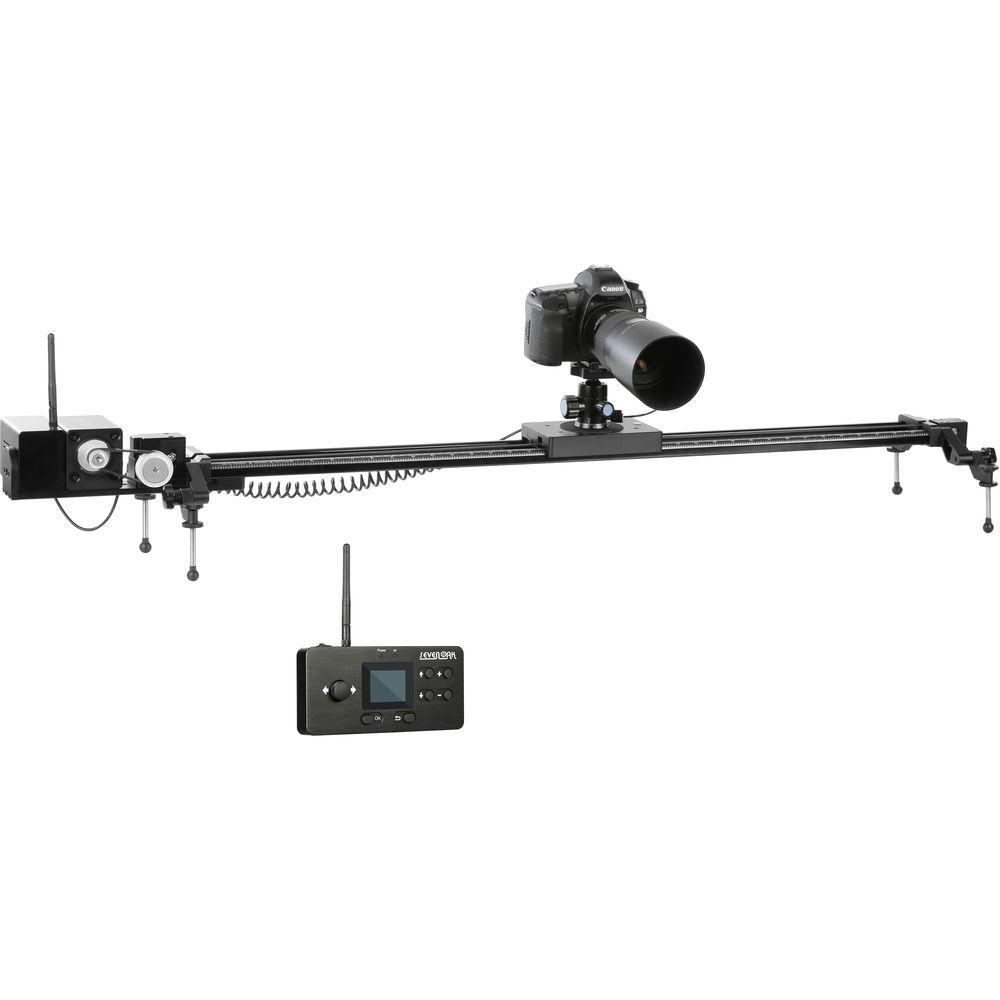

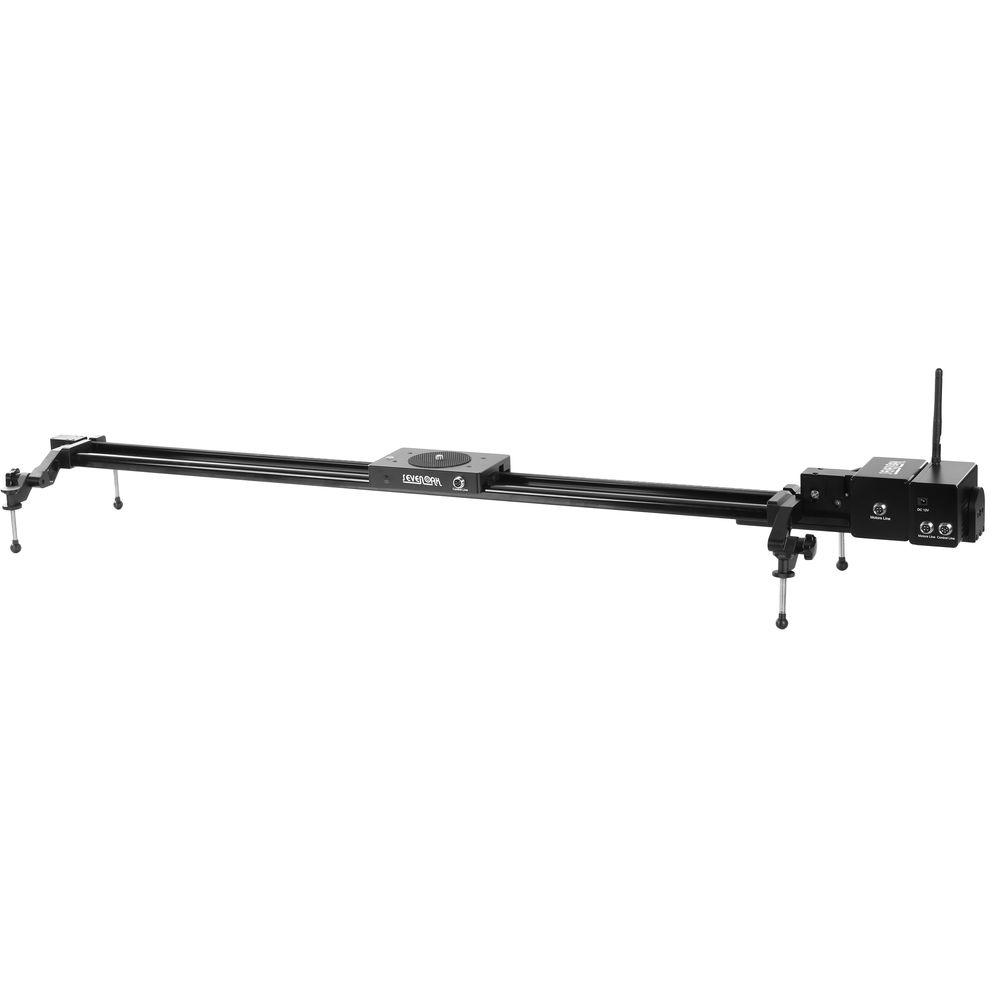

Product description The Sevenoak Time-Lapse Slider is a belt-driven motorized slider system well suited for use with most mirrorless and DSLR cameras. It supports up to 22 pounds when used horizontally and 8.8 pounds when operated in a vertical position. The track is indexed in inches and the slider has 31.5" of travel. The slider track uses single-piece construction of the track rails and track bed and incorporates both 1/4"-20 and 3/8"-16 threaded holes for mounting to tripods or stands.
Adjustable feet mount to the end of the track for use when using the slider directly on relatively flat surfaces. The carriage incorporates a bubble level to help you balance the slider. The removable motor supports time-lapse, motion control, and stop-motion via the included remote control or by a downloadable app for iOS devices. - Tripod mountable, or set up on a flat surface
- Adjustable legs allow you to level the slider on uneven surfaces

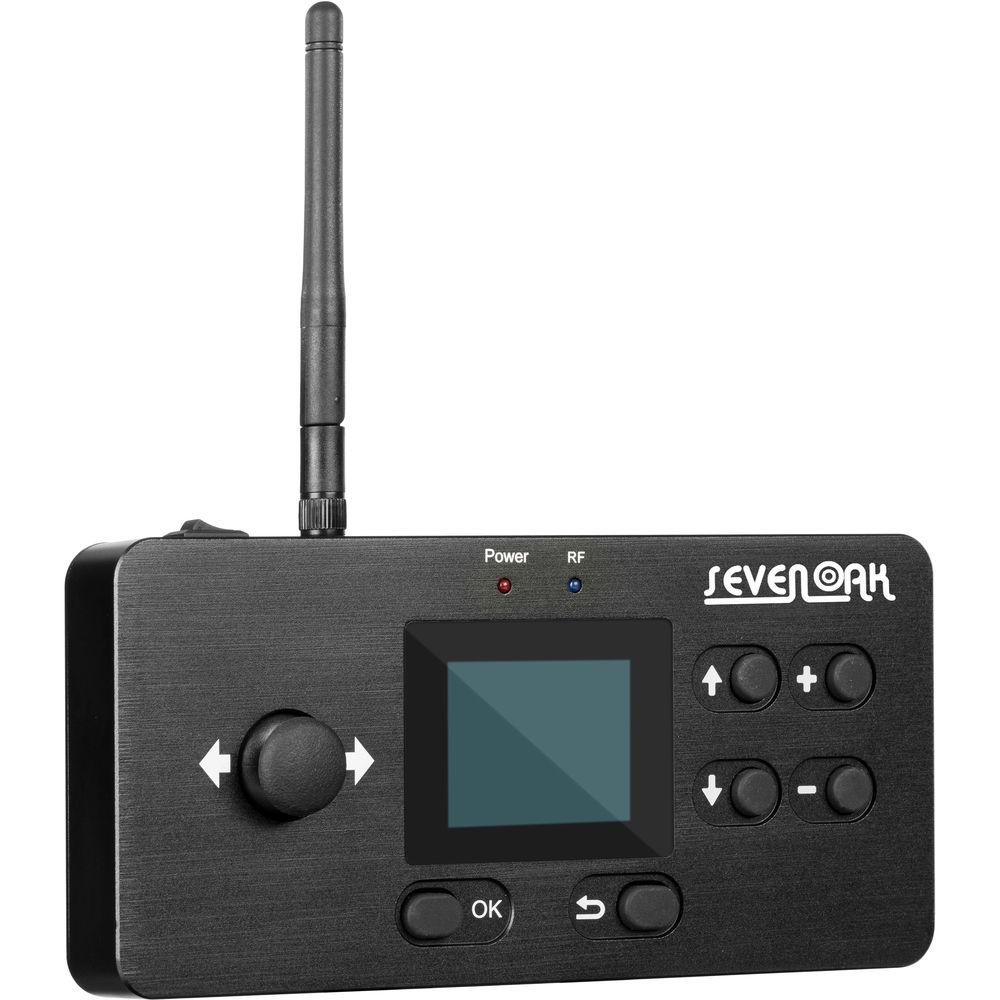

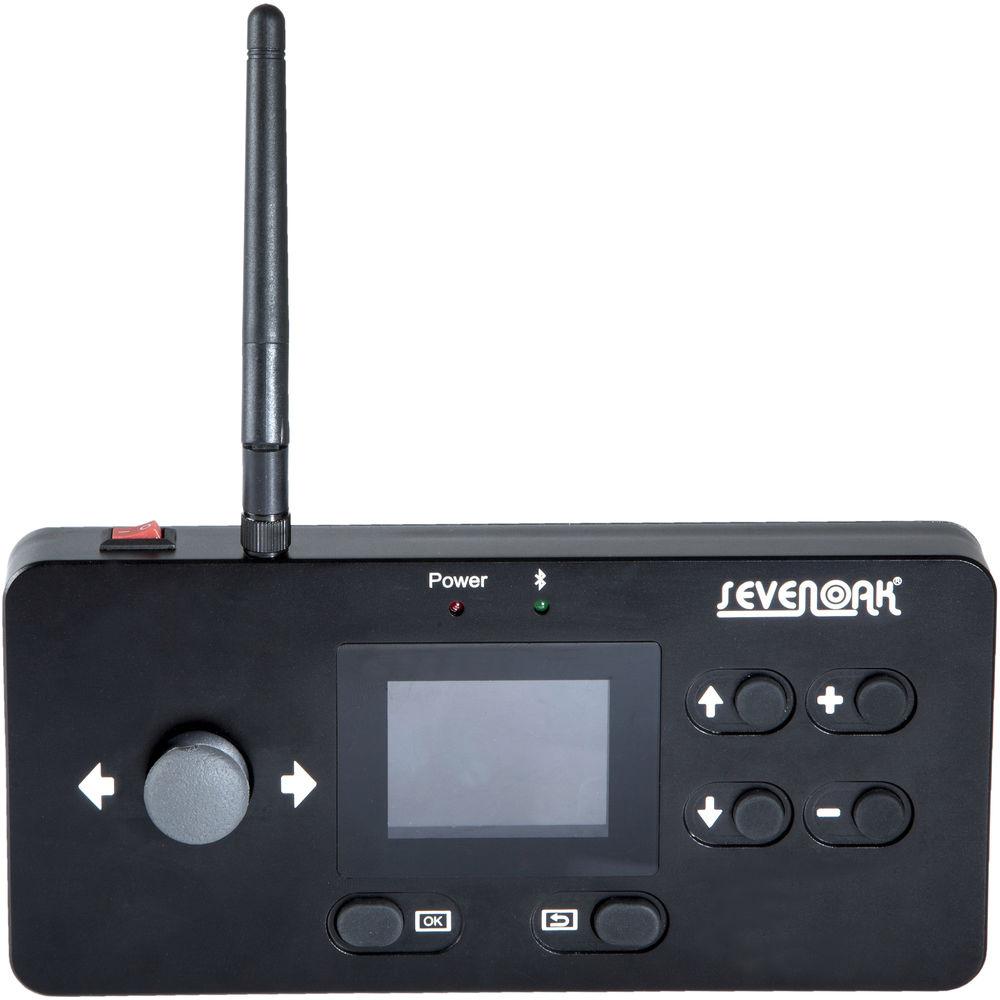

- Controllable by included 2.4 GHz remote control or via Bluetooth by the downloadable iOS app
- Programmable functions including camera control with appropriate cable
In the Box Sevenoak Time-Lapse Slider Bluetooth Remote Controller Drive Belt AC Power Supply Limited 1-Year Warranty User Manual PDF 5.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sevenoak Time-Lapse Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSevenoak SK-MTS100 Specs | | | Load Capacity | 22.05 lb / 10 kg (Horizontal)
8.82 lb / 4 kg (Vertical) | | Travel Distance | 31.5" / 80 cm | | Bubble Level | Yes | | | | Camera Mounting Screw | 1/4"-20 Male | | Accessory Mounting | None | | Tripod Mounting | 2 x 1/4"-20 Female Thread
2 x 3/8"-16 Female Thread | | | | Quick Release Plate Type | No Quick Release | | | | DC Input Power | 12 VDC at 2 A | | Wireless Connectivity | Bluetooth | | | | Track Length | 49.61" / 126 cm | | Track Width | 10.24" / 26 cm | | Track Height | 7.48" / 19 cm | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 60% (Recommended) | | Weight | 23.81 lb / 10.8 kg | | | | Package Weight | 18.3 lb | | Box Dimensions (LxWxH) | 50.0 x 14.0 x 11.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
