User Manual for Sevenoak Universal DSLR Cage Kit Click to enlarge the picture
Contents of the user manual for the Sevenoak Universal DSLR Cage Kit
- Product category: DSLR Video Supports & Rigs Sevenoak
- Brand: Sevenoak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sevenoak DSLR Video Supports & Rigs
 |
User manual for the Sevenoak Universal DSLR Cage Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sevenoak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sevenoak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sevenoak product will considerably shorten its lifespan!
|

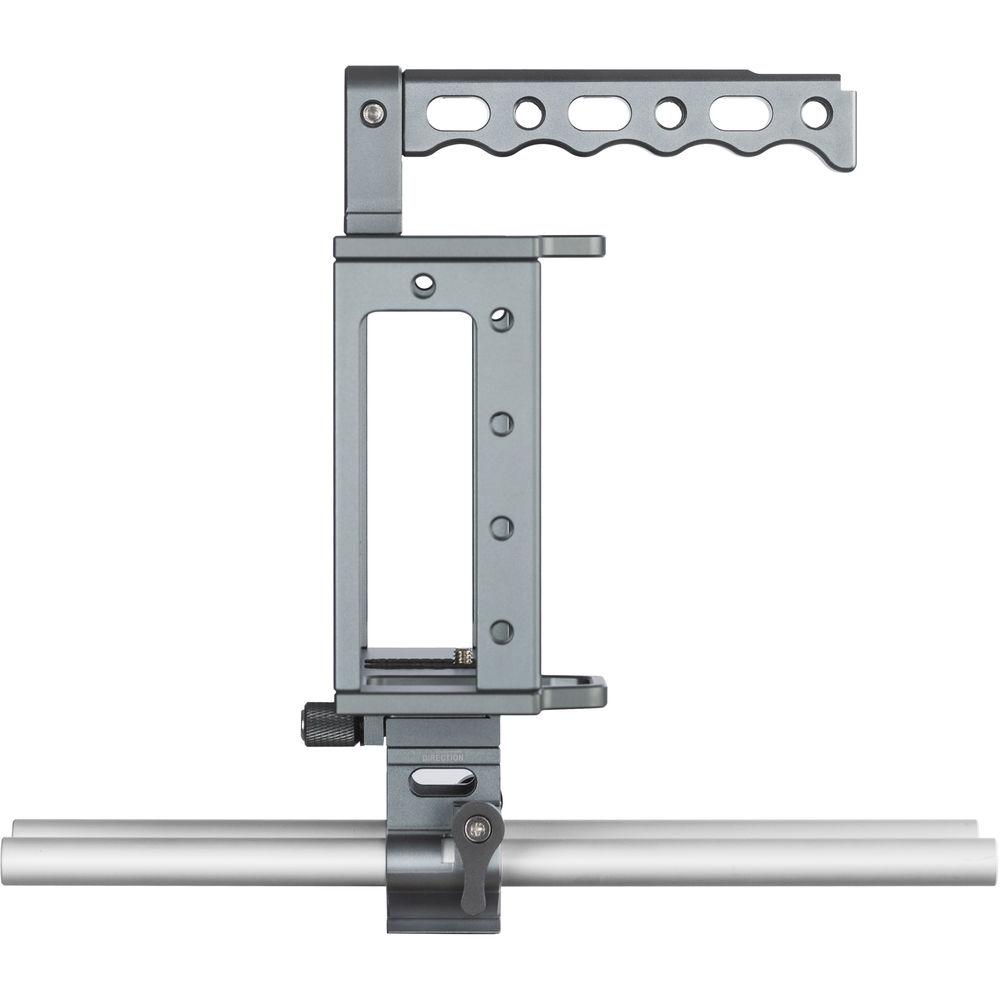

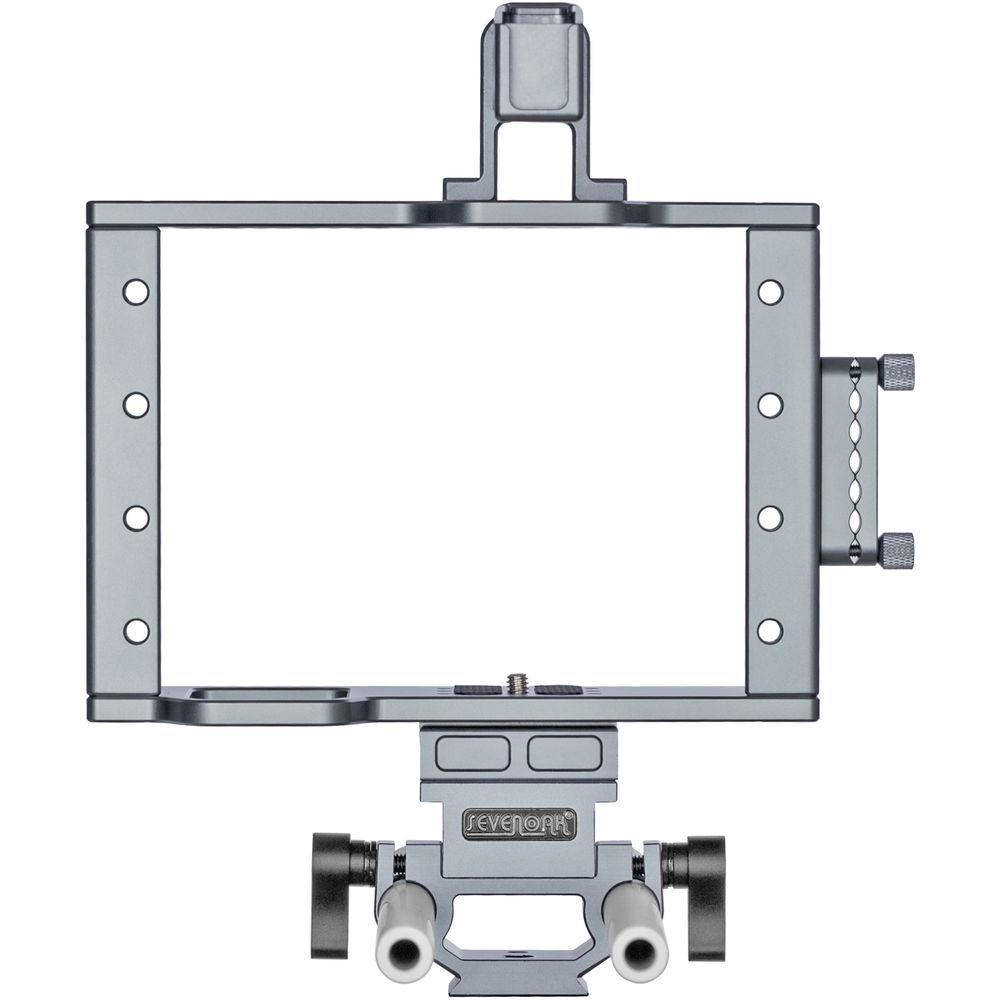

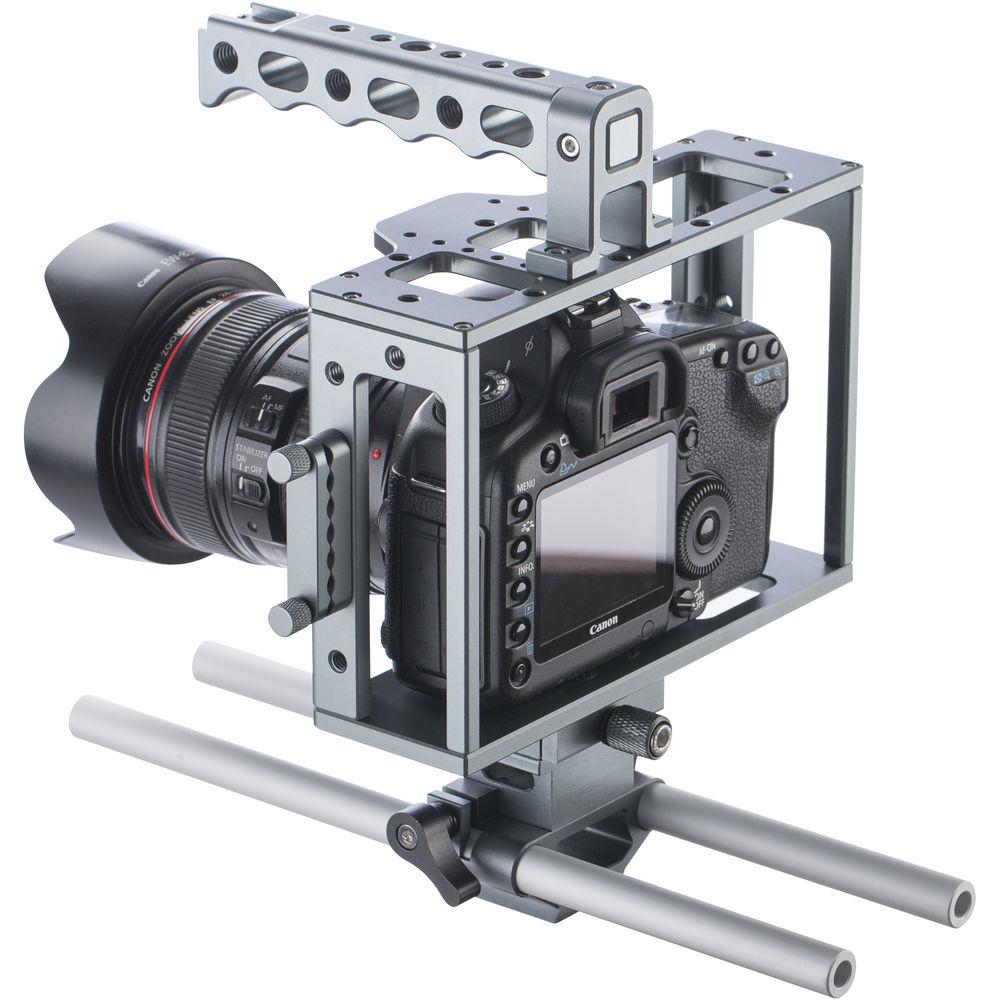

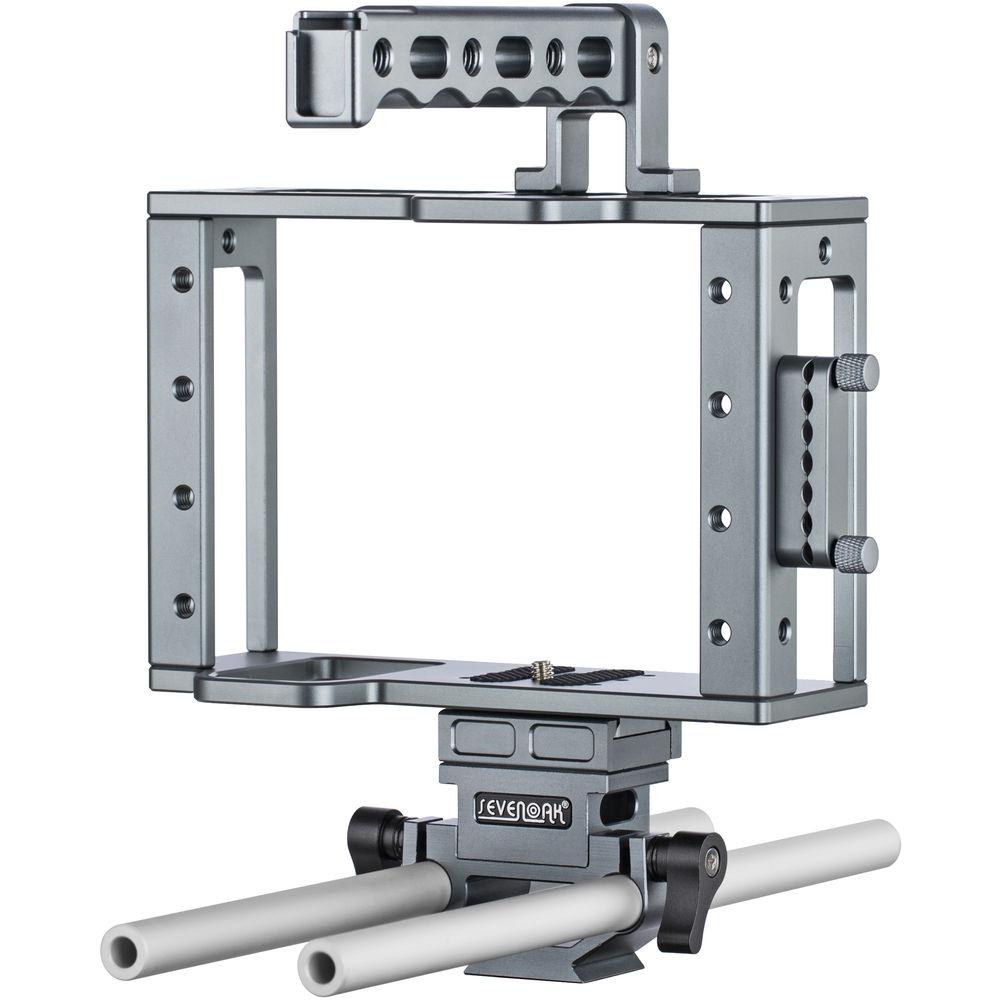

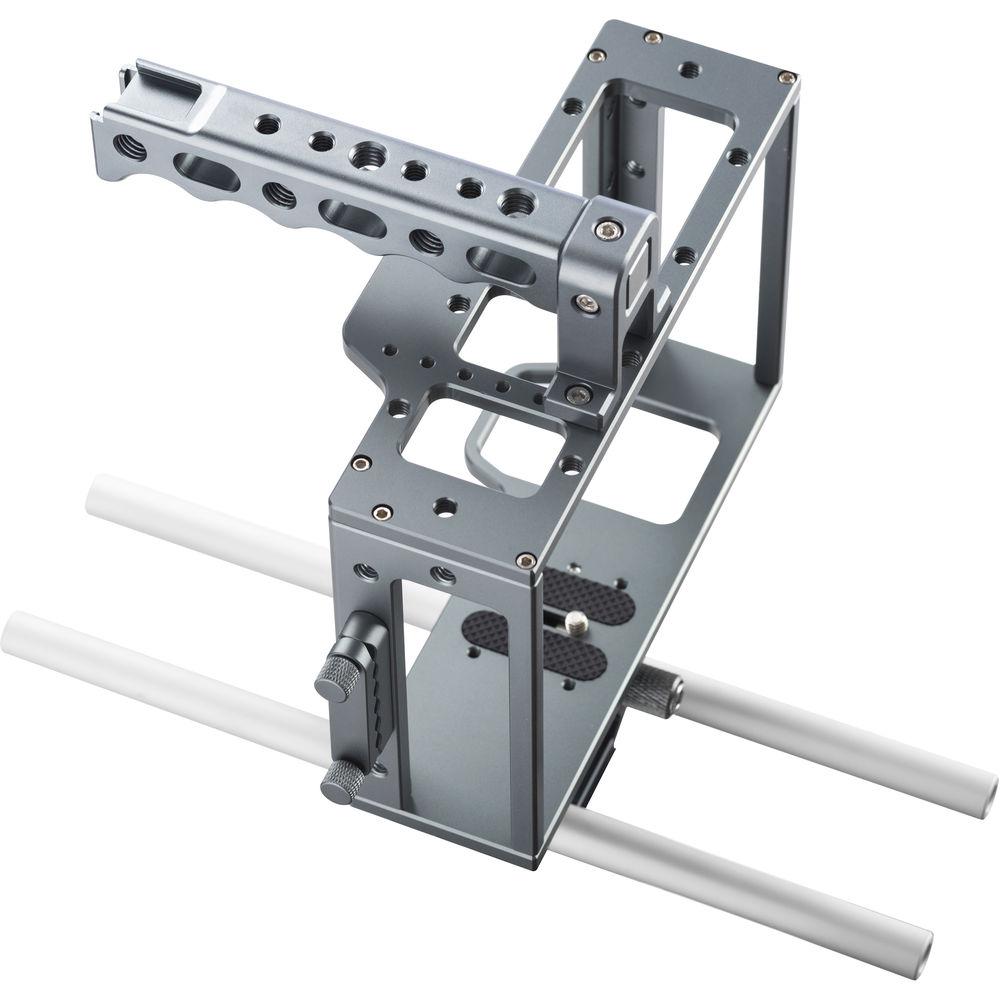

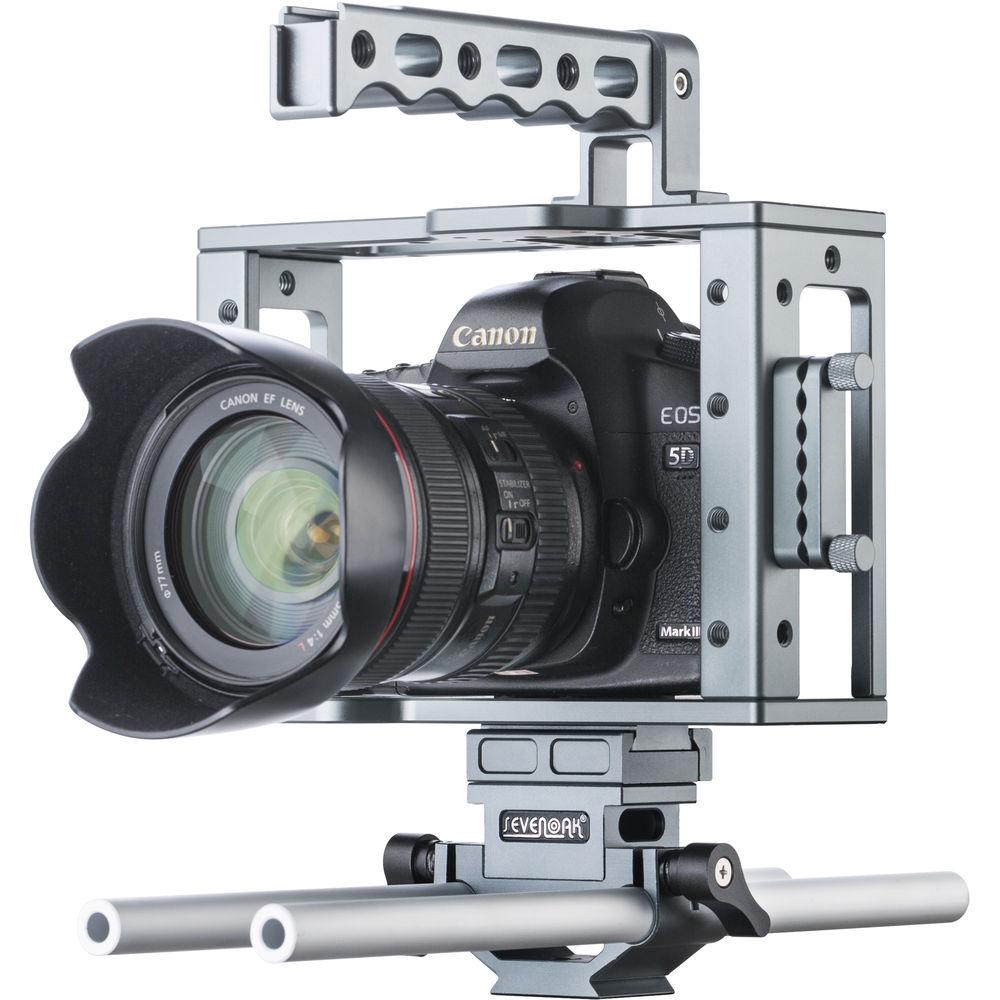

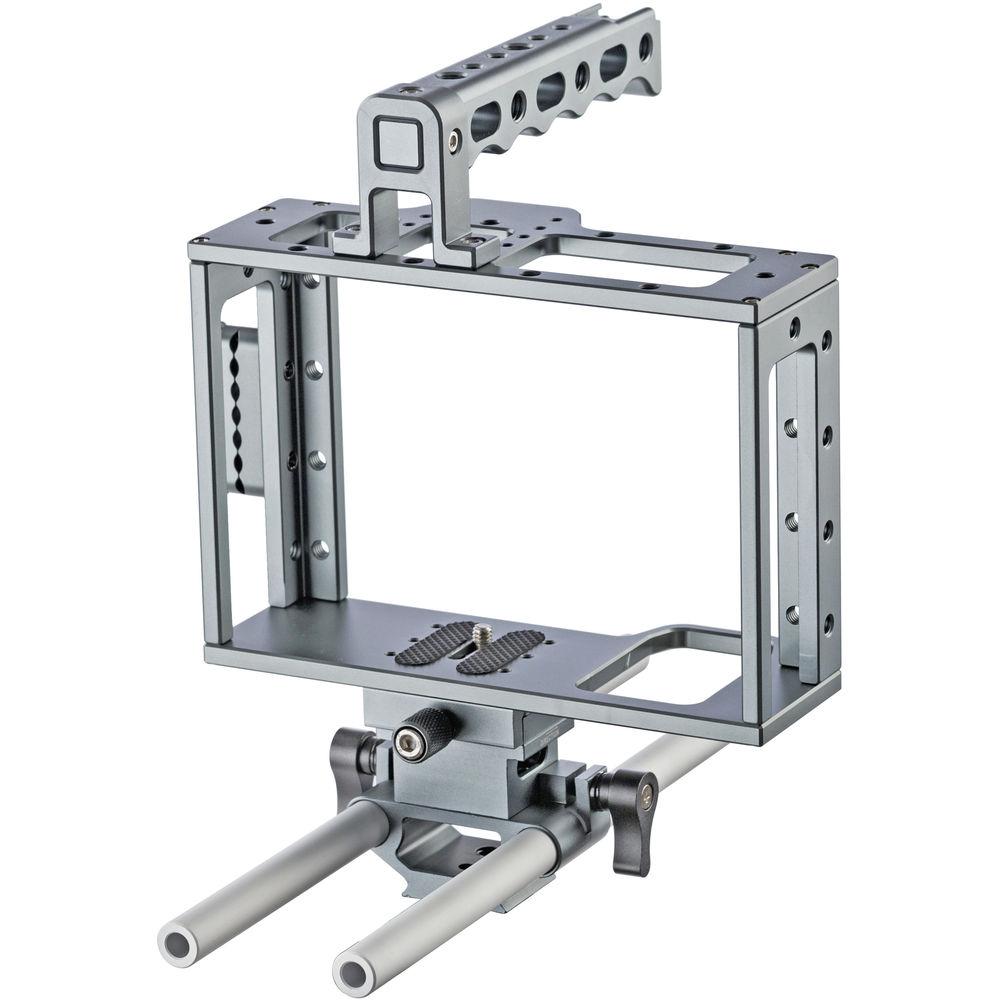

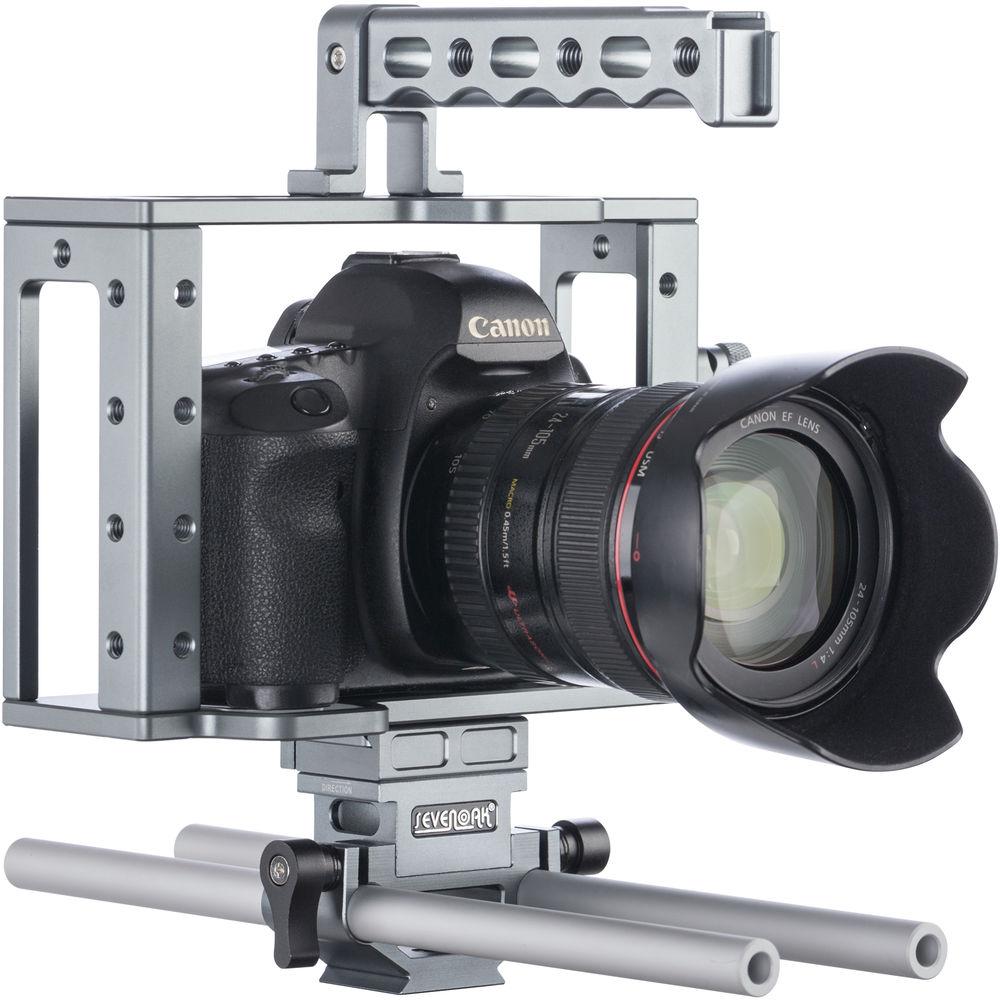

Product description The Sevenoak Universal DSLR Cage Kit is an aluminum cage and rod system for a wide variety of DSLR cameras. It consists of the cage, additional sidepieces for adjusting the cage's height, and removable top handle with two cold shoe mounts. The cage provides 1/4"-20 and 3/8"-16 accessory mounting points that enable you to mount available accessories without stressing the camera body.
Once the camera is mounted on the cage, the included HDMI plug protector connects the included Mini HDMI to HDMI and is clamped into place, providing a full-sized HDMI connector. This makes it easier to connect HDMI cables, and you don't have to worry about wearing out or damaging the camera's port by repeatedly plugging and replugging a cable into your camera body. The HDMI plug protector clamps the Mini HDMI adapter cable in place and attaches to the cage itself, acting as a strain relief and providing a platform for the full-sized HDMI connector to attach, so it doesn't just dangle freely.
The cage features an integrated wood grip for user comfort, as well as a removable top handle that features accessory mounting points and two cold shoes. The cage also includes a 15mm LWS support rod system featuring rod clamps, a QR baseplate system, and a pair of 11.8" support rods. The cage attaches to the included 15mm LWS support rods via a quick release system that allows you to easily remove the camera from the rods for a minimum-sized shooting package, or quickly remount the camera to the rods when working with rod-mounted accessories. The design of the system ensures that the lens' center height to the rods conforms to industry standards for using rod-mounted accessories. - Functions and features of the camera remain available for use.
- Top handle features two unpowered accessory shoe mounts, one forward-facing and one top-mounted.
- Numerous 1/4"-20 and 3/8"-16 threaded accessory mounting points.
- 15mm LWS support rod system.

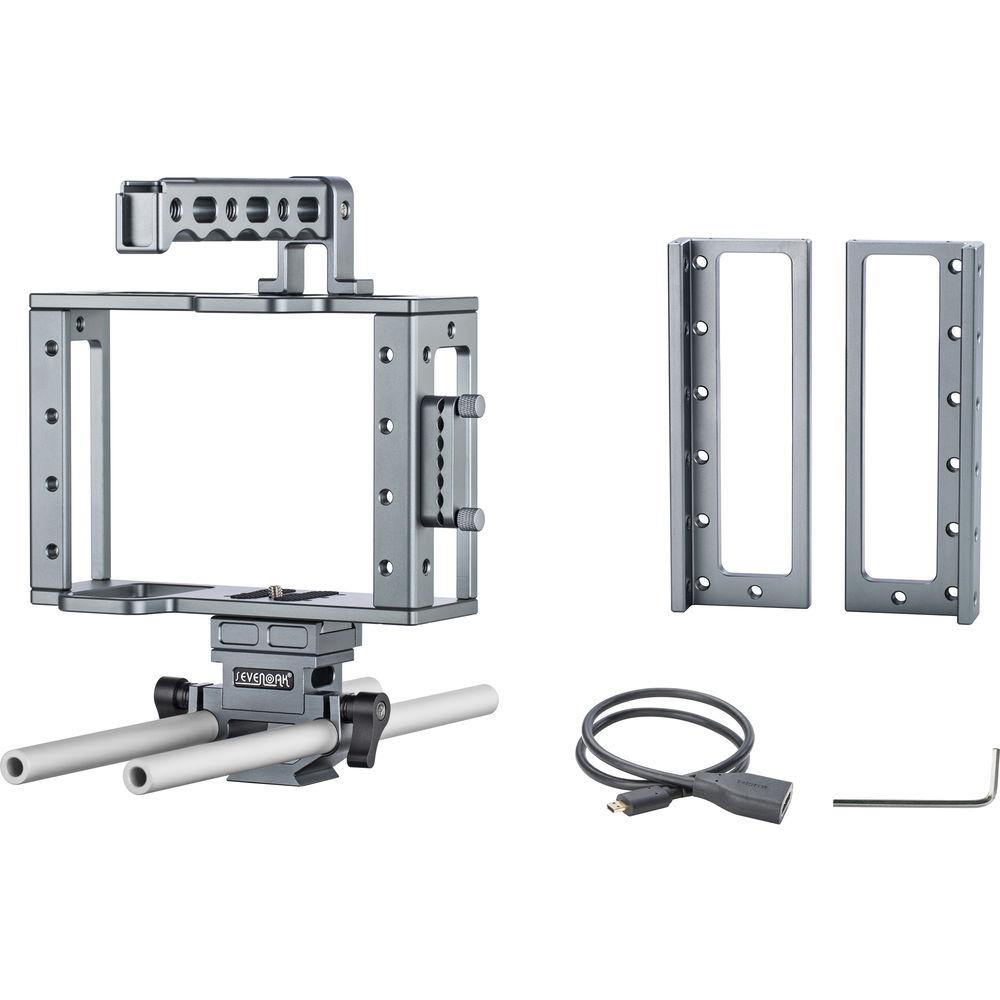

In the Box Sevenoak Universal DSLR Cage Kit Top Handgrip Top Handgrip Connector Baseplate 2 x 15mm Rod (11.8") QR Plate 2 x Side Frame Mini-HDMI to HDMI Cable HDMI Plug Protector 1/4"-20 Camera Mounting Screw 7 x M4*8 Screw 2 x 1/4" Cup Head Screw 1/4"-20 Camera Tie-Down Screw 2 x HDMI Protector Locking Screw Camera Locking Screw Key 2 x Allen Wrench Limited 1-Year Warranty User Manual PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sevenoak Universal DSLR Cage Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSevenoak SK-C03 Specs | Material of Construction | Anodized aluminum
Wood | | Load Capacity | 44.1 lb / 20.0 kg | | Threaded Holes | Small Side Risers:
25 x 1/4"-20
6 x 3/8"-16
Large Side Risers:
41 x 1/4"-20
6 x 3/8"-16 | | Dimensions | Small Side Risers:
7.68 x 2.17 x 5.51" / 19.5 x 5.5 x 14.0 cm
Large Side Risers:
7.68 x 2.17 x 6.69" / 19.5 x 5.5 x 17.0 cm | | Weight | 4.08 lb / 1.85 kg | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 13.2 x 9.0 x 4.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
