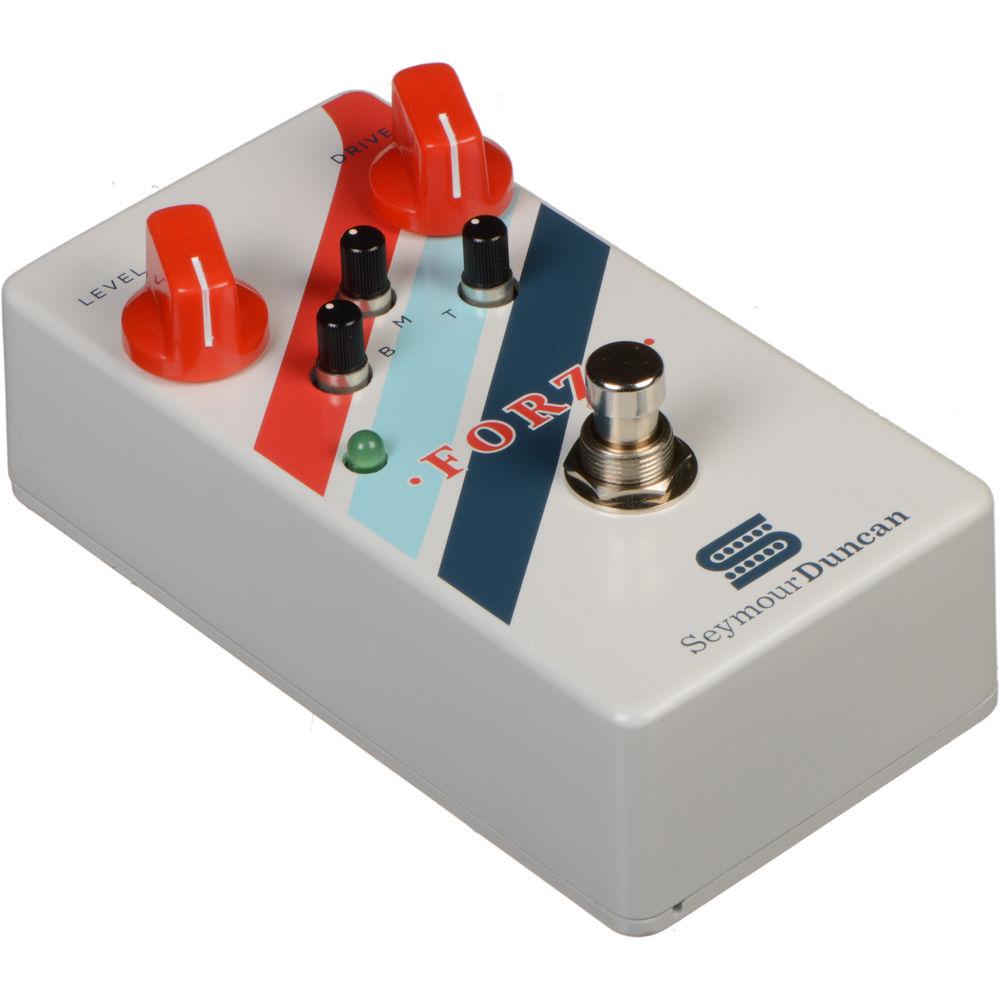

Seymour Duncan Forza Overdrive Pedal

Search your instruction manual in PDF to download

User Manual for Seymour Duncan Forza Overdrive Pedal

Click to enlarge the picture
Seymour Duncan Forza Overdrive Pedal Contents of the user manual for the Seymour Duncan Forza Overdrive Pedal
  • Product category: Effects Pedals Seymour Duncan
  • Brand: Seymour Duncan
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Seymour Duncan Effects Pedals

Seymour Duncan Forza Overdrive Pedal Seymour Duncan Forza Overdrive Pedal
User manual for the Seymour Duncan Forza Overdrive Pedal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Seymour Duncan product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Seymour Duncan user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Seymour Duncan product will considerably shorten its lifespan!



Product description

Seymour Duncan Forza Overdrive Pedal Pushes the Envelope Read More vzexbvcfwdrewatwvqzxvuavadzu Maintain your guitar's natural voice while boosting your signal with the Forza Overdrive Pedal from Seymour Duncan. This high-gain boost pedal is full frequency with up to 37 dB of transparent gain. The onboard Level, Drive, and 3-band EQ allow you to further dial in the perfect settings, from a subtle boost to maximum overdrive, while maintaining your instruments tone.
    • Level: This control dials in the amount of output so you can level-match your dirty and clean sounds, dial in a solo boost or deliver more drive to your amp
    • Drive: This control dials in a gain boost of 11 to 37 dB for everything from subtle coloring to more intense overdrive
    • Bass: This control dials in the amount of low end, centered on 90 Hz with +/-11 dB boost or cut
    • Mid: This control lets you dial in the amount of midrange, centered on 750 Hz with a boost or cut of 11 dB
    • Treble: Dials in the amount of high end with a 2.1 kHz center frequency and +/-12 dB of boost or cut
    • Status LED: Indicates when the Forza is active. LED is on when the unit is engaged, off when in true bypass mode
    • True Bypass Footswitch: Activates the pedal. When the pedal is off, the circuit from your guitar’s signal runs via a hardwired connection from the input jack to the output jack for true bypass operation
UPC: 800315040971 In the Box Seymour Duncan Forza Overdrive Pedal
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Seymour Duncan Forza Overdrive Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Seymour Duncan 11900-010 Specs

    Circuitry Glass diode, back-to-back stack overdrive circuit
    Bypass True, hard-wired
    Gain Control Range 11 to 37 dB
    EQ Controls Bass: 90 Hz ±11 dB
    Mid: 750 Hz ±11 dB
    Treble: 2.1 kHz ±12dB
    Impedance Input: 470 kOhms
    Output: 1 kOhm
    Gain Unity (0 dB) dry; off to +3 dB wet
    THD THD @ 10 mVrms Input @ 1 kHz with 12 dB of Gain: 0.045%
    Max Output Max Output Before Saturation: 0.6 Vrms
    Power 9 V battery
    External 9 to 18 VDC Adapter (center negative)
    Current Consumption 4.5 mA
    Dimensions 2.6 x 4.9 x 1.4" / 6.6 x 12.4 x 3.6 cm
    Weight Without battery: 0.8 lb / 0.4 kg
    Package Weight 0.85 lb
    Box Dimensions (LxWxH) 5.7 x 4.3 x 2.7"
