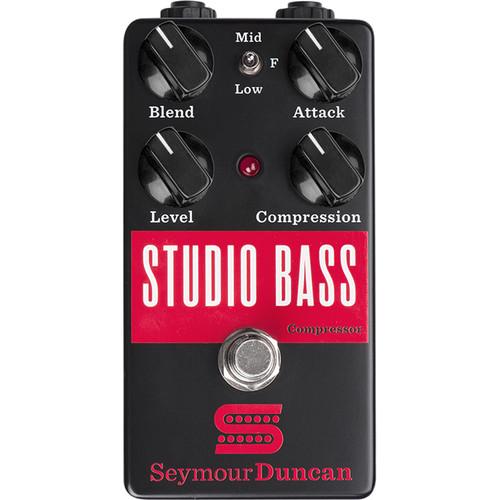

Product description The Studio Bass Compressor from Seymour Duncan is a compact bass guitar effects pedal designed to deliver studio quality dynamic control without sacrificing tone. The pedal utilizes a voltage controlled amplifier (VCA) to tame loud volume peaks and boost low level signals. The blend knob and 3-way toggle switch allow you to select the frequency range of the original uncompressed signal as well as adjust the amount of "wet" versus "dry" signal that is routed to the output.
The attack control sets how quickly the compressor reacts, allowing the original transient through at slower settings, while the compression control offers a ratio of 1:1 to more than 20:1. The level control allows you to balance the signal between the pedal and bypass, making sure your effected sound remains consistent with your bypassed bass tone. The Studio Bass provides a controlled dynamic sound in slap-style playing to keep each note from being overly harsh or overbearing. In the Box Seymour Duncan Studio Bass Compressor - Bass Guitar Effects Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Seymour Duncan Studio Bass Compressor - Bass Guitar Effects Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

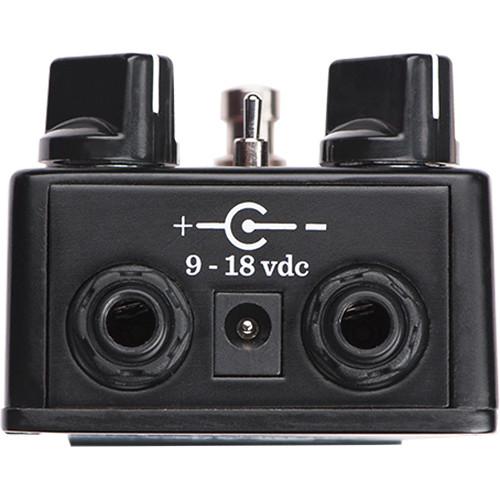

Technical parametersSeymour Duncan 11900-007 Specs Circuitry | Compressor Type: Voltage Controlled Amplifier (VCA) | Compression Ratio | Soft-knee, adjustable from 1:1 to > 20:1 | Maximum Gain | Maximum Compressor Gain: +33 dB | Attack Time | Attack Speed: Adjustable from 8 to 27 ms | Input Impedance | 1 MOhm | Output Impedance | 2.75 kOhms | Maximum Input Level | 3 VRMS | Distortion | < 0.3% at 300 mV RMS, output at 1 kHz | Noise | Noise Referred to Input: -110 dBV, 400 Hz to 20 kHz, input shorted | Bypass | True bypass | Power | 9 VDC battery or external 9 to 18 VDC regulated adapter (center pin negative) | Current Consumption | 21 mA operate 19 mA bypass | Dimensions (W x L x H) | 2.6 x 5.0 x 1.45" / 6.6 x 12.7 x 3.7 cm | Weight | 0.67 lb / 0.3 kg (without battery) | | Package Weight | 0.85 lb | Box Dimensions (LxWxH) | 5.7 x 4.3 x 2.6" |
