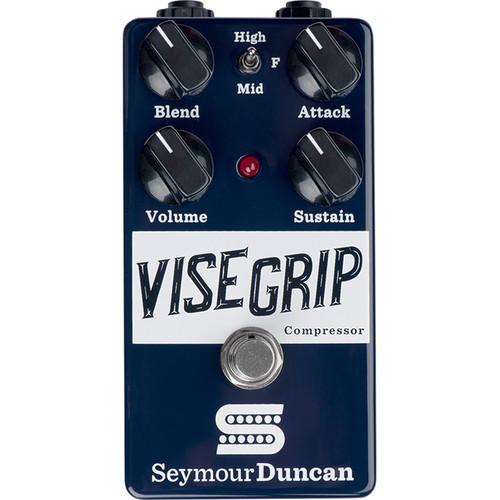

Product description The Vice Grip Compressor from Seymour Duncan is a compact guitar pedal designed to delivers studio-quality dynamic control without sacrificing tone. This true bypass analog pedal utilizes a voltage controlled amplifier (VCA) to tame loud volume peaks, boost low level signals, and blend the amount of compressed and uncompressed signal. The attack control sets how quickly the compressor reacts, allowing the original transient through at slower settings, while the sustain control offers a ratio of 1:1 to more than 20:1 for a wide range of compressed tones and articulation.
The volume control not only allows you to balance the signal between the pedal and bypass, but also acts as a clean boost for solos and leads. The Mid/Full/High toggle switch adds a sparkle to high end, fattens up the uncompressed signal with increased harmonic overtones, or makes sure your effected sound remains consistent with your bypassed guitar tone. UPC: 800315040377 In the Box Seymour Duncan Vice Grip VCA Compressor Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Seymour Duncan Vice Grip VCA Compressor Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

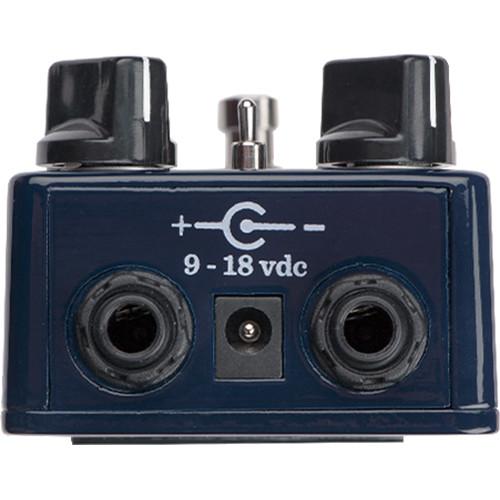

Technical parametersSeymour Duncan 11900-006 Specs | Circuitry | Compressor Type: Voltage Controlled Amplifier (VCA) | | Compression Ratio | Soft-knee, adjustable from 1:1 to > 20:1 | | Maximum Gain | Maximum Compressor Gain: +50 dB | | Attack Time | Attack Speed: Adjustable from 2.0 to 50 ms | | Input Impedance | 1 MOhm | | Output Impedance | 2.75 kOhms | | Maximum Input Level | 3 VRMS | | Distortion | < 0.3% at 300 mV RMS output at 1 kHz | | Noise | Noise Referred to Input: -110 dBV, 400 Hz to 20 kHz, input shorted | | Bypass | True bypass | | Power | 9 VDC battery or external 9 to 18 V regulated DC adapter (center negative) | | Current Consumption | 21 mA operate
19 mA bypass | | Dimensions (W x L x H) | 2.6 x 5.0 x 1.5" / 6.6 x 12.7 x 3.7 cm | | Weight | 0.8 lb / 0.4 kg (without battery) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 5.7 x 4.3 x 2.6" |
