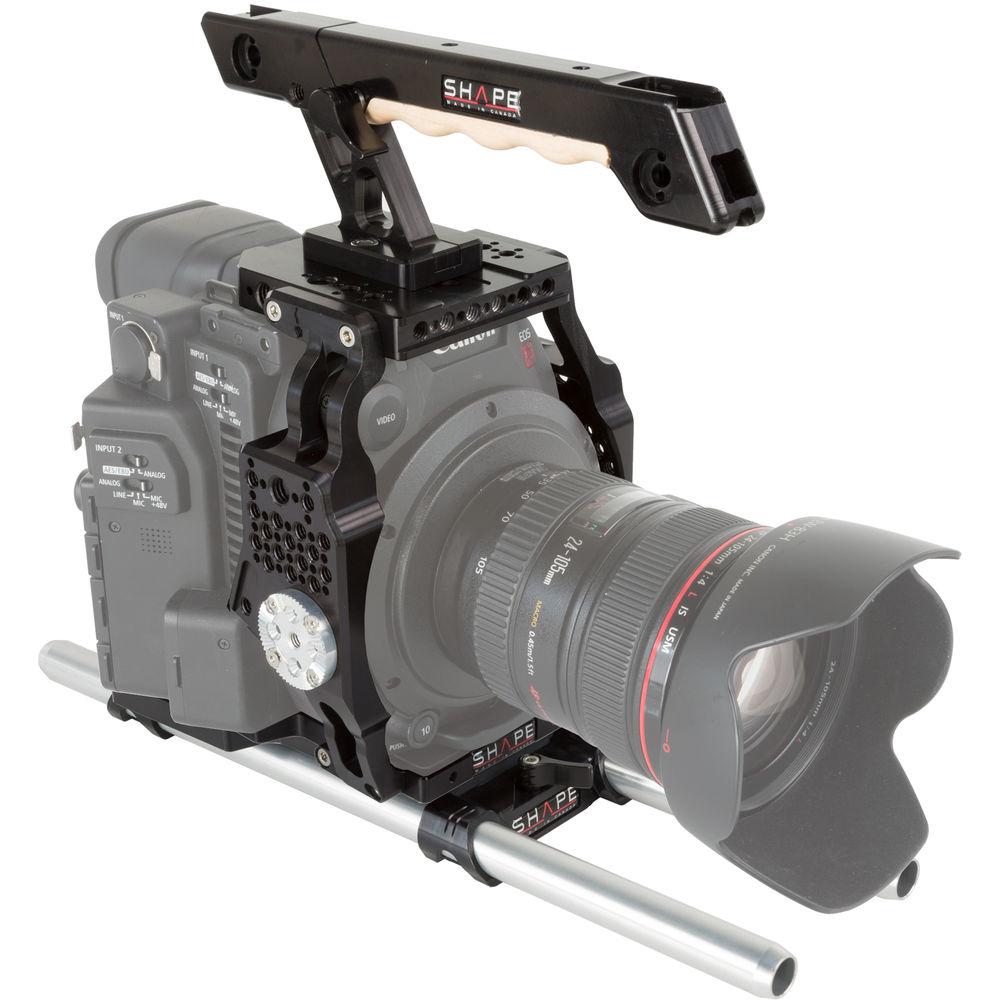

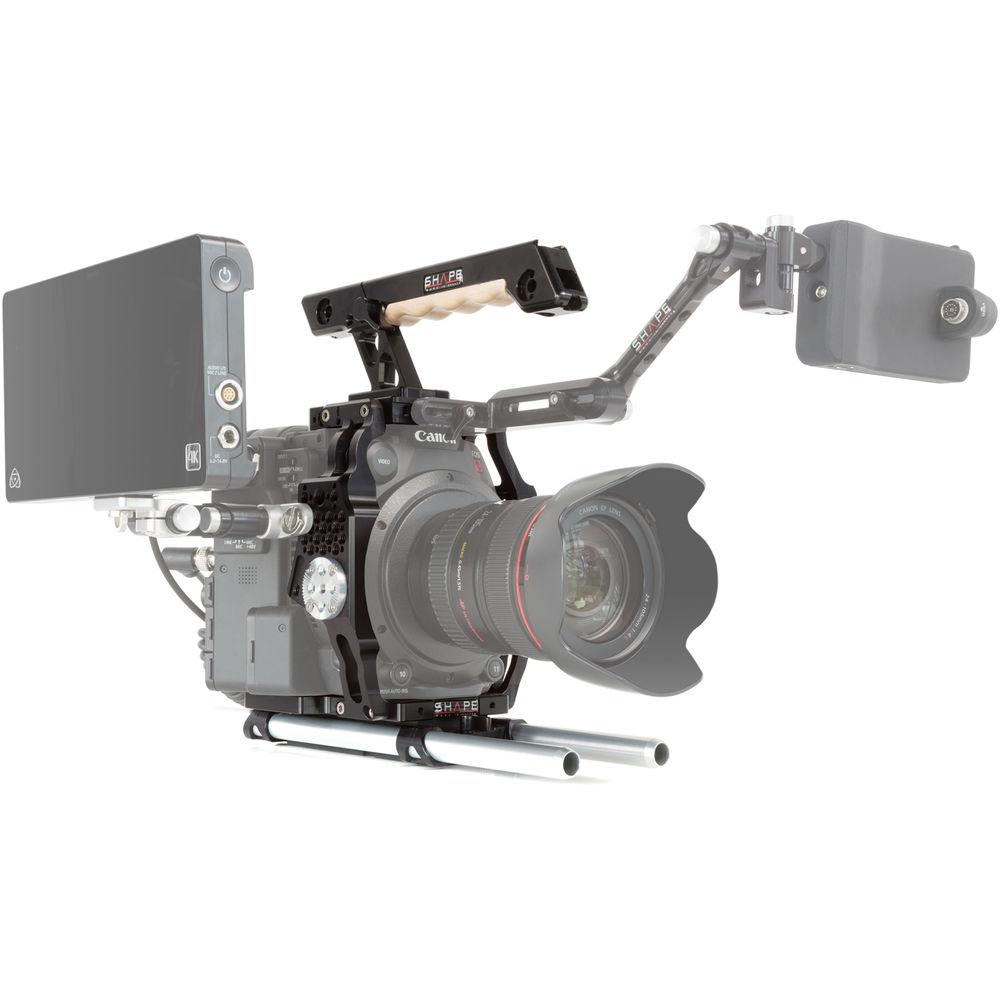

Product description The SHAPE 15mm Lightweight Rod System is designed for use with the Canon 200 cinema camera. The system includes the Canon C200 camera cage, a baseplate with Rod Bloc, an extendable top handle, and two 12" 15mm rods.
The camera cage is designed for the Canon EOS C200. It is made of CNC Machined aluminum and offers several mounting points and threaded holes to attach other SHAPE parts and third-party accessories. The cage also includes an ARRI rosette on the right side for attaching the Remote Extension Handle or C200 Handle.
The baseplate comes with a pair of 12" 15mm rods that run through its length. It features three attachment points for securing your camera and tripod plate attachment via three 1/4"-20 mounting holes.The handle grip frame is made of CNC Machined aluminum, and the finger grip is made of Canadian maple wood for maximum comfort. The Canon C200 top handle is removable and can be quickly adjusted and locked. The handle's length can be extended approximately 3" from its original position, to optimize the balance of your Canon C200 to your lens type. - Camera Cage for Canon EOS C200
- Canon C200 Camera Supports
- SHAPE CANON C200 TECHNICAL VIDEO
The SHAPE Camera Cage is designed for use with the Canon EOS C200 cinema camera. It is made of CNC Machined aluminum and offers several mounting points and threaded holes to attach other SHAPE parts and third-party accessories. The cage also includes an ARRI rosette on the right side for attaching the Remote Extension Handle or C200 Handle. - Three 1/4"-20 captive screws secure your C200 camera
- Locking mechanical system secures the cable handle
- Bottom section of the cage features an adapter plate with several 1/4"-20 and 3/8"-16 threaded holes, suitable for optimizing your C200 camera balance on a tripod, gimbal, or drone
- Top section of the cage features a top plate, allowing you to mount the C200 Top Handle at different positions to optimize your balance when shoulder-mounted
- Quickly adjust or remove the cage with the help of an Allen key, included and magnetically attached to the bottom of the cage
UPC: 629266007181 - Baseplate with 15mm Rod System for Canon C200 Camera The SHAPE Baseplate is designed for use with the Canon C200 camera. It comes with a pair of 15mm rods that are 12" long through the length of the baseplate. The baseplate features three attachment points for securing your camera and tripod plate attachment via three 1/4"-20 mounting holes.
- Attaches underneath the camera via 3/8"-16 and 1/4"-20 screws
- Ratchet key knobs to reposition the Rod Bloc system
- The 15mm Lightweight Rod System (LWS) is designed to respect the C200 optical center
- Four rubber pads at the top of the base protect and securely hold your C200 camera
- Unscrewing the bottom section of the baseplate with an Allen key (included) reveals an adapter plate with several 1/4"-20 and 3/8"-16 threaded holes, suitable for optimizing your C200 camera balance on a tripod, gimbal, or drone
- Allen key attaches to the bottom of the baseplate via a magnet
UPC: 629266007273 - 15mm Aluminum Rods (Pair, 12") This pair of Shape 15mm Aluminum Rods (12") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001714 In the Box Bundle Items Camera Cage for Canon EOS C200 xxsbzbut - 3 x 1/4"-20 Captive Screws
- Limited Lifetime Warranty
Baseplate with 15mm Rod System for Canon C200 Camera - 15mm Aluminum Rods (Pair, 12")
- Limited Lifetime Warranty
15mm Aluminum Rods (Pair, 12") - Limited Lifetime Warranty
Also Includes Assembly plan PDF 516.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE 15mm Lightweight Rod System for Canon 200 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Camera Cage for Canon EOS C200
| | | Construction | CNC Machined aluminum | | Dimensions (W x H x L) | 5.48 x 6.6 x 4.92" (13.9 x 16.8 x 12.5 cm) | | Weight | 1.28 lb (0.58 kg) | | | | Box Dimensions (LxWxH) | 8.7 x 7.4 x 4.3" | - Baseplate with 15mm Rod System for Canon C200 Camera
| | | Material | CNC-Machined aluminum | | Dimensions (WxHxD) | 4 x 4 x 1.31" (101.6 x 101.6 x 33.2 mm) | | Weight | 0.79 lb (0.35 kg) | | | | Box Dimensions (LxWxH) | 12.7 x 4.4 x 2.4" | - 15mm Aluminum Rods (Pair, 12")
| Diameter | 15 mm | | Length | 12 inches (30.5 cm) | | Material | Aluminum with a clear finish applied over it | | | | Box Dimensions (LxWxH) | 12.4 x 3.2 x 1.1" |
