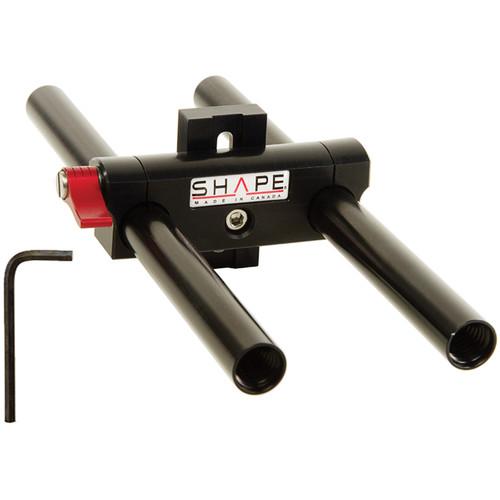

User Manual for SHAPE 15mm Rod Riser System Click to enlarge the picture
Contents of the user manual for the SHAPE 15mm Rod Riser System
- Product category: Rod Brackets & Clamps SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Rod Brackets & Clamps
|
User manual for the SHAPE 15mm Rod Riser System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description The Shape 15mm Rod System provides support for rod-mounted accessories such as matte boxes, lens adapters, lens supports, and follow focus mechanisms. By supporting these accessories, the system transfers additional weight away from your lens. The 15mm Rod System is composed of a Sliding Rod Bloc and a pair of 15mm aluminum rods. The rods' threaded female ends enable the attachment of 1/2"-13–threaded extension rods (not included).This system can be easily attached and removed from the front of the camera using a 4mm hex key (not included). The 15mm Rod System uses a small thumb lever for horizontal adjustments of the bracket along the rods. The same 4mm hex key can be used to adjust the bracket up to 1 3/8" vertically to correspond to the height of the accessory. This system features an aluminum bracket and aluminum rods with stainless steel screws. - Sliding Rod Block The SHAPE Sliding Rod Block allows you to attach 15mm rods to select SHAPE gear and adjust them vertically to support different sized lenses and accessories.
Using supplied screws, it can be attached to the front of the PAPARAZZI RISER, CAMELEON I, SPIDER I, SUMO I, and other rigs/accessories that support the screw pattern. One ratchet knob tightens both optional rods in place. UPC: 629266001363 - Pair of 15mm Female - Female Rod (8") The Shape Pair of 15mm Female - Female Rod (8") are anodized aluminum rods with 1/2"-13 threaded female extremities.
The rods are 8" (203mm) long and have a diameter of 0.59" (15mm). You can use the 15mm Female - Female Rods (8") with 15mm Male - Female Rod (4" / 101.6mm), 15mm Female - Female Rod (6" / 152.4mm), Rod Black, and the Sliding Rod Block. - Anodized aluminum rods with 1/2"-13 threaded female extremities
- Rod Diameter - 0.59" (15mm)
- Compatible with 15mm Male - Female Rod (4" / 101.6mm), 15mm Female - Female Rod (6" / 152.4mm), Rod Black, and the Sliding Rod Block
UPC: 629266001660 In the Box Bundle Items Sliding Rod Block srxxuzdczwecwudqvb Pair of 15mm Female - Female Rod (8") - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE 15mm Rod Riser System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sliding Rod Block
| Material | Anodized aluminum | | | | Box Dimensions (LxWxH) | 8.4 x 4.6 x 4.6" | - Pair of 15mm Female - Female Rod (8")
| Compatibility | 15mm Male - Female Rod (4" / 101.6mm), 15mm Female - Female Rod (6" / 152.4mm), Rod Black, and the Sliding Rod Block | | Length | 8" (203mm) | | Diameter | 0.59" (15mm) | | Construction | Anodized Aluminum | | | | Box Dimensions (LxWxH) | 7.8 x 2.9 x 0.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
