Product description

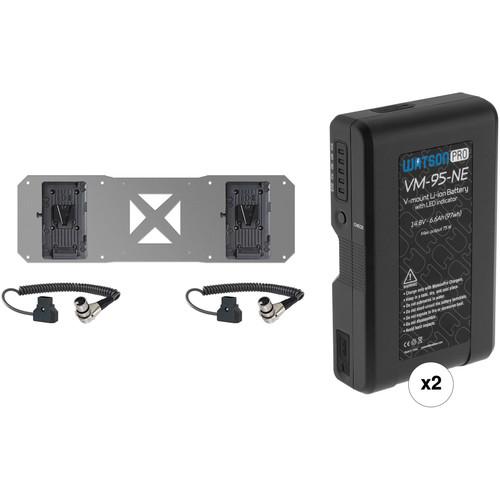

• SHAPE 2 x V-Mount Plates & D-Tap Cables for Atomos Sumo These 2 x V-Mount Plates from SHAPE enable you to power your Atomos Sumo monitor using longer-lasting, pro-style batteries. Two D-Tap to right-angle 4-pin XLR power cables are included with the battery plates. UPC: 629266007624
• 2 x Watson Pro 14.8V 97Wh Li-Ion Battery with LED (V-Mount) Watson Pro designed this V-Mount 14.8V 97Wh Li-Ion Battery with a quick-reference LED battery-level meter and with the punch to power up to most mid-size and large professional cameras. This lightweight battery provides up to a constant 6.5A/79W output. At 35W, average runtime is rated at approximately 154 minutes. For safe operation, a built-in intelligent control circuit protects against damage from current or voltage overload, overheating, or short-circuits.

  The 5-LED battery-level meter is located on the side where it's easy to glance at during your shoot and is activated via a battery-level check button right underneath it. When the battery reaches below 9% capacity level, the bottom LED begins to flash automatically as a warning.

  There's also a D-tap port for powering accessories, and a USB 2.0 port for powering USB devices such as receivers. These two outputs can be used simultaneously.
  Key Features
  • • 14.8V, 97Wh lithium-ion battery with a V-mount
    • Supports up to 6.5A/79W constant draw
    • 154 minute average runtime at 35W
    • 5-LED battery-level meter on the side
    • Intelligent control circuit protection
    • Simultaneously active D-Tap and USB 2.0 ports
  UPC: 847628591899

• 2 x V-Mount Plates & D-Tap Cables for Atomos Sumo
• D-Tap to 4-Pin XLR Coiled Cable
• Limited 1-Year Warranty

• 2 x Watson - Pro 14.8V 97Wh Li-Ion Battery with LED (V-Mount)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SHAPE 2 x V-Mount Plates & D-Tap Cables for Atomos Sumo

  Battery Mount	V-mount
  Input	11-28 VDC
  Output	Unregulated
  Accessory Connector	1 x D-tap

  Box Dimensions (LxWxH)	12.6 x 4.4 x 2.5"

• 2 x Watson Pro 14.8V 97Wh Li-Ion Battery with LED (V-Mount)

  Mount Type	V-mount
  Output Voltage	14.8 V
  Watt Hours	97 Wh
  Capacity	6.6 Ah
  Output Current	Up to constant 6.5 A
  Output Power	Up to constant 79 W
  Average Runtime	154 min at 35 W
  D-Tap Output	12 V, 10 A max
  USB Output	USB 2.0, 5 V / 1 A
  Dimensions	6.8 x 4 x 1.6" (17.2 x 10.2 x 4.1 cm)
  Weight	1.7 lb (0.76 kg)

  Box Dimensions (LxWxH)	7.6 x 5.0 x 3.4"
