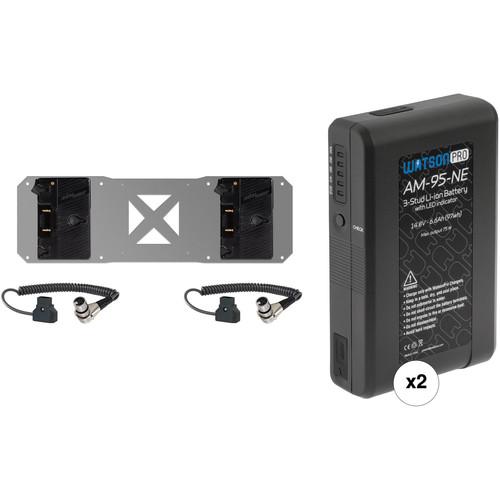

Product description This Kit includes two Gold Mount Batteries, two battery plates, and two D-Tap to 4-pin XLR cables. Attach the plates to the back of your Atomos Sumo monitor, then connect the batteries and cables to obtain a portable, on-set power source. - SHAPE 2 x Gold Mount Plates & D-Tap Cables for Atomos Sumo These 2 x Gold Mount Plates from SHAPE enable you to power your Atomos Sumo monitor using longer-lasting, pro-style batteries. Two D-Tap to right-angle 4-pin XLR power cables are included with the battery plates. UPC: 629266007617
- 2 x Watson Pro 14.8V 97Wh Li-Ion Battery with LED (Gold Mount) Watson Pro designed this Gold Mount 14.8V 97Wh Li-Ion Battery with a quick-reference LED battery-level meter and with the punch to power up to most mid-size and large professional cameras. This lightweight battery provides up to a constant 6.5A/79W output. At 35W, average runtime is rated at approximately 154 minutes. For safe operation, a built-in intelligent control circuit protects against damage from current or voltage overload, overheating, or short-circuits.
The 5-LED battery-level meter is located on the side where it's easy to glance at during your shoot and is activated via a battery-level check button right underneath it. When the battery reaches below 9% capacity level, the bottom LED begins to flash automatically as a warning.
There's also a D-tap port for powering accessories, and a USB 2.0 port for powering USB devices such as receivers. These two outputs can be used simultaneously. - Key Features
-
- 14.8V, 97Wh lithium-ion battery with a Gold mount
- Supports up to 6.5A/79W constant draw
- 154 minute average runtime at 35W
- 5-LED battery-level meter on the side
- Intelligent control circuit protection
- Simultaneously active D-Tap and USB 2.0 ports
UPC: 847628591844 In the Box - 2 x Gold Mount Plates & D-Tap Cables for Atomos Sumo ddqbxeqt
- D-Tap to 4-Pin XLR Coiled Cable
- Limited 1-Year Warranty
- 2 x Watson - Pro 14.8V 97Wh Li-Ion Battery with LED (Gold Mount)
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE 2-Battery, Plate & D-Tap Cable Kit for Atomos Sumo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SHAPE 2 x Gold Mount Plates & D-Tap Cables for Atomos Sumo
| Battery Mount | Gold mount | | Input | 11-28 VDC | | Output | Unregulated | | Accessory Connector | 1 x D-tap | | | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 2.4" | - 2 x Watson Pro 14.8V 97Wh Li-Ion Battery with LED (Gold Mount)
| Mount Type | Gold mount | | Output Voltage | 14.8 V | | Watt Hours | 97 Wh | | Capacity | 6.6 Ah | | Output Current | Up to constant 6.5 A | | Output Power | Up to constant 79 W | | Average Runtime | 154 min at 35 W | | D-Tap Output | 12 V, 10 A max | | USB Output | USB 2.0, 5 V / 1 A | | Dimensions | 6.8 x 4 x 2.3" (17.2 x 10.2 x 5.7 cm) | | Weight | 1.7 lb (0.76 kg) | | | | Box Dimensions (LxWxH) | 7.55 x 5.0 x 3.45" |
