User Manual for SHAPE 2-Stage 4 x 4" Matte Box Click to enlarge the picture
Contents of the user manual for the SHAPE 2-Stage 4 x 4" Matte
- Product category: Matte Boxes & Sunshades SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Matte Boxes & Sunshades
 |
User manual for the SHAPE 2-Stage 4 x 4" Matte contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

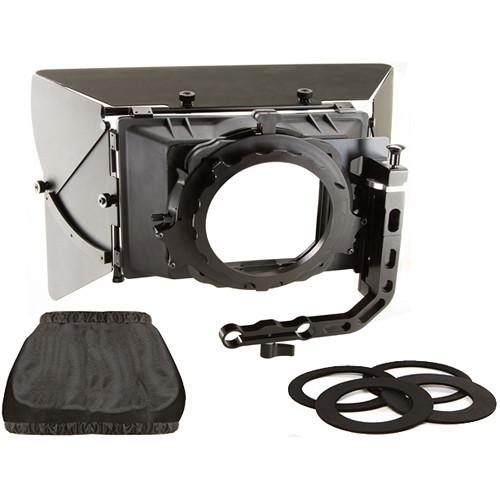

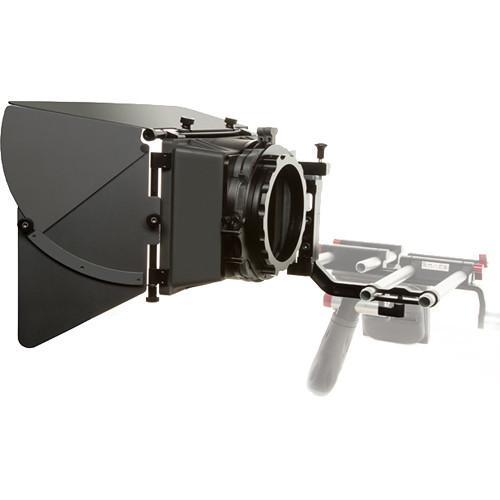

Product description The SHAPE 2-Stage 4 x 4" Matte Box accepts lenses with up to a 100mm front outside diameter. It mounts to 15mm LWS rods and utilizes a swing-away design, which lets you perform quick lens changes without having to remove the matte box from your rods. You can adjust the height of the matte box in relation to the rods, which comes in handy when your lens center to rod center height is slightly off from the standard.
Two rotating filter stages support the use of 4x4" filters. The matte box comes with a top flag (eyebrow), side flags, four matte box donuts in 66, 72, 82, and 90mm sizes, and elastic donut. - The matte box has a rear opening of 100mm for lenses.

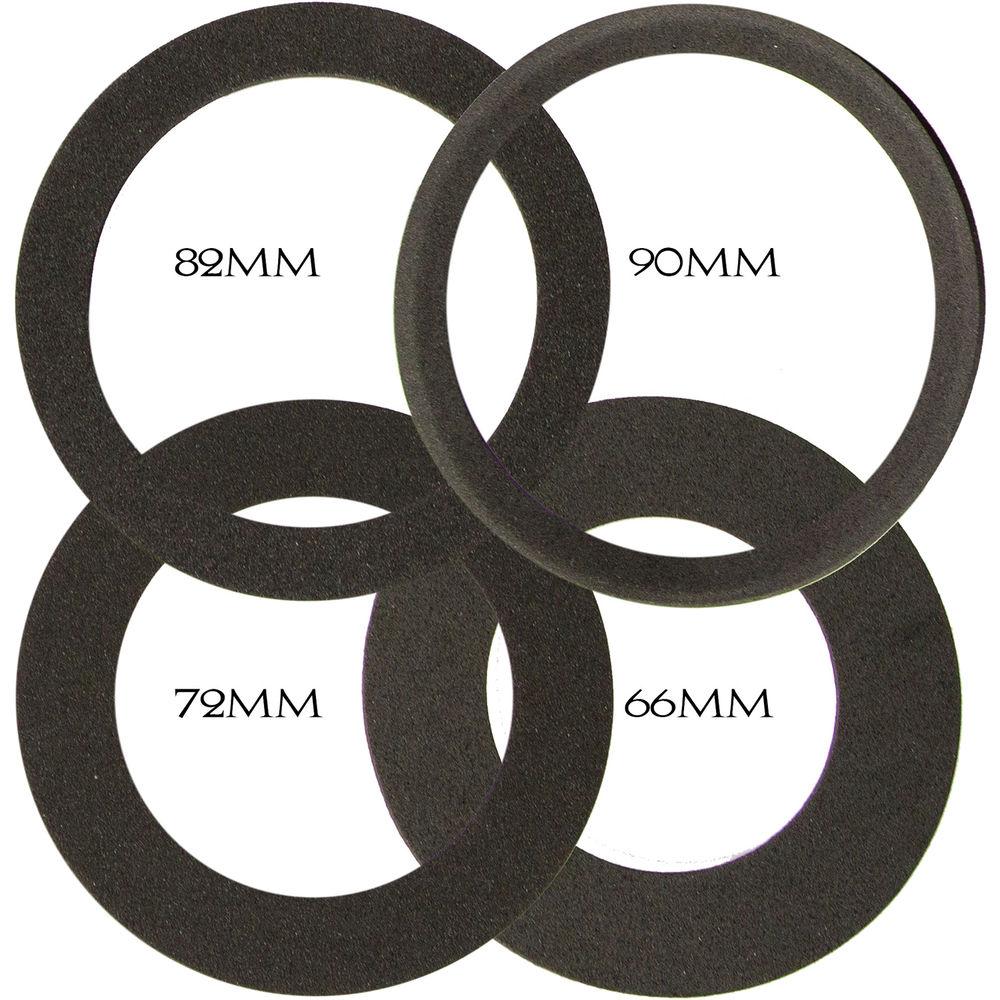

- The included anti-reflection donuts prevent light behind the camera from reflecting off any filters in the matte box and degrading the image. Included with the matte box are anti-reflection donuts for lenses with a front outside diameter of 66, 72, 82, and 90mm. The included elastic donut supports lenses with a front outside diameter between 66 and 90mm, and it is especially useful with lenses that grow and shrink as you change focus or zoom.
- The side flags incorporate a hook design as a safety feature where they attach to the matte box. This helps prevent them from falling out of the matte box should the lock-down thumbscrew loosen accidentally.
- The swing-away bracket incorporates a height adjustment, enabling you to compensate a total of 0.65" vertically. This allows you to use this matte box with a variety of camera/rod support combinations that may vary slightly from the industry standard 85mm distance from LWS rod center to lens port center.
UPC: 629266001189 In the Box SHAPE 2-Stage 4 x 4" Matte Box 2 x Filter Tray (4 x 4") French Flag 2 x Side Wing 4 x Matte Box Ring Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE 2-Stage 4 x 4" Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE MATT44 Specs | Size | Matte Box Rings: 82, 90, 72, and 66 mm | | Height Adjustment Range | 0.65" / 1.65 cm | | Dimensions | 8 x 9 x 14" / 20.3 x 22.9 x 35.6 cm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 20.9 x 7.5 x 5.6" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
