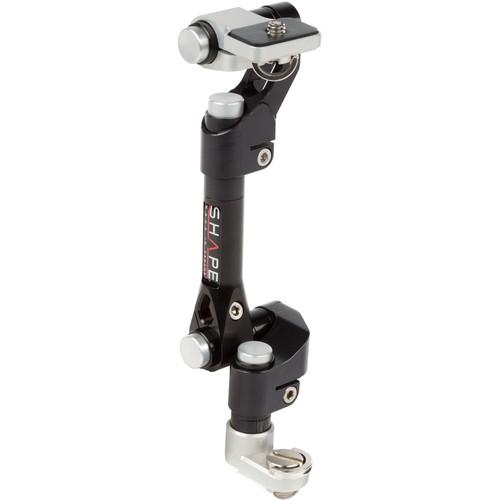

User Manual for SHAPE 3 8"-16 Push Button Arm Click to enlarge the picture
Contents of the user manual for the SHAPE 3 8"-16 Push Button Arm
- Product category: Articulating Arms SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Articulating Arms
|
User manual for the SHAPE 3 8"-16 Push Button Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description Provided by third party: Increased stability and maneuverability of your camera rig with the 4 axis push button magic arm with 3/8-16 mounting screw.
- Key Features
-
- Perfect for the manipulation of your on-board monitor
- Support arm with 4 axis push button system
- Fixed arm's length of 6.5" (16.51 cm)
- Quickly mount or unmount camera accessories to the arm
- Quickly attach the arm to you rig
- Locking stoppers
- Lightweight & robust
- Perfect for the manipulation of your on-board monitor
- Thsi Push Button Arm is the perfect device to mount your monitor to your camera rig. It allows precise and quick adjustments of your camera monitor with the help of the push button technology.
- Support Arm with 4 axis push button system
- SHAPE is well known for its push button handles, now used by so many professionals in the industry. Their patented technology allows the user to make quick and easy adjustment by simply pressing the button. Doing so, you are allowed 360 degrees of rotation to place the handle in the best position for your use. On this device, the camera support arm features 4 Push Buttons, allowing you to make vertical and horizontal positioning adjustments of the camera accessory from the top or the bottom of the arm.
- Fixed Arm's length of 6.5" (16.51 cm)
- Not too long to maximize strength but just enough to allow a comfortable manipulation of your camera accessories.
- Quickly mount or unmount camera accessories to the arm
- The arm can be used for supporting accessories such as a monitor, a view finder, a microphone, a camera light, etc. The 1/4-20 screw is mounted with a "bracket" allowing you to manually fix the accessories to the arm without a tool.
- Quickly attach the Arm to your rig
- The bottom section of the device features a 3/8-16 screw allowing you to easily mount or unmount the arm to your camera rig.
UPC: 629266007600 Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE 3 8"-16 Push Button Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE R384A Specs | | | Accessory Type | Mounting arm | | Length | 6.5 in | | Weight | 7.05 oz | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 2.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
