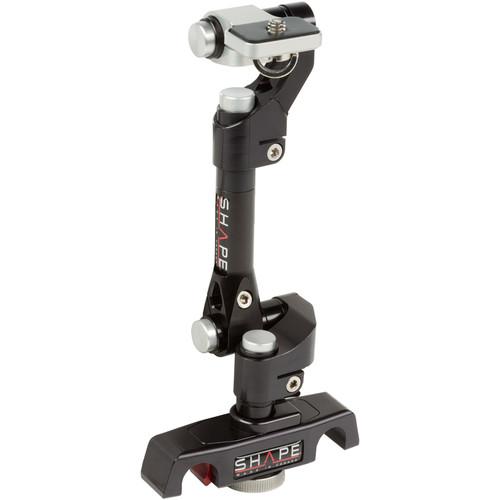

User Manual for SHAPE 4-Axis Push Button Magic Arm with 15mm Rod Bloc Click to enlarge the picture
Contents of the user manual for the SHAPE 4-Axis Push Button Magic Arm
- Product category: Rod Brackets & Clamps SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Rod Brackets & Clamps
|
User manual for the SHAPE 4-Axis Push Button Magic Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description - 4 Axis Push Button Arm with 15mm rodbloc
Providing push button adjustment, the SHAPE 4-Axis Push Button Magic Arm with 15mm Rod Bloc allows you to quickly mount this accessory support arm to your 15mm LWS support rods. You mount your 1/4"-20 accessory to the top of the arm, which features a small mounting platform with rubberized surface. The D-ring assembly enables you to securely tighten down the screw without using tools. The arm is 6.5" long and incorporates a 1/4"-20 threaded mounting hole at the bottom. The 15mm LWS snap-on rod clamp can mount onto your rod setup without having to remove any other mounted accessories. It also features a threaded mounting stud with a large thumbwheel for tightening the arm onto the rod clamp.
The push button adjustment allows you to tilt the mounting platform forward or backward, and another push button provides you with pan adjustment to position your accessory just how you want it. This arrangement doesn't require you to stress, strain, or worry when loosening or tightening the central lock-down arm common to most accessory arms. Additionally, each push button only controls one axis, so you don't have to worry about your arm collapsing when you make an adjustment. - This arm provides two distinct points of 360° pan articulation and two points of tilt articulation.
- The push button adjustment on each axis allows you to adjust a single axis at a time, instead of loosening all axes at the same time.
- The snap-on rod clamp allows you to mount or unmount the clamp from your rods without having to remove any rod-mounted accessories.
- The rod clamp incorporates a spring-loaded locking lever that secures the arm and helps prevent any unwanted twist.
- You can attach the arm to the included rod clamp, or to any 1/4"-20 threaded mounting stud.
- The arm is a fixed 6.5" long.
- Made from CNC Machined and anodized aluminum, it is both lightweight and strong.
UPC: 629266006887 In the Box SHAPE 4-Axis Push Button Magic Arm with 15mm Rod Bloc Limited Lifetime Warranty on CNC Machined Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE 4-Axis Push Button Magic Arm with 15mm Rod Bloc in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE RP415 Specs | Material of Construction | Anodized aluminum | | Mounting | Accessory: 1/4"-20 threaded screw (D-ring)
Arm: 1/4"-20 threaded mounting hole
Rod Clamp: Snap-on 15 mm LWS rods | | Arm Length | Fixed Arm: 6.5" / 16.51 cm | | Dimensions | 2.25 x 3.75 x 7.0" / 5.72 x 9.53 x 17.78 cm | | Weight | 9.5 oz / 0.27 kg | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.7 x 5.3 x 2.4" |
