User Manual for SHAPE 4 x 5.6 Carbon Fiber Swing-Away Matte Box Set with 15 19mm Rod Adapters Click to enlarge the picture
Contents of the user manual for the SHAPE 4 x 5.6 Carbon Fiber
- Product category: Matte Boxes & Sunshades SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Matte Boxes & Sunshades
 |
User manual for the SHAPE 4 x 5.6 Carbon Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

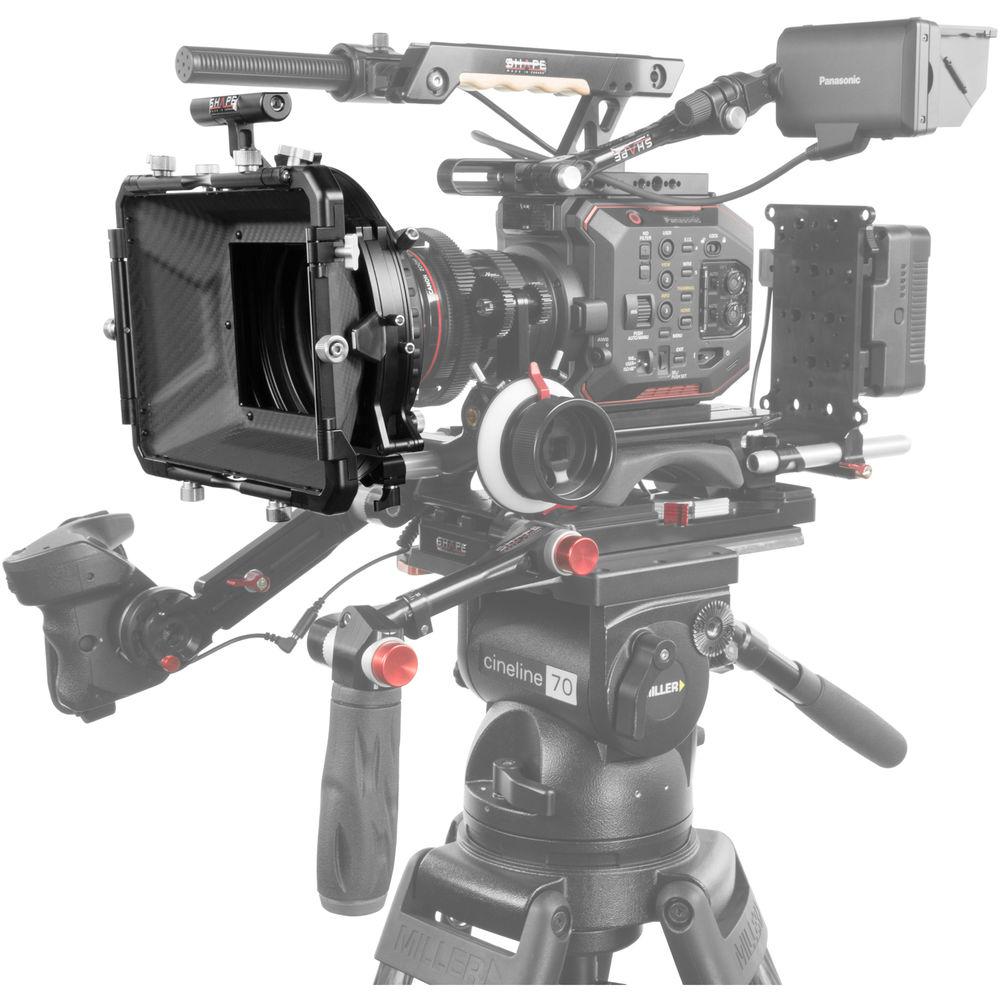

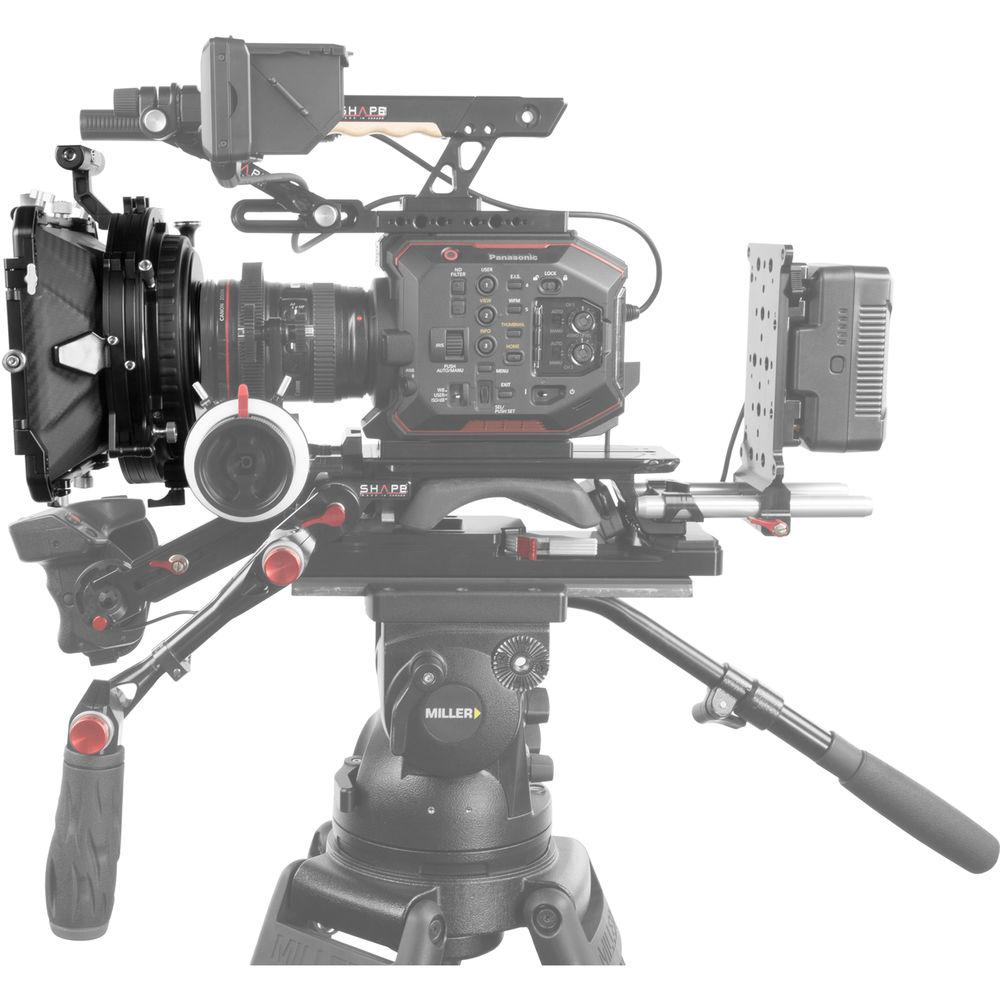

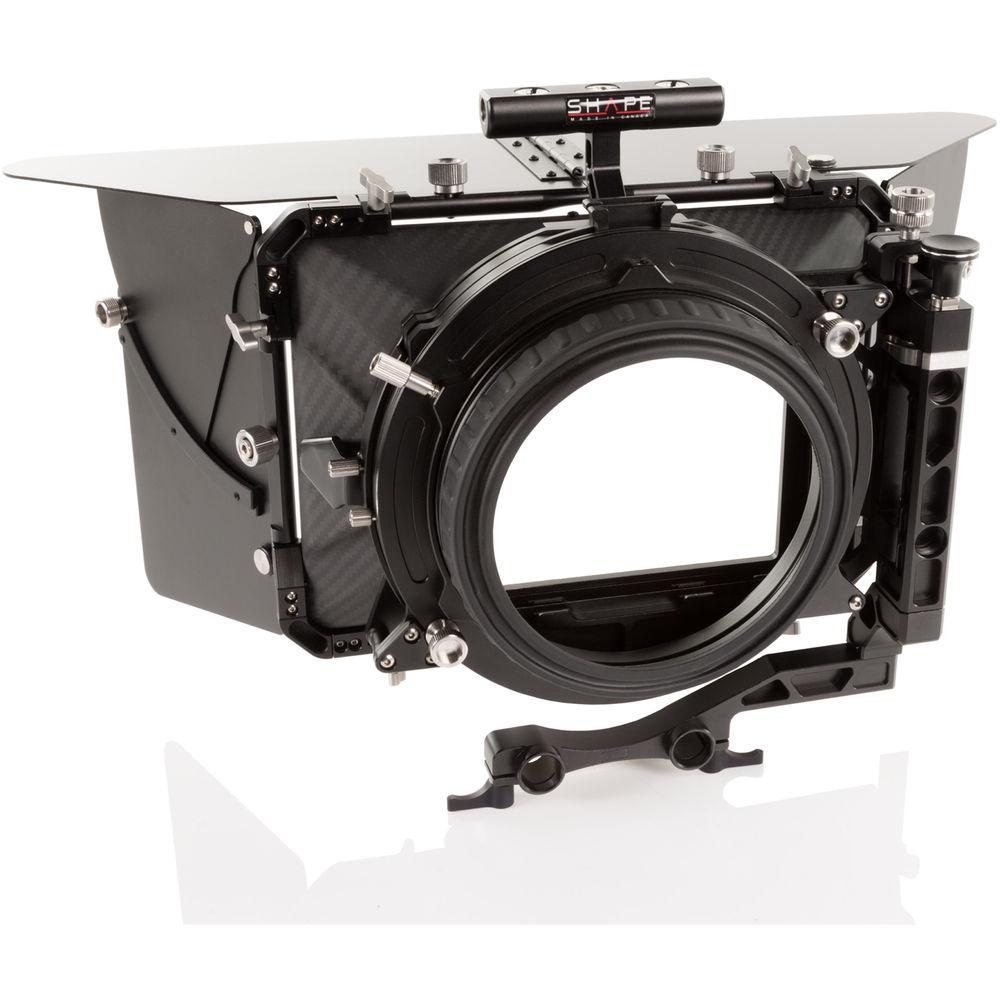

Product description Add filters and light control to your camera rig with the 4 x 5.6 Carbon Fiber Swing-Away Matte Box Set from SHAPE. The lightweight matte box features a 2-stage, 4 x 5.65" 360° rotating filter system and can be mounted on any standard 15 or 19mm LWS rod systems.
The two rotating filter stages allow you to insert 4 x 5.65" filters, such as polarizing or graduated ND, and independently rotate them 360° to find just the right look. An 82mm filter ring is also included to utilize round filters. The large 143mm opening provides easy access and the 114mm ARRI-style rubber bellows opening is compatible with standard cine lens sizes. Four lens adapters are included to attach 80, 95, 104, and 114mm telephoto lenses to the matte box. The 15 and 19mm rod adapters are height-adjustable to match the size of your lens.

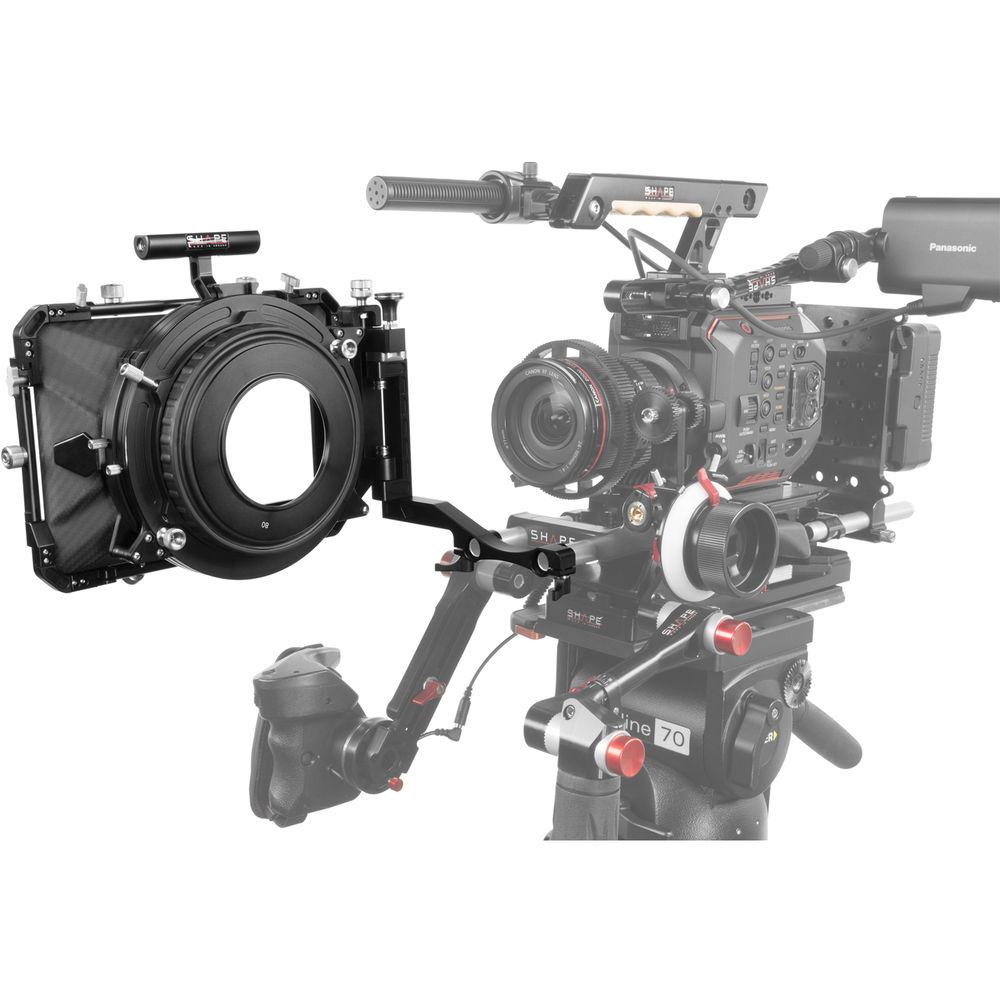

A top flag and two side flags are included to prevent unwanted flare, and a top handle with five threaded holes allows you to mount additional accessories such as lights, extension arms, and adapter shoes. The entire system is built on a hinge so you can easily swing the matte box away for lens and filter changes.
All the components are packed in a formfitting foam that can be transferred to a carry case of your choice. - Two 4 x 5.65" filter stages independently rotate 360°; an 82mm filter ring is also included
- Durable, lightweight carbon fiber construction
- A top flag and side wings reduce unwanted flare
- Swing-away design allows for quick and easy lens changes
- Large 143mm opening with 114mm ARRI-style rubber bellows to attach standard cine lenses
- 80, 95, 104, and 114mm lens adapters are included
- 15 and 19mm rod adapters attach matte box to standard LWS rod systems
- Top handle with five threaded screws to add attachments

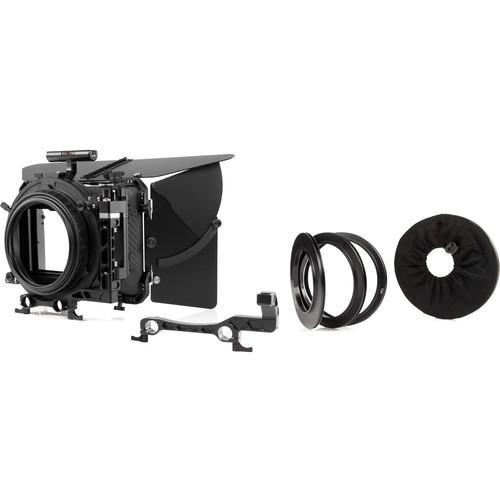

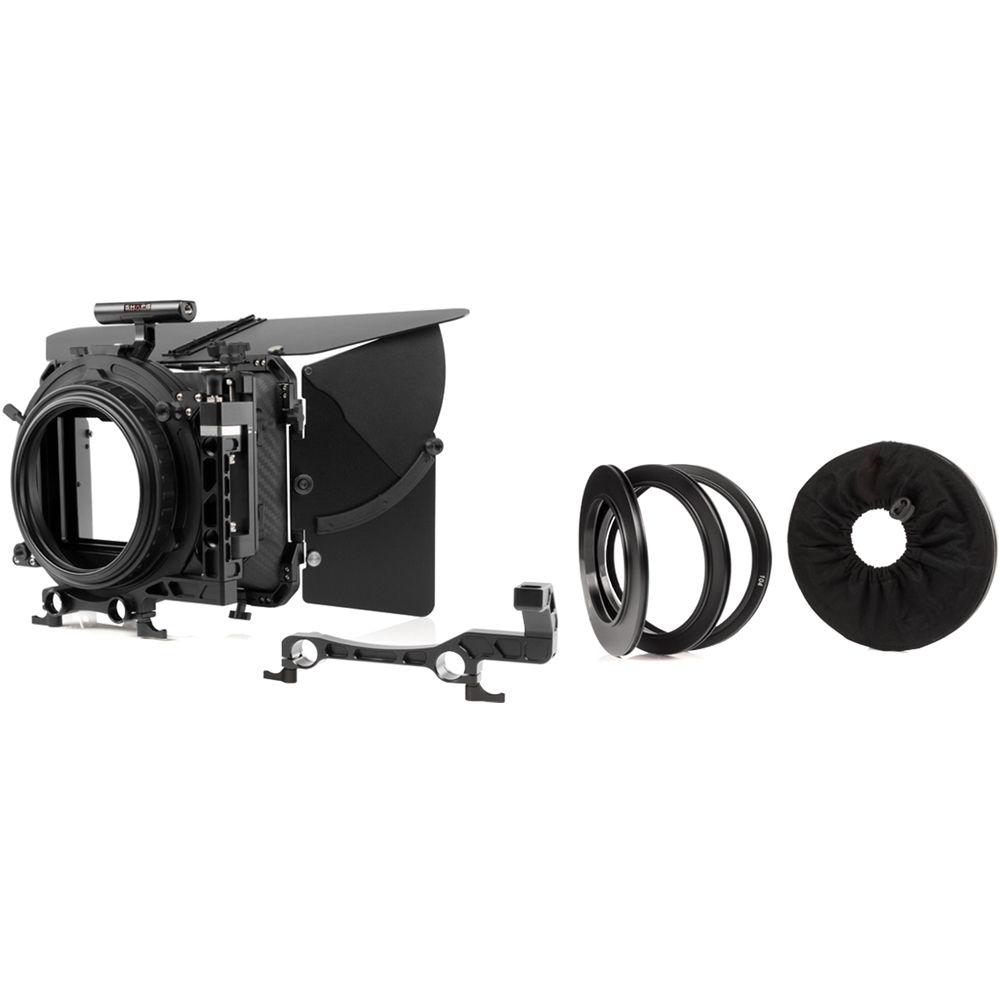

UPC: 629266008287 In the Box SHAPE 4 x 5.6 Carbon Fiber Swing-Away Matte Box Set with 15/19mm Rod Adapters 4 x 5.6" Matte Box 2 x Side Wing Top Flag 15mm Rod Adapter 19mm Rod Adapter 80mm Lens Adapter 95mm Lens Adapter 104mm Lens Adapter 114mm Lens Adapter 2 x 360° Rotating Filter Holder 82mm Filter Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE 4 x 5.6 Carbon Fiber Swing-Away Matte Box Set with 15 19mm Rod Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE MCF456 Specs | Lens Fit and Mount | Opening: 143 mm
Threaded Rubber Bellows: 114 mm
Lens Adapters: 80, 95, 104, and 114 mm | | Type | Swing-away | | Rod Clamps | 1 x 15 mm adapter
1 x 19 mm adapter | | Filter Type | 4 x 5.65"
82 mm filter ring included | | Total Filter Stages | 2 | | Rotating Stages | 2 | | Degree of Rotation | 360° | | Materials | Carbon fiber | | Dimensions (WxHxD) | 10.5 x 10.5 x 3.5" / 26.7 x 26.7 x 8.9 cm | | Weight | 4.7 lb / 2.1 kg | | | | Package Weight | 6.045 lb | | Box Dimensions (LxWxH) | 15.4 x 13.5 x 7.7" |
