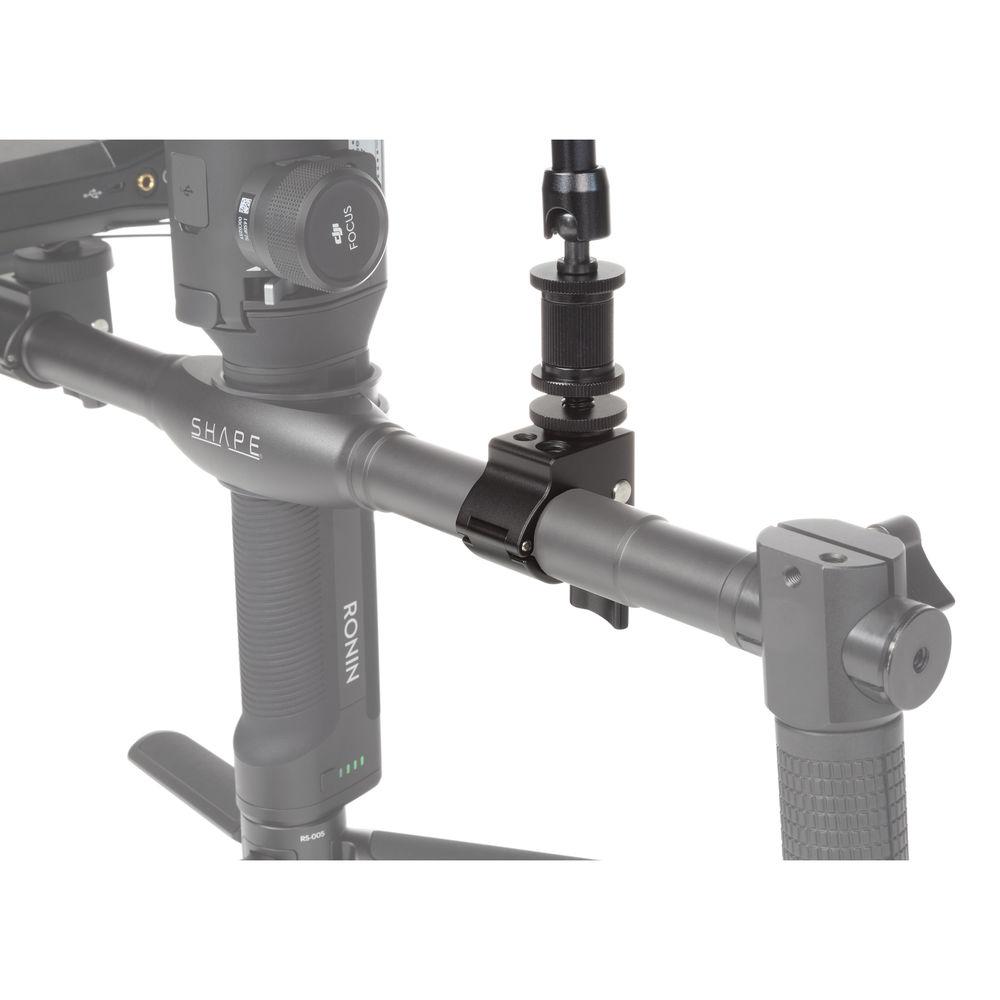

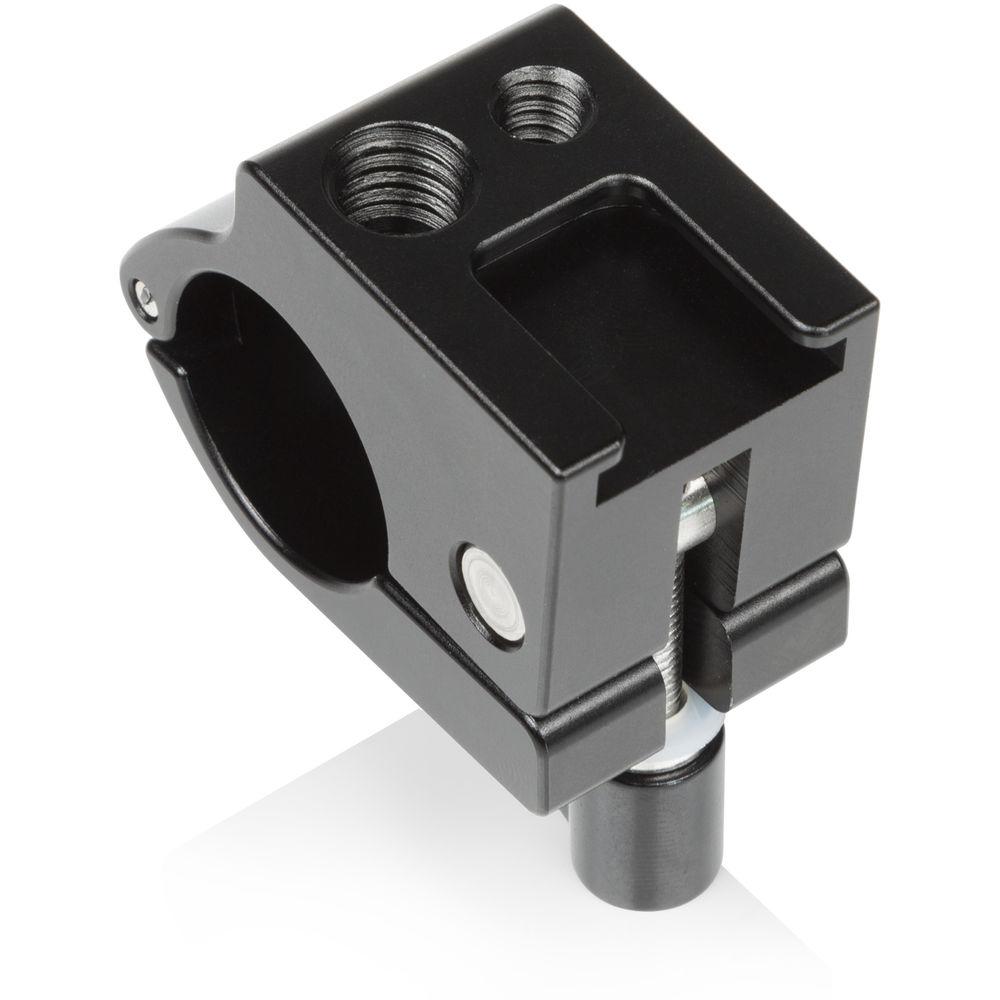

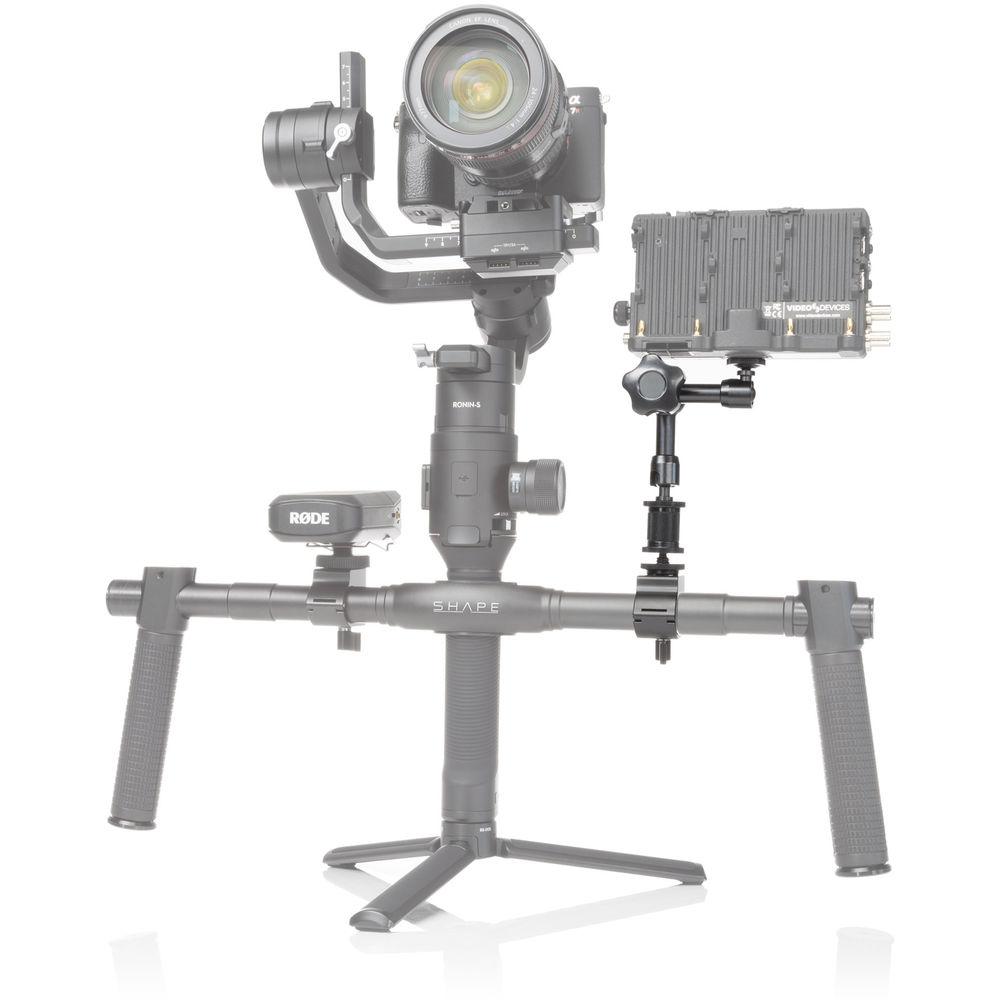

Product description Mount a monitor, light, wireless, or audio gear to a gimbal or crane rod with this 7" Magic Arm with 22mm Rod Clamp Accessory Mount from SHAPE. The mount consists of a rod clamp that fits 21.9 to 22.5mm rods combined with a 7" articulating arm. The magic arm attaches to the rod clamp via a shoe adapter and has a 1/4"-20 screw on the other end for mounting your accessories. - Accessory Mounting Clamp for 22mm Rod Use this Accessory Mounting Clamp from SHAPE to mount accessories onto any 22mm diameter rod. The clamp fits all rods that range from 21.9 to 22.5mm in diameter such as rods on gimbals or cranes. Add a monitor, microphone, arm, or light to a cold shoe, 1/4"-20, or 3/8"-16 thread and secure it to the CNC-machined aluminum rod with the locking lever. UPC: 629266008478
- 7" Magic Arm The 7" Magic Arm from Shill is an adjustable mounting option for attaching accessories such as small monitors, lights, and microphones to your camera or rig. It features a 1/4"-20 screw on each end and comes with a shoe adapter and 3/4" spacer for one end. UPC: 629266002971
In the Box Bundle Items Accessory Mounting Clamp for 22mm Rod ftsqdyrdvqycbebdvfxfztcxtaxwyx 7" Magic Arm Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE 7" Magic Arm with 22mm Rod Clamp Accessory Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Accessory Mounting Clamp for 22mm Rod
| Material of Construction | CNC-machined aluminum | | Rod Compatibility | Any 21.9 to 22.5 mm rod | | Mounting Options | 1 x 1/4"-20 threaded hole
1 x 3/8"-16 threaded hole
1 x Cold shoe | | Dimensions | 1.9 x 1.9 x 1" / 4.8 x 4.8 x 2.5 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 4.0 x 2.8 x 1.25" | - 7" Magic Arm
| Arm Length | 7" / 178 mm | | Construction | Aluminum | | Load Capacity | 7.0 lb / 3.6 kg | | Weight | 9.9 oz / 280.0 g | | | | Box Dimensions (LxWxH) | 5.3 x 3.8 x 0.8" |
