User Manual for SHAPE 7" Magic Arm with 25mm Rod Clamp Accessory Mount Click to enlarge the picture
Contents of the user manual for the SHAPE 7" Magic Arm with 25mm
- Product category: Stabilizers & Gimbals SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Stabilizers & Gimbals
 |
User manual for the SHAPE 7" Magic Arm with 25mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

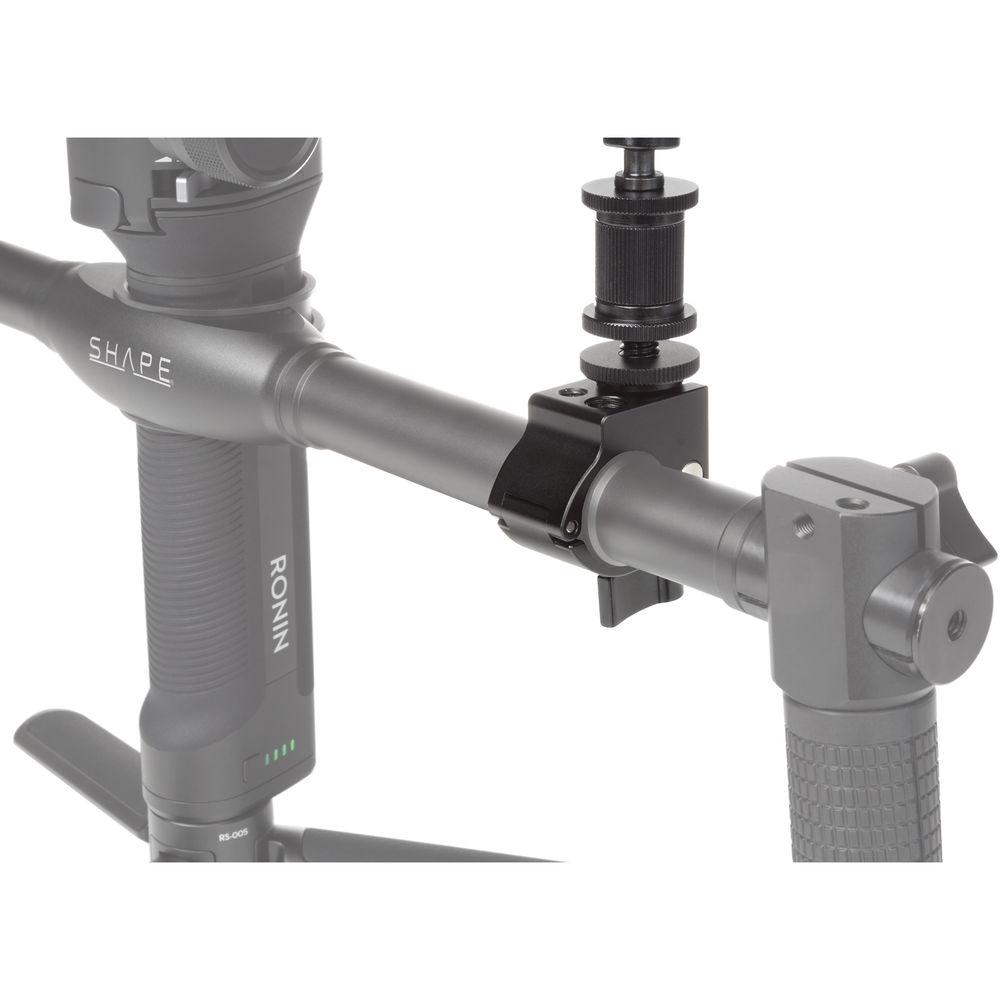

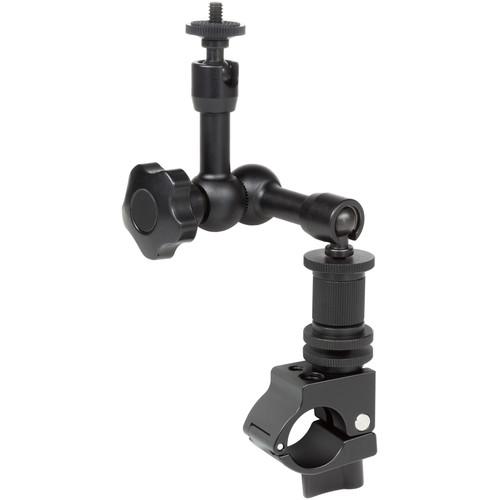

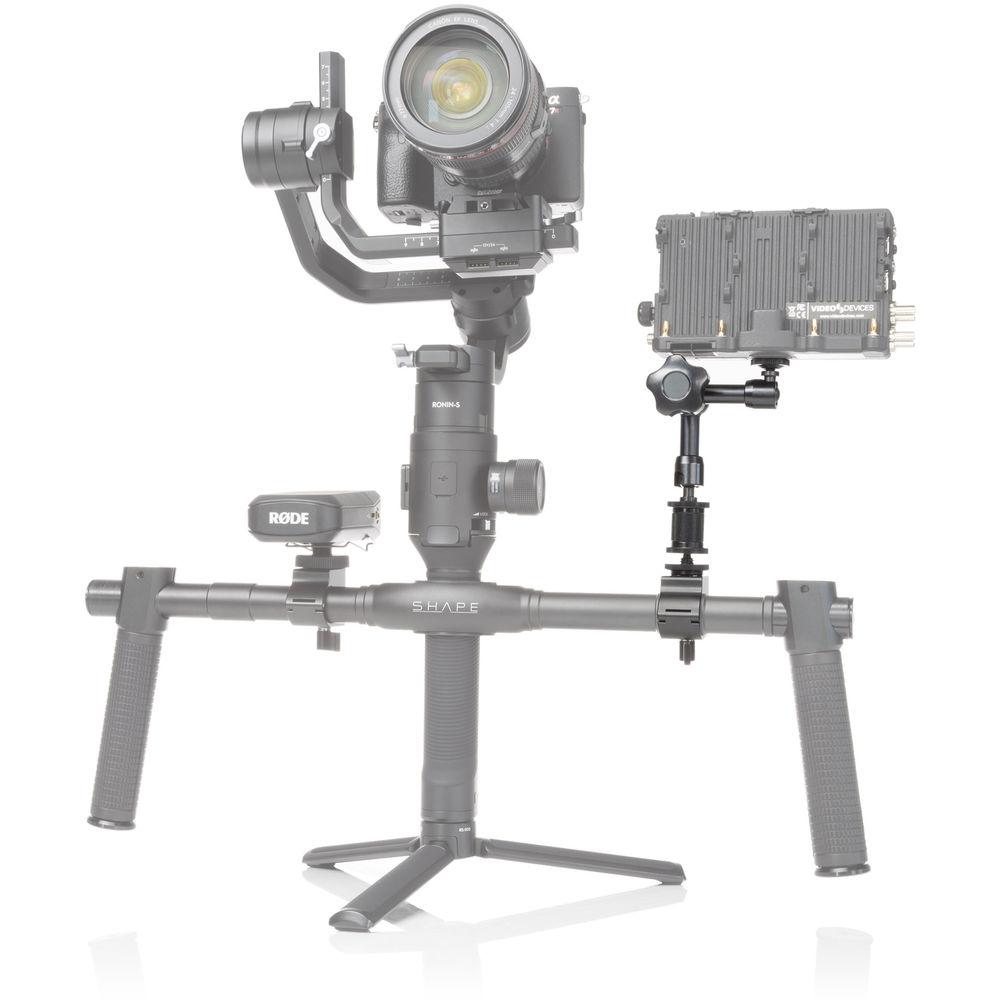

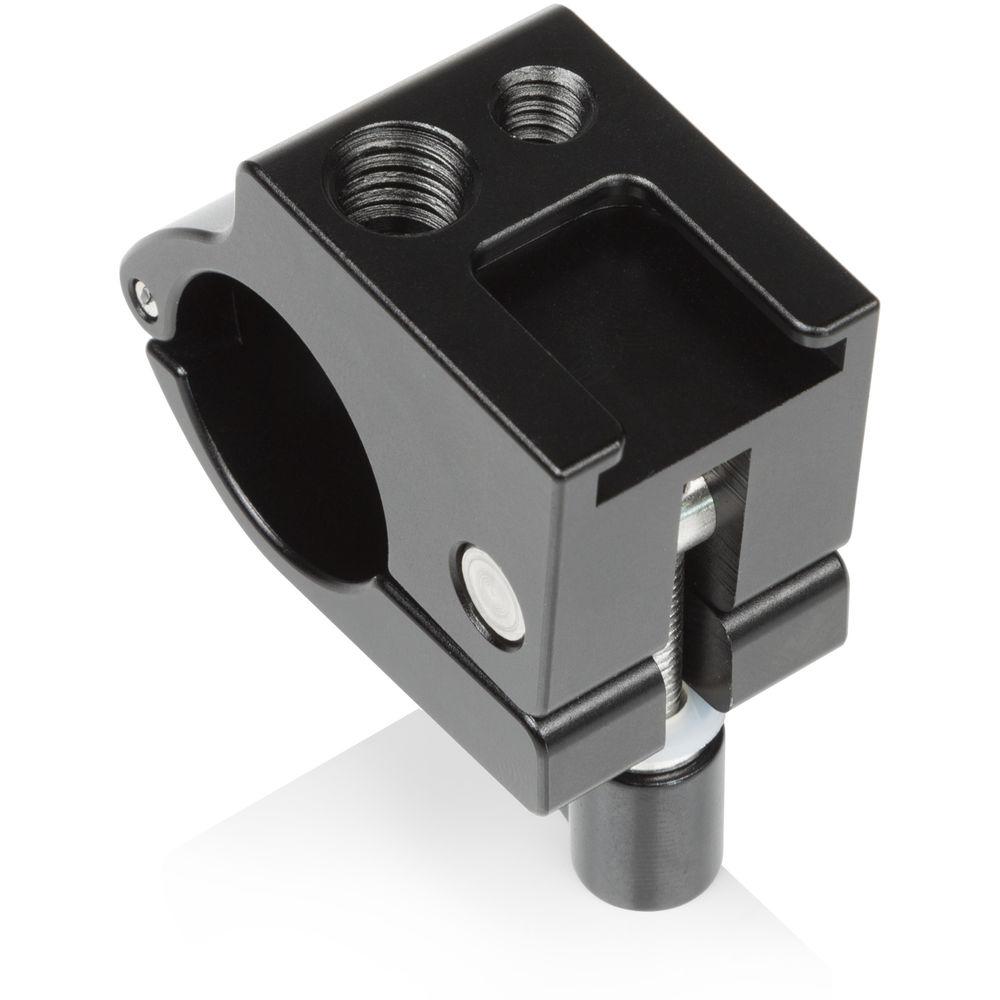

Product description Mount a monitor, light, wireless, or audio gear to a gimbal or crane rod with this 7" Magic Arm with 25mm Rod Clamp Accessory Mount from SHAPE. The mount consists of a rod clamp that fits 24.9 to 25.5mm rods combined with a 7" articulating arm. The magic arm attaches to the rod clamp via a shoe adapter and has a 1/4"-20 screw on the other end for mounting your accessories. - Accessory Mounting Clamp for 25mm Rod Use this Accessory Mounting Clamp from SHAPE to mount accessories onto any 25mm diameter rod. The clamp fits all rods that range from 24.9 to 25.5mm in diameter such as rods on gimbals or cranes. Add a monitor, microphone, arm, or light to a cold shoe, 1/4"-20, or 3/8"-16 thread and secure it to the CNC-machined aluminum rod with the locking lever. UPC: 629266008485
- 7" Magic Arm The 7" Magic Arm from Shill is an adjustable mounting option for attaching accessories such as small monitors, lights, and microphones to your camera or rig. It features a 1/4"-20 screw on each end and comes with a shoe adapter and 3/4" spacer for one end. UPC: 629266002971
In the Box Bundle Items Accessory Mounting Clamp for 25mm Rod 7" Magic Arm Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE 7" Magic Arm with 25mm Rod Clamp Accessory Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Accessory Mounting Clamp for 25mm Rod
| Material of Construction | CNC-machined aluminum | | Rod Compatibility | Any 24.9 to 25.5 mm rod | | Mounting Options | 1 x 1/4"-20 threaded hole
1 x 3/8"-16 threaded hole
1 x Cold shoe | | Dimensions | 1.9 x 1.9 x 1" / 4.8 x 4.8 x 2.5 cm | | Weight | 3.1 oz / 90 g | | | | Box Dimensions (LxWxH) | 4.0 x 2.2 x 1.25" | - 7" Magic Arm
| Arm Length | 7" / 178 mm | | Construction | Aluminum | | Load Capacity | 7.0 lb / 3.6 kg | | Weight | 9.9 oz / 280.0 g | | | | Box Dimensions (LxWxH) | 5.3 x 3.8 x 0.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
