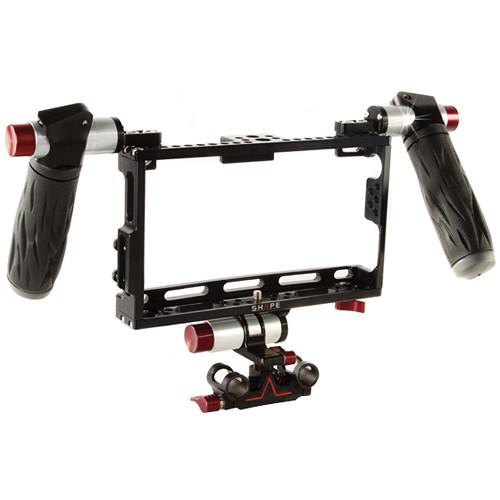

User Manual for SHAPE Atomos Shogun Bundle Kit Click to enlarge the picture
Contents of the user manual for the SHAPE Atomos Shogun Bundle Kit
- Product category: Solid State Recorder Accessories SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Solid State Recorder Accessories
|
User manual for the SHAPE Atomos Shogun Bundle Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description The Atomos Shogun Bundle Kit from SHAPE includes a Shogun Cage, an Adjustable 15mm Monitor Bracket, and a pair of Universal 1/4"-20 Screw Handles to carry and position with.
The Shogun Cage is specially designed for the Atomos Shogun. Lightweight and solid, it is a suitable fit for your 4K monitor/recorder. Made of CNC-machined aluminum, the cage offers several 1/4"-20 & 3/8"-16 threaded holes for many possibilities of attachment. Designed to protect your Shogun, it also includes black knobs for HDMI cables protection. Fast and easy to install, you place your monitor in the cage and affix it with two 1/4"-20 screws on top and under the cage.
Fixed on the Adjustable 15mm monitor bracket, this cage can be mounted on any SHAPE 15mm rods. The push button on the bracket allows different position options for your monitor. It also includes a swivel option to allow you to place the monitor in the best position for your setup.
Combined with the included 1/4"-20 screw handles, you have an optimized setup for your Shogun. - SHOCAGE Cage for the Atomos Shogun and Ninja Assassin
- SHAPE ATOMOS SHOGUN CAGE SOLUTIONS VIDEO
Protect your compatible monitor with the SHAPE SHOCAGE. It is designed to encase and protect your Atomos Ninja Assassin monitor or Shogun monitor/recorder and offer attachment options. The cage includes black knobs for HDMI protection when used with compatible cables, and numerous 1/4"-20 and 3/8"-16 threaded holes for mounting additional accessories. -
- Can be mounted onto an optional, adjustable 15mm monitor bracket
- Features knobs for HDMI protection (only compatible with SHAPE and Atomos HDMI cables)
UPC: 629266004678 - Universal 1/4"-20 Screw Handles (Pair) This pair of Shape Universal 1/4"-20 Screw Handles are designed to attach to the Atomos Shogun Cage for faster and easier transport and mobility. They feature Shape's push-button technology that allows for quick adjustment of the handle at the push of a button. You can adjust the handles up or down as well as slide them sideways.
Featuring 1/4"-20 mounting screws, these handles can also be used various other equipment, including other cages. The handles are made from CNC machined aluminum parts and a stainless steel locking mechanism for durability and sturdiness. - Key Features
-
- Designed for Atomos Shogun Cage but can be used with other cages and gear
- 1/4"-20 mounting screw attachment
- Push-button adjustment technology
- Adjusts up, down, and sideways
- CNC machined aluminum parts and stainless steel locking mechanism
UPC: 629266004722 Adjustable 15mm Monitor Bracket The MONBRAC Adjustable 15mm Monitor Bracket from Shape is designed to hold the Atomos Shogun cage. It can be mounted on 15mm rods on any of the Shape systems. The push-button technology utilized offers different position options and the red knob offers alternate placement options on rods. The bracket features a sliding mechanism for additional positioning choices. - Can be mounted on 15mm rods on any Shape system
- Push-button technology offers different position options
UPC: 629266004715 In the Box Bundle Items SHOCAGE Cage for the Atomos Shogun and Ninja Assassin szwfseatdtewsaxuwbtfwrcex - Limited Lifetime Warranty
Universal 1/4"-20 Screw Handles (Pair) - Limited Lifetime Warranty
Adjustable 15mm Monitor Bracket - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Atomos Shogun Bundle Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SHOCAGE Cage for the Atomos Shogun and Ninja Assassin
| Compatibility | Atomos Ninja Assassin monitor and Shogun monitor/recorder | | Threaded Holes | 1/4"-20 and 3/8"-16 | | Material of Construction | CNC machined aluminum | | Dimensions | 9.0 x 1.3 x 5.0" / 22.86 x 3.3 x 12.7 cm | | Weight | 10.4 oz / 294.8 g | | | | Box Dimensions (LxWxH) | 11.6 x 9.3 x 3.2" | - Universal 1/4"-20 Screw Handles (Pair)
| Dimensions | 8 x 5 x 2" (203 x 127 x 51 mm) | | Weight | 1 lb (0.45 kg) | | | | Box Dimensions (LxWxH) | 8.3 x 4.6 x 4.5" | - Adjustable 15mm Monitor Bracket
| Dimensions (Approx.) | 8 x 5 x 2" (203 x 127 x 51 mm) | | Weight (Approx.) | 1 lb (0.45 kg) | | | | Box Dimensions (LxWxH) | 6.4 x 4.4 x 3.4" |
