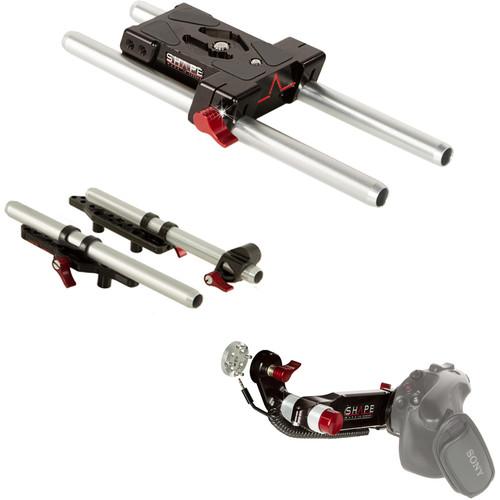

Product description The SHAPE Baseplate Kit comes with a baseplate, a Two-Part Top Plate Kit, a remote extension handle, a pair of 8" aluminum rods, and a pair of 10" rods.The baseplate comes with rubber pads at the top so your Sony PXW-FS5 or FS5M2 camera doesn't sit directly on the aluminum. The baseplate fits 15mm standard rods, and the rods are secured with a red ratchet knob screw. The baseplate includes a pair of 15mm 10" rods.The Two-Part Top Plate includes 1/4"-20 and 3/8"-16 threaded holes for accessory attachment.The remote extension handle is fixed with a standard ARRI rosette that you can install on the camera. The handle is then secured with a ratchet knob screw on the rosette. The remote extension handle includes the red push button technology that allows the handle 360° of rotation.The 8" and 10" aluminum rods connect to your camera rig, extending it and letting you add various SHAPE and third-party compatible accessories. - Baseplate for Sony FS5 and FS5M2 Cameras
- SHAPE SONY FS5 TECHNICAL VIDEO
The SHAPE Baseplate comes with rubber pads at the top so the Sony PXW-FS5 or PXW-FS5M2 camera doesn't sit directly on the aluminum. The baseplate fits 15mm standard rods, which are secured with a red ratchet knob screw. A pair of 10" 15mm rods is included. The baseplate is ideal for drone and gimbal applications, and is designed with a lightweight system for mounting standard 15mm accessories. - 1/4"-20 treaded holes for side mounting
- 3/8"-16 and 1/4"-20 captive screws to secure the camera position
- Four 1/4"-20 and two 3/8"-16 threaded holes under the baseplate for tripod mounting
- Rods are positioned to reach optical center
- Rubber pads on top of the baseplate cushion the camera base
- Removable bracket for Metabones adapter can be installed separately
UPC: 629266005125 - Remote Extension Handle for Sony FS5/FS5M2 Camera The Remote Extension Handle for Sony FS5/FS5M2 Camera from SHAPE is a variable-length adjustable handle designed to reposition the FS5 or FS5M2's remote grip away from the camera while retaining full remote functionality. The handle easily mounts to the FS5/FS5M2 using an ARRI style rosette connection and knob screw on one side, and a native Sony grip connection on the other. An included male to female LANC extension cable connects the remote grip to the camera body, maintaining full functionality after relocation.
The arm itself features SHAPE's patented push-button release which allows the joint to be rotated a full 360° to any required angle. Compact for both storage and travel, the arm measures just 5.6" when folded and may be increased to a maximum length of 11" for use. A length adjustment range of 2" is also provided to the user for a more customized and comfortable fit. UPC: 629266005149 - 15mm Aluminum Rods (Pair, 8") This pair of Shape 15mm Aluminum Rods (8") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 8 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001691 - 15mm Aluminum Rods (Pair, 10") This pair of Shape 15mm Aluminum Rods (10") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 10 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001707 - Two-Part Top Plate Kit for Sony FS5/FS5M2 Camera
In the Box Bundle Items Baseplate for Sony FS5 and FS5M2 Cameras fyybfrraydfqetevdwceycyyyycfwy - 15mm Aluminum Rods (Pair, 10")
- Limited Lifetime Warranty
Two-Part Top Plate Kit for Sony FS5/FS5M2 Camera Remote Extension Handle for Sony FS5/FS5M2 Camera - Limited Lifetime Warranty
15mm Aluminum Rods (Pair, 8") - Limited Lifetime Warranty
15mm Aluminum Rods (Pair, 10") - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Baseplate Kit for Sony FS5 FS5M2 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Baseplate for Sony FS5 and FS5M2 Cameras
| Material | CNC aluminum | | Mounting Threads | 1/4"-20 and 3/8"-16 | | Dimensions | 1.25 x 3.25 x 4.50" / 3.18 x 8.26 x 11.43 cm | | Weight | 11.2 oz / 317.5 g | | | | Box Dimensions (LxWxH) | 12.7 x 4.4 x 2.4" | - Two-Part Top Plate Kit for Sony FS5/FS5M2 Camera
| | | Box Dimensions (LxWxH) | 8.7 x 5.3 x 2.3" | - Remote Extension Handle for Sony FS5/FS5M2 Camera
| Camera Connection | Standard ARRI rosette | | Folded Length | 5.6" / 14.2 cm | | Extended Length | 9–11 x 1.5" / 22–27 x 3.8 cm | | Weight | 9.6 oz / 272 g | | | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 2.4" | - 15mm Aluminum Rods (Pair, 8")
| Diameter | 15 mm | | Length | 8 inches (20.3 cm) | | Material | Aluminum with a clear finish applied over it | | | | Box Dimensions (LxWxH) | 9.5 x 3.5 x 0.5" | - 15mm Aluminum Rods (Pair, 10")
| Diameter | 15 mm | | Length | 10 inches (25.4 cm) | | Material | Aluminum with a clear finish applied over it | | | | Box Dimensions (LxWxH) | 12.0 x 3.4 x 0.4" |
