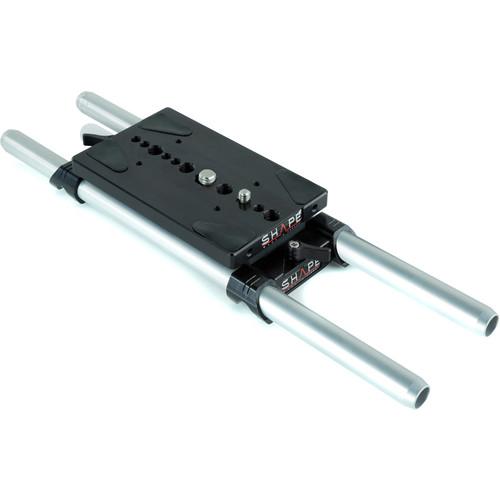

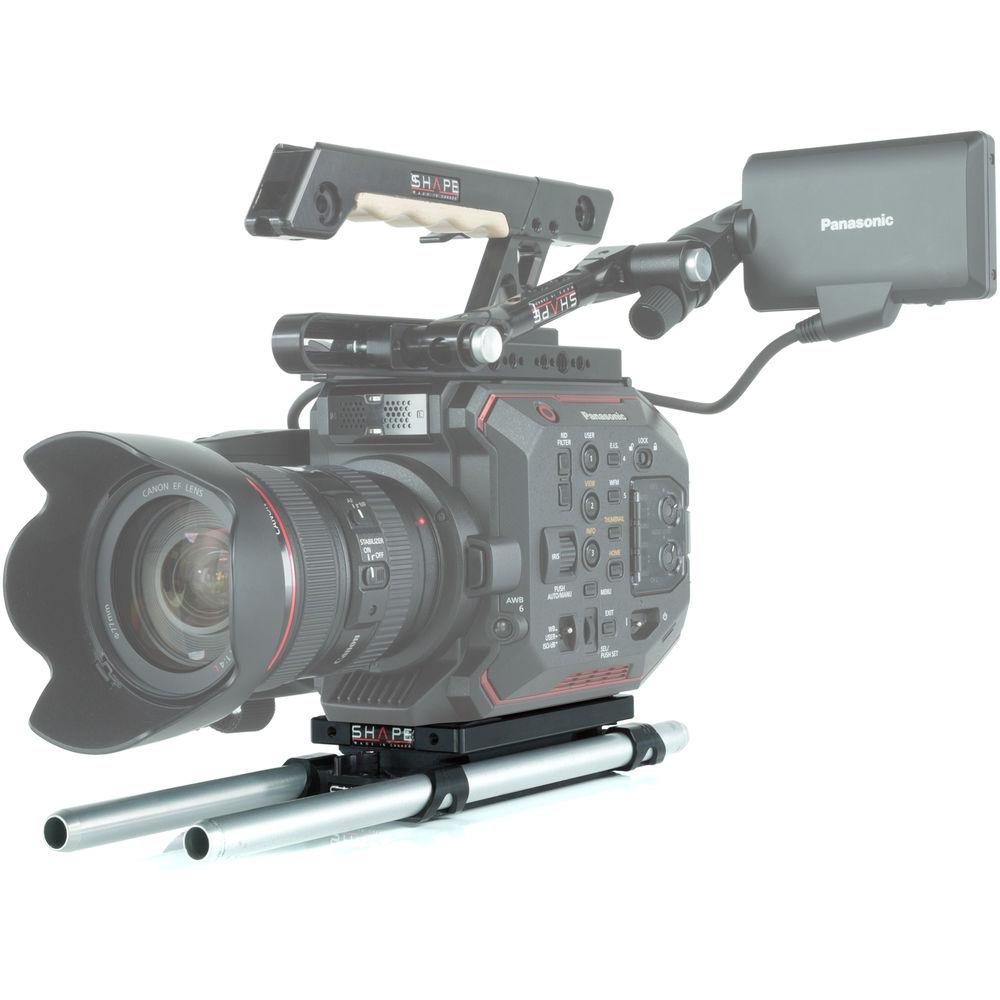

Product description The SHAPE Baseplate with 15mm Rod System is designed for use with the Panasonic AU-EVA1 camera. It features four attachment points for securely mounting the AU-EVA1 to a camera rig. The baseplate also comes with a pair of 15mm rods that are 12” long through the length of the baseplate.
By unscrewing the bottom section of the baseplate with the included Allen key, you get an adapter plate featuring several 1/4"-20 and 3/8"-16 mounting holes for mounting and balancing your camera on equipment like a tripod, gimbal, or drone. - Attaches underneath the camera with 3/8"-16 and 1/4"-20 screws
- Three 1/4"-20 and one 3/8"-16 mounting holes for securing the camera or a tripod plate
- Ratchet key knobs to reposition the Rod Bloc system
- Four rubber pads at the top of the base protect and securely hold your Panasonic AU-EVA1 camera
- Allen key is fixed via a magnet at the bottom of the baseplate for easy accessibility

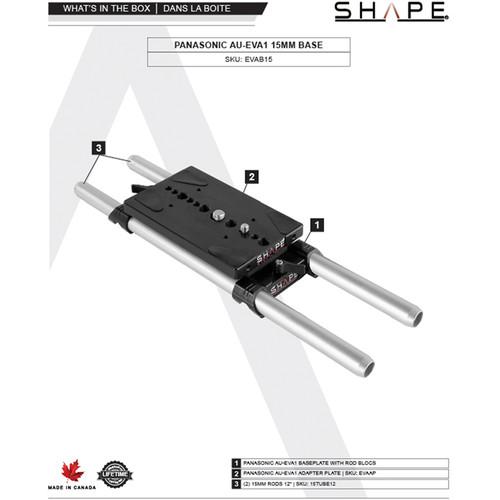

UPC: 629266007358 In the Box SHAPE Baseplate with 15mm Rod System for Panasonic AU-EVA1 15mm Aluminum Rods (Pair, 12") ycxvcqvccxtccasdxcucruefubcafs Allen Key Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Baseplate with 15mm Rod System for Panasonic AU-EVA1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE EVAB15 Specs | | | Material | CNC Machined aluminum | | Mounting Holes | 3 x 1/4"-20
1 x 3/8"-16 | | Dimensions (W x H x L) | 4.0 x 4.0 x 1.31" (10.1 x 10.1 x 3.3 cm) | | Weight | 0.79 lb (0.36 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 12.7 x 4.4 x 2.4" |
