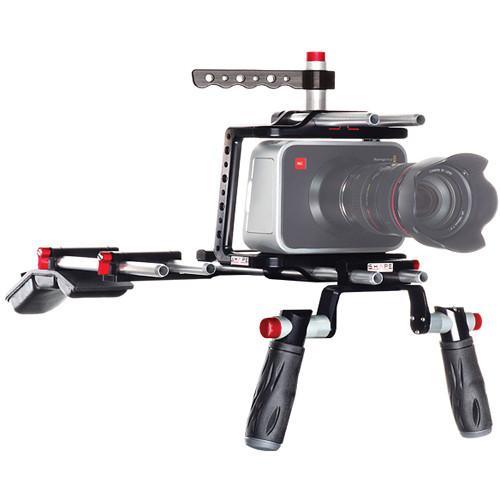

User Manual for SHAPE Blackmagic Shoulder Mount Offset Camera Rig Click to enlarge the picture
Contents of the user manual for the SHAPE Blackmagic Shoulder Mount Offset Camera
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
|
User manual for the SHAPE Blackmagic Shoulder Mount Offset Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description SHAPE's Blackmagic Shoulder Mount Offset Camera Rig is a lightweight shoulder-mounted rig designed for the Blackmagic Cinema Camera that's ideal for using the Blackmagic touchable screen (not included), and for any EVF or external monitor users. The top and bottom rods are adjustable for optical center. The rig is made from CNC-machined hard-anodized aluminum and weighs just 5.8 lb. It includes an adjustable top handle with patented 360° push-button technology and a comfortable, removable shoulder pad with a single red knob for fast and easy adjustment. It slides on any 15mm lightweight system. The cage and the top handle are threaded with multiple 1/4"-20 and 3/8"-16 screw mounts for full flexibility in mounting accessories like an EVF, monitor, lights, mics, etc. (the cage has 22 screw mounts and the top handle has 26 screw mounts). The bottom of the cage has screw mounts for attaching a tripod plate and is designed with a pocket for camera ventilation. - Designed for Blackmagic Cinema Camera
- Ideal for Blackmagic touchable screen, or for any EVF or external monitor users
- CNC-machined hard-anodized aluminum
- Comfortable, removable shoulder pad
- Push-button adjustable top handle
- Adjustable top and bottom rods
- Multiple 1/4"-20 & 3/8"-16 screw mounts
- Bottom pocket for camera ventilation
UPC: 629266000366 In the Box SHAPE Blackmagic Shoulder Mount Offset Camera Rig Blackmagic Shoulder Cage Blackmagic Offset Bracket 15mm Aluminum Rods (Pair, 12") zzfuxxxrszffarfvex 15mm Aluminum Rods (Pair, 10") 15mm Aluminum Rods (Pair, 8") Quick Handle + Rod Block Mini Composite Shoulder Pad Lifetime Warranty Quick start Guide PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Blackmagic Shoulder Mount Offset Camera Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE BMCCSM-OF Specs | Length | 17.0-26.625" (36.51-57.15 cm) | | Height | 10.25-17.625" (26-44.76 cm) | | Width | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 6.935 lb | | Box Dimensions (LxWxH) | 15.1 x 10.5 x 4.45" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
