Product description The Shape BP-U65 Dual Charger with Two Lithium-Ion Batteries set is designed to provide all you need to power Sony PMW or PXW series cameras that accept Sony BP-U-type batteries. This set includes a 16.8V charger and two 14.8V, 5200mAh batteries.

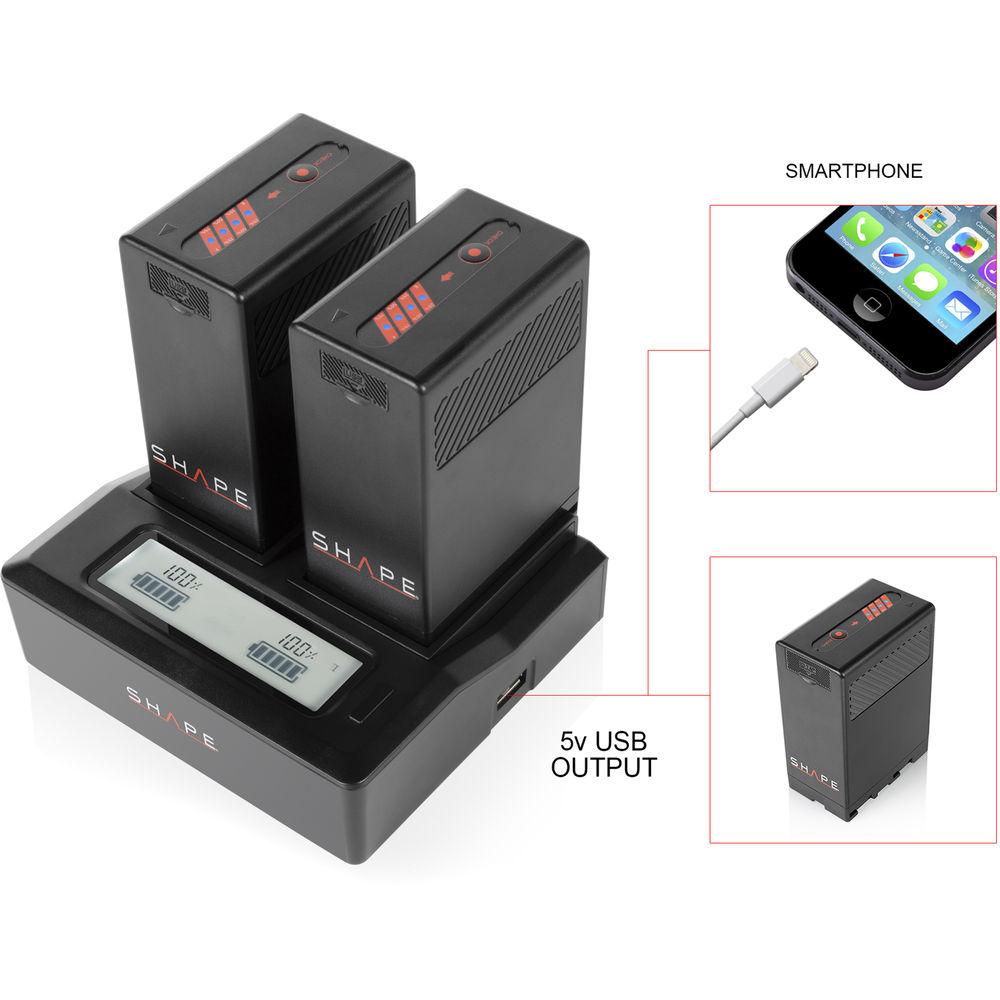

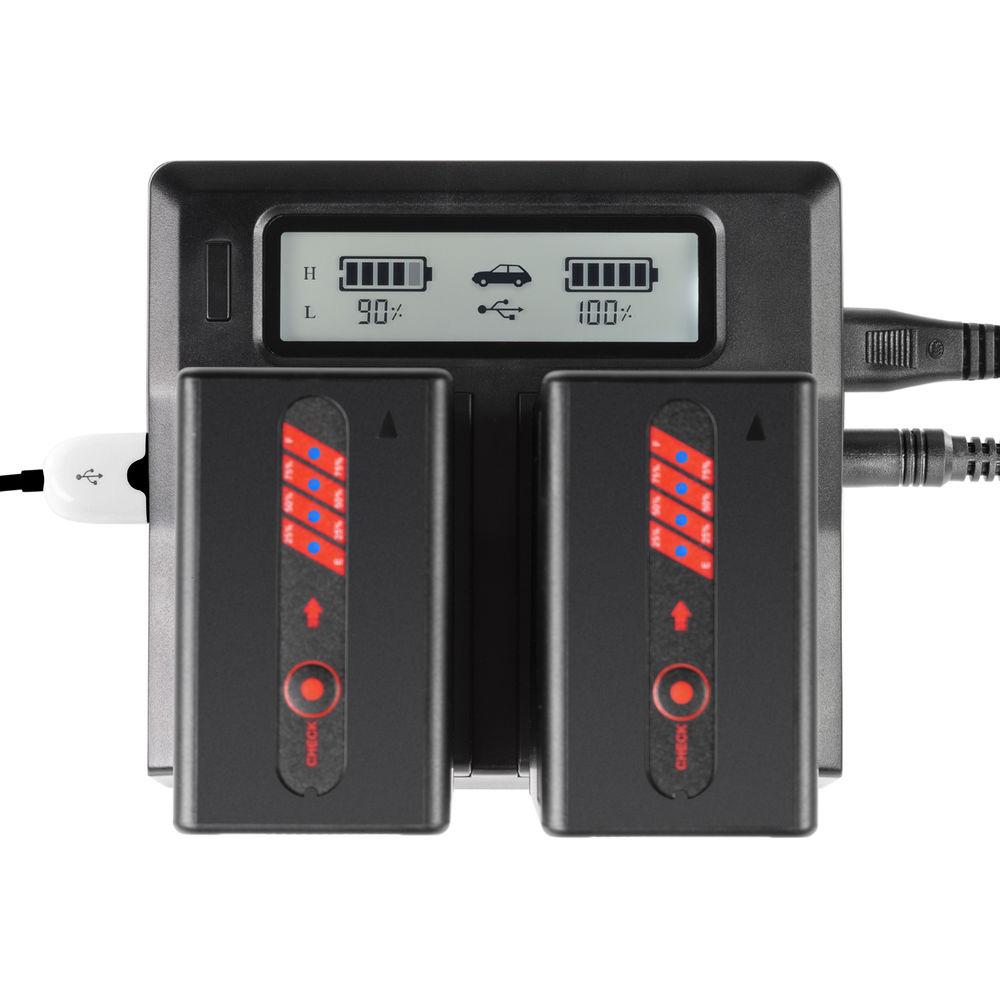

The 100-240V dual charger features two BP-U65 battery plates and an LCD display which shows battery charging status. The charger provides 1.5A when a single battery is in the charger, and provides 1A to each battery when both are charging simultaneously. The charger has a pre-charging feature which helps to extend your battery's life. The charger also features a USB output which provides a 5V, 2100mA charge to a smartphone or small device while the charger is plugged into an AC source.
The batteries feature a D-Tap output which can be used to charge video accessories or a camera and to charge the battery, and a 5V USB port is provided for charging smartphones or on-set mobile devices. Battery capacity can be quickly checked via the 4-segment LED meter. Their box-like design can be easily stacked for storage, or packed away in a case for transport. The batteries have no memory effect and are fully decoded so they can be fully charged with accurate power metering.

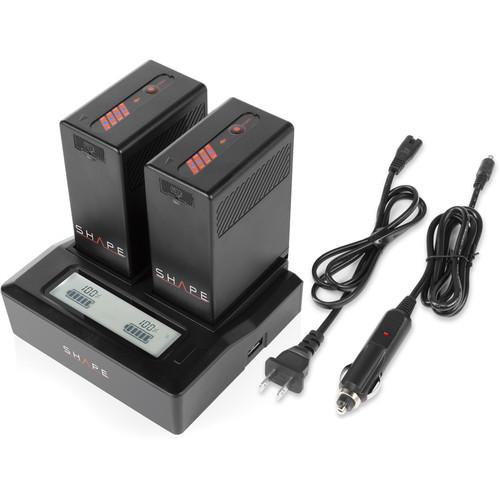

A wall AC cable and a DC car power cable are included with the charger. - 65Wh BP-U65 Lithium-Ion Battery The Shape 65Wh BP-U65 Lithium-Ion Battery is designed for Sony BP-U type mounts which power Sony PMW or PXW series cameras. This 14.8V, 5200mAh battery has no memory effect and is decoded so it can be fully charged with accurate power metering.

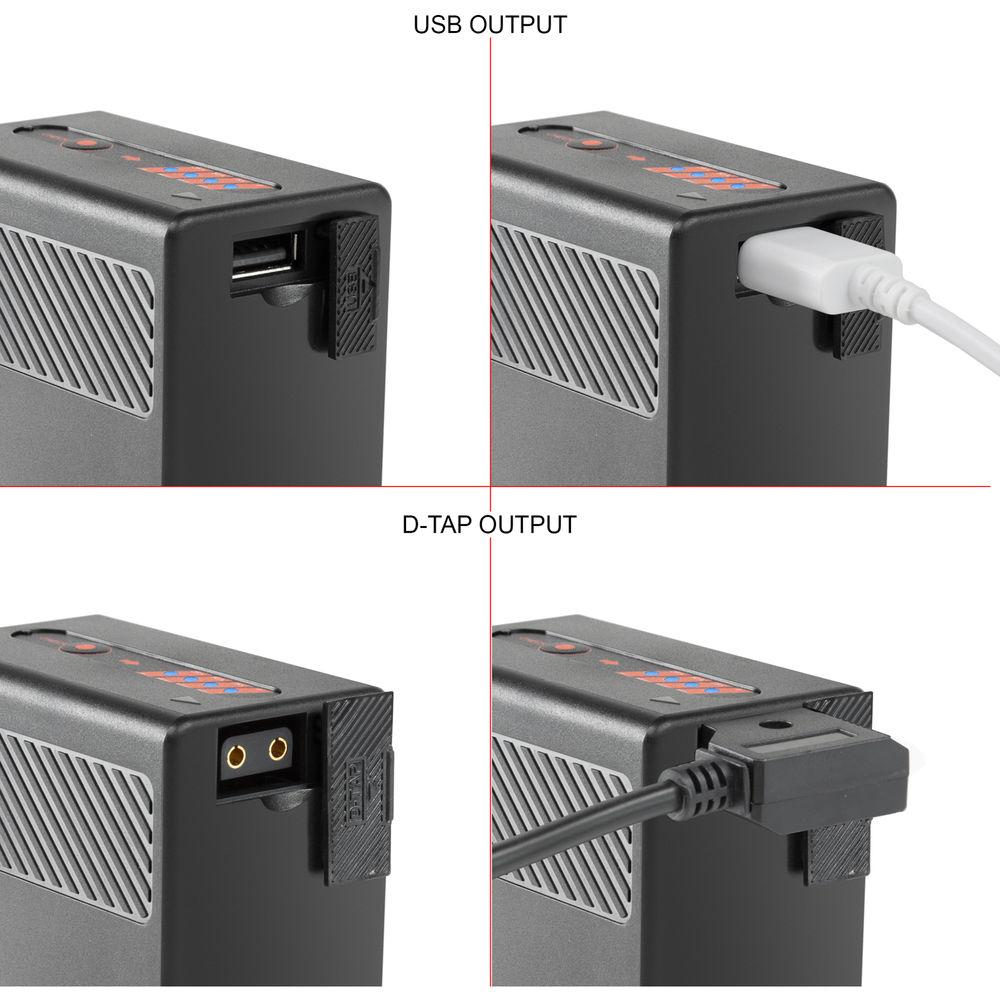

A D-Tap output is provided to charge video accessories or the camera, and a 5V USB port is provided for charging smartphones or on-set mobile devices. Both ports can also be used to charge the battery with a USB or D-Tap power source. Battery capacity can be quickly checked via the 4-segment LED meter. The battery's box-like design can be easily stacked for storage or packed away in a case for transport. - Compatible Sony Cameras
-
- PXW-FS5, PXW-FS7, PXW-X180
- PMW-100, PMW-150, PMW-150P, PMW-160, PMW-200, PMW-300
- PMW-EX1, PMW-EX1R, PMW-EX3, PMW-EX3R, PMW-EX160, PMW-EX260, PMW-EX280
- PMW-F3, PMW-F3K, PMW-F3L
- Replacement for battery models BP-U90, BP-U96, BP-U60, and BP-U30

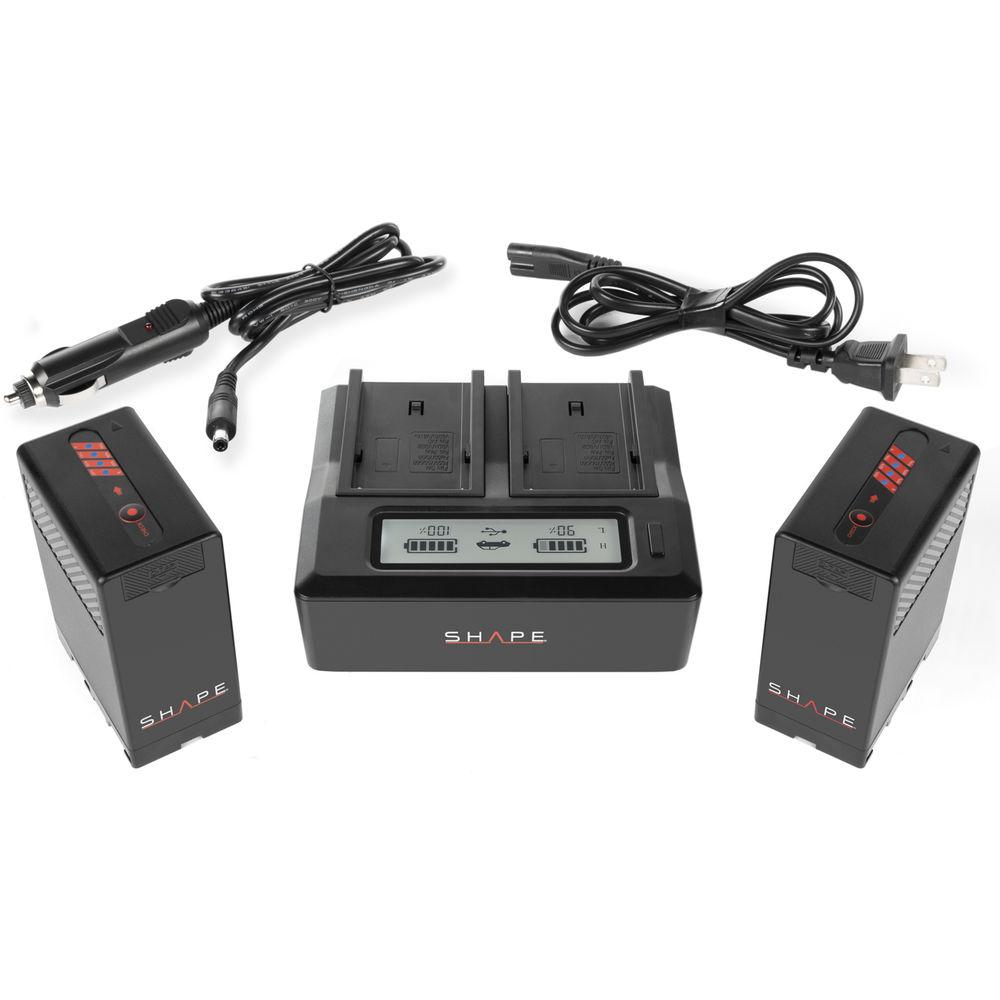

UPC: 629266009031 In the Box Bundle Items BP-V Dual LCD Charger 2 x 65Wh BP-U65 Lithium-Ion Battery
Also Includes - AC Power Cable
- DC Car Charging Cable
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE BP-U65 Dual Charger with Two 65Wh Lithium-Ion Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 65Wh BP-U65 Lithium-Ion Battery
| Mount / Series Type | Sony BP-U Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 65 Wh | | Amp-Hours | 5200 mAh | | Output Voltage | 14.8 VDC | | Accessory Port | 1 x D-Tap Output
1 x USB Type-A Output | | Accessory Mounting Thread | None | | Dimensions (W x H x D) | 3.7 x 2.8 x 1.6" / 9.5 x 7.0 x 4.0 cm | | Weight | 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 4.8 x 3.4 x 3.3" |
