Product description

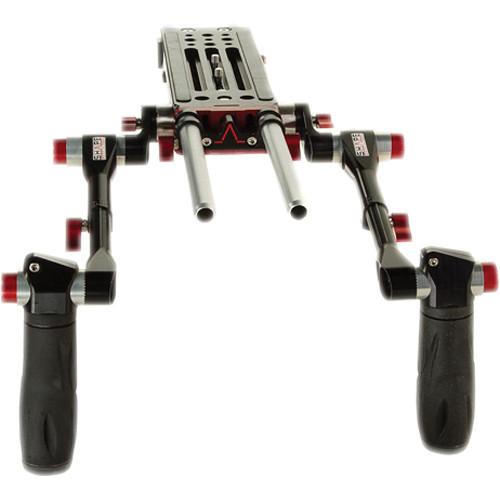

• BP0008 V-Lock Quick Release Baseplate The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters.

  The baseplate includes a removable shoulder pad and features rosette adapters for SHAPE and ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching to the Sony VCT-14 or Panasonic SHAN-TM700 tripod adapter. The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. 8" and 4" 15mm rods are included for the front and back.

  This baseplate is the same as the SHAPE BP0007 except it is lighter and has a modified rod adapter in front. The reduced weight is the result of a thinner design, and the rod adapter features one ratchet knob instead of two, allowing quicker rod adjustments. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15mm Studio and 19mm Studio adapters in place of the included one.

  The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15mm Studio Adapter. 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included. This baseplate is best used with cameras that use external viewfinders.
  Key Features
  • • Long format baseplate for larger cameras
    • Can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters
    • Includes removable shoulder pad
    • Features rosette adapters for SHAPE and ARRI standard handles
    • 1/4"-20 and 3/8"-16 tripod mount threads
    • V-lock delta adapter for the Sony VCT-14 or Panasonic SHAN-TM700 tripod adapter
    • Vertically adjustable rod adapter with one ratchet knob
    • Three camera mount slots
    • 1/4"-20 and 3/8"-16 accessory mount threads
    • 8" and 4" 15mm rods
  UPC: 629266001905
• Telescopic Handles with ARRI Rosettes (Black & Red) The black and red Telescopic Handles with ARRI Rosettes from SHAPE are left and right handgrips that can be attached to cameras and camera support hardware that has standard ARRI rosettes. Each arm features three points of articulation, combined with the approximately two inches of arm extension allows you to adjust the arms for your comfort. The arms attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place without having a full 360° of rotation.

  Shape's unique push-button articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips. A second spring-loaded locking lever along the arms allows you to extend the arms up to two inches and rotate the handgrips throughout 360°. The arms are indexed for extension and rotation, so you can quickly move between known setups.
  • The push-button locking joint enables independent rotation throughout 360°.
  • Spring-loaded locking levers allow you to tighten or loosen the lever even when you do not have space to turn the lever throughout the entire 360° range.
  • The arms feature two inches of extension and are indexed every 5mm of extension.
  • The arms can rotate through 360° and feature 30° of index markings.
  UPC: 629266002001
• 15mm Aluminum Rods (Pair, 8") This pair of Shape 15mm Aluminum Rods (8") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
  The rods are each 15mm in diameter, 8 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001691
• 15mm Aluminum Rods (Pair, 4") This pair of Shape 15mm Aluminum Rods (4") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
  The rods are each 15mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001677
• SHAN-TM700 VTC-Style Quick-Release Tripod Adapter This is a Panasonic Tripod Adapter Plate from SHAPE allowing quick-release mounting/dismounting of professional broadcast cameras. Attach the camera via the VCT-style V-Lock mechanism and then mount to a tripod quick release plate. Multiple 1/4"-20 and 3/8"-16 threaded holes are lined up along the length of the plate on the bottom, allowing for the best possible balance selection.

• 15mm LWS Rod Adapter

• 15mm Aluminum Rods (Pair, 8")

• 15mm Aluminum Rods (Pair, 4")

• 2 x 1/4"-20 Camera Mount Screws

• 2 x 3/8"-16 Camera Mount Screws

• Allen Key

• Lifetime Limited Warranty

• Limited Lifetime Warranty on CNC Machined Parts

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• BP0008 V-Lock Quick Release Baseplate

  Material	Solid anodized aluminum
  Rod Type	15 mm 2x 8" (20 cm), 2x 4" (10 cm)
  Mount Types	1/4"-20 and 3/8"-16 tripod mount threads V-lock delta adapter 1/4"-20 and 3/8"-16 accessory mount threads 1/4"-20 and 3/8"-16 camera mount screws included

  Box Dimensions (LxWxH)	14.2 x 5.95 x 4.45"

• Telescopic Handles with ARRI Rosettes (Black & Red)

  Load Capacity	25 lb / 11 kg
  Dimensions	Arms Retracted: 4.3 x 13.0" / 10.8 x 33.0 cm Arms Extended: 4.3 x 15.0" / 10.8 x 38.1 cm
  Weight	Each Arm: 1.05 lb / 0.48 kg

  Box Dimensions (LxWxH)	8.8 x 7.4 x 4.3"

• 15mm Aluminum Rods (Pair, 8")

  Diameter	15 mm
  Length	8 inches (20.3 cm)
  Material	Aluminum with a clear finish applied over it

  Box Dimensions (LxWxH)	9.5 x 3.5 x 0.5"

• 15mm Aluminum Rods (Pair, 4")

  Diameter	15 mm
  Length	4 inches (10.1 cm)
  Material	Aluminum with a clear finish applied over it

  Box Dimensions (LxWxH)	4.8 x 3.4 x 3.3"

• SHAN-TM700 VTC-Style Quick-Release Tripod Adapter

  Box Dimensions (LxWxH)	11.4 x 4.0 x 1.7"
