SHAPE Bundle Rig and Follow Focus

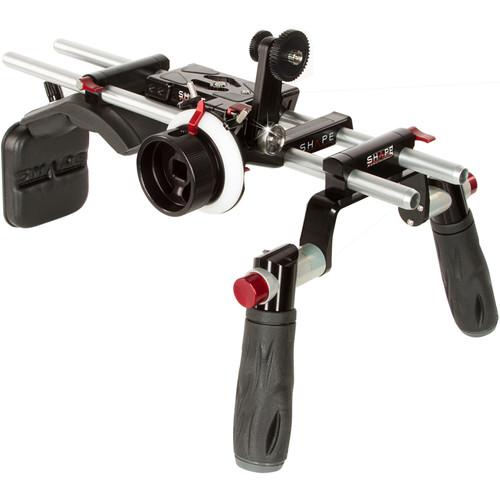

User Manual for SHAPE Bundle Rig and Follow Focus Pro Kit for Sony FS5 FS5M2 Camera

• Product category: Camcorder Supports & Rigs SHAPE
• Brand: SHAPE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SHAPE Camcorder Supports & Rigs

Product description

• Baseplate for Sony FS5 and FS5M2 Cameras
  • SHAPE SONY FS5 TECHNICAL VIDEO
  The SHAPE Baseplate comes with rubber pads at the top so the Sony PXW-FS5 or PXW-FS5M2 camera doesn't sit directly on the aluminum. The baseplate fits 15mm standard rods, which are secured with a red ratchet knob screw. A pair of 10" 15mm rods is included. The baseplate is ideal for drone and gimbal applications, and is designed with a lightweight system for mounting standard 15mm accessories.
  • 1/4"-20 treaded holes for side mounting
  • 3/8"-16 and 1/4"-20 captive screws to secure the camera position
  • Four 1/4"-20 and two 3/8"-16 threaded holes under the baseplate for tripod mounting
  • Rods are positioned to reach optical center
  • Rubber pads on top of the baseplate cushion the camera base
  • Lightweight and solid
  • CNC Machined aluminum
  • Removable bracket for Metabones adapter can be installed separately
  UPC: 629266005125
• Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

  Quick Handle

  • Provides professional video stabilization with 2 handles
  • Each handle offers 360° individual rotation
  • Offers easy attachment/removal

  Rod Block

  • Composed of anodized aluminum
  • Offers composite camera support for all 15mm rods
  • Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
  • With 2 screw-threaded holes, the Rod Block provides for attachment of components
  UPC: 629266000793
• Mini Composite Shoulder Pad The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into. UPC: 629266000830
• Back Pad The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
  Compatible Support Series
  • • Composite
    • Cameleon
    • Sumo
    • Spider
  UPC: 629266001202
• Follow Focus Pro The SHAPE Follow Focus Pro mounts on 15mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. The unit snaps onto 15mm rods, allowing for quick attachment, removal, and re-positioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth - depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.
  • • Snap-on 15mm rod attachment
    • Adjustable arm
    • Two 0.8 pitch aluminum gears included: 28 teeth and 43 teeth
    • Interchangeable gear position
    • Adjustable hard stops
    • Removable marking disc
    • Industry standard accessory port
    • CNC machined aluminum parts
  UPC: 629266002360
• 15mm Aluminum Rods (Pair, 8") This pair of Shape 15mm Aluminum Rods (8") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
  The rods are each 15mm in diameter, 8 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001691

• 15mm Aluminum Rods (Pair, 10")

• Limited Lifetime Warranty

• Lifetime Warranty

• Rod Block

• Camera Screw Knob (1/4"-20)

• Lifetime Warranty

• Limited Lifetime Warranty

• 0.8 Pitch 28 Teeth Aluminum Gear for Follow Focus Pro

• 0.8 Pitch 43 Teeth Aluminum Gear for Follow Focus Pro

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Baseplate for Sony FS5 and FS5M2 Cameras

  Material	CNC aluminum
  Mounting Threads	1/4"-20 and 3/8"-16
  Dimensions	1.25 x 3.25 x 4.50" / 3.18 x 8.26 x 11.43 cm
  Weight	11.2 oz / 317.5 g

  Box Dimensions (LxWxH)	12.7 x 4.4 x 2.4"

• Quick Handle + Rod Block

  Box Dimensions (LxWxH)	12.7 x 11.3 x 2.55"

• Mini Composite Shoulder Pad

  Box Dimensions (LxWxH)	6.5 x 4.3 x 3.4"

• Back Pad

  Material of Construction	Anodized aluminum
  Adjustments	Up/Down: 2" (5 cm) Right/Left: 360°
  Weight	0.5 lbs (0.2 kg)

  Box Dimensions (LxWxH)	8.3 x 4.8 x 4.5"

• Follow Focus Pro

  Construction Material	CNC machined black anodized aluminum
  Dimensions	7.63 x 5.00 x 3.00" (19.37 x 12.70 x 7.62 cm)
  Weight	1.4 lb (0.6 kg)

  Box Dimensions (LxWxH)	8.74 x 7.48 x 4.409"

• 15mm Aluminum Rods (Pair, 8")

  Diameter	15 mm
  Length	8 inches (20.3 cm)
  Material	Aluminum with a clear finish applied over it

  Box Dimensions (LxWxH)	9.5 x 3.5 x 0.5"
