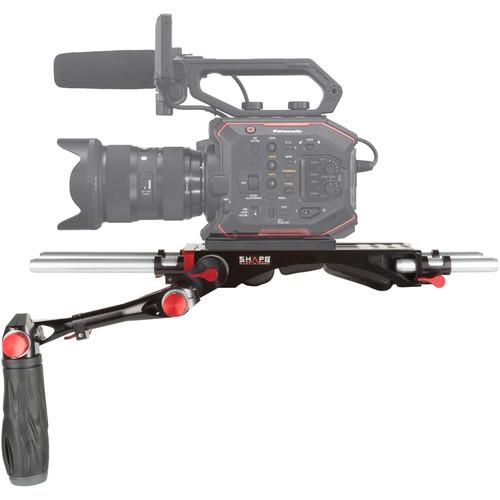

SHAPE Bundle Rig for Panasonic AU-EVA1

User Manual for SHAPE Bundle Rig for Panasonic AU-EVA1

• Product category: Camcorder Supports & Rigs SHAPE
• Brand: SHAPE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SHAPE Camcorder Supports & Rigs

Product description

• BP0008 V-Lock Quick Release Baseplate The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters.

  The baseplate includes a removable shoulder pad and features rosette adapters for SHAPE and ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching to the Sony VCT-14 or Panasonic SHAN-TM700 tripod adapter. The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. 8" and 4" 15mm rods are included for the front and back.

  This baseplate is the same as the SHAPE BP0007 except it is lighter and has a modified rod adapter in front. The reduced weight is the result of a thinner design, and the rod adapter features one ratchet knob instead of two, allowing quicker rod adjustments. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15mm Studio and 19mm Studio adapters in place of the included one.

  The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15mm Studio Adapter. 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included. This baseplate is best used with cameras that use external viewfinders.
  Key Features
  • • Long format baseplate for larger cameras
    • Can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters
    • Includes removable shoulder pad
    • Features rosette adapters for SHAPE and ARRI standard handles
    • 1/4"-20 and 3/8"-16 tripod mount threads
    • V-lock delta adapter for the Sony VCT-14 or Panasonic SHAN-TM700 tripod adapter
    • Vertically adjustable rod adapter with one ratchet knob
    • Three camera mount slots
    • 1/4"-20 and 3/8"-16 accessory mount threads
    • 8" and 4" 15mm rods
  UPC: 629266001905
• V-Lock Replacement Pad The V-Lock Replacement Pad from SHAPE is a replacement shoulder pad for the V-lock system BP6000 and BP7000. The pad utilizes a hook-and-loop system which allows for easy attachment and removal. The additional padding provided by the strap increases user comfort and reduces strain on the shoulder. UPC: 629266001783
• Telescopic Handle for ARRI Rosette The Telescopic Handle for ARRI Rosette from SHAPE is a versatile and adjustable handgrip that attaches to an ARRI standard rosette on the left or right side of your camera rig. It offers 1.5" of extension and uses push-button mechanisms on the extension arm and handle for adjusting the height and rotation of the handles to meet your needs and preference. The push-button on the handle is a huge benefit when you want to adjust the angle on-the-fly, without having to remove your hand or set down the rig.
  • • Each connection point independently rotates 360° at the push of a button
    • Ratchet knob unlocks extendable arm; arm provides 1.5" of extension
    • Markings on extendable arm help you remember preferred settings
    • CNC-machined aluminum parts with stainless steel locking mechanism
  UPC: 629266003381

• 15mm LWS Rod Adapter

• 15mm Aluminum Rods (Pair, 8")

• 15mm Aluminum Rods (Pair, 4")

• 2 x 1/4"-20 Camera Mount Screws

• 2 x 3/8"-16 Camera Mount Screws

• Allen Key

• Lifetime Limited Warranty

• Limited 1-Year Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• BP0008 V-Lock Quick Release Baseplate

  Material	Solid anodized aluminum
  Rod Type	15 mm 2x 8" (20 cm), 2x 4" (10 cm)
  Mount Types	1/4"-20 and 3/8"-16 tripod mount threads V-lock delta adapter 1/4"-20 and 3/8"-16 accessory mount threads 1/4"-20 and 3/8"-16 camera mount screws included

  Box Dimensions (LxWxH)	14.2 x 5.95 x 4.45"

• V-Lock Replacement Pad

  Attachment Method	Hook and loop
  Padding	Yes
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	7.0 x 3.0 x 0.5"

• Telescopic Handle for ARRI Rosette

  Extension	1.5" (3.81 cm)
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	12.6 x 4.6 x 2.4"
