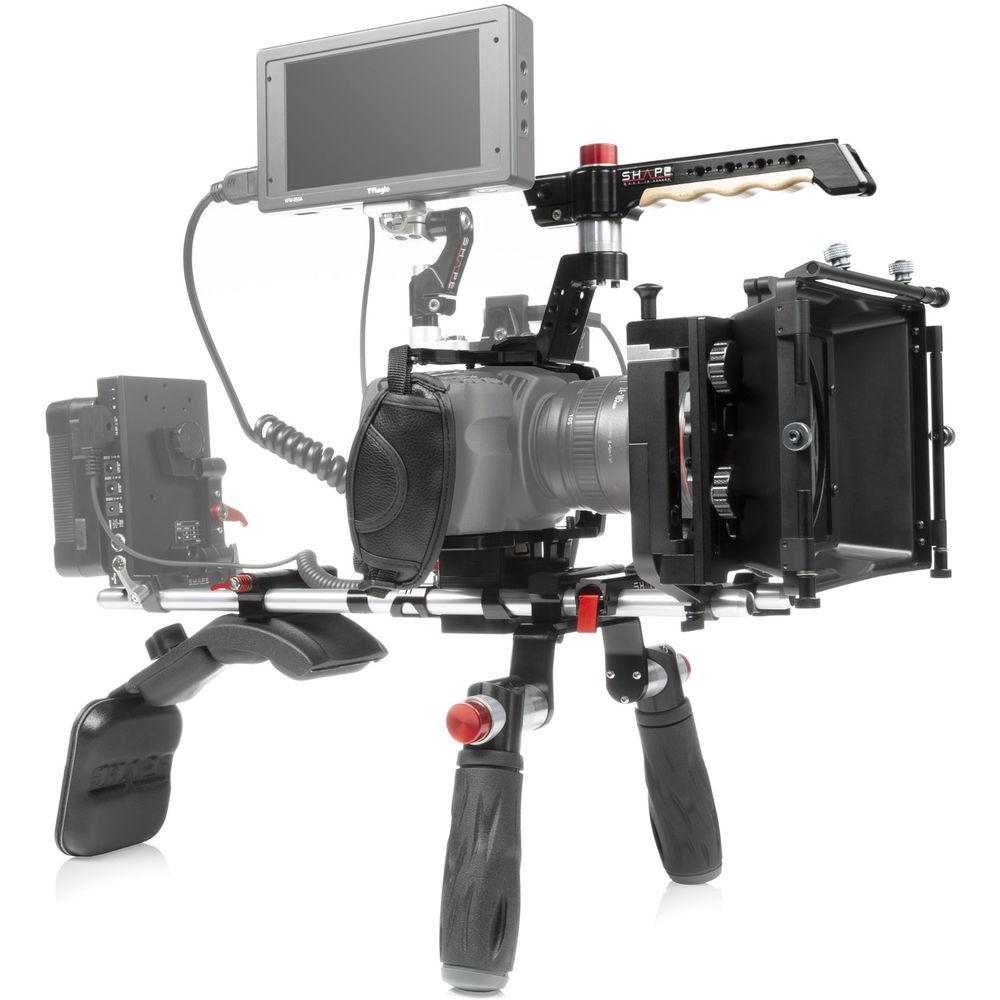

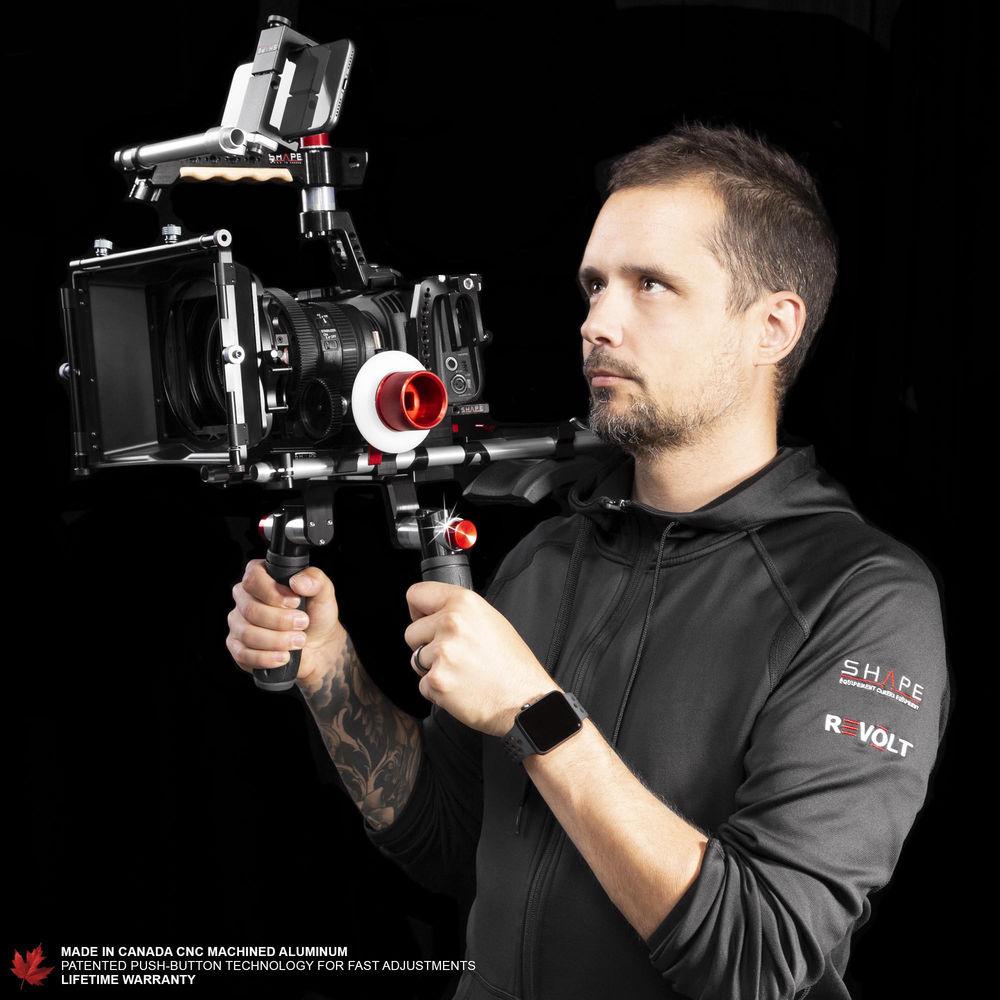

User Manual for SHAPE Cage Kit with Matte Box, Follow Focus, Shoulder Mount & 18" 15mm Rods for Blackmagic Pocket Cinema Camera 4K

• Product category: Camcorder Supports & Rigs SHAPE
• Brand: SHAPE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SHAPE Camcorder Supports & Rigs

Product description

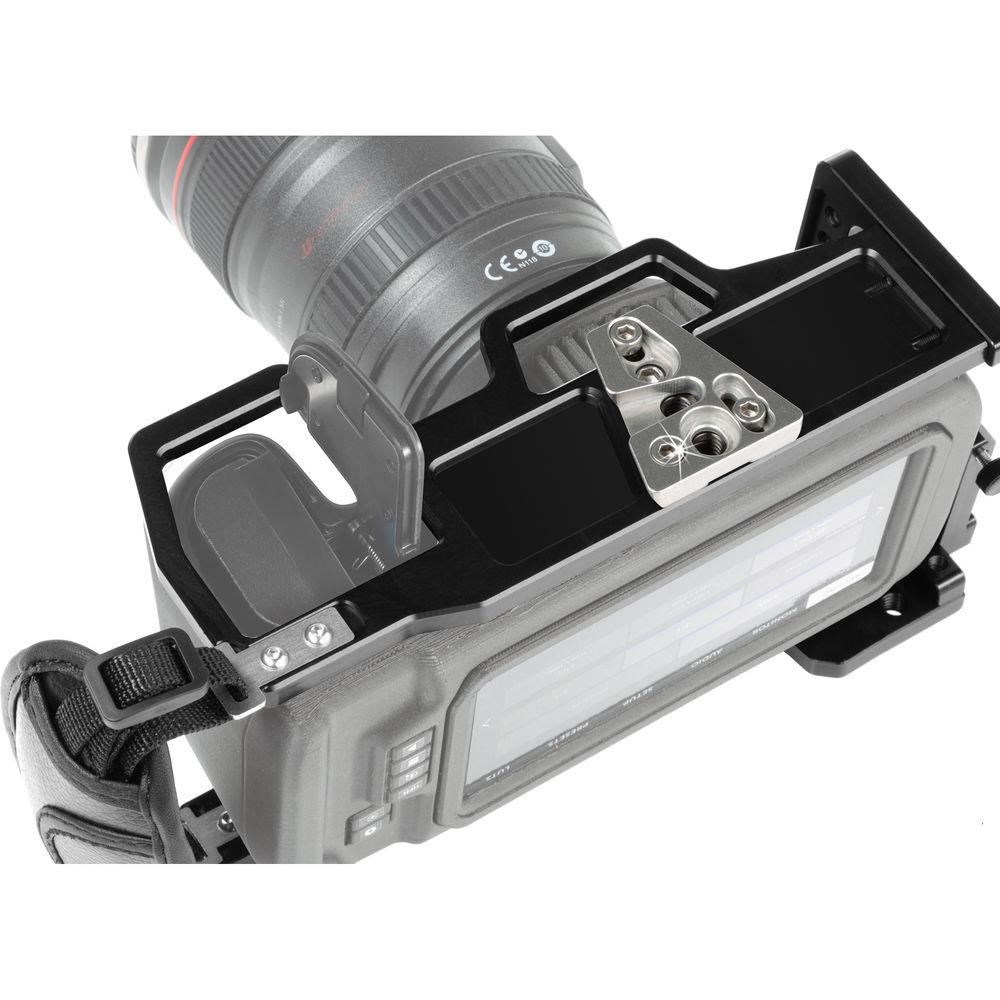

• Cage for Blackmagic Pocket Cinema Camera 4K The Camera Cage for Blackmagic Cinema Camera 4K from SHAPE provides a formfitting base for attaching accessories, handles, or grips to your BMCC 4K. Accessory mounting options include one cold shoe and multiple 1/4"-20, 3/8"-16, and ARRI anti-twist threads. Constructed from lightweight yet sturdy CNC-machined aluminum, the cage includes a left-side clamp to prevent your HDMI cable from accidentally disconnecting. A padded hand strap adds comfort when grasping the right side of the camera. All controls, ports, and slots remain accessible when the cage is mounted to your Blackmagic Cinema Camera 4K.
  • Formfitting CNC-machined aluminum cage
  • Maintains access to all camera controls, ports, and slots
  • Multiple 1/4"-20, 3/8"-16, and ARRI anti-twist mounting threads, one cold shoe mount

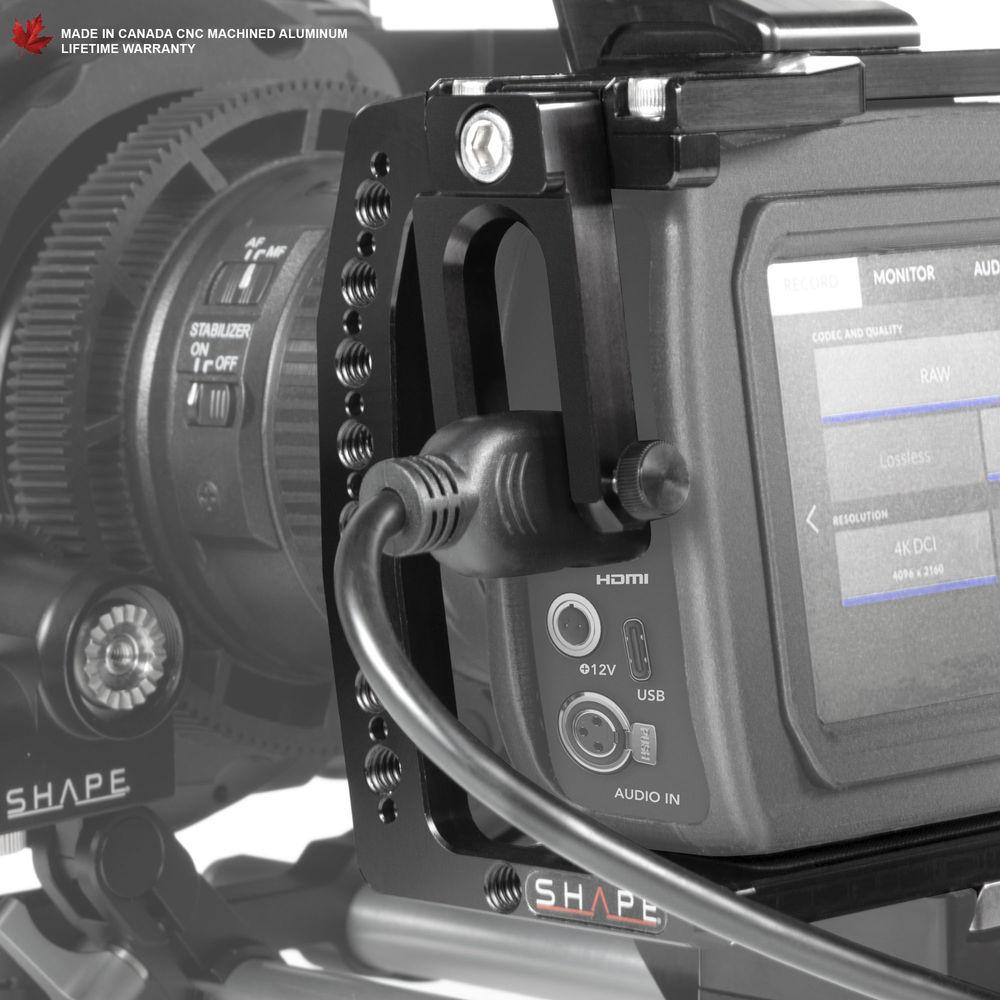

  • HDMI cable clamp prevents accidental cable disconnection

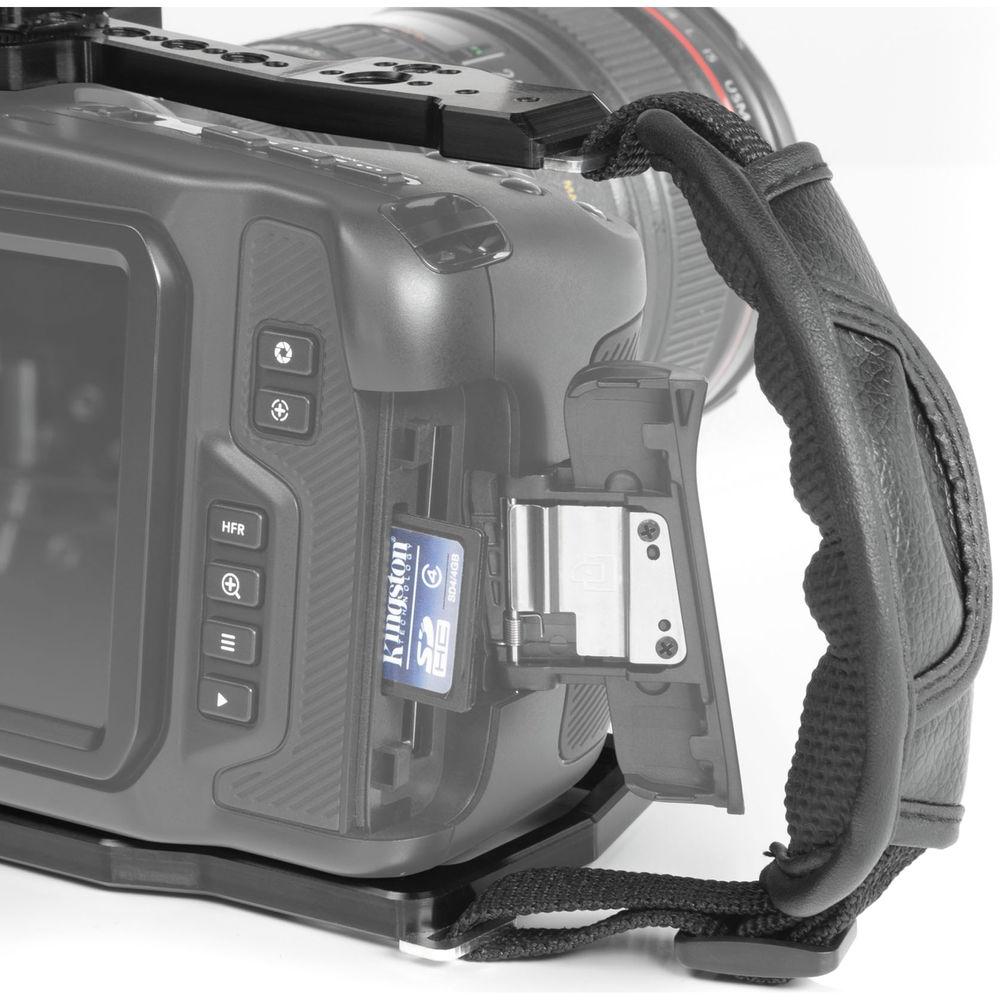

  • Padded hand strap for grasping camera on right side
  UPC: 629266008676
• 15mm Rods (18", Pair) These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.
  • Pair of aluminum support rods for 15mm rod clamps.
  • 18" long rods with chamfered ends that guide the rod into an available rod clamp, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp.
  UPC: 629266002223
• Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

  Quick Handle

  • Provides professional video stabilization with 2 handles
  • Each handle offers 360° individual rotation
  • Offers easy attachment/removal

  Rod Block

  • Composed of anodized aluminum
  • Offers composite camera support for all 15mm rods
  • Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
  • With 2 screw-threaded holes, the Rod Block provides for attachment of components
  UPC: 629266000793
• Friction & Gear Follow-Focus Clic with Adjustable Marker The Shape Friction & Gear Follow-Focus Clic with Adjustable Marker is designed to attach onto standard 15mm rods of shoulder support rigs and other rigs. It attaches onto them via a clamp system, with simplicity. You would sit the Clic atop the rods, and then slide and close a Shape-patented lever clamp underneath the rods, and the lever locks and holds the Clic securely on the rods.

  The Clic's focus mechanism also works with a clamp system, which when unlocked loosens the focus mechanism and allows it to be moved horizontally. It moves so to adjust itself closer to the lens. As it moves, its main feature -- the focus disk -- moves with it, and the focus disk is what reaches the lens. The focus disk can either be a friction wheel, as you see in the photo above, or a gear wheel. Both are present in this package, and replacing one with the other is accomplished with the help of the included Allen wrench. The friction wheel has a rubber outer surface that would press up against the lens, keep firm contact with it, and ensure accurate and slip-free focusing. The friction wheel would serve well for most lenses and is made of high-quality rubber that in cold temperatures won't get too cold to lose its grip. The gear wheel would accommodate those lenses that specifically have teeth on their focusing rings, and it would do so without any ring gears, by pressing its .8 pitch gears into the teeth.

  The focus mechanism can be used on either the left or the right side of the lens, depending on the direction you place the Clic onto the rods in. And the focus disk itself can be used either in front of the focus mechanism, as you see in the photo above, or behind it, so to accommodate a wider variety of lens lengths. To move the disk to the rear, you would first just unscrew two screws from a cube-shaped gearbox that you can't see in the photo above because it sits behind the focus disk. Once the screws are off, the focus disk can just be flipped over for use with longer lens constructions.

  In the photo above, the white mark disk that you see to the right of the red knob is made of highly resistant Delrin thermoplastic. It can be written on with non-permanent markers to mark up focus measurements for various predetermined shots, and it is interchangeable and thereby many predetermined measurements can be kept ready at your side. Additionally, a slide-adjustable marker made of aluminum is included to be attached beside the mark disk and to be moved and tightened into positions along the disk.

  The Clic is CNC machined and made of lightweight anodized aluminum for strength and durability.
  • Designed to attach onto standard 15mm rods.
  • Attaches onto the rods via a patented clamp system.
  • The focus mechanism moves horizontally to adjust to the lens.
  • The focus mechanism can be used on the left or right side of the lens.
  • A friction wheel and a gear wheel are included to interchange as the focus disk.
  • The focus disk flips to the rear of the focus mechanism to accommodate longer lenses.
  • A thermoplastic mark disk can be written on with non-permanent markers and is interchangeable.
  • An included marker attaches beside the mark disk and slides and tightens into positions along the disk.
  UPC: 629266000946
• 2-Stage 4 x 4" Matte Box The SHAPE 2-Stage 4 x 4" Matte Box accepts lenses with up to a 100mm front outside diameter. It mounts to 15mm LWS rods and utilizes a swing-away design, which lets you perform quick lens changes without having to remove the matte box from your rods. You can adjust the height of the matte box in relation to the rods, which comes in handy when your lens center to rod center height is slightly off from the standard.

  Two rotating filter stages support the use of 4x4" filters. The matte box comes with a top flag (eyebrow), side flags, four matte box donuts in 66, 72, 82, and 90mm sizes, and elastic donut.
  • The matte box has a rear opening of 100mm for lenses.
  • The included anti-reflection donuts prevent light behind the camera from reflecting off any filters in the matte box and degrading the image. Included with the matte box are anti-reflection donuts for lenses with a front outside diameter of 66, 72, 82, and 90mm. The included elastic donut supports lenses with a front outside diameter between 66 and 90mm, and it is especially useful with lenses that grow and shrink as you change focus or zoom.
  • The side flags incorporate a hook design as a safety feature where they attach to the matte box. This helps prevent them from falling out of the matte box should the lock-down thumbscrew loosen accidentally.
  • The swing-away bracket incorporates a height adjustment, enabling you to compensate a total of 0.65" vertically. This allows you to use this matte box with a variety of camera/rod support combinations that may vary slightly from the industry standard 85mm distance from LWS rod center to lens port center.
  UPC: 629266001189

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Lifetime Warranty

• Allen Wrench

• Lifetime Warranty

• 2 x Filter Tray (4 x 4")

• French Flag

• 2 x Side Wing

• 4 x Matte Box Ring

• Limited 1-Year Warranty

Also Includes

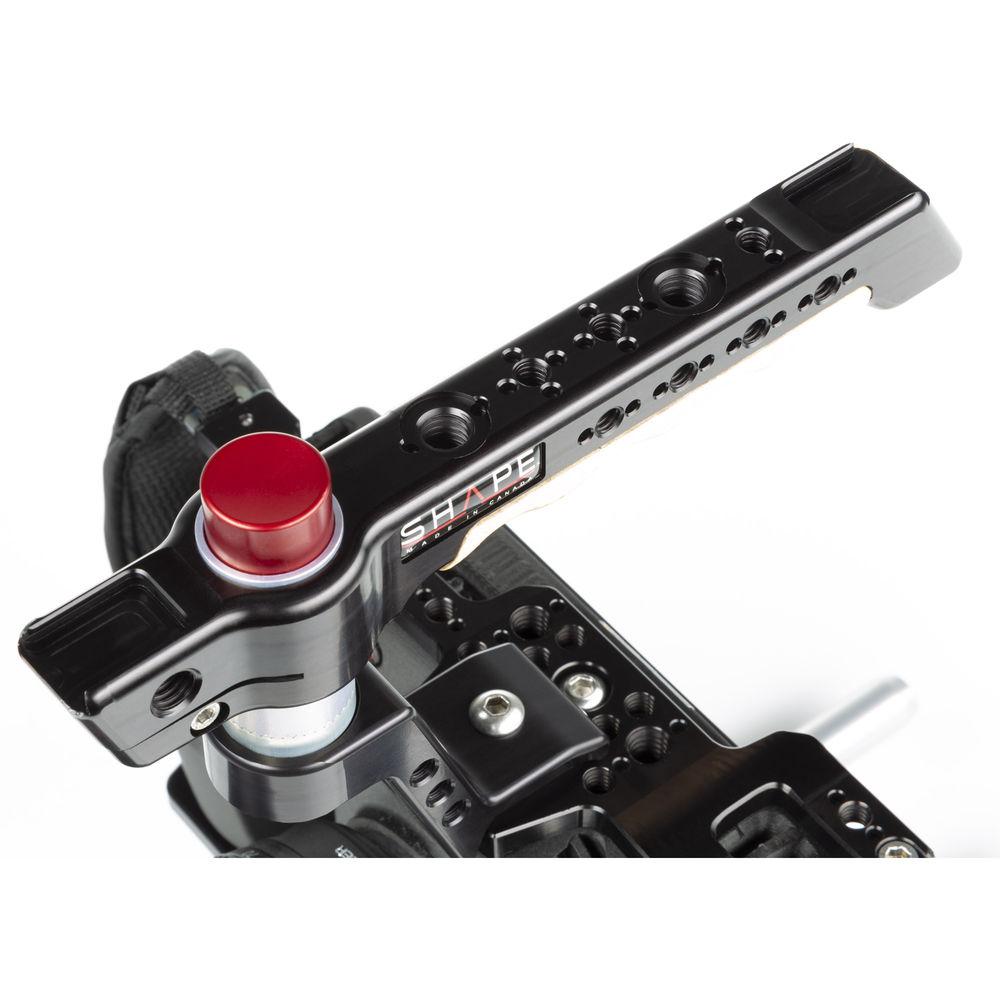

• Push-Button Top Handle

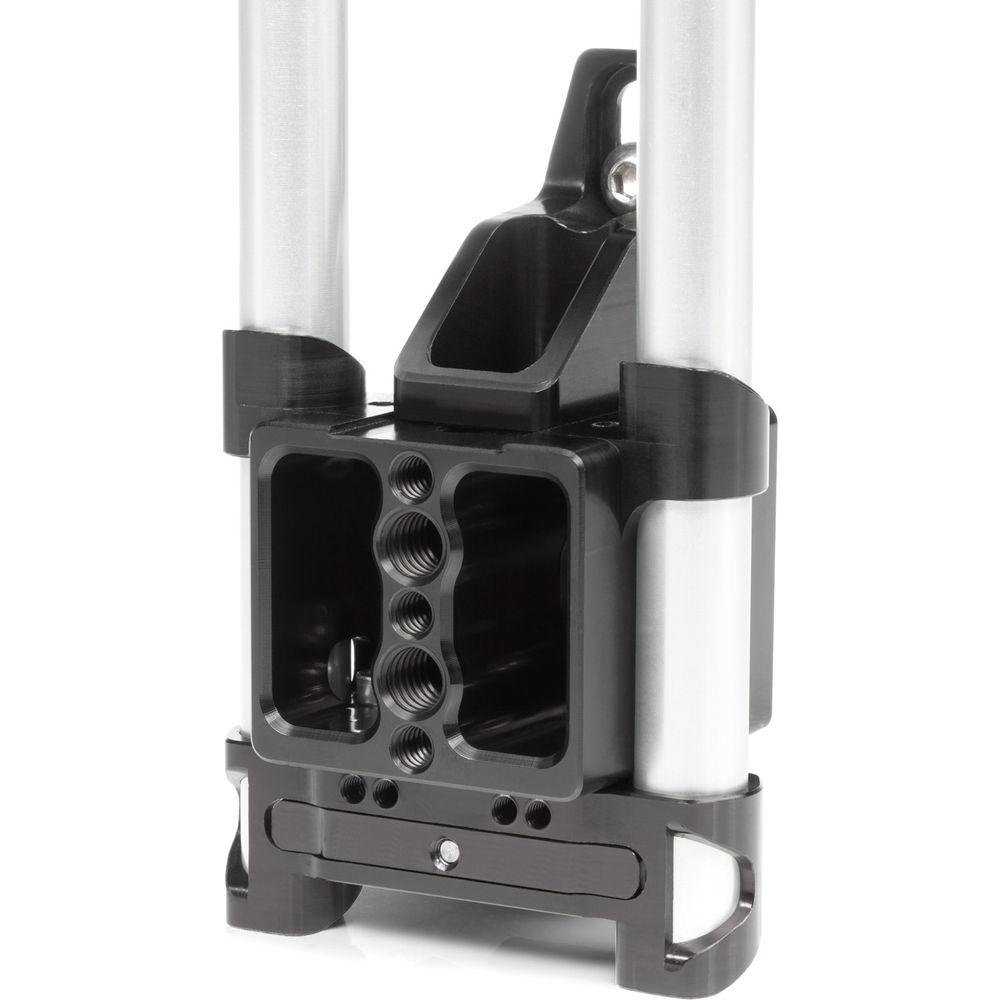

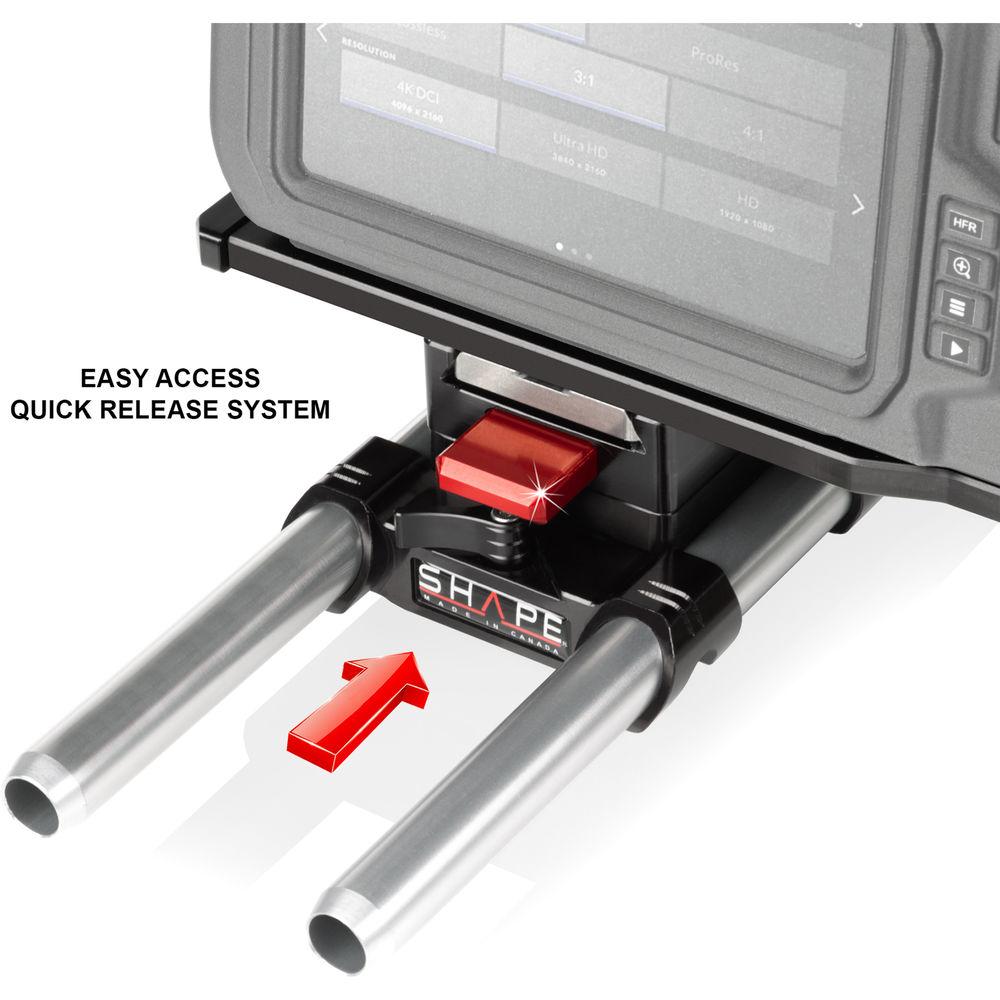

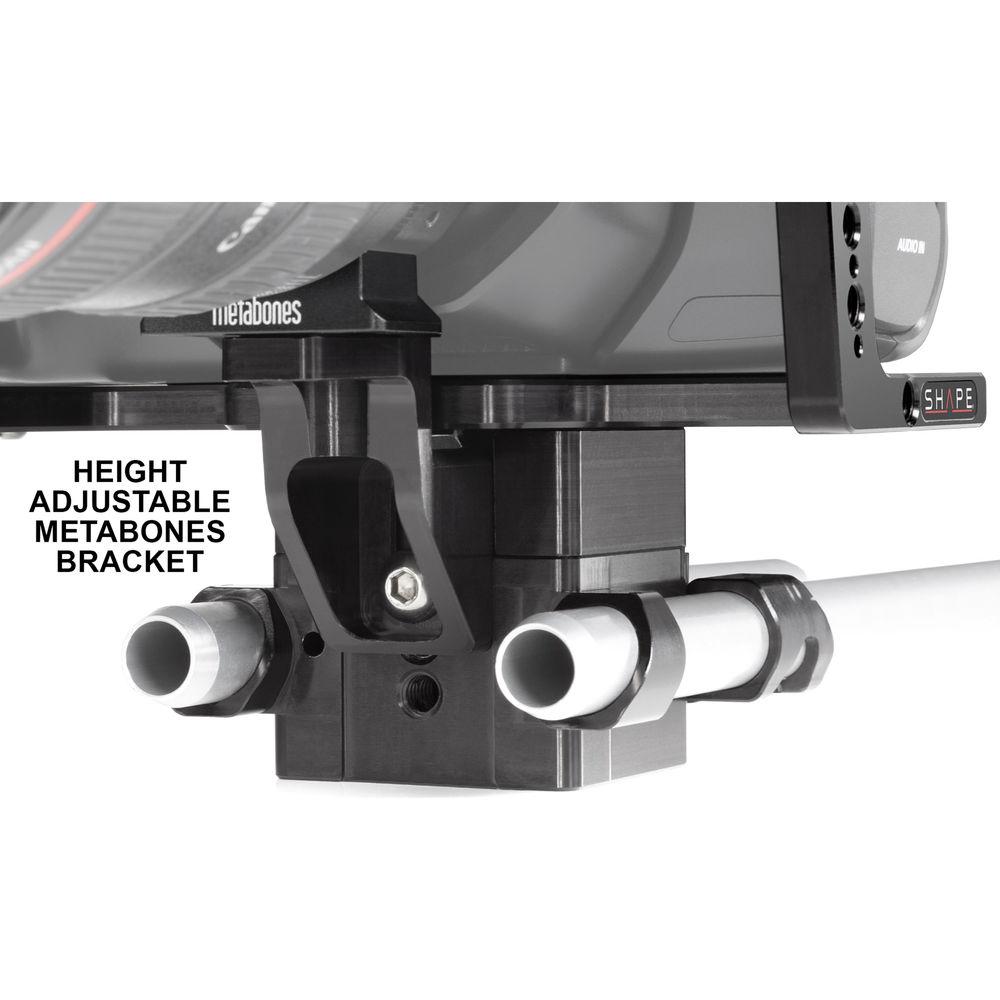

• 15mm Rod Quick Release Base System
• Shoulder Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cage for Blackmagic Pocket Cinema Camera 4K

  Material of Construction	CNC-Machined Aluminum
  Threaded Mounting Holes	1/4"-20, 3/8"-16 ARRI Anti-Twist
  Tripod Mount Threads	1/4"-20, 3/8"-16
  Dimensions	6.3 x 5.2 x 3.0" / 16.0 x 13.1 x 7.6 cm
  Weight	10.6 oz / 300 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.3"

• 15mm Rods (18", Pair)

  Diameter	15mm
  Length	18" (45.7 cm)
  Weight	0.4 lb (181.4 g)

  Box Dimensions (LxWxH)	18.5 x 2.992 x 0.236"

• Quick Handle + Rod Block

  Box Dimensions (LxWxH)	12.7 x 11.3 x 2.55"

• Friction & Gear Follow-Focus Clic with Adjustable Marker

  Box Dimensions (LxWxH)	9.606 x 5.906 x 3.937"

• 2-Stage 4 x 4" Matte Box

  Size	Matte Box Rings: 82, 90, 72, and 66 mm
  Height Adjustment Range	0.65" / 1.65 cm
  Dimensions	8 x 9 x 14" / 20.3 x 22.9 x 35.6 cm
  Weight	2.5 lb / 1.1 kg

  Box Dimensions (LxWxH)	20.9 x 7.5 x 5.6"
