User Manual for SHAPE Cage with 15mm Lightweight Rod System for Panasonic GH5 Click to enlarge the picture
Contents of the user manual for the SHAPE Cage with 15mm Lightweight Rod
- Product category: DSLR Video Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE DSLR Video Supports & Rigs
 |
User manual for the SHAPE Cage with 15mm Lightweight Rod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description - Panasonic Lumix GH5 Cage
- Panasonic GH5 Cage with Top Handle
- Panasonic GH5 Cage with 15mm rods
- Panasonic GH5 Cage with shoulder mount
- GH5 Cage with Offset shoulder mount
- GH5 Cage with Mattebox and Follow Focus
- GH5 Cage with Mattebox, Follow Focus and shoulder mount

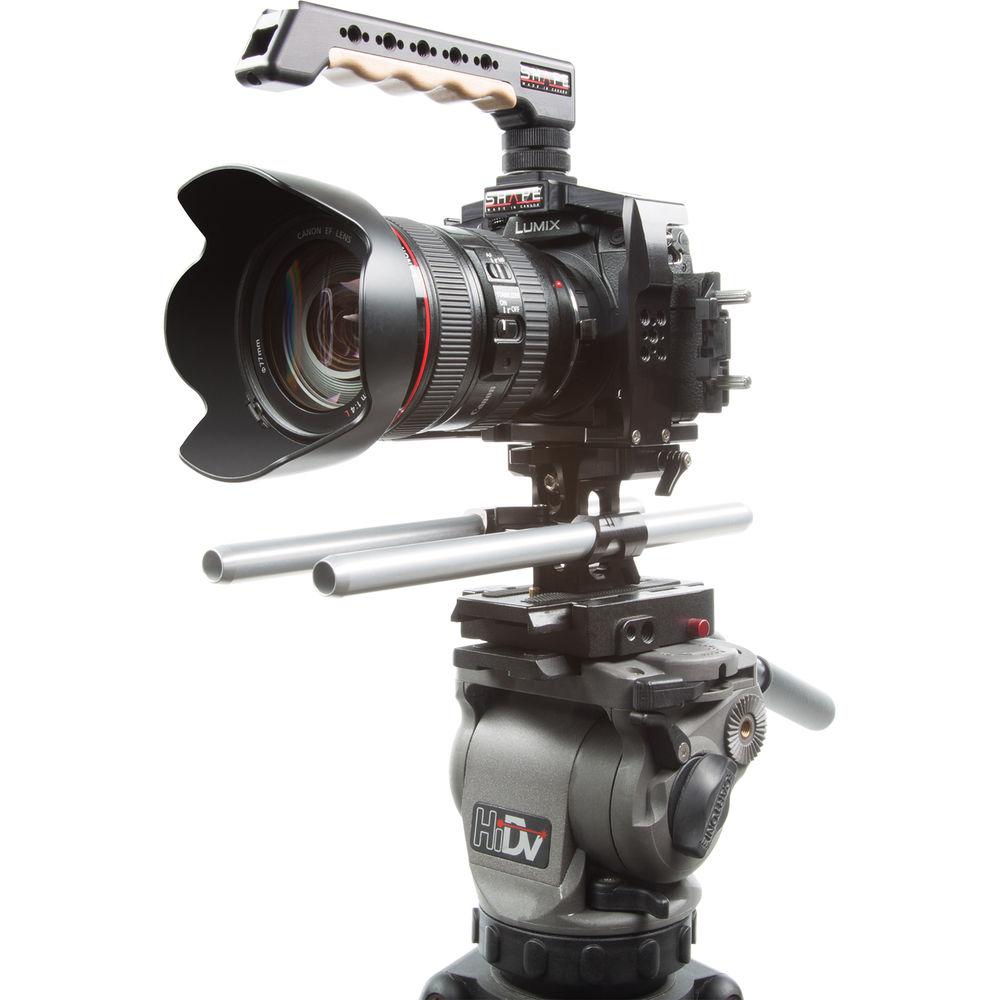

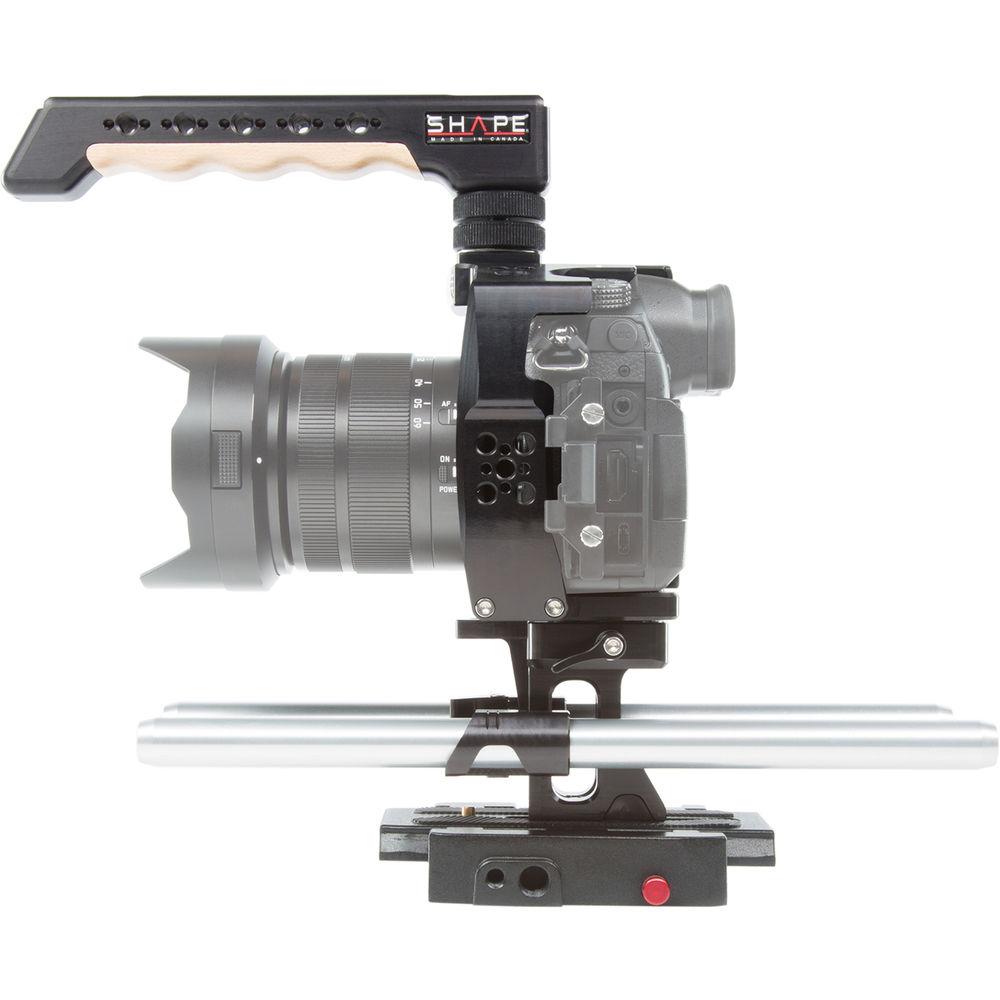

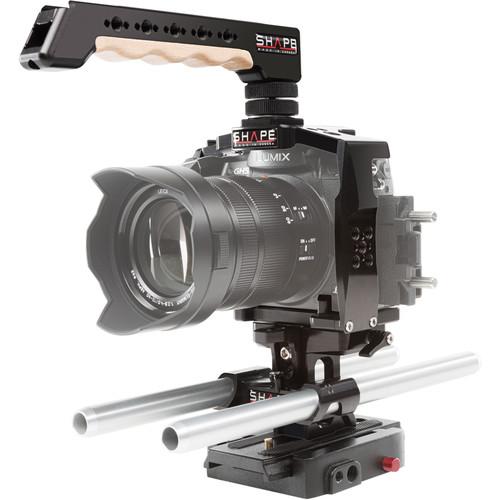

The SHAPE Cage with 15mm Lightweight Rod System for Panasonic GH5 includes a form-fitting cage, REVOLT top handle grip, quick release plate, adjustable Rod Bloc system, and a pair of 10" 15mm rods. The cage wraps securely around the GH5 camera body, preventing unwanted rotation while providing an abundance of 1/4"-20 and 3/8"-16 accessory threads. The camera is fixed to the cage by a 1/4"-20 screw under the unit, and the position is secured with the back and sides of the cage, so it will not move forward when equipped with a heavy lens.
The cage provides quick and easy access to the lens release button, battery door, and memory card. It features an open access on top for mounting accessories to the GH5's electronic hot shoe. A second built-in shoe on the side offers an additional accessory mounting point. The cage is designed to be compatible with the micro-HDMI cable protector lock on the side, to secure the use of your HDMI cable. The adjustable Rod Bloc system allows for optimal adjustment of your camera's optical center. Its travel height can be adjusted with the help of an Allen key. The included 10" rods can be inserted into the Rod Bloc system to attach more equipment.
The REVOLT top handle provides a comfortable grip on your camera and can be quickly inserted or removed with the built-in shoe attachment. The frame is made from robust aluminum, and the grip from Canadian maple wood for maximum comfort. The top handle is also threaded with multiple 1/4"-20 and 3/8"-16 screw threads for mounting accessories. This rig system can be used as a table stand or can be attached to a tripod, thanks to the quick release baseplate. The baseplate features a removable support bracket for the Metabones EF adapter. In the absence of a Metabones adapter, the 1/4"-20 screw is captive so you don't have to remove it from the cage when sliding the bracket from under the cage. UPC: 629266006740 In the Box SHAPE Cage with 15mm Lightweight Rod System for Panasonic GH5 Cage for Panasonic GH5 zyfcwqyqevuucaft Top Handle Cold Shoe for DSLR Camera zyfcwqyqevuucaft Quick Release Baseplate Adjustable 15mm Rods Bloc System 15mm Aluminum Rods (Pair, 10") Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Cage with 15mm Lightweight Rod System for Panasonic GH5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE GH5ROD Specs | Material | CNC Machined aluminum | | Dimensions | 5.5 x 10.0 x 11.0" (13.97 x 25.4 x 27.9 cm) | | Weight | 2.35 lb (1.07 kg) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 8.7 x 7.4 x 4.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
