User Manual for SHAPE Cage with DSLR Top Handle for Sony a7R III a7 III Camera Click to enlarge the picture
Contents of the user manual for the SHAPE Cage with DSLR Top Handle
- Product category: DSLR Video Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE DSLR Video Supports & Rigs
 |
User manual for the SHAPE Cage with DSLR Top Handle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

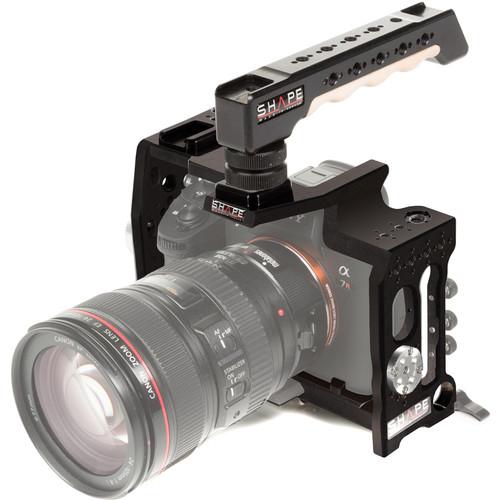

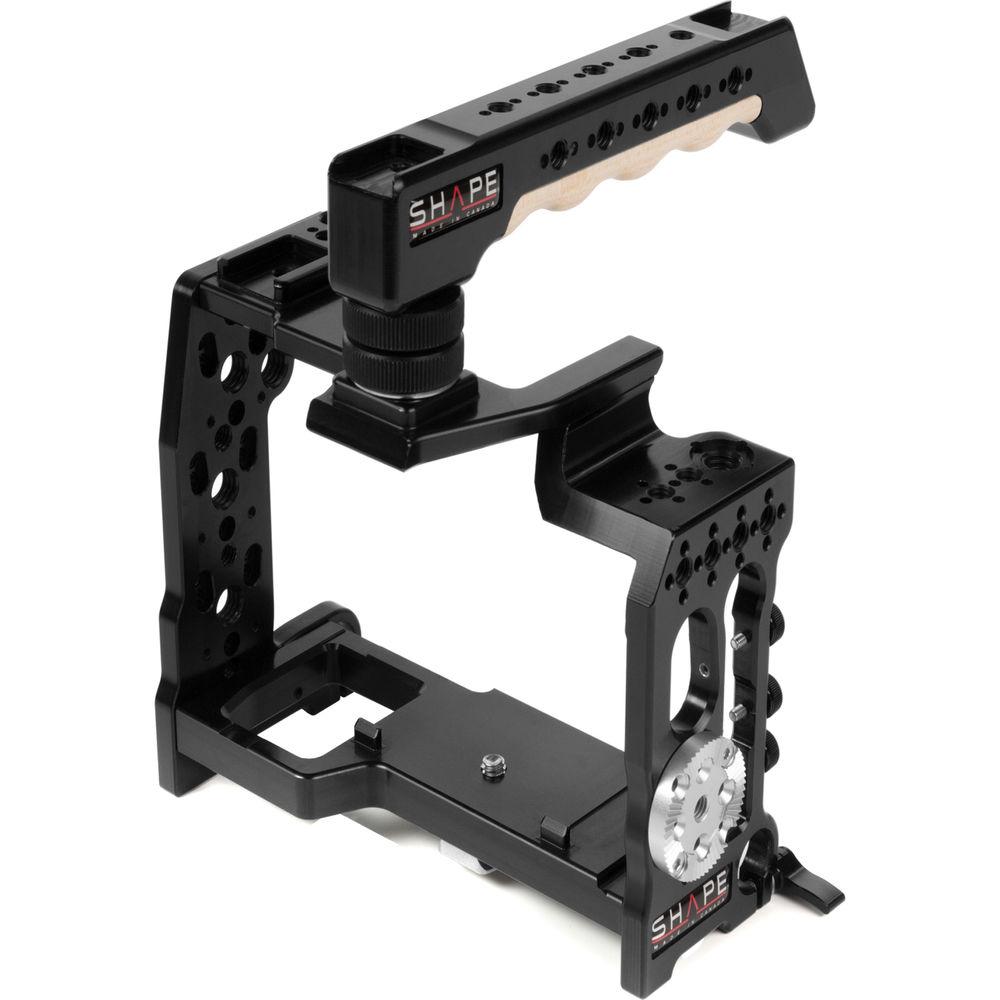

Product description The Cage with DSLR Top Handle from SHAPE is designed to be used with the Sony a7R III or a7 III camera. It includes the Sony a7R III/a7 III formfitting ergonomic cage which features a horizontal 15mm rod clamp on both sides. It provides access to all controls and ports, as well as multiple attachment points for accessories. The included DSLR handle with two cold shoes and fifteen 1/4"-20 mounting threads can be mounted either at the front or back of the cage. - Ergonomic Cage for Sony a7R III/a7 III Camera The Ergonomic Cage for Sony a7R III/a7 III from SHAPE is a formfitting cage designed for the a7R III or a7 III 4K camera. It protects the camera by securely locking it to the cage. It provides access to all controls and ports, as well as multiple attachment points for accessories. It is equipped with a cable retainer system for securing the three left side cables, and is compatible with a full-sized HDMI cable protector lock to secure the use of your HDMI cable.
There are multiple mounting options for accessories including two cold shoe mounts on top of the cage. These include thirteen 1/4"-20 anti-rotating hole patterns, five ARRI 3/8"-16 anti-rotating hole patterns. 3/8"-16 anti-rotating hole patterns, and two UNC 3/8"-16 threaded mounting holes. This cage is made from CNC Machined aluminum and is compatible with the Sony XLR-K2M audio unit. It features an ARRI rosette that can be mounted in four different locations. - Simple, hassle-free, ergonomic design for filmmakers, videographers, and photographers
- Horizontal 15mm rod clamp on each side allows for the positioning of a 15mm rod
- Easy access to the camera's features such as the control buttons, side outputs, memory card, the battery compartment, and the lens release button
- The support between the lens and the camera grip is designed to anticipate a clearing for the fingers when the camera is handheld, allowing for an ergonomic grip
- Easy to assemble and disassemble, the components don't need to be removed to install the camera
- The camera is held in place by a 1/4"-20 captive screw integrated into the base of the cage, and secured by the back and sides so it doesn't move forward when equipped with a heavier lens
- You can attach a Delta adapter plate (sold separately) underneath the cage to mount it on a quick release plate to switch from a tripod to a handheld setup
- You can operate the camera without having to remove the cable doors, and the strap hooks can remain attached to the camera while inserted in the cage
- CNC Machined 6061-T6 aluminum holds the camera securely in place and restricts it from rotating with two anti-rotating tabs at the front
- HDMI cable protector lock
UPC: 629266007860 - Top Handle Cold Shoe for DSLR Camera The SHAPE Top Handle Cold Shoe for DSLR Camera is CNC machined from aluminum and features a wooden finger grip made from Canadian maple. The handle mounts onto the shoe of your camera or cage and can be inserted to face forward or rearward. It incorporates a total of 15 1/4"-20 threaded mounting holes and two cold shoe mounts, one at the front of the handle and one at the back.
- The top handle attaches to your camera's hot shoe and uses a thumbwheel to secure it in place.
- 15 integrated 1/4"-20 threaded mounting holes enable mounting accessories along the length of the handle.

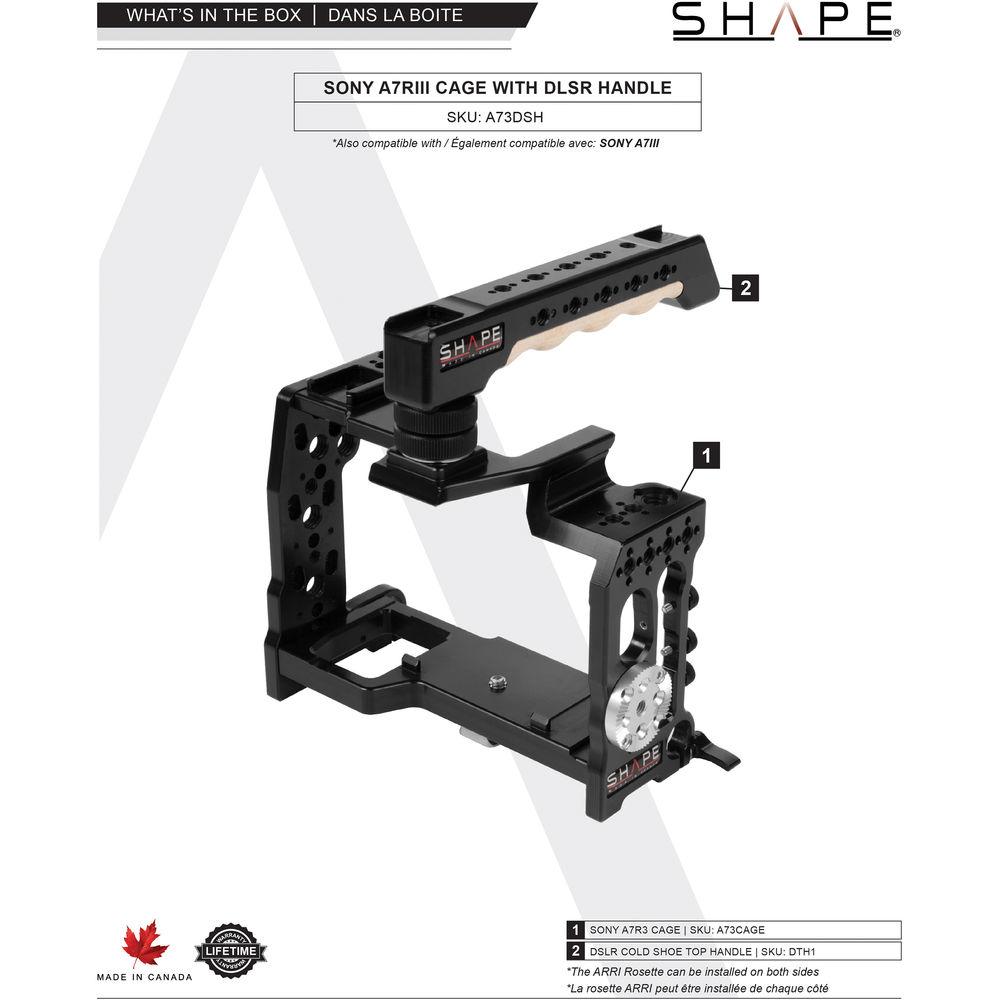

UPC: 629266006900 In the Box Bundle Items Ergonomic Cage for Sony a7R III/a7 III Camera fawesveacqtwsadarv - Limited Lifetime Warranty
Top Handle Cold Shoe for DSLR Camera - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Cage with DSLR Top Handle for Sony a7R III a7 III Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ergonomic Cage for Sony a7R III/a7 III Camera
| Compatible Cameras | Sony a7R III and a7 III | | Material | CNC Machined aluminum | | Dimensions | 5.2 x 6.3 x 3.0" / 13.1 x 16.0 x 7.6 cm | | Weight | 10.6 oz / 300 g | | | | Box Dimensions (LxWxH) | 8.6 x 7.4 x 4.3" | - Top Handle Cold Shoe for DSLR Camera
| Material of Construction | CNC machined aluminum, Canadian maple wood | | Accessory Mounting | 2 x Cold shoes
15 x 1/4"-20 threaded mounting holes | | Dimensions | 6.5 x 1 x 2" / 16.51 x 2.54 x 5.08 cm | | Weight | 0.51 lb / 0.23 kg | | | | Box Dimensions (LxWxH) | 8.7 x 5.3 x 2.4" |
