Product description Take your compact Sony a7 II-series mirrorless camera and create an ergonomic shoulder-mounted rig for video with this Cage with Offset Shoulder Mount System from Shape. Centered around the form-fitting cage with quick release baseplate, this setup provides all the pieces necessary for a comfortable shoulder-mounted rig, including longer 12" 15m rods, an offset bracket, a set of quick handles with rod bloc, a mini composite shoulder pad, and a back pad.

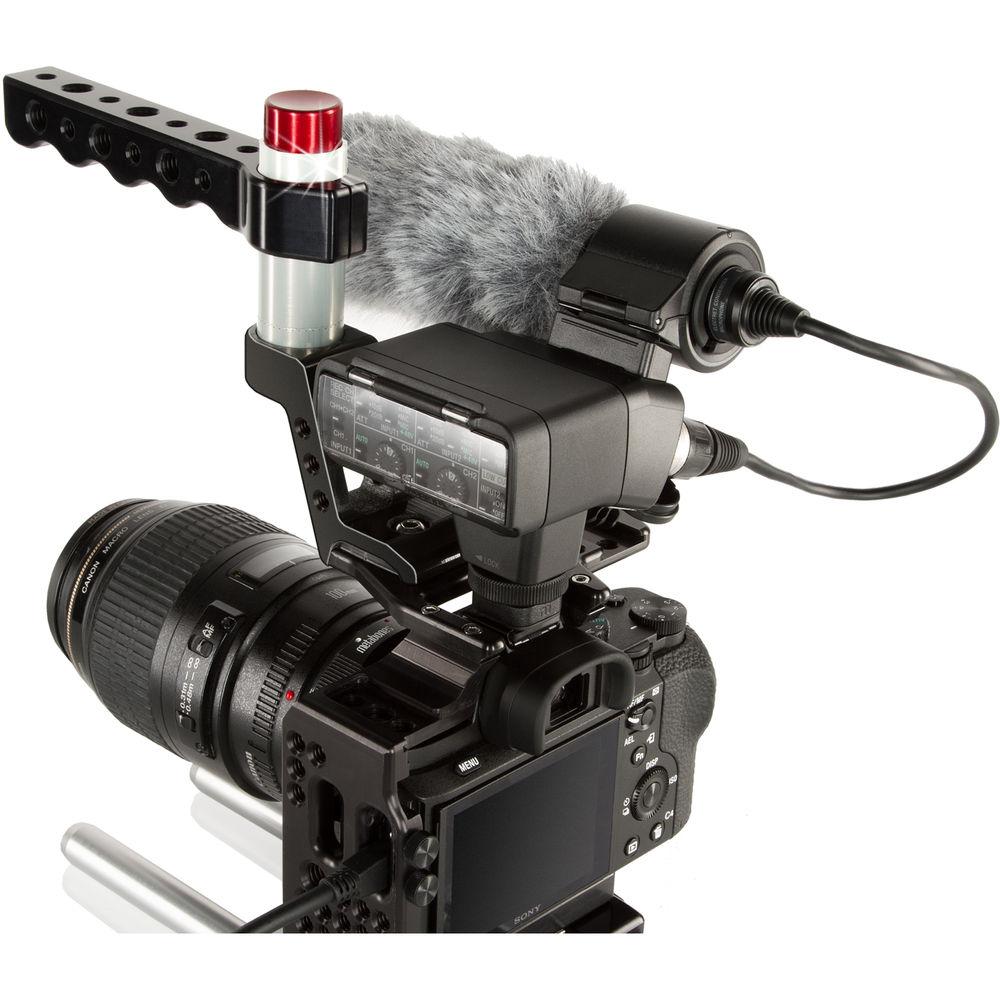

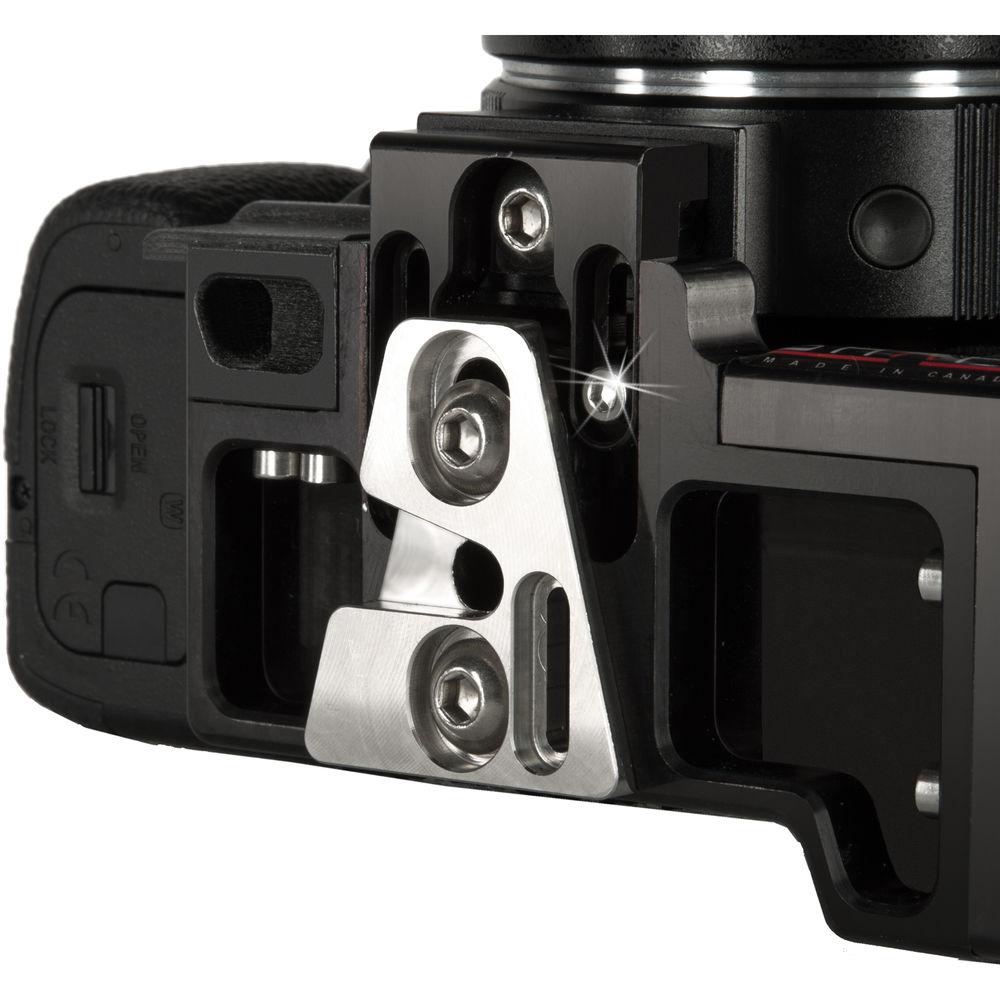

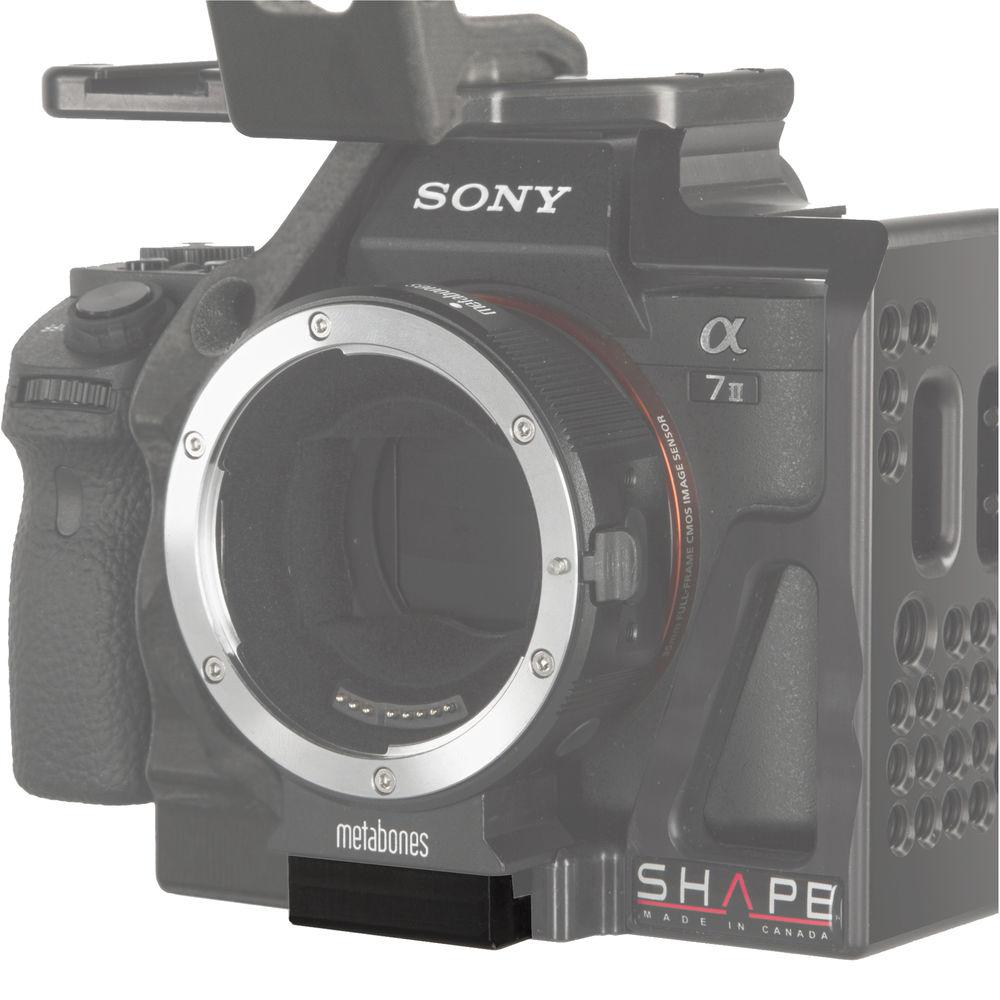

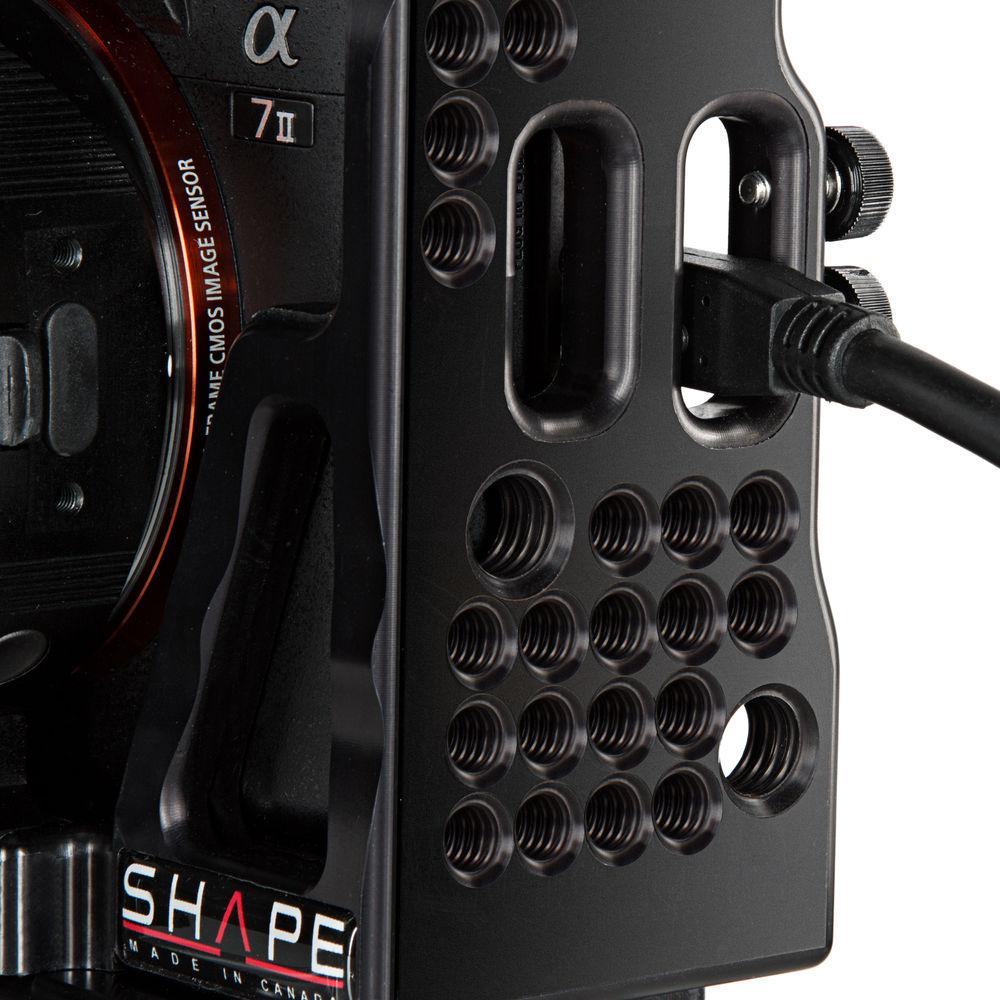

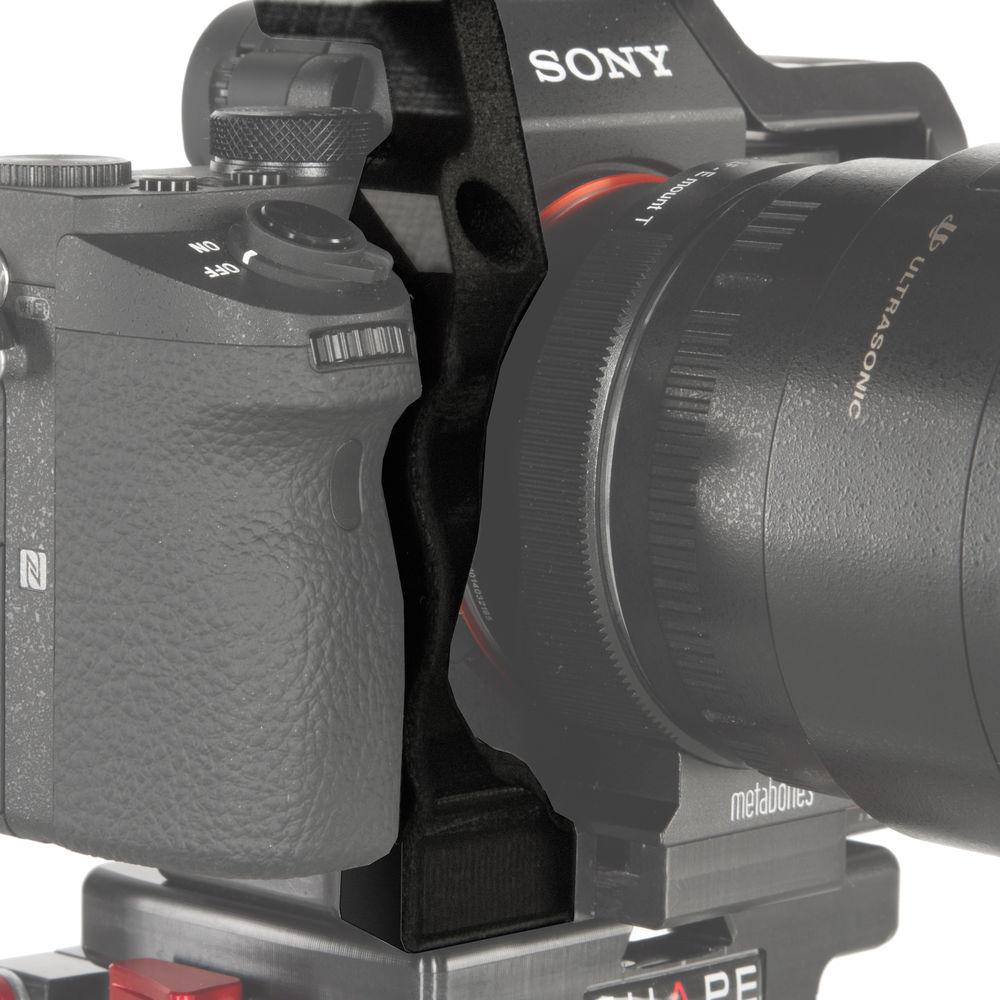

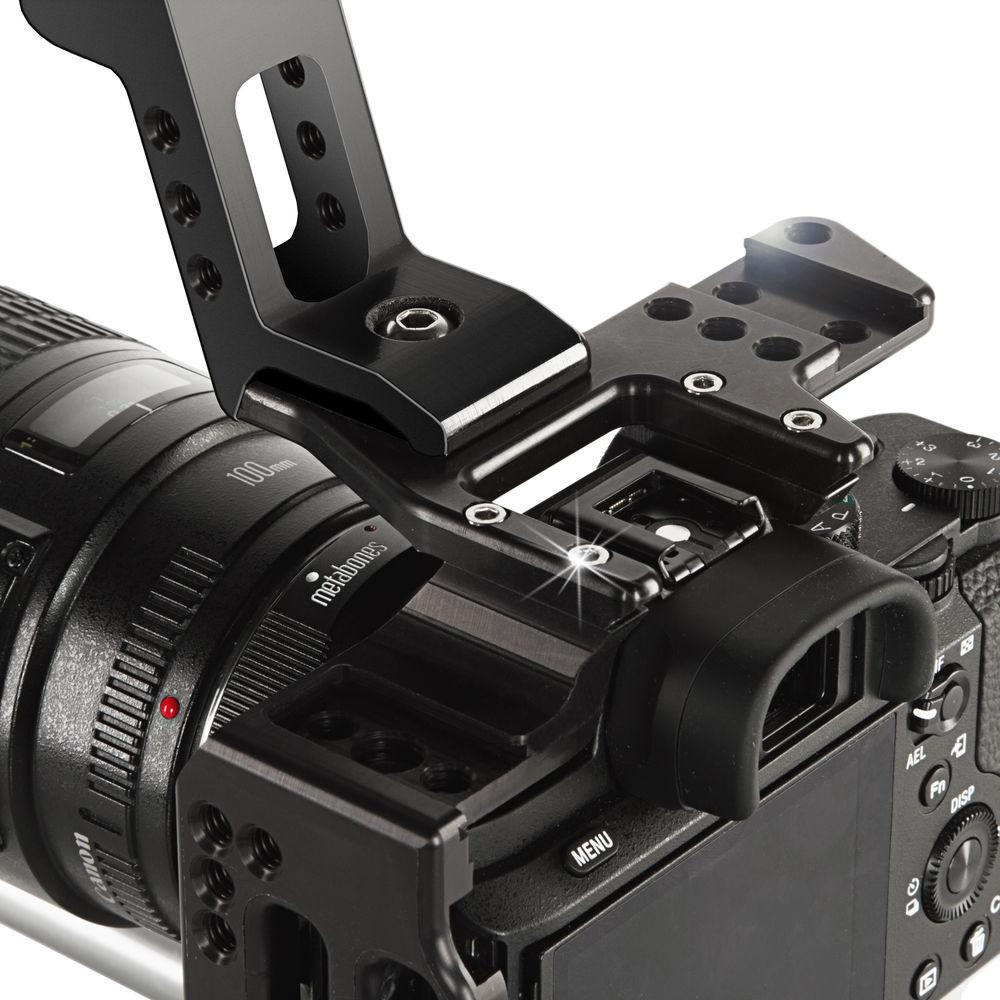

The entire system will amplify your abilities and allow for quick customization while retaining full access to your camera's controls, ports, and slots. Also, the camera will not rotate when secured, the cage has numerous 1/4"-20 and 3/8"-16 threads for accessories, and there is an HDMI cable protector lock. The setup has a support bracket for the Metabones EF adapter, and it is compatible with the Sony XLR-K2M XLR Adapter. - Cage with 15mm Rod System for Sony a7 II, a7S II, & a7R II Transform your a7 II series mirrorless camera into a capable video-shooting system with the Cage with 15mm Rod System from Shape. This model starts with a form-fitting cage that provides multiple attachment points for accessories, a removable, rotatable top handle, and a quick release baseplate system with two 15mm rods for other videomaking tools. The cage itself retains access to all controls and ports and prevents the camera from rotating. It offers multiple 1/4"-20 and 3/8"-16 threads for accessories as well as a cold shoe mount on the top. It is easily mounted to tripods and has an HDMI cable protector lock. Additionally, it has a support bracket for the Metabones EF adapter and is compatible with the Sony XLR-K2M XLR Adapter. UPC: 629266005033
- Off-Set Bracket for Blackmagic Cage The SHAPE Off-Set Bracket will fit on the SHAPE Blackmagic Cage and Shoulder Mount. UPC: 629266001462
- Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle - Provides professional video stabilization with 2 handles
- Each handle offers 360° individual rotation
- Offers easy attachment/removal
Rod Block - Composed of anodized aluminum
- Offers composite camera support for all 15mm rods
- Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
- With 2 screw-threaded holes, the Rod Block provides for attachment of components
UPC: 629266000793 - Mini Composite Shoulder Pad The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into. UPC: 629266000830
- Back Pad The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
- Compatible Support Series
-
- Composite
- Cameleon
- Sumo
- Spider
UPC: 629266001202 - 15mm Aluminum Rods (Pair, 12") This pair of Shape 15mm Aluminum Rods (12") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001714 In the Box Bundle Items Cage with 15mm Rod System for Sony a7 II, a7S II, & a7R II yrrrvadqsqurczyctbadswsyywfsez - Cage for Sony a7 II, a7S II, & a7R II
- Top Handle for Sony a7S II, a7R II, and a7 II Cages
Off-Set Bracket for Blackmagic Cage - Limited 1-Year Warranty on Parts & Labor
Quick Handle + Rod Block Mini Composite Shoulder Pad - Camera Screw Knob (1/4"-20)
Back Pad - Limited Lifetime Warranty
15mm Aluminum Rods (Pair, 12") - Limited Lifetime Warranty
User Manual PDF 14.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Cage with Offset Shoulder Mount System for Sony a7 II, a7S II, & a7R II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cage with 15mm Rod System for Sony a7 II, a7S II, & a7R II
| Material | Aluminum | | Mount Types | Shoe mount
Metabones adapter support bracket
1/4-20" camera mounting thread
1/4-20" and 3/8-16" accessory mounting threads | | | | Box Dimensions (LxWxH) | 14.2 x 6.0 x 4.4" | - Off-Set Bracket for Blackmagic Cage
| | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 2.3" | - Quick Handle + Rod Block
| | | Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" | - Mini Composite Shoulder Pad
| | | Box Dimensions (LxWxH) | 6.5 x 4.3 x 3.4" | - Back Pad
| Material of Construction | Anodized aluminum | | Adjustments | Up/Down: 2" (5 cm)
Right/Left: 360° | | Weight | 0.5 lbs (0.2 kg) | | | | Box Dimensions (LxWxH) | 8.3 x 4.8 x 4.5" | - 15mm Aluminum Rods (Pair, 12")
| Diameter | 15 mm | | Length | 12 inches (30.5 cm) | | Material | Aluminum with a clear finish applied over it | | | | Box Dimensions (LxWxH) | 12.4 x 3.2 x 1.1" |
