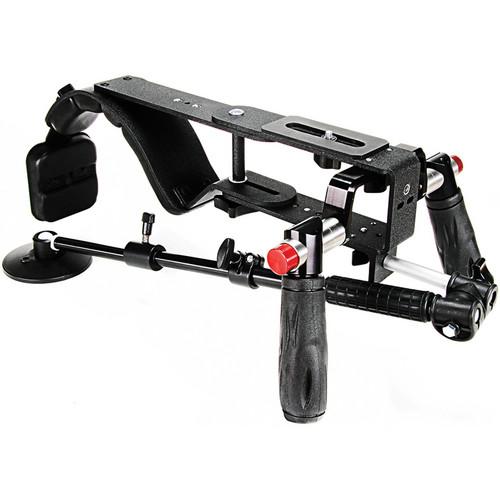

User Manual for SHAPE Cameleon II Camera Support Click to enlarge the picture
Contents of the user manual for the SHAPE Cameleon II Camera Support
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
|
User manual for the SHAPE Cameleon II Camera Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description The Shape Cameleon II Camera Support consists of the CA Shoulder Rig, Arm1 Telescopic Support Arm, Hand6 Quick Handle, and Pad1 Back Pad. It is designed to be used on either shoulder. The camera support is also compatible with most video and DSLR cameras with a standard 1/4-20 threaded socket. When worn, the camera platform (and the base of the camera) is placed 0.75" (1.9cm) above the tip of the shoulder. This rig is manufactured from lightweight aluminum and is powder coated with a wrinkle finish. The shoulder pad is cushioned for comfort. The CA Shoulder Rig can be adjusted to fit your needs and body type. All modifications can be done using knobs on the device, and you can arrange the camera and attach it to the rig using a standard 1/4-20 screw. This knob can be reached through a 3" (7.5 cm) opening on the camera platform. The angle that the camera is pointing at can also be adjusted. Using a knob, you can adjust the Back Pad or even remove it when not required. The Shoulder Rig features a Telescopic Support Arm that can be extended or retracted to fit your body type, and can be removed when not needed. It can also be attached to a tripod head via an optional quick-release plate that can be attached underneath the camera platform. You can achieve augmented stability and versatility for the camera support using the Arm1 Telescopic Support Arm, a Manfrotto 233B Camera Mount Bracket with a 4" cup provides large surface contact area. You can extend the Telescopic Support Arm from a length of 14-20". Rotation of 360° along both vertical and horizontal axes is possible via the rotating arm. You can place the cup on a stable surface such as your waist, hip, thigh, or a nearby wall, or on the ground. Positioned on either side of the shoulder that the rig is worn on, the Hand6 Quick Handle consists of 2 handles. Each handle is ergonomically designed and can be rotated 360°, offering a firm grip. The handles are equipped with buttons which when pressed allow the handle to be rotated, and when released hold the handle tightly in place. The Pad1 Back Pad adds stability to the rig, and can be separated from the rig by means of a screw knob. It can easily be adjusted to suit your body type, and adjusts upwards and downwards through a distance of 0.25-1" (3cm) and through 360° from left to right. The Back Pad features a 1/4-20 threaded hole that can be used to attach the optional Shape Box or another compatible accessory. It weighs 0.35 lb (0.160 kg). - Cameleon II
-
- Consists of CA Shoulder Rig, Arm1 Telescopic Support Arm, Hand6 Quick Handle, and Pad1 Back Pad
- Designed to be used on either shoulder
- Compatible with most video and DSLR cameras with a standard 1/4-20 threaded socket
- Comfortable positioning of camera - 0.75" (1.9cm) above the shoulder tip, ensures user ease for positioning the viewfinder and/or LCD monitor
- Manufactured from lightweight aluminum - with powder coated wrinkle finish
- Cushioned Back Pad ensures user comfort during extended periods of usage
- CA Shoulder Rig
-
- Easily adjusted to suit your needs and body type
- Modifications done with knobs; no specialized tools required
- Camera can be fixed to the Shoulder Rig with the help of a standard 1/4-20 screw
- Allows easy and quick adjustment of camera angle
- Removable Telescopic Support Arm for quick adjustment
- Optional quick-release plate to transfer the camera onto a tripod and back onto the rig
- Compatible with Shape Box, 15mm Rod System, and other optional Shape accessories
- Camera platform can be adjusted back and forth through a distance of 2.25" ( 5.7cm) to ensure comfortable viewing distance of the camera's LCD monitor or viewfinder
- Arm1 Telescopic Support Arm
-
- Manfrotto 233B Camera Mount Bracket
- Offers increased stability and versatility for camera support
- 4" cup provides large surface contact area
- Provides arm extension range of 14-20"
- Allows 360° arm rotation along vertical and horizontal axes
- Allows placement of the cup on stable surfaces such as waist, hip, thigh, or a nearby wall, or on the ground
- Easy attachment and removal of the cup lends versatility to the Telescopic Support Arm
- Hand6 Quick Handle
-
- Consists of 2 handles that can be individually rotated through 360° in the vertical plane
- Ergonomically designed for firm grip
- Outfitted with buttons for quick-release and adjustment while shooting
- Handle core is manufactured out of heavy duty technopolymer
- Handles made of non-slip rubber
- Arms of the quick handle made of 0.125" thick aluminum
- Pad1 Back Pad
-
- Weighs 0.35 lb (0.160 kg)
- Can be removed from the rig by means of a single knob
- Can be adjusted upwards or downwards through a distance of 0.25 -1" (3cm) and through 360° from left to right
- Compatible with Shape Box and other accessories
- Adds stability and comfort to the Shoulder Rig
UPC: 629266000571 Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Cameleon II Camera Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE CA1200 Specs | | | Package Weight | 5.725 lb | | Box Dimensions (LxWxH) | 21.25 x 7.4 x 4.85" |
