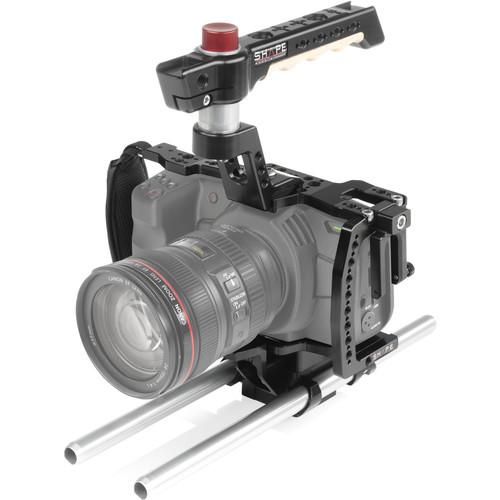

User Manual for SHAPE Camera Cage with 15mm Rod System for Blackmagic Pocket Cinema 4K Click to enlarge the picture
Contents of the user manual for the SHAPE Camera Cage with 15mm Rod
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
 |
User manual for the SHAPE Camera Cage with 15mm Rod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

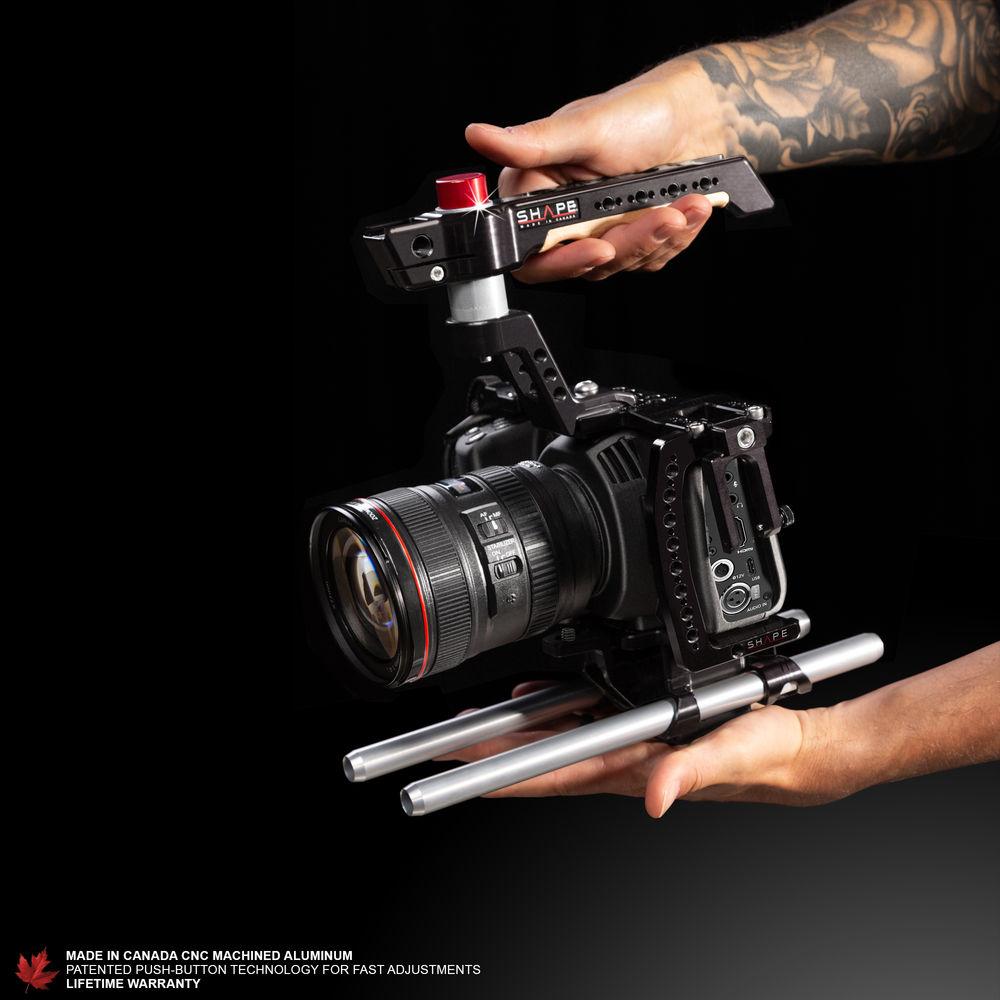

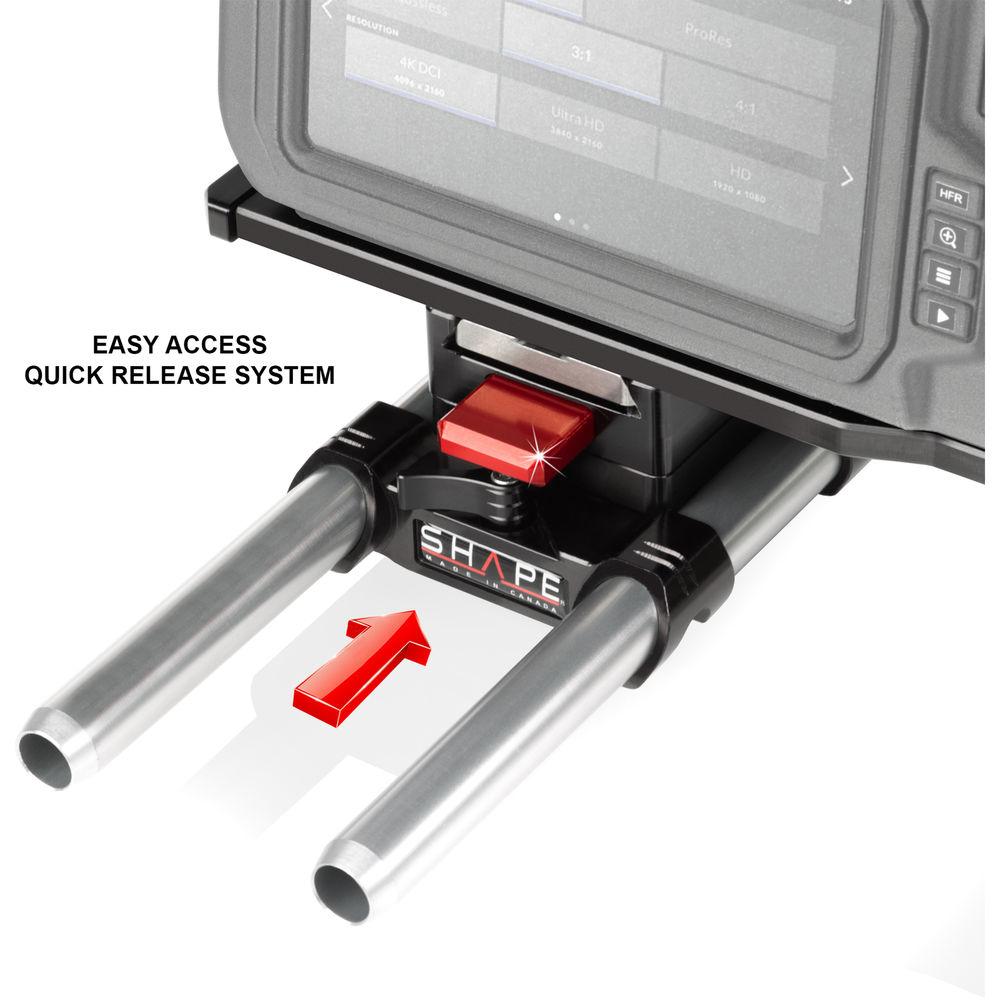

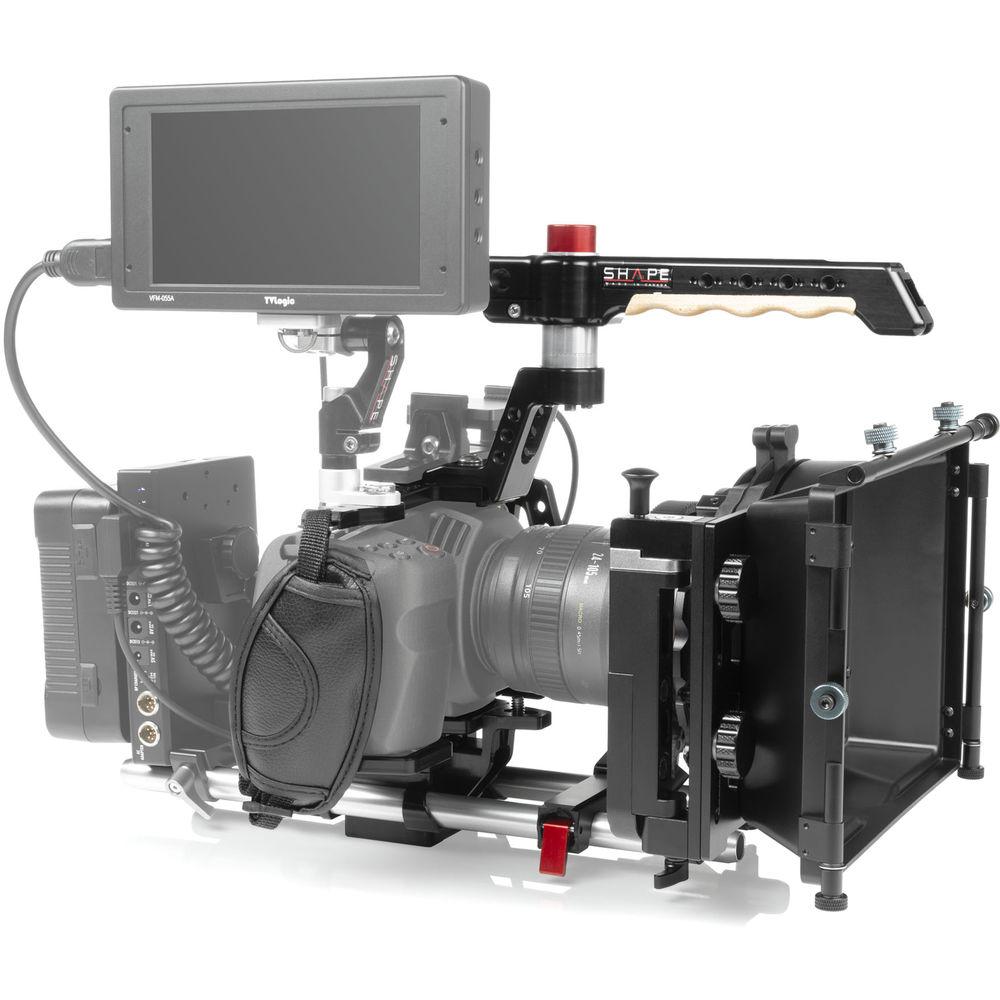

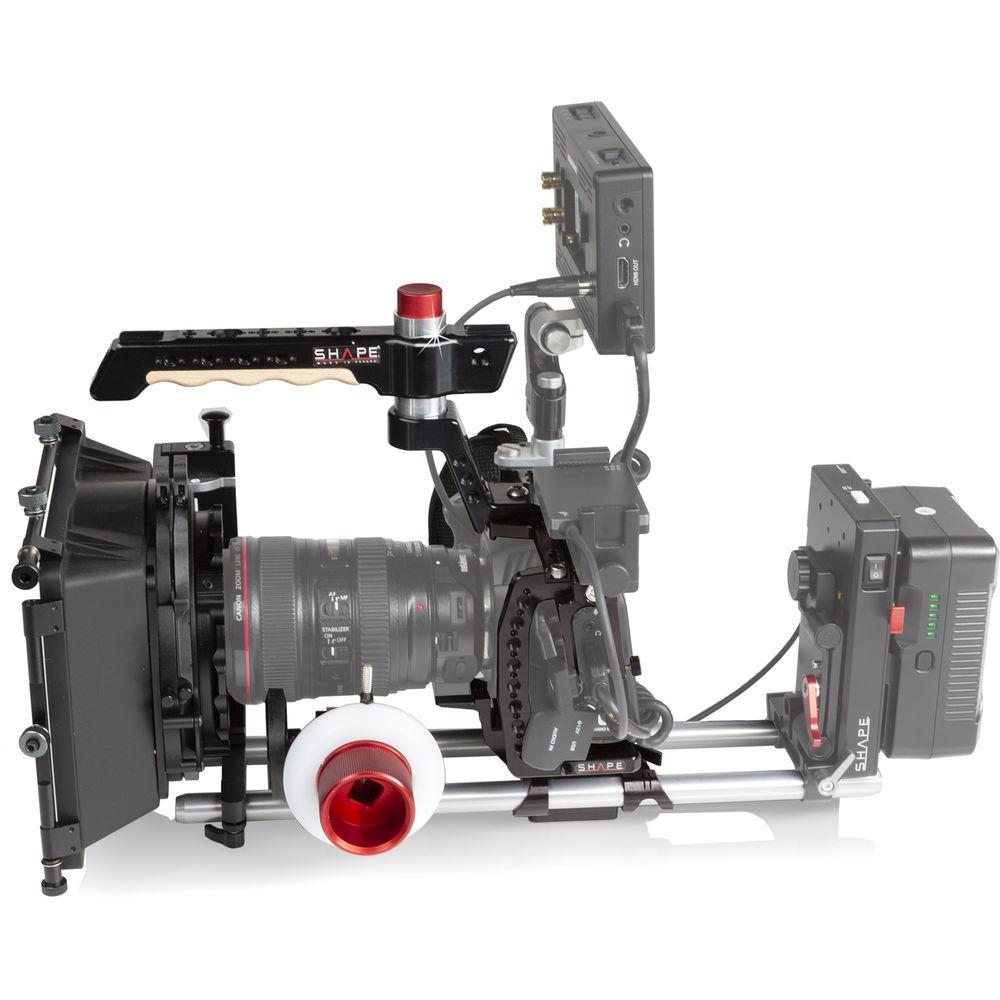

Product description Transform your Blackmagic Pocket Cinema 4K camera into a sturdy video rig system with the Camera Cage with 15mm Rod System from SHAPE. This model starts with a formfitting cage that provides multiple 1/4"-20 mounting threads for accessories. On top, a removable, rotatable top handle with two cold shoe mounts and a push-button for adjustment provides multiple 1/4"-20 and 3/8"-16 mounting threads. On the bottom, a quick release baseplate system with two 15mm rods for mounting additional accessories like a matte box, follow focus, or battery plates is included.
The cage is made from CNC-machined aluminum, and the top handle has a comfortable maple wood grip. It is easily assembled and mounted to tripods or shoulder rig systems, and has an HDMI cable lock to protect your cabling. Additionally, the baseplate provides a removable Metabones support bracket for heavier lens configurations. - Formfitting cage with top handle and baseplate with 15mm rod system made from CNC-machined aluminum
- Preserves access to all camera controls, cables, slots, and ports

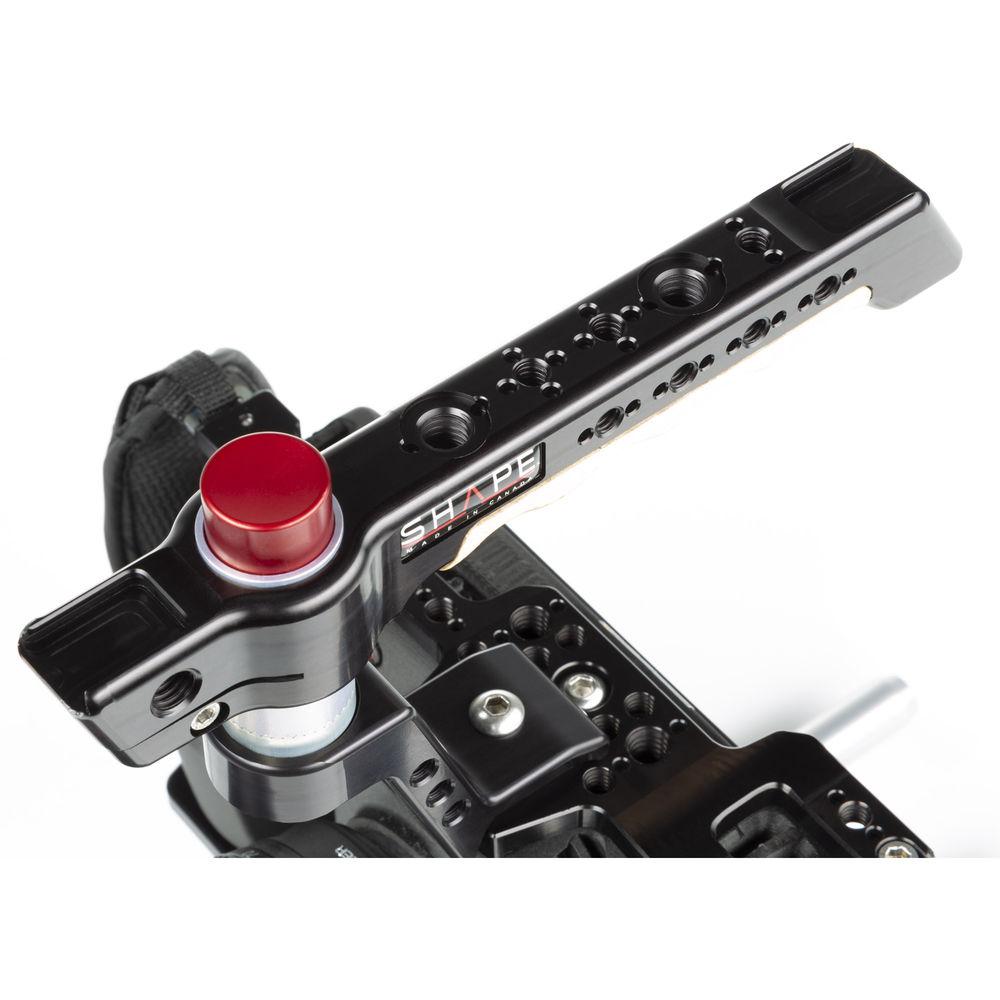

- Top handle provides multiple 1/4"-20 and 3/8"-16 mounting threads, two cold shoe mounts on front and back, a maple wood grip, and a push-button for easy rotation

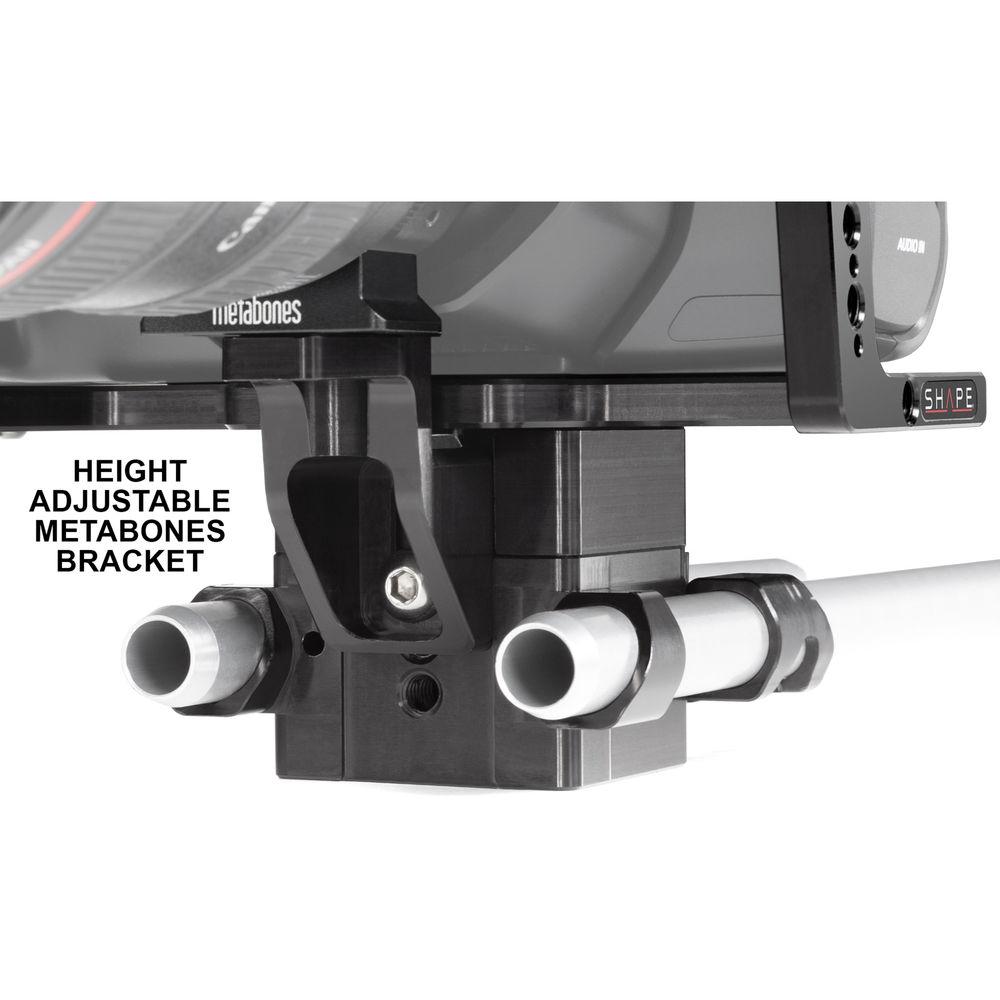

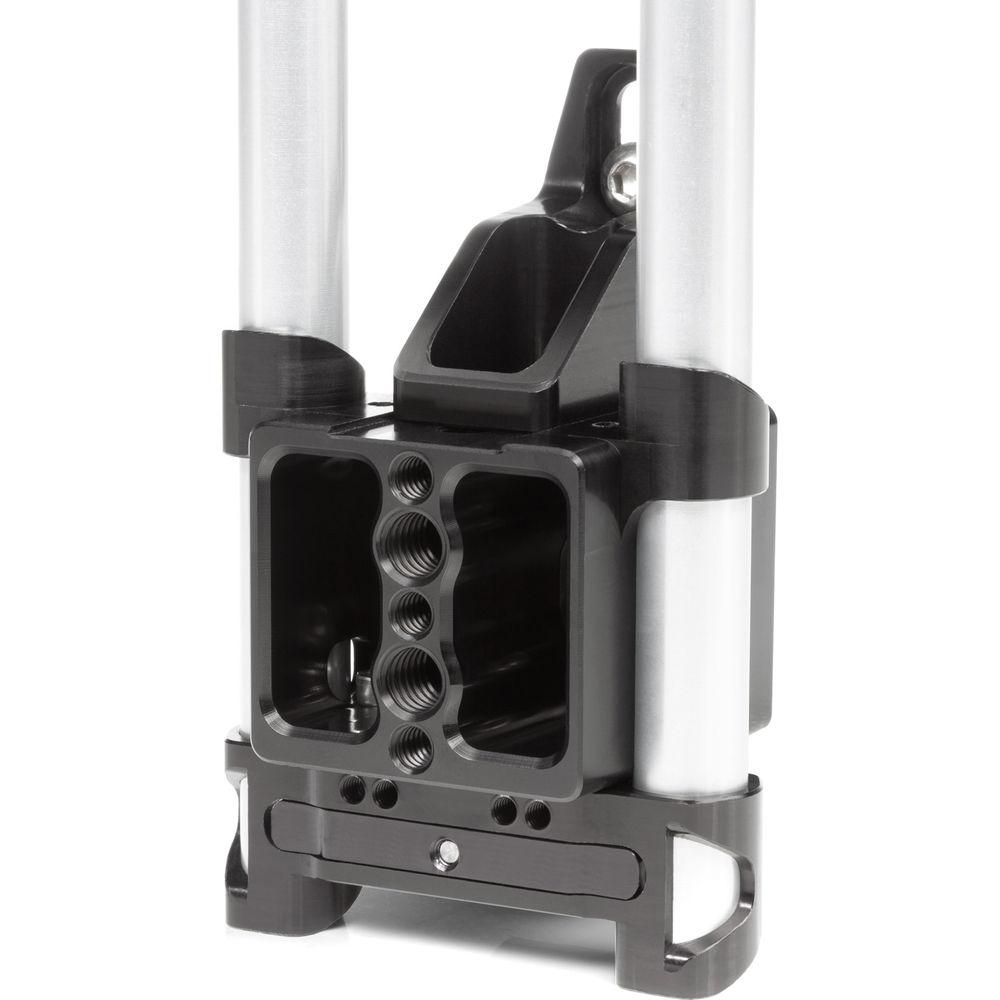

- Baseplate connects two 15mm rods for mounting accessories and features a Metabones support bracket for heavier lenses

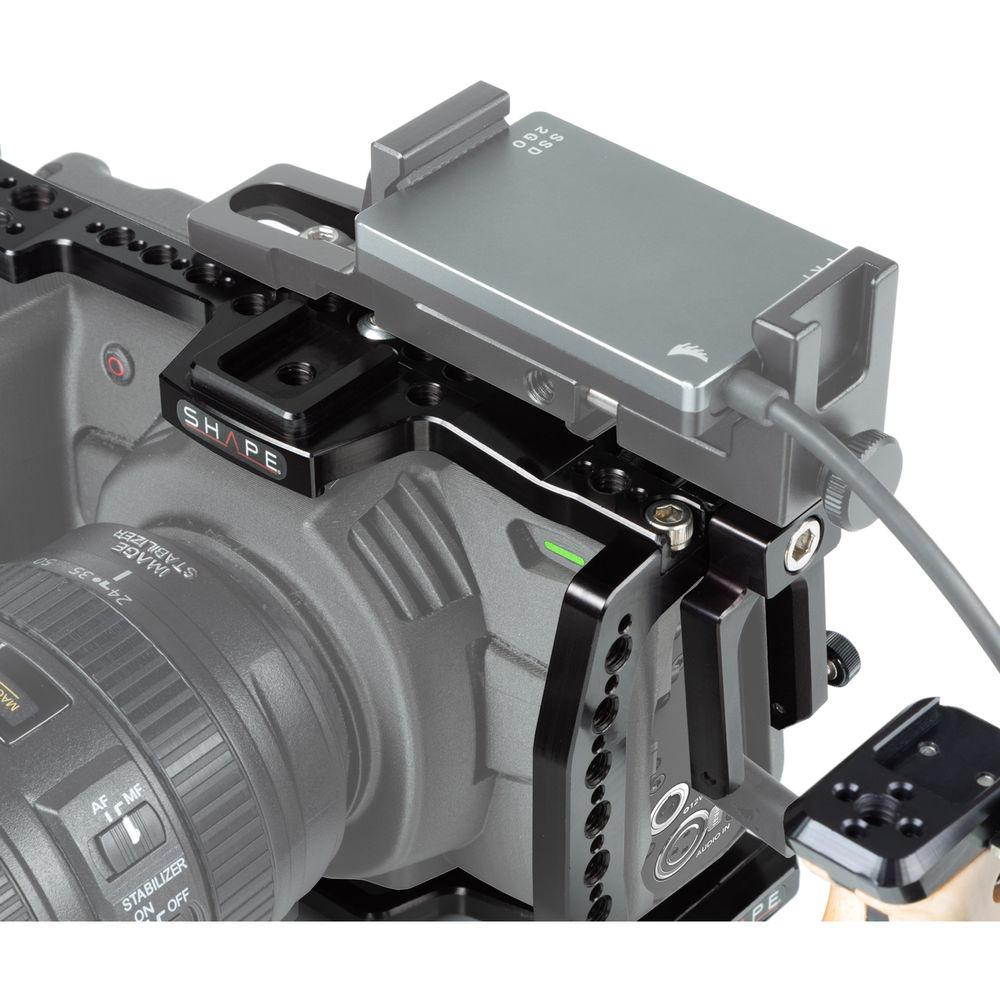

- HDMI cable locking system to protect full-size HDMI cables
UPC: 629266008690 In the Box SHAPE Camera Cage with 15mm Rod System for Blackmagic Pocket Cinema 4K Cage for Blackmagic Pocket Cinema Camera 4K zdzcvqdutsywctye Wooden Top Handle with Push-Button Quick Release Baseplate 2 x 15mm Aluminum Rods (Pair, 10") Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Camera Cage with 15mm Rod System for Blackmagic Pocket Cinema 4K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE C4KROD Specs | Material of Construction | CNC-machined aluminum, maple wood | | Rod System | 15 mm | | Threaded Mounting Holes | 1/4"-20 and 3/8"-16 | | Dimensions | 11 x 6.3 x 10.4" / 27.8 x 16 x 26.3 cm | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 3.165 lb | | Box Dimensions (LxWxH) | 19.1 x 14.5 x 10.4" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
