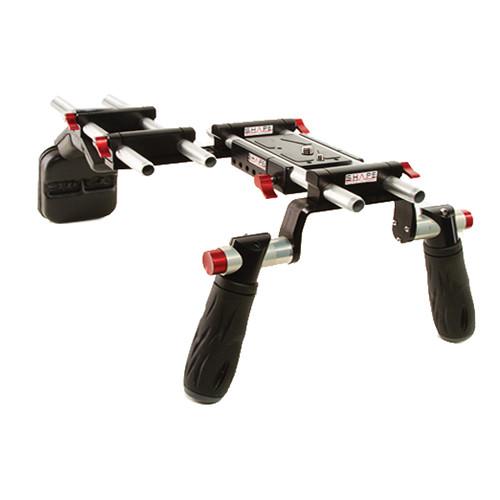

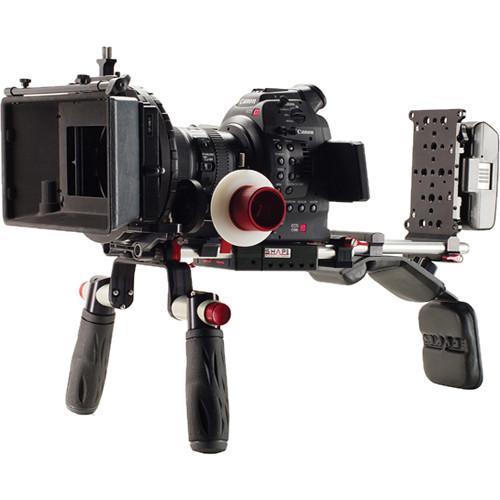

Product description The Shape Canon C100/C300/C500 Offset Rig is for handheld shooting and specifically designed to work with the Canon Cinema EOS line of cameras, using the included baseplate. The rig allows you to position your camera in front of your eyes, while supporting it with your shoulder. It includes Shape's C100/C300/C500 baseplate which features 15mm rod clamps with spring-loaded levers and 12" 15mm rods. The baseplate maintains the proper lens center to rod height for use with available rod mounted accessories. The included Quick Handle Rod Bloc is a rod mounted handgrip assembly that mounts to LWS 15mm rods. It features Shape's push button rosette release, which allow you to adjust the angle of the handgrips without having to remove your hands from the rig.
The offset bracket shifts the weight of the camera to your shoulder and provides rod brackets for attaching rods and the shoulder pad, as well as available accessories. The included Back Pad attaches to the back of the shoulder pad and features sliding height adjustment for your comfort and a 1/4"-20 threaded hole for mounting additional accessories. - Mini Composite Shoulder Pad
- OFFSET SHAPE RIG FOR CANON C100
The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into. UPC: 629266000830 - Baseplate for Canon C300 Camera The Shape C300 Baseplate is made specifically for the Canon EOS C300 Camera. This camera accessory provides a small, light setup solution expandable to a more elaborate setup. It features a pair of 15mm rods that are 12" long through the length of the baseplate.
This baseplate attaches underneath the camera with 4 x M4 screws or with 3/8”-16 and 1/4”-20 screws that are included. UPC: 629266001776 - Back Pad The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
- Compatible Support Series
-
- Composite
- Cameleon
- Sumo
- Spider
UPC: 629266001202 - Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle - Provides professional video stabilization with 2 handles
- Each handle offers 360° individual rotation
- Offers easy attachment/removal
Rod Block - Composed of anodized aluminum
- Offers composite camera support for all 15mm rods
- Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
- With 2 screw-threaded holes, the Rod Block provides for attachment of components
UPC: 629266000793 - 15mm Aluminum Rods (Pair, 10") This pair of Shape 15mm Aluminum Rods (10") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 10 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001707 - Off-Set Bracket for Blackmagic Cage The SHAPE Off-Set Bracket will fit on the SHAPE Blackmagic Cage and Shoulder Mount. UPC: 629266001462

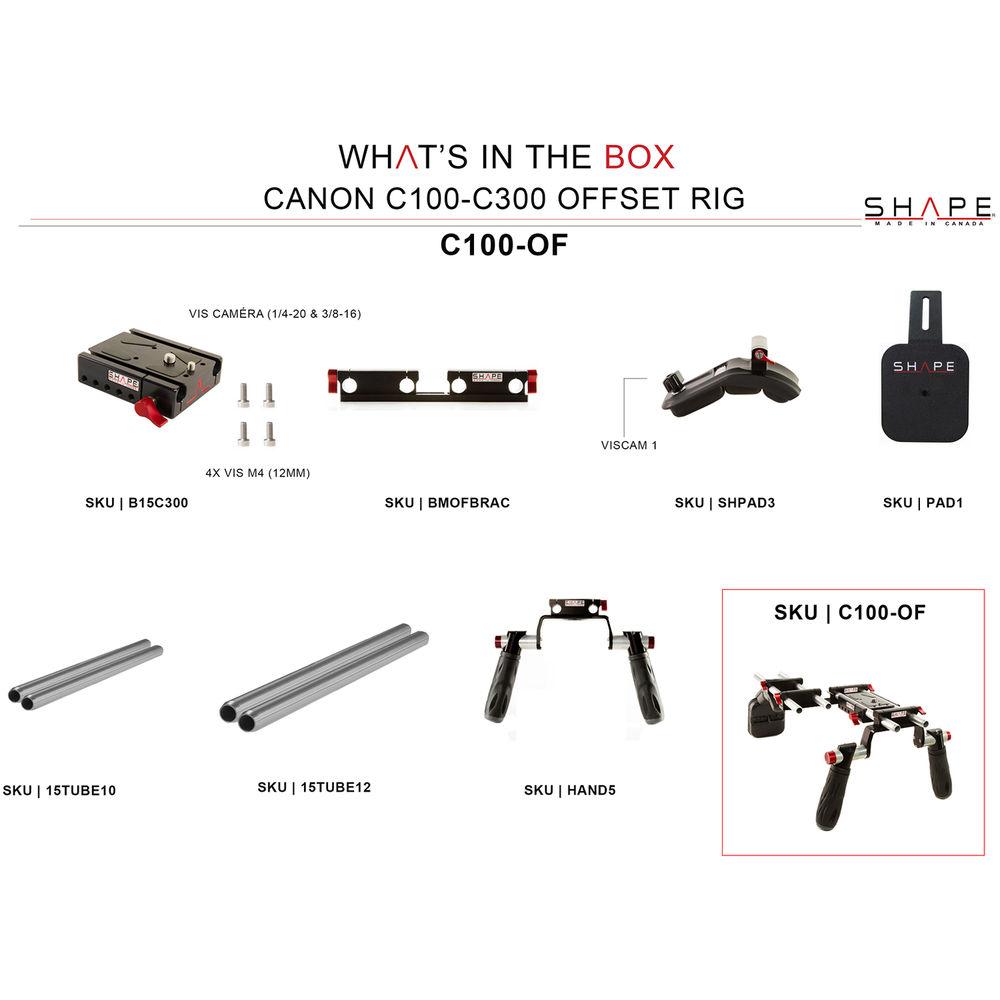

In the Box Bundle Items Mini Composite Shoulder Pad rxbaezryretyxqaccq - Camera Screw Knob (1/4"-20)
Baseplate for Canon C300 Camera - 3/8"-16 and 1/4"-20 Screws
- Limited Lifetime Warranty
Back Pad - Limited Lifetime Warranty
Quick Handle + Rod Block 15mm Aluminum Rods (Pair, 10") - Limited Lifetime Warranty
Off-Set Bracket for Blackmagic Cage - Limited 1-Year Warranty on Parts & Labor
Quick start Guide PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Canon C100 C300 C500 Offset Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mini Composite Shoulder Pad
| | | Box Dimensions (LxWxH) | 6.5 x 4.3 x 3.4" | - Baseplate for Canon C300 Camera
| | | Box Dimensions (LxWxH) | 11.7 x 9.3 x 2.7" | - Back Pad
| Material of Construction | Anodized aluminum | | Adjustments | Up/Down: 2" (5 cm)
Right/Left: 360° | | Weight | 0.5 lbs (0.2 kg) | | | | Box Dimensions (LxWxH) | 8.3 x 4.8 x 4.5" | - Quick Handle + Rod Block
| | | Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" | - 15mm Aluminum Rods (Pair, 10")
| Diameter | 15 mm | | Length | 10 inches (25.4 cm) | | Material | Aluminum with a clear finish applied over it | | | | Box Dimensions (LxWxH) | 12.0 x 3.4 x 0.4" | - Off-Set Bracket for Blackmagic Cage
| | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 2.3" |
